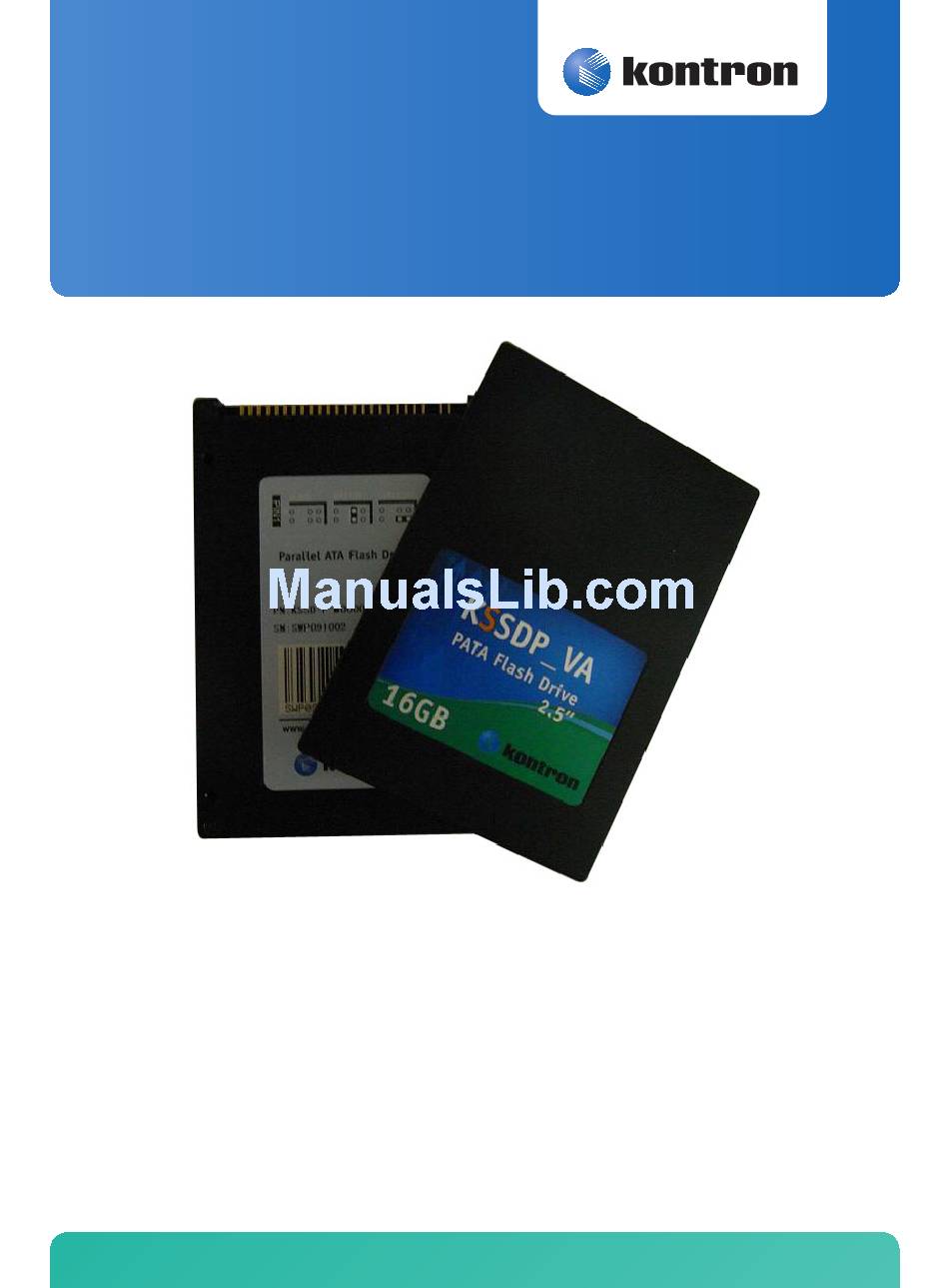

- Page 1 » Kontron User’s Guide « KSSDP-VA Document Revision 1.0 All not approved entries are marked!
- Page 2 This page intentionally left blank www.kontron.com...
-
Page 3: General Description
It uses SLC & MLC NAND flash memories chips as storage media which gives the better solution against shock and vibration problem than traditional hard disk drive, also KSSDP-VA series provide customized function modular options for special applications including industry wide operating temperature, data security and data encryption. -
Page 4: Physical Dimension
100.2 +/-0.3 Width 69.8 +/-0.3 Height 9.5 +/-0.3 Weigh 80 (Max.) 5. Product Specification 5.1 Interface The interface of Kontron P10P Series complies with the ATA-100. Transfer Mode: PIO: 0,1,2,3,4 UDMA: 0,1,2,3,4,5 5.2 Capacity Capacity Total Bytes 16,000,000,000 32,000,000,000 64,000,000,000... -
Page 5: Electrical Specification
Benchmarking software: HD TACH 3.0.1.0 5.4 Reliability 5.4.1 Wear-Leveling KSSDP-VA Series SSD applies Static, and Dynamic wear leveling algorithms to endure the NAND flash memory blocks under same wearing level. 5.4.2 ECC Building ECC ( Error Correction Code ) correct 6bits per 528 Bytes 5.4.3 Endurance... -
Page 6: Power Consumption
< 3 7. Data Purge Function Kontron Data Purge is an embedded security function which was designed to meet the needs of data security concerned applications such as defense and other special purposes. Data Purge delivers reliable hi-speed data clear and sanitization with user friendly interface and auto power failure resume function. - Page 7 KSSDP-VA provides customer standard sanitization procedure by overwriting “1” to all user data area after block-by-block erase. The SSD will be set back to factory default with full functions after “Sanitization”.
- Page 8 Pin Definition - PATA A dedicated 2 reserved pins connector was provided for trigger switch in KSSDP-VA： Pin A : Trigger Pin, 3.3V input, internal resistor pull-up, output was protected by series resistor. Pin A and Pin B are combined as a normal open type switch for purge trigger；...
-
Page 9: Environmental Specification
（3）An in-drive back-up power system have been provided as default, so the SSD can keep working well and auto resume during and after sudden power fail. Also Kontron provides customer option to enhance the back-up power by adding more extra back-up power which is strong enough to support the energy used for erase entire disk area in emergency. - Page 10 Operating -1000 - 15000 feet 9. Production ordering information 9.1 Ordering Part.-NO. Article Part.-No. Description KSSDP-VA KSSD-P-M000032-01A 2.5’’ IDE compatible 32GByte SSD with MLC Flash KSSDP-VA KSSD-P-M000064-01A 2.5’’ IDE compatible 64GByte SSD with MLC Flash KSSDP-VA KSSD-P-M000128-01A 2.5’’ IDE compatible 128GByte SSD with MLC Flash...
- Page 11 1. For updates or additional information about Kontron products, contact your nearest Kontron office. 2. Kontron products are not intended for use in life support, critical care, medical, safety equipment, or similar applications where products failure could result in loss of life or personal or physical harm, or any military or defense application, or any governmental procurement to which special terms or provisions may apply.
