CERTIFIED UNDER CANADIAN AND AMERICAN NA TIONAL STANDARDS, CSA 2.33, ANSI Z21.88 FOR VENTED GAS FIREPLACE HEA TERS
INSTALLATION AND OPERATION INSTRUCTIONS FOR:
NATURAL GAS MODELS
PROPANE GAS MODELS
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapours and liquids in the vicin-
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your build
ing.
Installation and service must be performed by a qualified installer, service

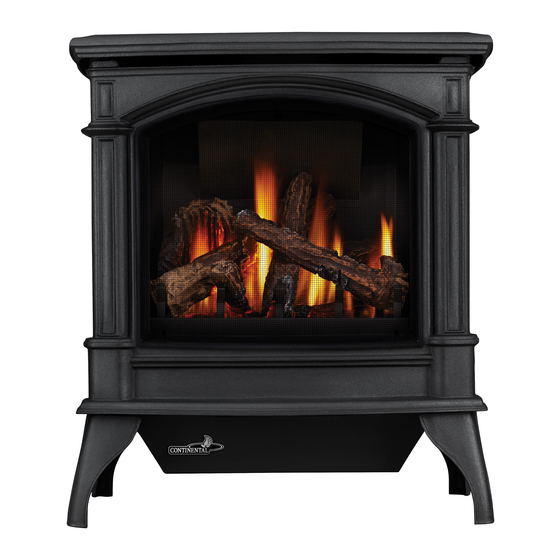

VENTED GAS FIREPLACE HEATER
CDVS600-N and CS600-N
CDVS600-P and CS600-P
Model CS600 is made up of Model CDVS600 and the Adapter Kit GS-150KT
FOR YOUR SAFETY
ity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Immediately call your gas supplier
• If you cannot reach your gas supplier,
agency or the gas supplier.
from a neighbour's phone. Follow the
gas supplier's instructions.
call the fire department.
1
W415-0162 / E / 03.05.04
