Sentex MINI-KEY Installation Instructions Manual page 6

Mag Locks
MAG LOCK
1N4001
Diode or
equiv.
DC POWER SOURCE
WARNING: In order to prevent voltage spikes generated by magnetic lock or DC powered strikes from
being induced into the system, it is strongly recommended that a 1N4001 diode be installed
across the magnetic lock coil, so that the cathode of the diode (the end with the band) is
connected to the positive connection of the coil and the anode is connected to the negative
connection of the coil.
For Dry Contact Closure (Most Gate Operators)
MOST GATE OPERATORS
(Dry Contact Closure)
1051F13
Relay 1: Connect as Shown.
Relay 2: Connect wires
to COM2 and NC2
+
+
2 / 18-22 AWG

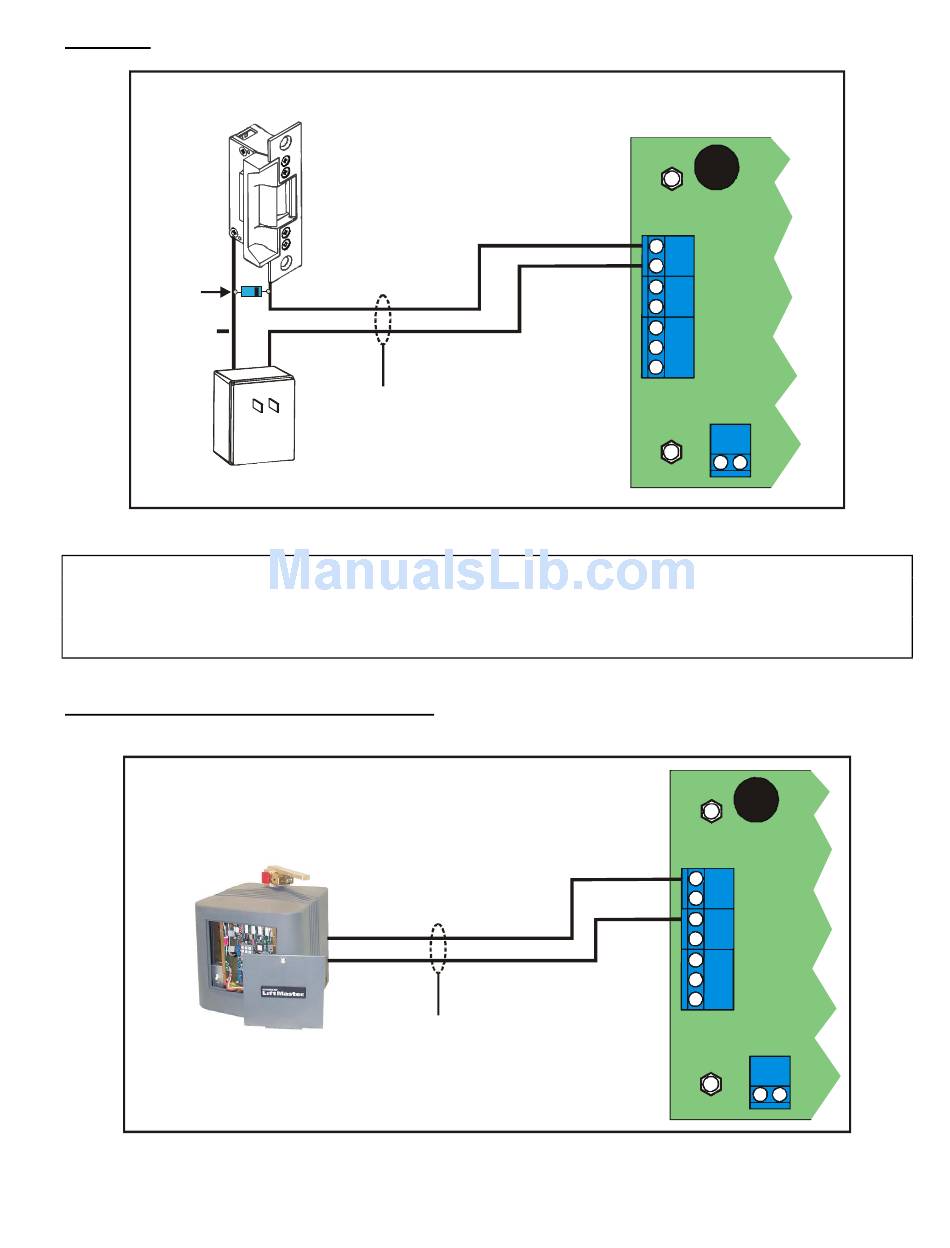

Figure 7: Mag Locks
Relay 1: Connect as Shown.
Relay 2: Connect wires
2 / 18-24 AWG
Figure 8: Dry Contact Closure Connections
Page 5 of 8
Doc 6001051, Rev C
TB1
to COM2 and NO2
COM1
NC1
COM2
NC2
1051F8
TB1
COM1
NO1
COM2
NO2
