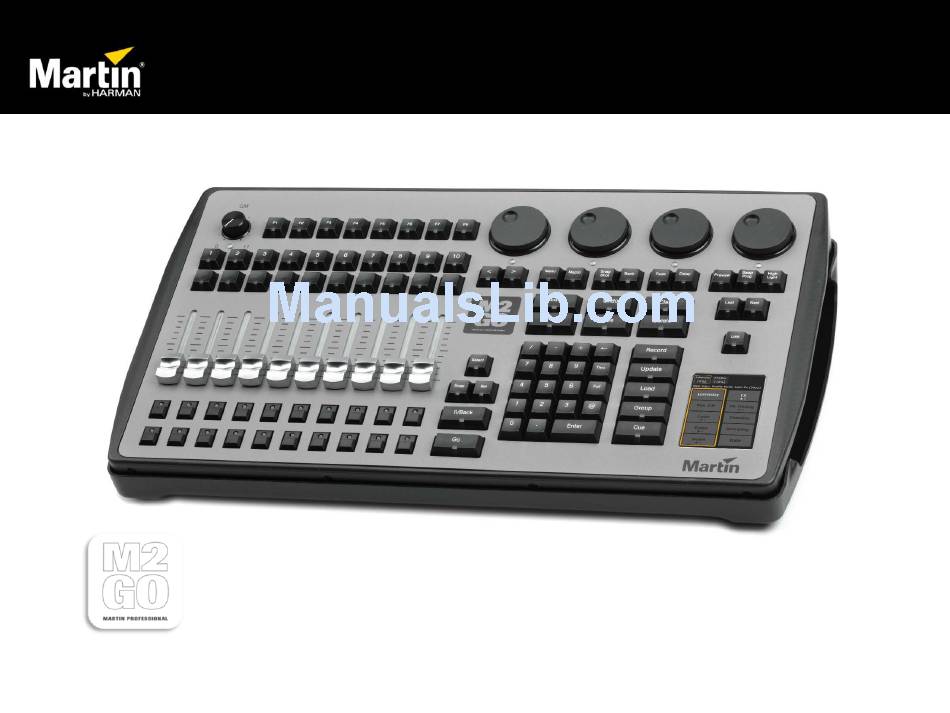

- Page 1 Martin Professional M2GO ...when it takes more than a wing to fly… M2GO Reference Guide Rev J...
- Page 2 Introduction Welcome to the Martin M2GO The newest member of the M-Series of controllers from Martin Professional Our smallest, most powerful console ever! 9/23/2013 M2GO...
- Page 3 M2GO …With a built-in processor, the M2GO only requires a touchscreen to obtain a fully working console NO EXTERNAL PC NEEDED… 9/23/2013 M2GO...
- Page 4 M2GO Powerful Lightweight Affordable 9/23/2013 M2GO...
-
Page 5: Filling The Gap
Filling the gap The missing piece is here …the M2GO is the result of listening to and understanding customer needs and Affordable yet has been developed with cost, powerful ergonomics, feature set, size and weight in mind… Listen & Understand... -
Page 6: M2Go Unique Features
M2GO unique features Built-in processor …sometimes it takes more than a wing to fly. The M2GO offers the best of both worlds. It has its own processor Small footprint while offering the smaller footprint of a typical console wing. Its rugged... -
Page 7: M2Go Key Features
M2GO key features Full M-Series software …using the same software as the M1 and other M-Series software, the 4 DMX ports M2GO offers 4 DMX ports and 10 playback faders each with 4 buttons… 10 Playbacks 9/23/2013 M2GO... -
Page 8: Built Like No Other
Built like no other Industrial components …M2GO components are industrial grade Meticulous and made to assembly endure the toughness of rental and touring… Unmatched quality / price 9/23/2013 M2GO... - Page 9 Performance Dual core …M2GO achieves processing its exceptional performance vs price ratio by using Efficient the latest technology and a communication small, efficient protocol dual-core processor. This results in faster communication Quick and snappy and a snappier user user interface interface…...
-
Page 10: Ease Of Use
Ease of use Software simplicity …the Martin M2GO is the easiest lighting console you will ever learn. Why? Because the Clean interface Martin M-Series software has been designed from the ground up with a single philosophy in mind - Logical commands simplicity…... - Page 11 Ergonomic Comfortable …comfortable, low profile design with proper spacing between faders and Nice layout buttons, a perfect balance of buttons, faders and encoder wheels… Direct access 9/23/2013 M2GO...
-
Page 12: Carry-On Anywhere
Carry-on anywhere Lightweight …because it is so small and lightweight, the M2GO can easily be moved by a single Portable person and can be conveniently carried onboard most airliners as carry-on luggage … Airport- friendly 9/23/2013 M2GO... - Page 13 It’s gray for a good dark. Under such reason… conditions, a black surface and black buttons don’t work well together. Even backlit keys can …it’s all about cause sight issues in such a dark contrast. environment… 9/23/2013 M2GO...
-
Page 14: Show File Compatibility
M1 or M-PC are fully compatible with the M2GO. The same goes for show files made M2GO on the M2GO - they will load properly on any M-Series product with the same or higher software M2PC M-PC version…... - Page 15 M2GO & DMX …the M2GO comes DMX / Artnet standard with a 4 Expansion Pack DMX universe un- locked. It can be expanded up to 8 universes with the M2GO Expansion Pack. Ether2DMX8 The Ether2DMX8 will also act as a...
- Page 16 Accessories Expansion pack for additional 2 DMX universes P/N 39808031 …in addition to the M2GO Expansion Pack, the M2GO can be expanded Optional PCB MIDI internal module with an internal P/N 91613038 MIDI module and an SMPTE Timecode module. Both are easy to Optional PCB SMPTE internal install…...
- Page 17 Accessories Additional Angular LED Desk lamp XLR 13” P/N 91613090 Additional M2GO Power Supply 12V 5A DC XLR4P P/N 91613100 M2GO Flightcase P/N TBA 9/23/2013 M2GO...
-
Page 18: Msd5 Mc Edition
MSD5 MC Edition …Once again, the 45-day Free Trial MSD MC edition professional 3D Visualizer is included with the M2GO… www.martinshowdesigner.com 9/23/2013 M2GO... -
Page 19: Marketing Material
Marketing material M2GO Video Click here Facebook page Click here M2GO leaflet Click here 9/23/2013 M2GO... - Page 20 Dimensions Depth: 300 mm • Width: 540 mm • Height: 99 mm • (with dust cover) Weight: 5.2 kg • 9/23/2013 M2GO...
-
Page 21: M2Go Specifications
• Assign a cue, cuelist or effect to any playback fader • 65000 presets for each group of functions (P/T, color, gobo, Dual mode M2GO or M2PC using the power switch • 100 playback banks, each containing 10 playbacks •... - Page 22 Playback buttons digital encoders with push function Grandmaster and Bump 3.5” touchscreen for parameter selection Main Playback section with freely programmable Main Go section 10 x 60mm faders and 40 Programming section with numerical buttons keypad, Command keys 9/23/2013 M2GO...
- Page 23 1 HMDI monitor output 2 RJ45 Network connections 1 XLR 3pin 12 volt desk lamps Optional MIDI In/Out Thru ports (optional) Optional 1 USB MIDI SMPTE SMPTE In/Out module (Optional) ports ports XLR-4 12 V Power in with switch 9/23/2013 M2GO...
-
Page 24: Additional Photos
Additional photos 9/23/2013 M2GO... -
Page 25: Touch Monitor For M2Go
Touch monitor for M2GO ELO Touch 2201L 22-inch Touchmonitor • It is available in two flavors -iTouch technology, very elegant for installation -IntelitouchPlus with a robust bezel, perfect for rental application Manufactured by Tyco Electronics • Highly recommended • Cost in average 500$ US •... -
Page 26: Transport Case
Transport case Seahorse SE-920 Case Thomann Bag ~75$ US ~20 Euro item no. 188915 Click on the images for more details 9/23/2013 M2GO... - Page 27 Martin Professional M2GO ...when it takes more than a wing to fly…...
