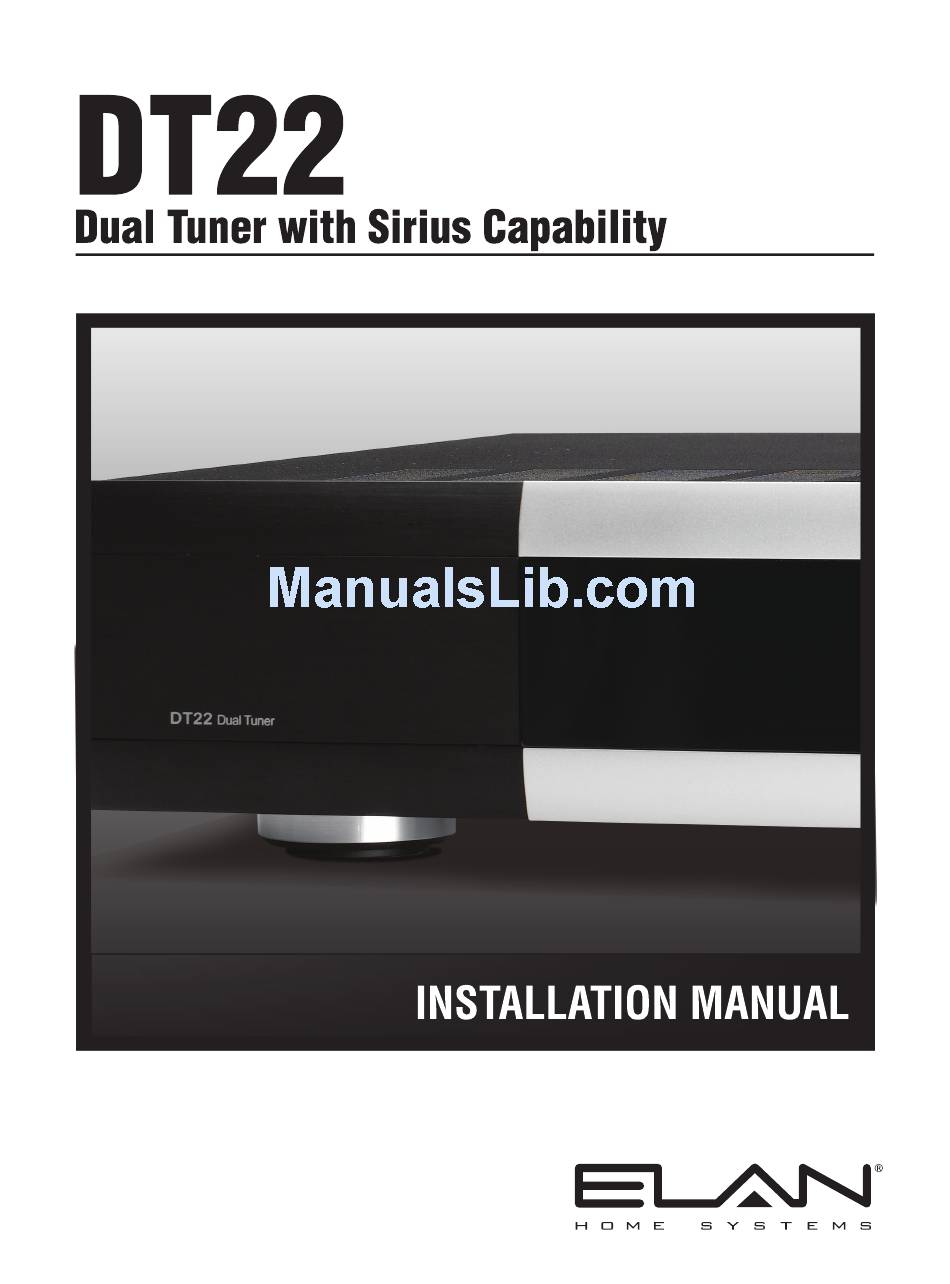

Elan DT22 Installation Manual

Dual am/fm tuner with sirius capability
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT22 and is the answer not in the manual?

Questions and answers

Related Manuals for Elan DT22

Summary of Contents for Elan DT22

  • Page 3 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus. Water— Do not use the apparatus near water. © ELAN Home Systems 2009 • All rights reserved. Page 3...
  • Page 4 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Elan Home Systems could void the user’s authority to operate the equipment. Page 4...

  • Page 5: Table Of Contents

    Remove Custom Text ......................... 29 Changing Genre ......................... 30 Removing Genre Override ......................31 Details ................................ 32 System Configuration ..............................33 Unit ID ............................... 33 LCD Settings .............................. 34 © ELAN Home Systems 2009 • All rights reserved. Page 5...
  • Page 6 Display On ................................. 59 Reboot ..................................59 Config ..................................60 Config RS232 Unsolicited Feedback On/Off ....................... 61 UFB On/Off (Unsolicited Feedback) ..........................62 Boot Version ................................63 Code Version................................63 Page 6 © ELAN Home Systems 2009 • All rights reserved.
  • Page 7 Category Mode Operation ............................73 Preset Mode Operation .............................. 74 Recalling Presets ............................... 74 Displaying SIRIUS Firmware Version and Product ID ....................74 Viewing DT22 Firmware Version ..........................74 © ELAN Home Systems 2009 • All rights reserved. Page 7...

  • Page 8: Intro

    VIA!NET and serial control. Two-way feedback, including station call letters, frequency, genre, song name and art- ist, can be displayed on any ELAN Touch Panel or Olé Interactive Touchpad without the use of an SS1, SC1 or SC4. With a 128 x 64 graphical LCD and front panel button access, the setup is easy. Through guided setup processes including Network and Ethernet to a full diagnostics menu that includes signal strength and SIRIUS signal detec- tion the DT22 allows the installation to be intuitive.
  • Page 9 SIRIUS Satellite Radio System. Service not available in Alaska or Hawaii. © ELAN Home Systems 2009 • All rights reserved. Page 9...

  • Page 10: Highlights

    • 396 Presets shared across 2 AM/FM Tuners plus 396 Presets shared across 2 SIRIUS Tuners. • Easy Setup and Diagnostics With Front Panel Buttons and Graphical LCD • View Radio Station & “Now Playing” RDS information on ELAN User interfaces (EM version VIA! panels only) •...

  • Page 11: Front Panel (Hard Buttons)

    Front Panel (Hard Buttons) DT22 Front Panel Controls & Indicators Item Name Item Name Tuner Select Button Power LED Mode Button Memory Button Navigation Arrows and Enter Button Access Door (Shown Open) © ELAN Home Systems 2009 • All rights reserved. Page 11...

  • Page 12: Front Panel Lcd

    Item# Function Item# Function Signal Indicator Station Frequency Stereo Indicator Custom Text Signal Strength Indicator Bar RDS Radio Text Tuner Mode Indicator Station Genre/Category Current Tuned Preset Preset/Direct/Category Mode Page 12 © ELAN Home Systems 2009 • All rights reserved.

  • Page 13: Rear Panel

    SIRIUS Tuner Module 2 Connection RS-232 Port AM/FM 1 Digital Audio Output VIA!NET Out AM/FM 2 Digital Audio Output IR OUT AM Antenna Connector Power Inlet/Fuse Holder FM Antenna Connector © ELAN Home Systems 2009 • All rights reserved. Page 13...

  • Page 14: Rack Mounting

    E L A N H O M E S Y S T E M S Rack Mounting When mounting the DT22 Tuner in an equipment rack, use the included Rack Mount Brackets for secure mounting and proper ventilation. The DT22 requires two rack spaces.

  • Page 15: Connections

    E L A N H O M E S Y S T E M S INSTALLATION MANUAL Connections The DT22 can be controlled using the 3.5mm (‘mini’) IR jack on the back panel. There is also an 3.5mm IR Loop Output jack included to connect to additional DT22s. S128P...

  • Page 16: Via!Net

    E L A N H O M E S Y S T E M S VIA!NET Use the VIA!NET ports when controlling the DT22 with ELAN Touch Panels, SC-1 Serial Controller, SS1 System Station and/or other VIA!NET devices. The VIA!NET ports on the DT22 can be daisy-chained between chassis and other VIA!NET devices.

  • Page 17: Ethernet

    VIA!NET Loop Connection Ethernet The ETHERNET port can be used to connect the DT22 to a LAN (Local Area Network) connection for Firmware Updates. It may also be used by supported software applications to communicate with the DT22. An Ethernet cable wired to T568A (or T568B) should be used in conjunction with this connection.

  • Page 18: Rca Audio

    E L A N H O M E S Y S T E M S RCA Audio Using RCA-type interconnect cables, connect all active tuner audio outputs to pairs of inputs on an ELAN preamp controller (e.g. S66A, S86A/P, S128P or to a stereo receiver). Make sure to connect Left channel outputs to Left channel inputs and Right channel outputs to Right channel inputs.

  • Page 19: Am Loop Antenna

    If standard FM broadcast frequencies are available via your cable service, you may connect your 75 ohm FM anten- na jack to your cable system. Please contact your cable service to discuss this option. © ELAN Home Systems 2009 • All rights reserved. Page 19...
  • Page 20 Analog Audio Out (not used) 8 Pin DIN -- Connects to DT22 Optical Connection DC 5V Rear Panel Connections Item Name 5 VDC power connection (not used) Satellite Antenna Connection Page 20 © ELAN Home Systems 2009 • All rights reserved.
  • Page 21 1. Power on DT22 to make sure the SIRIUS module has power. You should see a startup screen with the ELAN logo, followed by the main display. 2. Power off DT22, and then connect the audio cables, IR, and RS232 control interfaces to the other components in your audio system.

  • Page 22: Rear Panel Power Switch

    Rear Panel Power Switch The DT22 master power switch is located on the rear panel. The switch must be in the ON position to allow the tuner to operate. To reduce power consumption when away for extended periods of time, set the master switch to the OFF position.

  • Page 23: Front Panel

    A. TUNER • Switches between Tuner 1, Tuner 2, SIRIUS 1 and SIRIUS 2. • Press and Hold to turn the DT22 On or Off. B. MODE • Displays the Mode Menu on the LCD that allows settings - AM/FM, Preset/Direct/Stereo/Mono - to be changed using Arrow Up/Down buttons without the use of a remote.

  • Page 24: Mode Menu

    Preset Group D places the Tuner in Preset mode and changes the Tuner to Group D. No preset exists for the tuned frequency if “--” is displayed after the group, like it is in the following image “B--”. Page 24 © ELAN Home Systems 2009 • All rights reserved.

  • Page 25: Stereo/Mono

    The Stereo icon will be displayed when in Stereo mode and absent when in Mono mode. 1) Press the MODE button. 2) Highlight Stereo/Mono using the UP arrow or DOWN arrow buttons. 3) Press the ENTER button. © ELAN Home Systems 2009 • All rights reserved. Page 25...

  • Page 26: Saving Presets

    3) Highlight Edit using the UP arrow or DOWN arrow buttons to change the preset digits. 4) Press the ENTER button to commit the selection Edit, Save or Cancel. Deleting Presets 1) Select a preset that will be deleted. Page 26 © ELAN Home Systems 2009 • All rights reserved.

  • Page 27: Override

    3) Press the ENTER button to commit either Delete or Cancel. Override Change Custom Text The DT22 provides the ability to override a station’s Custom Text. 1) Ensure the Tuner is On. 2) Select a station whose Call Sign you want to change.
  • Page 28 3) Highlight Edit using the UP arrow or DOWN arrow buttons to change the Call Sign characters. 4) Press the ENTER button to commit either Edit, Save or Cancel. See next page for example Page 28 © ELAN Home Systems 2009 • All rights reserved.

  • Page 29: Remove Custom Text

    PRESET 100.1 PRESET Call Sign Genre EXIT 1) Highlight Remove Edits using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. See next page for example © ELAN Home Systems 2009 • All rights reserved. Page 29...

  • Page 30: Changing Genre

    Edit Remove Edits EXIT Changing Genre The DT22 provides the ability to change a station’s Genre. 1) Ensure the Tuner is On. 2) Select a station whose Genre you want to change. 3) Press the ENTER button. 4) Highlight Override using the UP arrow or DOWN arrow buttons.

  • Page 31: Removing Genre Override

    Edit Save Cancel Removing Genre Override The DT22 provides the ability to remove a station’s Genre Override. 1) Ensure the Tuner is On. 2) Select a station whose Genre Override you want to remove. 3) Press the ENTER button. 4) Highlight Override using the UP arrow or DOWN arrow buttons.

  • Page 32: Details

    Once the Enter button is pressed, the associated Genre Override is removed. Details If it is suspected that the DT22 has tuner performance issues, a diagnostic tool is provided to give feedback to the installer in conjunction with a troubleshoot call with ELAN Technical Support.

  • Page 33: System Configuration

    The DT22 can provide Two-Way feedback status over VIA!NET to Elan Control Panels without the use of a SC1, SS1 or SC4. The DT22 must be assigned an Unit ID when connected to the VIA!NET so it can be identified. There can only be two DT22s connected to the VIA!NET.

  • Page 34: Lcd Settings

    6) Press the ENTER button to commit either Edit, Save or Cancel. LCD Settings LCD settings can be changed to provide optimum readability in various lighting conditions. LCD Settings submenus: • LCD Timeout • LCD Contrast Page 34 © ELAN Home Systems 2009 • All rights reserved.

  • Page 35: Lcd Timeout

    1) Highlight Edit using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. 1) Press the UP/DOWN arrows to change the LCD Timeout time. See next page for example 2) Press the ENTER button when done. © ELAN Home Systems 2009 • All rights reserved. Page 35...

  • Page 36: Lcd Contrast

    1) Highlight Edit using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. 1) Press the UP/DOWN arrows to change the LCD Contrast. 2) Press the ENTER button when done. See next page for example Page 36 © ELAN Home Systems 2009 • All rights reserved.

  • Page 37: Lcd Brightness

    1) Highlight Edit using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. 1) Press the UP/DOWN arrows to change the LCD Brightness. 2) Press the ENTER button when done. See next page for example © ELAN Home Systems 2009 • All rights reserved. Page 37...

  • Page 38: Front Panel Ir

    2) Press the ENTER button. 1) Press the UP/DOWN arrows to Enable or Disable Front Panel IR. 2) Press the ENTER button when done. See next page for example Page 38 © ELAN Home Systems 2009 • All rights reserved.

  • Page 39: Rs232

    Baud Rate 1) Highlight Baud Rate using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. DT22 SETUP MENU RS232 SETTINGS Baud Rate Unsolicited Feedback EXIT © ELAN Home Systems 2009 • All rights reserved. Page 39...

  • Page 40: Unsolicited Feedback

    4) Press the ENTER button to commit either Edit, Save or Cancel. Unsolicited Feedback The DT22 can automatically send its status whenever its state changes. This is enabled by default. 1) Highlight Unsolicited Feedback using the UP arrow or DOWN arrow buttons.

  • Page 41: Ethernet

    Ethernet ZNet Configuration Type The Configuration Type settings menu allows the DT22 to be set to DHCP or Static IP Address. 1) Highlight Configuration Type using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. See next page for example ©...

  • Page 42: Static Parameters

    Static Parameters Static Parameters Menu submenus: • IP Address • Netmask • Gateway When STATIC is selected as a configuration type a hidden menu selection called Static Parameters appears. Page 42 © ELAN Home Systems 2009 • All rights reserved.
  • Page 43 1) Press the UP/DOWN arrows to change the IP Address digit. 2) Press the LEFT/RIGHT arrows select the next IP Address digit. 3) Press the ENTER button when done. © ELAN Home Systems 2009 • All rights reserved. Page 43...
  • Page 44 2) Highlight Save using the UP arrow or DOWN arrow buttons to save the change. 3) Highlight Cancel using the UP arrow or DOWN arrow buttons to revert the previous setting. 4) Press the ENTER button to commit either Save or Cancel. Page 44 © ELAN Home Systems 2009 • All rights reserved.

  • Page 45: Show Current

    Show Current Show Current displays the currently assigned IP Address, Mask, and Gateway. 1) Highlight Show Current using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button. © ELAN Home Systems 2009 • All rights reserved. Page 45...

  • Page 46: Znet Bridge

    ZNet. An Elan system containing at least one System SS1 or System SC1 will automatically convert the older ZNet feedback into VIANet feedback. However, in systems without a System SS1 or System SC1, the DT22 can provide this functionality, but must be manually enabled using this procedure.

  • Page 47: Region

    4) Press the ENTER button to commit either Edit, Save or Cancel. Region The DT22 can operate in the United States/North America or Europe/Asia. 1) Highlight Region using the UP arrow or DOWN arrow buttons. 2) Press the ENTER button.

  • Page 48: Version Info

    4) Press the ENTER button to commit either Edit, Save or Cancel. Version Info The Version Info screen shows what version of firmware the DT22 is currently running. 1) Highlight Version Info using the UP arrow or DOWN arrow buttons.

  • Page 49: Restore Defaults

    SETUP MENU Ethernet ZNet Region Version Info Restore Defaults 1) Press the UP/DOWN arrows to select the type of Yes/Reboot or No/Cancel. 2) Press the ENTER button when done. © ELAN Home Systems 2009 • All rights reserved. Page 49...

  • Page 50: Remote Control Operation

    A. POWER ON Turns the DT22 ON. B. DIRECT Button Places the DT22 into Direct mode, allowing the user to use the 0-9 numeric buttons to directly enter a channel’s frequency. C. AM Button Selects AM on the selected tuner.
  • Page 51 Verify or confirm an intended operation or function. T. 0-9 Numeric Buttons These buttons are used for direct station access and recalling presets. U. OFF Button Turns the DT22 OFF. © ELAN Home Systems 2009 • All rights reserved. Page 51...

  • Page 52: Troubleshooting

    5. Speakers or 5. Test known good speaker/volume control at amplifier. volume controls miswired or defective. 6. Zone audio 6. Verify connections. output(s) connected to wrong amplifier input(s). Page 52 © ELAN Home Systems 2009 • All rights reserved.
  • Page 53 Check IR receivers for ambient light or source or plasma TV flooding. zone control from IR control- ler (keypad, hand- held remote, etc.). IR LED flickers or is lit constantly. © ELAN Home Systems 2009 • All rights reserved. Page 53...
  • Page 54 VIA!NET controller (VIA! 2. VIA!NET signal path wir- Verify VIA!NET wiring. Touch Panel, etc.). ing bad. Incorrect source Incorrect system Verify/correct programming. and/or zone commands programmed. selected. Page 54 © ELAN Home Systems 2009 • All rights reserved.

  • Page 55: Technical Support

    Technical Support If, after carefully following the steps in the Troubleshooting section, you are unable to resolve issues with the installation or operation of the DT22, please call ELAN Technical Support at 1-800-622-ELAN (3526). © ELAN Home Systems 2009 • All rights reserved.

  • Page 56: Appendix A Specifications

    DT22 INSTALLATION MANUAL E L A N H O M E S Y S T E M S Appendix A Specifications Table A-1 shows the equipment specifications for the DT22 Multi-Room Integrated Controller. DT22 Specifications Item Description Control Ports IR In/Out (2) 3.5mm jacks...

  • Page 57: Appendix B: Serial Protocol

    All responses and unsolicited notifications will be terminated by carriage return only. Unsolicited Feedback notifications This is feedback that the DT22 automatically transmits whenever its state changes. The <COMMAND> section will state if a response will be sent unsolicited or not.

  • Page 58: Dump Command Structure

    Commands which are not understood will be ignored, and no response will be generated. The ACK response will look like this: *DT,dd,ACK<cr> Power On/Off/Toggle Command: &DT,CH,POWER,ON<cr> Function: Turns DT22 on. Command: &DT,CH,POWER,OFF<cr> Function: Turns DT22 off. Command: &DT,CH,POWER,TOGGLE<cr> Page 58 © ELAN Home Systems 2009 • All rights reserved.

  • Page 59: Select

    Queries the currently selected tuner. This response is sent as unsolicited feedback. Response: *DT,CH,SELECT,R1<cr> *DT,CH,SELECT,R2<cr> Display On Command: &DT,CH,DISPLAY,ON Function: Turns on the LCD backlight. Reboot Command: &DT,CH,REBOOT<cr> Function: Reboots the DT22. © ELAN Home Systems 2009 • All rights reserved. Page 59...

  • Page 60: Config

    Outputs the current override information stored in the unit. The information is in a sentence format. Config Dump Query: &DT,CH,CONFIG,DUMP<cr> Function: Outputs the current configuration stored in the unit. The information is in an XML format. Page 60 © ELAN Home Systems 2009 • All rights reserved.

  • Page 61: Config Rs232 Unsolicited Feedback On/Off

    Sets all configuration to the factory defaults. Unit ID Command: &DT,CH,CONFIG,UNITID,x<cr> x = 1, 2 Function: Sets the unit ID of the DT22. DT22 must be rebooted for change to take effect. Query: &DT,CH,CONFIG,UNITID,?<cr> Function: Queries the current ID of the DT22. Response: *DT,CH,CONFIG,UNITID,1<cr>...

  • Page 62: Ufb On/Off (Unsolicited Feedback)

    Function: Sets DEFAULT state of unsolicited feedback to the RS232 port to on. Whenever power is turned off and on, unsolicited data is set to On if this command was sent to the DT22 prior to turning off. Use UFB On/Off command if unsolicited data needs to be changed during operation.

  • Page 63: Boot Version

    Toggles the DT22 from Preset to Direct or from Direct to Preset. Command: &DT,dd,MODE,TOGGLE<cr> dd = ST, S1, S2 Function: Toggles the DT22 from Preset to Category or from Category to Direct or from Direct to Preset. Query: &DT,dd,MODE,?<cr> © ELAN Home Systems 2009 • All rights reserved. Page 63...

  • Page 64: Digit

    = ST, R1, R2, S1, S2 g = A, B, C, D Function: Selects a preset group on the desired tuner. Changing preset groups will likely cause the current station to change. Query: &DT,dd,GROUP,?<cr> Page 64 © ELAN Home Systems 2009 • All rights reserved.

  • Page 65: Preset

    *DT,R1,PRESET,15<cr> (Tuned to preset 15 in current group) *DT,R1,PRESET,0<cr> (Not tuned to a preset now) Command: &DT,dd,PRESET,mm<cr> dd = ST, R1, R2, S1, S2 mm = 1 - 99 Function: Tunes to preset mm. Command: &DT,dd,PRESET,SAVE<cr> © ELAN Home Systems 2009 • All rights reserved. Page 65...
  • Page 66 = ST, R1, R2, S1, S2 Function: Begins deleting the current tuned preset. ENTER command is required to delete. If no preset is tuned, nothing is deleted. &DT,R1,PRESET,DELETE<cr> &DT,R1,ENTER<cr> Page 66 © ELAN Home Systems 2009 • All rights reserved.

  • Page 67: Mdf (Metadata Feedback)

    Query the current long station / channel name / PS. This response will also be sent as unsolicited feedback. In North American this may duplicate RT data. Response: *DT,R1,L,98.1 The Bull - WKQQ<cr> © ELAN Home Systems 2009 • All rights reserved. Page 67...

  • Page 68: Signal

    = ST, R1, R2, S1, S2 Function: Query the current signal level. Signal level from 0 to 100 percent. This response will also be sent as unsolicited feedback. Page 68 © ELAN Home Systems 2009 • All rights reserved.

  • Page 69: Scan

    Query: &DT,dd,BAND,?<cr> dd = ST, R1, R2 Function: Query the currently selected band of the desired tuner. This response will also be sent as unsolicited feedback. Response: *DT,R1,BAND,AM<cr> *DT,R1,BAND,FM<cr> © ELAN Home Systems 2009 • All rights reserved. Page 69...

  • Page 70: Tune

    Actual step size depends on band, region and SIRIUS subscription. Query: &DT,dd,TUNE,?<cr> dd = ST, R1, R2, S1, S2 Function: Request the currently tuned frequency/channel number. This response will also be sent as unsolicited feedback. Page 70 © ELAN Home Systems 2009 • All rights reserved.

  • Page 71: Seek

    If stereo signal is not preset, this will do nothing. Switching stations will clear this request. Query: &DT,dd,STEREO,?<cr> dd = ST, R1, R2 Function: Query whether current station is playing in stereo. © ELAN Home Systems 2009 • All rights reserved. Page 71...

  • Page 72: Appendix C: Adding Sirius Radio Functionality

    1) Refer to the instructions included with the Sirius tuner module (sold separately) for detailed installation information. 2) Connect the Sirius tuner module to the DT22/11 using the 8 pin DIN cable supplied with the tuner. Displaying the signal strength meter Using the front panel buttons;...

  • Page 73: Selecting The Sirius Tuner

    E L A N H O M E S Y S T E M S INSTALLATION MANUAL Choosing Sirius tuner 1 or 2 (DT22 only) from the front panel 1) Press TUNER repeatedly until Sirius 1 or Sirius 2 is displayed...

  • Page 74: Preset Mode Operation

    Up/Down arrows select the previous/next station Storing a preset (A,B,C,D) The DT22 allows for up to 396 Sirius presets that are shared across both tuners. These presets are identified as A01 – A99, B01-B99, C01 – C99, and D01 – D99.
  • Page 75 OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. © ELAN Home Systems 2009 • All rights reserved. Page 75...

  • Page 76: Limited Warranty

    ELAN in writing, ELAN shall repair or replace the item at the company’s option. This warranty shall not apply (a) to equipment not manufactured by ELAN, (b) to equipment which shall have been installed by other than an ELAN authorized installer, (c) to installed equipment which is not installed to ELAN’s specifications, (d) to equipment...
