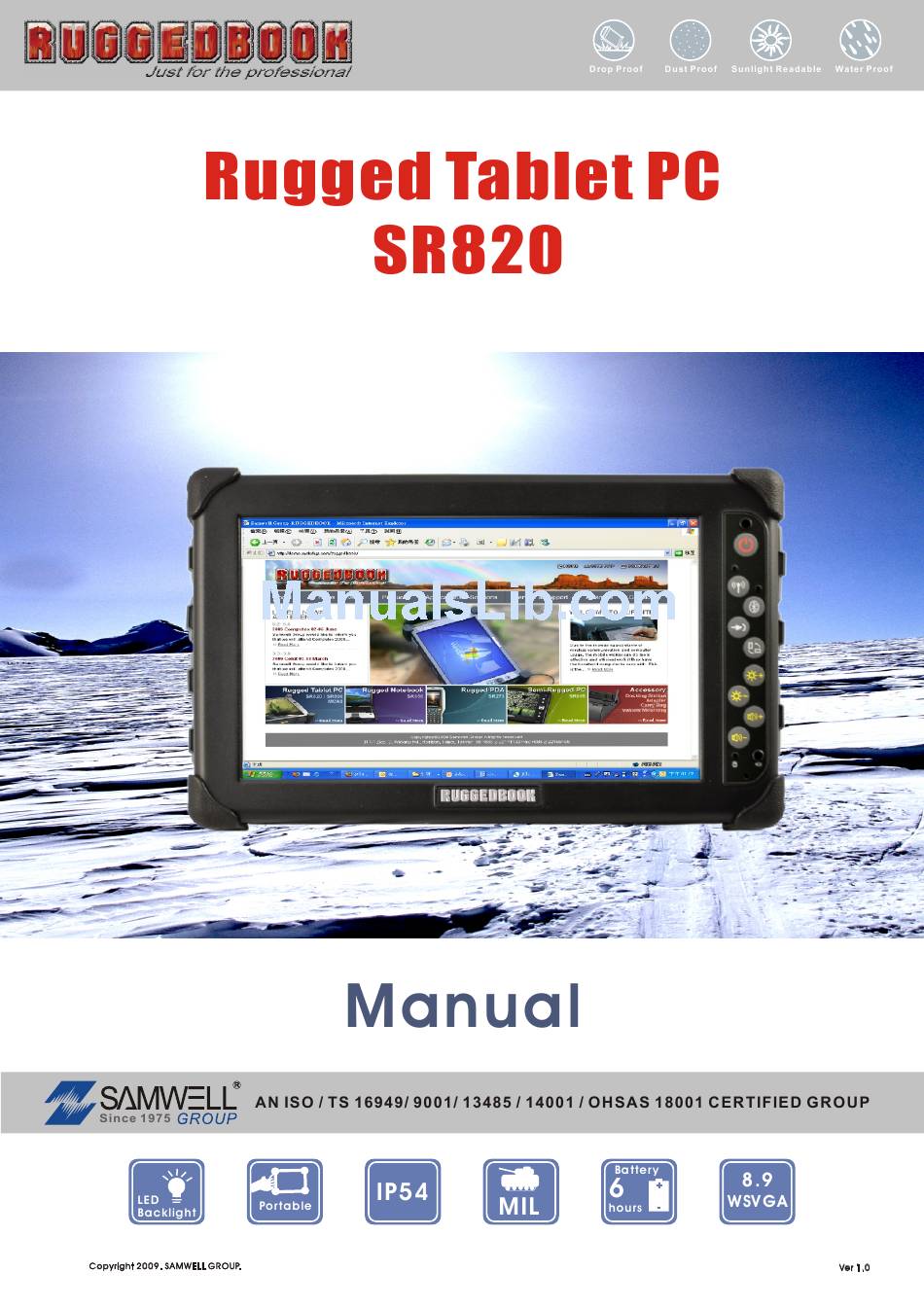

RuggedBook SR820 Manual

Rugged tablet pc
Hide thumbs Also See for SR820:
Table of Contents

Advertisement

Quick Links

See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RuggedBook SR820

Summary of Contents for RuggedBook SR820

  • Page 3: Chapter 1 - Introduction

    Chapter 1 - Introduction Getting Started Congratulations on your purchase of this Tablet PC. The Tablet PC is a fully functional Tablet PC with built-in LAN, and wireless connectivity. Therefore its’ capable to organize and access important business and personal information with excellent efficiency.

  • Page 4: Safety And Maintenance

    Safety and Maintenance You can use your Tablet PC under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your Tablet PC: Follow all warnings and instructions noted in this documentation and in the Windows Help program.

  • Page 5: Check Lists

    After opening the package, carefully inspect the contents. If any of the items is missing or appear damaged, contact your dealer. The shipping carton should contain the following: SR820 x 1 Accessory BOX x 1, included: a. Battery x 1 b.

  • Page 6: Software Support

    High Performance Processors ® Intel Atom Z530P 1.6GHz Processor, 512KB L2 Cache Overview SR820 is a versatile Tablet PC equipped with 8.9” TFT LCD, and adopts ® ® the latest Intel ATOM Z530P industrial grade processor with Intel US15WP SCH chipset. It also meets IP 54 environmental rating protection requirement, and is well protected by four rounded rubber bumpers.

  • Page 7: Wwan Function (Optional)

    Chapter 1 - Introduction WWAN Function (Optional) You can use your own SIM card and also purchase our 3.5G module to setup your high-performance WWAN network. Please connect our sales for this optional function. GPS Function (Optional) You can purchase our GPS module to set your GPS function up. You can also purchase third-party GPS navigation program to arrange in a group to use.

  • Page 8: Where To Look For Information

    Where to Look for Information About Your Tablet PC This User’s Manual describes the key elements of your Tablet PC. New users can find a simple step-by-step orientation in the Quick Start section of this chapter. About Windows Help and Support are available at the Windows XP Tablet Edition Start menu, offers extensive Windows assistance.

  • Page 9: Quick Start

    Chapter 1 - Introduction Quick Start Install and change battery at your Tablet PC ______________________________________ 1. Remove the screws on the battery cover at bottom side of your Tablet PC and open the battery cover. 2. Remove the water-proof rubber on top of battery pack. 3.
  • Page 10 5. Put the battery cover back and lock the screws to the battery cover. Turn on the Tablet PC for the first time 1. Connect the AC adapter to SR820 2. Connect the AC adapter power cord to the AC adapter.

  • Page 11: Load Windows (Bundle Os Model Only)

    Chapter 1 - Introduction Load Windows (Bundle OS model only) The following section is for installing the Windows operating system only. If you are installing a different operating system, please check with your vendor for installation details. After the Start Wizard updates your system settings, the Welcome to Windows screen will appear.

  • Page 12: Adjust The Volume

    Adjust the Volume You can adjust the volume with Hot keys on front panel: : volume up : volume down Alternatively, you can adjust the volume with the Windows volume control applet located on the taskbar.

  • Page 13: Adjusting The Brightness

    Chapter 1 - Introduction Adjusting the Brightness Use the Hot keys on front panel to adjust the LCD panel brightness: : increases the brightness : decreases the brightness Turn off Your Tablet PC Turning off the Tablet PC properly is important to maintaining your Tablet PC.

  • Page 15: Hardware And Software

    Chapter 2 —Getting Started Hardware and Software This chapter introduces the different components and controls of your Tablet PC, including the hardware components, the software, and the audio and video systems. Getting Started Before you begin using your Tablet PC, read this chapter to familiarize yourself with the main components installed in the system.

  • Page 16: Dc Power Jack

    1. DC Power Jack Connect the Adapter connector to DC Power Jack. 2. RJ-45 LAN port With the built-in Ethernet LAN combo, you can make LAN connections without installing PC cards. Connection speed is 10/100/1000 Mbps. When using the LAN function, wrap your LAN cable around the EMI ferrite suppression box to inhibit electromagnetic interference.
  • Page 17 Chapter 2 —Getting Started ※ Please see the Hotkey Table section at Page 20...
  • Page 18 15. RS232 Port The RS232 port can transmit data using the DB9 cable, and send and receive faxes at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed for this system. 15. Barcode Scanner (Optional) There is a Barcode Scanner function for your second choice, the detail information please see Chapter 5 16.

  • Page 19: Battery Bay

    Chapter 2 —Getting Started 18. Battery Bay Install Battery into the Battery Bay 19. Camera Please see the camera item at Chapter 5 page 49 20. Stylus Bay Put your stylus at Stylus Bay. 21. Heat Flow Hole There has a heat sink inside 22.

  • Page 20: Led Status Indicators

    LED Status Indicators The LED Status Indicators show which power source the system is using. They also show battery status and low battery power alerts. Icon Light Description Blue Power on Orange blinking System save to RAM Orange Battery is charging Battery is discharged Low battery capacity Red blinking...

  • Page 21: Hot Keys

    Chapter 2 —Getting Started Hot Keys The hot keys are unique features of your Tablet PC. The function as follows: Hot key Function Power ON/OFF switch Implement Secure Attention Sequence(SAS), same as Ctrl+ Alt+Del Rotate the working screen Volume up Volume down Switch Wireless LAN ON/OFF Switch Bluetooth ON/OFF...

  • Page 22: Solid State Disk(Ssd)

    Stylus You can use the stylus to replace a mouse when using SR820. Store the stylus in the stylus bay when it not in use. Storage a. Solid State Disk(SSD) The SSD disk provides high performances even after violent shake, high temperatures.

  • Page 23: The Sd Card Slot

    Chapter 2 —Getting Started The SD Card Slot Your Tablet PC includes card slot which supports SD Card. Before you find out the SD card slot, you need remove battery pack first. Then you will see the SD card slot like below picture: Note: Please read the instructions included with individual PC cards.

  • Page 24: Sim Card Slot

    SIM Card Slot This system has a SIM card slot supported. User can also purchase 3.75G WWAN module to setup your own WWAN network. Before you insert your SIM card into the SIM card slot, please remove battery pack first. Then you will find out the SIM card slot like below picture:...
  • Page 25 Chapter 3 - Power Management...

  • Page 26: Power Management

    Power management With Windows XP Tablet Edition™, power consumption may be reduced through ‘Power plans’. This tool controls the interaction between hardware and system settings that manage how the computer uses energy, therefore the battery life and system performance can be balanced as well as enhanced. Checking the Battery Level ®...

  • Page 27: Adjust The Power Plan

    Chapter 3 - Power Management Adjust the power plan As shown, power plan has been specified as Balanced, Power saver and High performance, each has parameters those may be customized to fit individual circumstances as requirements of users. 1. Click the Start button>Control Panel>Power Option>Edit Plan Settings. (System route may differ from your machine) 2.

  • Page 28: Sleep Power State

    Sleep power state Sleep is a new power state in Windows XP Tablet Edition. This mode allows the computer to retain its workload in a minimum usage of energy as standby. While when user returns, the work can be easily resumed no matter where it stopped. Advantages of sleep state: - All the works, with information of programs those are currently in use will automatically be saved to the hard-disk.

  • Page 29: Battery Charging

    Chapter 3 - Power Management Battery Charging When you use the AC adapter to connect your Tablet PC to a power outlet, the internal battery will automatically begin to recharge. While the battery is charging, the Battery Charge icon on the Indicator panel will be active. When the battery is fully charged, the Battery Charge icon will turn off.

  • Page 30: When To Replace The Battery

    When to Replace the Battery Over time, the battery's capacity gradually decreases. We recommend to replace your battery when you notice that it begins to store significantly less charge. Changing the Battery Change the main battery pack as follows: 1. Unlock the screws on battery cover and remove the battery cover, and remove the water-proof rubber under battery pack.

  • Page 31: Thermal Considerations

    Chapter 3 - Power Management Thermal Considerations The Tablet PC processor has been specially designed to consume little power and generates less heat. However, working in a hot environment, or working for long periods may raise the temperature. If the temperature continues to rise, processor activity will be reduced.

  • Page 33: System Software

    Chapter 4 System Software System Software Software List Operating System Your hard drive already contains all the software that you need to operate the Tablet PC. Drivers These utility programs and drivers contain the PC Card drive, the sound system, and the graphics sub-system. System Recovery Before you start If you reinstall your operating system, all of the data originally on the...
  • Page 34 Connect an external USB CD/DVD-ROM to SR820 machine. Put the service DVD into the DVD-RW and turn-off system. Press power button to turn on the system, then press “Del” key to enter BIOS setup menu. Move to Advanced BIOS Features setup menu and set DVD ROM to priority 1st, HDD to priority 2nd, then put recovery DVD into DVD- ROM .Save and exit BIOS setup menu to reboot system.
  • Page 35 Chapter 4 System Software When system reboot via DVD-ROM and see the message like below picture, you can: a. If you want to execute recovery OS, please type “Y” and press “enter” key, but data on the current partition will be deleted. b.
  • Page 36 Option 1(or 2, 3): Recovery system via the original partition Option 4(or 5, 6): Recovery system with re-partition the current hard disk Option 7: Quit the recovery asking If your system language is Italian / Chinese-Simplified / Chinese- Traditional, please follow below picture to go on this step:...
  • Page 37 Chapter 4 System Software If you choose “1(or 2, 3)” to run recovery system, please wait for program running. After seeing below message “Press any key to reboot system”, you can remove service DVD from DVD-RW and press any key to reboot system If you choose “4(or 5, 6)”...
  • Page 38 If your system language is Italian / Chinese-Simplified / Chinese- Traditional, please follow below picture to go on this step: When restore operation completed, the system will show below picture. After seeing below message “Press any key to reboot system”, you can remove the service DVD from DVD-ROM and press any key to reboot system.
  • Page 39 Chapter 5 - Utilities and Communication devices...

  • Page 40: Utility List

    Tablet PC. Bluetooth WLAN Barcode Scanner Camera WWAN Caution: All of the utilities on SR820 Tablet PC have authorization to use, but only for your test, SAMWELL will not preside over any other third-party programs or software.
  • Page 41 Chapter 5 - Utilities and Communication devices Bluetooth Your SR820 Tablet PC is equipped with a Bluetooth device. By using the Bluetooth function you can eliminates the need for cables to connect with other Bluetooth device. Features Fully qualified Bluetooth v2.1 system...
  • Page 42 Using Bluetooth After you turn on the Bluetooth function via press the Bluetooth button on front panel: 1. From Desktop: By double click “My Bluetooth Places” icon on the desktop. 2. From Taskbar: By double click “My Bluetooth Places” icon on the taskbar.
  • Page 43 Chapter 5 - Utilities and Communication devices WLAN SR820 Tablet PC is equipped with a WLAN module. By using the WLAN function you can eliminates the need for cables to connect to the network. Features Compliant with the IEEE 802.11n standard and compatible with the IEEE 802.11b/g standard...
  • Page 44 WLAN Utility Microsoft provides a utility “Wireless Network Connection” that you can search for the available wireless networks and set up wireless network configuration. Using WLAN After turn on the WLAN function via Hotkey on the front panel: 1. From Taskbar: By double click “Wireless Network Connection” icon on the taskbar.
  • Page 45 Chapter 5 - Utilities and Communication devices 2. From Start Menu: By double click “Wireless Network Connection” icon on “Start\ Settings\ Network Connections\ Wireless Network Connection”. Functions 1. Search for the available wireless networks 2. Connect with a wireless network 3.
  • Page 46 SR820 Tablet PC is equipped with a GPS module. You can install GPS navigation software to start navigating. Features 50-channel u-blox 5 engine with over 1 million effective correlators <1 second Time To First Fix for Hot and Aided Starts -160dBm SuperSense®...
  • Page 47 Chapter 5 - Utilities and Communication devices 1. TomTom Web site :http://www.tomtom.com/ 2. Destinator Web site :http://www.intrinsyc.com/...

  • Page 48: Barcode Scanner

    Barcode Scanner SR820 Tablet PC is equipped with a barcode scanner module. Features Large working range Small and light scan engine 100 scans per second Scanning speed delivers aggressive performance and accurate capture of all bar codes — even damaged and poor-quality.
  • Page 49 Chapter 5 - Utilities and Communication devices Bookland EAN (Disable) Code 128 (Enable) Code 39 (Enable) Code 93 (Disable) Code 11 (Disable) Interleaved 2 of 5 (Enable) Discrete 2 of 5 (Disable) Chinese 2 of 5 (Disable) Codebar (Disable) MSI (Disable) RSS (Disable) Utility You can use “Scan Engine Demo”...

  • Page 50: Camera Module

    Camera Module Your SR820 Tablet PC is equipped with a camera module. You can use utility what bundled with Windows XP Embedded to take picture and review. Beside you can use the camera module as a web camera so you can use instance message software to talk and watch whom you are connecting to.
  • Page 51 Chapter 5 - Utilities and Communication devices 2. Click “Get pictures from camera or scanner”. Then you can see below message 3. Click “Next” button. Then you can enter “Scanner and Camera Wizard”.
  • Page 52 Appendix - Statements...

  • Page 53: Federal Communication Commission Interference Statement

    Appendix Statements Statements Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits designed provide reasonable protection against harmful interference in a residential installation.

  • Page 54: Safety Caution

    This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Federal Communication Commission (FCC) Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C.

  • Page 55: Caution For Adapter

    Appendix Statements CAUTION FOR ADAPTER This tablet pc is for use with model adp-36ch BATTERY CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

  • Page 56: W/Detachable Antenna

    In order to comply with SAR limits established in the ANSI C95.1 standards, it is recommended when using a device that the integrated antenna is positioned more than 1.5cm from your body or nearby persons during extended periods of operation. If the antenna is positioned less than 1.5cm from the user, it is recommended that the user limit the exposure time.

  • Page 57: Laser Safety Statement

    Appendix Statements Laser Safety Statement The SE950 and SE955 scan engines offer integrators a significant advantage in both reduced time to market and simplified regulatory testing and approvals. The engines contain a full suite of host independent fault protection mechanisms and have been proven to stay within classification during operation and single fault conditions as required by EN/IEC 60950.* Because this testing was performed by an independent accredited laboratory, integrators placing the engine in...
  • Page 58 • Upon request, Symbol will also provide copies of the UL Recognition report and/or the European and CB Scheme EN/IEC 60950-1 report to your laser/product safety test laboratory upon receipt of a standard NDA agreement signed by both the lab and Symbol. Note that some specialty markets such as medical, military, or other specialty markets may have more specialized regulatory controls, and may require additional tests to be performed.
