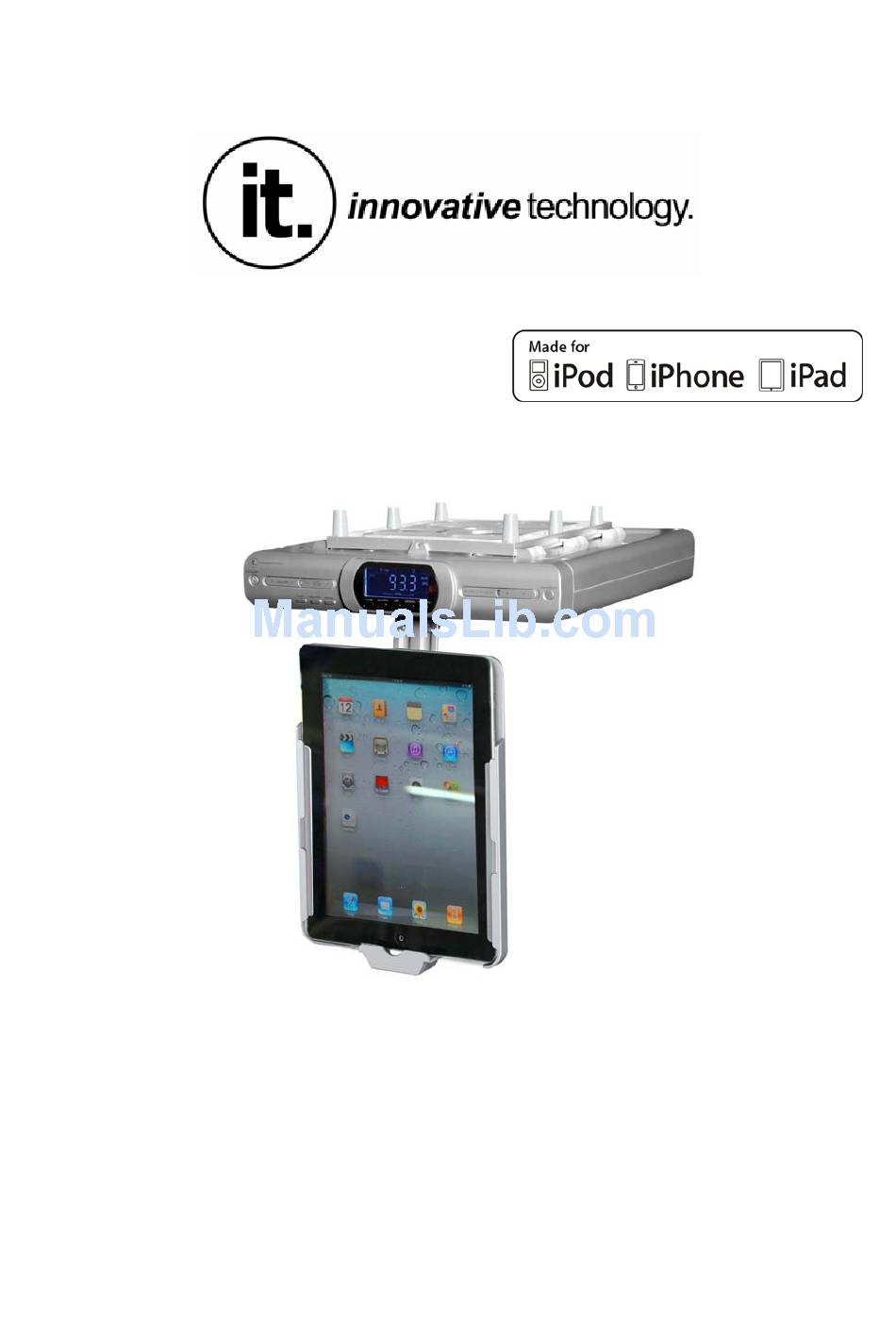

- Page 1 Model: ITIU‐760 Under‐Cabinet Dock Designed For iPad KEEP THE MANUAL FOR FUTURE REFERENCE. 1 ...
-
Page 2: Table Of Contents
Table of Content IMPORTANT SAFETY INSTRUCTIONS .......................... 3 COPYRIGHT ................................ 4 BUTTONS AND CONTROLS ............................ 5 REMOTE CONTROL UNIT ............................ 8 UNDER MOUNTING THE UNIT ........................... 9 CONNECT THE POWER CABLE .......................... 10 SET THE CLOCK ................................. 10 SET THE COUNT DOWN TIMER .......................... 11 TURN ON OR SET TO STANDBY .......................... 11 SET THE SOUNDS .............................. 11 SET THE VOLUME LEVEL........................... 11 SET THE EQ ............................... 11 LISTEN TO THE RADIO .............................. 11 SELECT A BAND .............................. 11 TUNE TO A STATION ............................ 11 TO IMPROVE THE RECEPTION .......................... 12 TO STORE A STATION MANUALLY ........................ 12 TO LISTEN TO A STORED STATION ........................ 12 PLAY A DOCKED DEVICE ............................ 12 ROTATE THE DOCK AT VALID ANGLES ....................... 12 RESTRACT THE DOCK ............................ 13 TO DOCK THE iPAD/iPHONE ... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: SHOCK HAZARD ‐ DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the presence of non‐insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To reduce the risk of fire, do not place any heating or cooking apparatus beneath this unit. CAUTION: The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the apparatus. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. CAUTION: Caution Marking and rating plate was located at bottom enclosure of the apparatus. The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use. To be completely disconnect the ... -
Page 4: Copyright
blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip‐over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power‐supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Minimum distances (5 cm) around the apparatus for sufficient ventilations. 16. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table‐cloths, curtains etc. 17. No naked flame sources such as lighted candles should be placed on the apparatus. 18. Attention should be drawn to the environmental aspects of battery disposal. ... -
Page 5: Buttons And Controls
BUTTONS AND CONTROLS 5 ... - Page 6 LCD DISPLAY 6 ...
- Page 7 REMOTE CONTROL 7 ...
-
Page 8: Remote Control Unit
REMOTE CONTROL UNIT The Remote Control Unit can operate the unit from a distance. When operating the remote control unit, point it towards the front panel of the unit. • Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control. • If the remote control unit is operated near other appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other appliances may operate incorrectly. The remote control unit has a built‐in magnet. If the remote control is not in use, place it to the side of the unit where a stick of magnet label lies. TO ACTIVATE THE REMOTE CONTROL The remote control is built with cell battery before shipment. To activate ... -
Page 9: Under Mounting The Unit
UNDER MOUNTING THE UNIT IMPORTANT: You should only use the mounting accessories (included) when you mount the unit. Use of unapproved accessories that have not been designed specifically for this unit may lead to safety harzards. 1. Use the provided Cabinet Mounting Template to location where you want to mount the unit. Drill the mounting holes directly then done, remove the template. Caution: To reduce the risk of danger, consult the technician ... -
Page 10: Connect The Power Cable
5. Reverse the MOUNTING KIT (refer to illustration (d)). Illustration (d) 6. Position the MOUNTING KIT and fix it on the mounting place with the supplied screws (refer to illustration (e)). Caution: To reduce the risk of fire, do not place any heating or cooking apparatus beneath this unit. Illustration (e) 7. Slide the unit back to the MOUNTING KIT (refer to illustration (f)). ... -
Page 11: Set The Count Down Timer
SET THE COUNT DOWN TIMER You can set the count‐down timer and when the preset time is reached, the buzzer will alert. 1. Press the COUNT DOWN button (or button on remote control) “000” shows on the display. 2. Press UP / DOWN button (or / button on remote control) to set the timer. You can set up to 120 minutes at most. 2. Press the COUNT DOWN button (or button on remote control) again to save the setting and the timer starts to work. TIP: To view the remained time, briefly press the COUNT DOWN button (or button on remote control). 3. When the set time has expired, the buzzer will goes off. 4. Press any button to stop the buzzer. 5. To terminate the countdown timer, press and hold the COUNT DOWN button (or button on remote control) until the icon ( ) disappears from the display. ... -
Page 12: To Improve The Reception
Auto Memory Storing: Press the SCAN button on the remote control to search and save usable stations. NOTE: The unit can only store 20 FM stations and 10 AM stations at most. If your favorite station has not been stored you need to save it manually. (Refer to “TO STORE A STATION MANUALLY”.) To tune a station manually: Press the TUNE‐/SKIP‐ or TUNE+/SKIP+ button (or / button on remote control) briefly to find a station manually. TO IMPROVE THE RECEPTION If you find the AM station is not clearly enough, turn the unit to another direction until you find the station is very clear in a particular direction, since the AM band antenna is internal and directional. If you find the FM station is not clearly enough, extend the power cable as it acts an FM antenna. When the FM reception is strong, the unit will turn to stereo broadcast and the stereo icon ( ) will show on the display. TO STORE A STATION MANUALLY You can store 20 FM stations and 10 AM stations at most. 1. Press the MEMORY button and the “P” appears and digits “01” start to blink on the display. 2. Press the M‐/MENU or M+/SELECT button (or / button on remote control) to select a memory address. 3. Press the MEMORY button again and the station has been saved. TO LISTEN TO A STORED STATION In radio mode, press the M‐/MENU or M+/SELECT button (or / button on remote control) to select a station you have stored. ... -
Page 13: Restract The Dock
RESTRACT THE DOCK If you do not dock any device, restract the dock. TO DOCK THE iPAD/iPHONE The 30‐pin connector is located at the bottom of the dock and is designated to be floating on purpose so as to accommodate all devices of iPad and iPhone. When your device is docked and connected to the 30‐pin connector, sounds will only come out from the built‐in stereo speakers on this unit and your device will be muted. TIPS: Remove the dock cover before you dock your device. iPad: • Turn the dock in the direction shown as below. Remove the dock cover. Slide your iPad from right to left to the 30‐pin connector. Press and fix the connector then connect the iPad to the connector. Refit the dock cover. • To remove the iPad, press on the dock cover then slide out your iPad. ... - Page 14 NOTE: To fully hold the iPad 2nd and/or 3 generation, insert an appropriate bracket before you dock the device. To fit your iPad 2 snugly, use the iPad 2 bracket. To fit your iPad 3 generation snugly, use the iPad bracket (3 generation).
-
Page 15: Play The Ipad/Iphone
• To remove the iPhone, press on the dock cover then slide out your iPhone. PLAY THE iPAD/iPHONE When the device is docked onto the unit, press the FUNCTION button repeatedly to select radio mode. 1. General Control Buttons PLAY/PAUSE button ( ): It works as the “PLAY/PAUSE” button in the iPod. STOP button ( ): It works as the “STOP” button in the iPod. M‐/MENU button (or button on remote control): It works as the “MENU” button in the iPod. M+/SELECT button (or SELECT button on remote control): It works as the “SELECT” button in the iPod. TUNE‐/SKIP‐ button (or button on remote control): It works as the “PREVIOUS” button in the iPod. TUNE+/SKIP+ button (or button on remote control): It works as the “NEXT” button in the iPod. UP button (or button on remote control): It works as the “ ” button in the iPod. DOWN button (or button on remote control): It works as the “ ” button in the iPod. 2. Charging The Device The unit will charge the device during docking via the 30‐pin connector, the charging voltage is 5V 2.1A. NOTE: The 30‐pin connector does not charge your device in radio mode. USE THE ALARM Prerequisite: The unit MUST be set to STANDBY mode. 1. Press and hold the ALARM button (or ... -
Page 16: Set The Sleep Timer (Time Off)
6. When the time goes off, press the ALARM or STANDBY/ON button to stop it sounding. Fast Switch On / Off The Alarm Briefly press the ALARM button (or button on remote control) to activate or deactivate the alarm function. SET THE SLEEP TIMER (TIME OFF) You can set the SLEEP TIMER (TIME OFF) so the unit turns itself off... -
Page 17: Fcc Statement
FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ... -
Page 18: Warranty
WARRANTY Innovative Technology Electronics Corp. Limited Warranty: 90 Days Labor, One Year Parts Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in materials under normal use for a period of “One Year” from the date of the original purchase. The Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets, headbands, ear‐pads, or damage due to line power surges, connection to improper voltage supply or settings, misuse, mishandling, accident, acts of God or attempted repair by an unauthorized service agent. To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please contact us at www.ithomeproducts.com to request an RMA (Return Material Authorization) number to return products for service or replacement. Returns without an RMA number on the package will be refused and returned to sender. Upon receipt of the returning item and our full inspection (IT) may issue a replacement to customer for the same item or of one that has equivalent value and features. To return an item, supply full name, return address, phone number, item purchased, receipt of purchase and reason for return to obtain RMA number. All returns must be in the original packaging or reasonable substitute to prevent damage. Customer “Must” include full name, shipping address and telephone number inside of package. No return will be shipped back to a PO Box or APO address. Please include your check or money order in the amount of • USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit) • USD$10.00 for items $40.00 to $99.99. (Price Paid Per Unit) • USD$16.00, for items $100.00 and up. (Price Paid Per Unit) • Shipping fees are non‐refundable to be payable to Innovative Technology Electronics Corp.(for handling and return shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting from a purchaser’s failure to provide any / all of the necessary information. Send all inquiries or RMA request via our website www.ithomeproducts.com/support. Innovative Technology Electronics Corp. 1 Channel Drive Port Washington, NY 11050 ... - Page 19 CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. 19 ...
- Page 20 760120502E 20 ...
