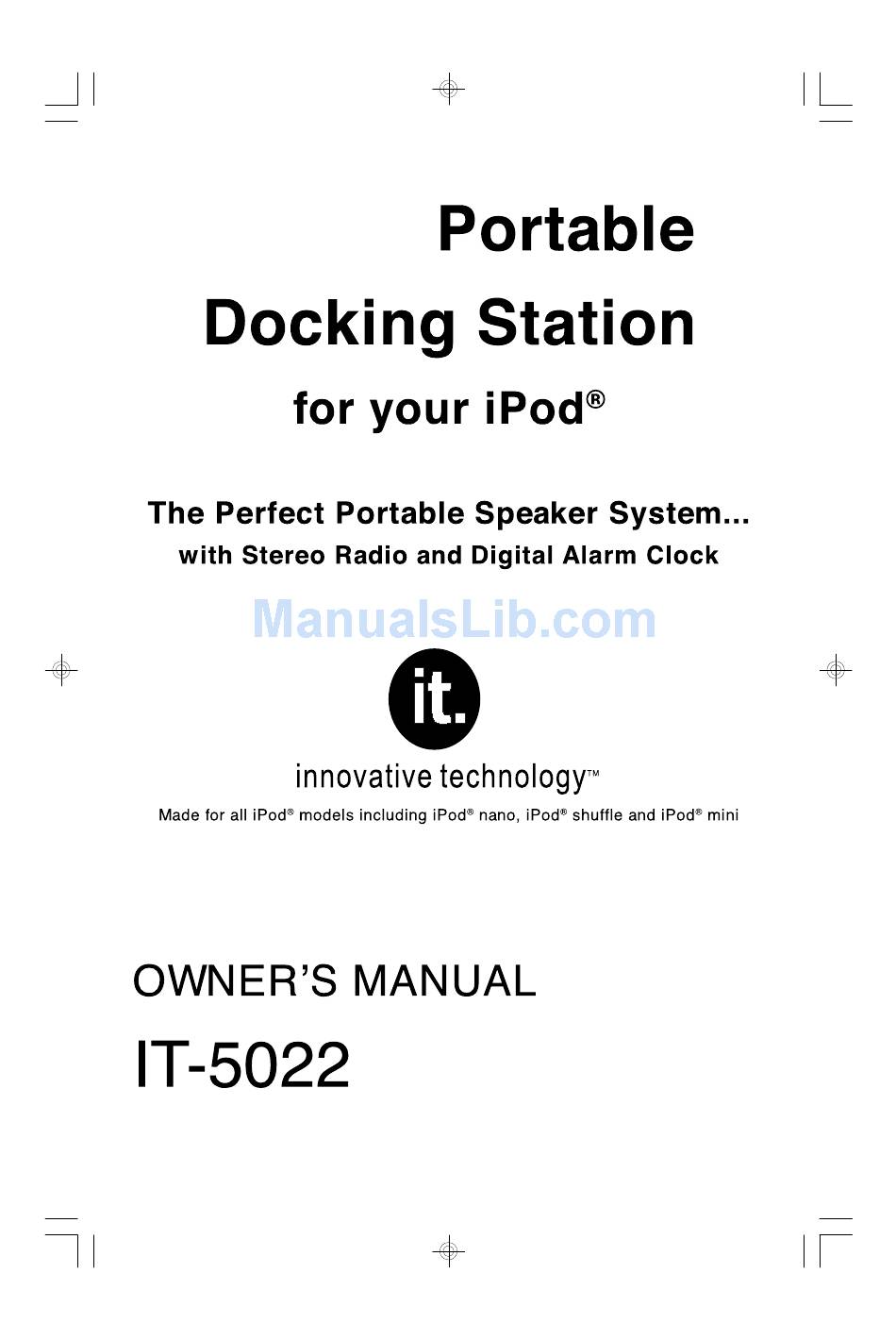

- Page 1 DockIT...
-
Page 2: Important Safety Instructions
CAUT ION TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. C AU T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN... - Page 3 Thank you …………. For purchasing this iPod Compatible Portable Stereo System. ® ® This compact portable system features a built in iPod docking station so ® you can play your iPod through the speakers of this system when you are in the mood to share your music with others, or when you simply do not want to use earphones.
-
Page 4: Important Notes
I M P O R TAN T N O T E S ÅAvoid installing this unit in places ï Operate controls and switches as exposed to direct sunlight or close to described in the manual. heat radiating appliances such as Å... -
Page 5: Preparation For Use
P R E PAR AT I O N F O R U S E Unpacking And Set Up • Remove the main unit, the AC adapter, the accessory auxiliary device iPod ® connection cord, and the 2 adapters from the carton, and remove all packing material from the main unit. -
Page 6: Battery Installation
Battery Installation The battery compartments for the 6 “C” batteries and 2 “AA” batteries are located on the back panel. To open the battery compartment covers press the door locking tabs in the direction of the arrows. Remove the doors and insert the 6 “C” and 2 “AA”... -
Page 7: Using The Ac Adapter
Using The AC Adapter Connect the small female plug of the AC adapter to the DC Input Jack on the back panel. Connect the housing of the AC adapter to the 120V AC outlet. When the adapter is connected to the unit the AC power source is selected automatically, even if there are batteries in the battery compartment. -
Page 8: Location Of Controls And Indicators
LOCATION OF CONTROLS AND INDICATORS 1. VOLUME Control POWER Mode Button (ON/OFF/ALARM ON) 3.DBBS Button 4.FUNCTION Button Pod / AUX Buzzer , RADIO) . FM AUTO /AM Button 6. ALARM ON/OFF Button 7. TUNING Control POWER FM ST. 8. FM Antenna 9. -
Page 9: Lcd Display
LCD DISPLAY Radio mode 1. Band Indicator (AM/FM) Radio Frequency Fig 1 Clock/Timer Mode ALARM 3.Alarm On Indicator 4.Time/Alarm Time Display Fig 2 OPERATING INSTRUCTIONS SETTING THE CLOCK Make sure the POWER switch Press and hold the TIME SET While holding the TIME SET is set to the ‘Off’... -
Page 10: Listening To The Radio
OPERATING INSTRUCTIONS (CONTINUED) ISTENING TO THE RADIO NOTE: To prevent any interference between your iPod and the radio in this unit, your iPod should be switched 'Off' when listening to the radio. Set the FUNCTION button to Rotate the TUNING control Set the POWER button to the the Radio position. - Page 11 OPERATING INSTRUCTIONS (CONTINUED) Docking and Charging The iPod This system is designed with the same 30-pin connector found in all iPod docks. By simply connecting the iPod to the docking station on the front panel of this system you can play the iPod through the speakers of this system. And you can also recharge the battery in the iPod .
- Page 12 OPERATING INSTRUCTIONS(CONTINUED) Playing your iPod Important To prevent distortion during iPod playback you should go to the Main Menu of your iPod , select the Settings Menu page, select the EQ Setting, and make sure that the EQ function is set to "Off". (Main Menu Settings Menu EQ Setting...
- Page 13 OPERATING INSTRUCTIONS(CONTINUED) Listening To A Non-Docking iPod Or Other Portable Music Player Some early iPod models and the iPod Shuffle do not include the 30-pin docking connector found on most other iPods . We have provided an Auxiliary Input Jack on the back panel of this system and included a stereo connection cable so that you can still connect non-docking iPods , other MP3 players, or personal CD players to this system.
- Page 14 OPERATING INSTRUCTIONS(CONTINUED) SETTING THE ALARM ALARM ALARM While continuing to hold the Press and hold the ALARM While continuing to hold the SET button to enter the alarm ALARM SET button press ALARM SET button press Time setting mode. The front the HOUR button repeatedly the MINUTE button repeatedly until the display shows the...
-
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE Symptom Possible Cause Solution Radio Station not tuned properly for AM Retune the AM or FM broadcast Noise or sound or FM. station. distorted on AM or FM broadcasts. Extend FM Rod antenna. FM: Rod antenna is not extended. AM: The bar antenna is not Reposition the unit until positioned correctly. -
Page 16: Care And Maintenance
C AR E AN D M AI N T E N AN C E If the cabinet becomes dusty, wipe it with a soft cloth. If the cabinet becomes smudged or dirty, clean it with a soft, slightly dampened cloth. Never allow water or any liquid to get inside the cabinet. - Page 17 Limited Warranty 90 Days Labor, One Year Parts Innovative Technology Electronics Corp. (IT) warrants the product to be free from "Defects" in materials under normal use for a period of "One Year" from the date of the original purchase. The Warranty is "Not" transferable. IT agrees, that within the initial "90 Day" period to repair the product if it is determined to be defective at "No Charge".
