Optus ADSL2+ WIFI MODEM Manual To Installing page 2

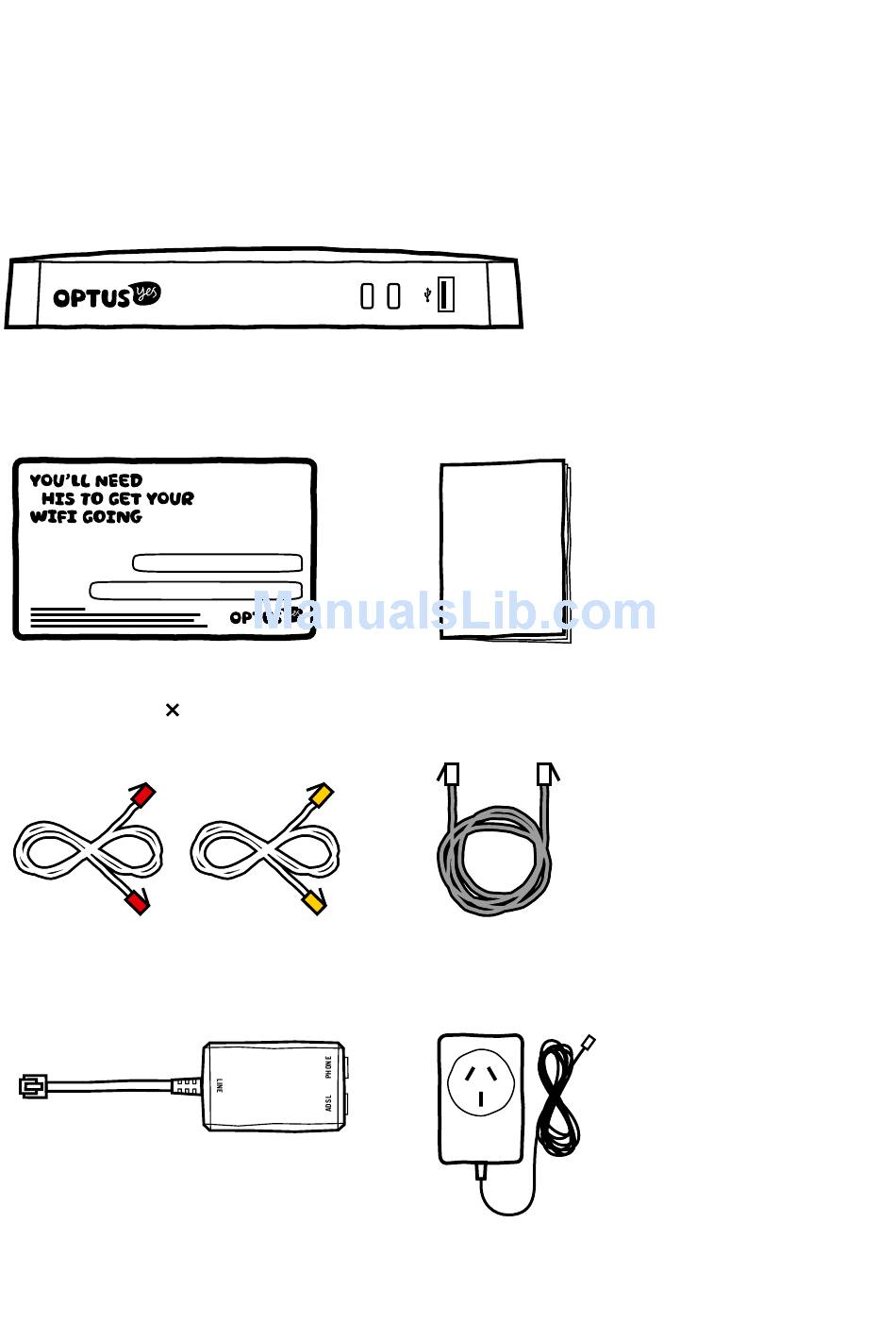

MAKE SURE YOU HAVE THESE
BITS AND BOBS HANDY
ADSL2 + WIFI MODEM
http://10.1.1.1/
WIRELESS INFORMATION CARD
T
1
DSL
WIFI NETWORK NAME
PASSWORD
ETHERNET CABLE 2
(We've included a spare – the red one.
Keep it handy – you never know when you'll need it)
ETH3 ETH4 PWR
ADSL2 + LINE FILTER
1 2
RESET ETH1 ETH2 ETH3
2
RESET ETH1 ETH2 ETH3
ETH4 PWR
WiFi
USERNAME
PASSWORD
INSTALLATION GUIDE
(The thing you're reading)
ETH4 PWR
TELEPHONE CABLE
POWER ADAPTOR
