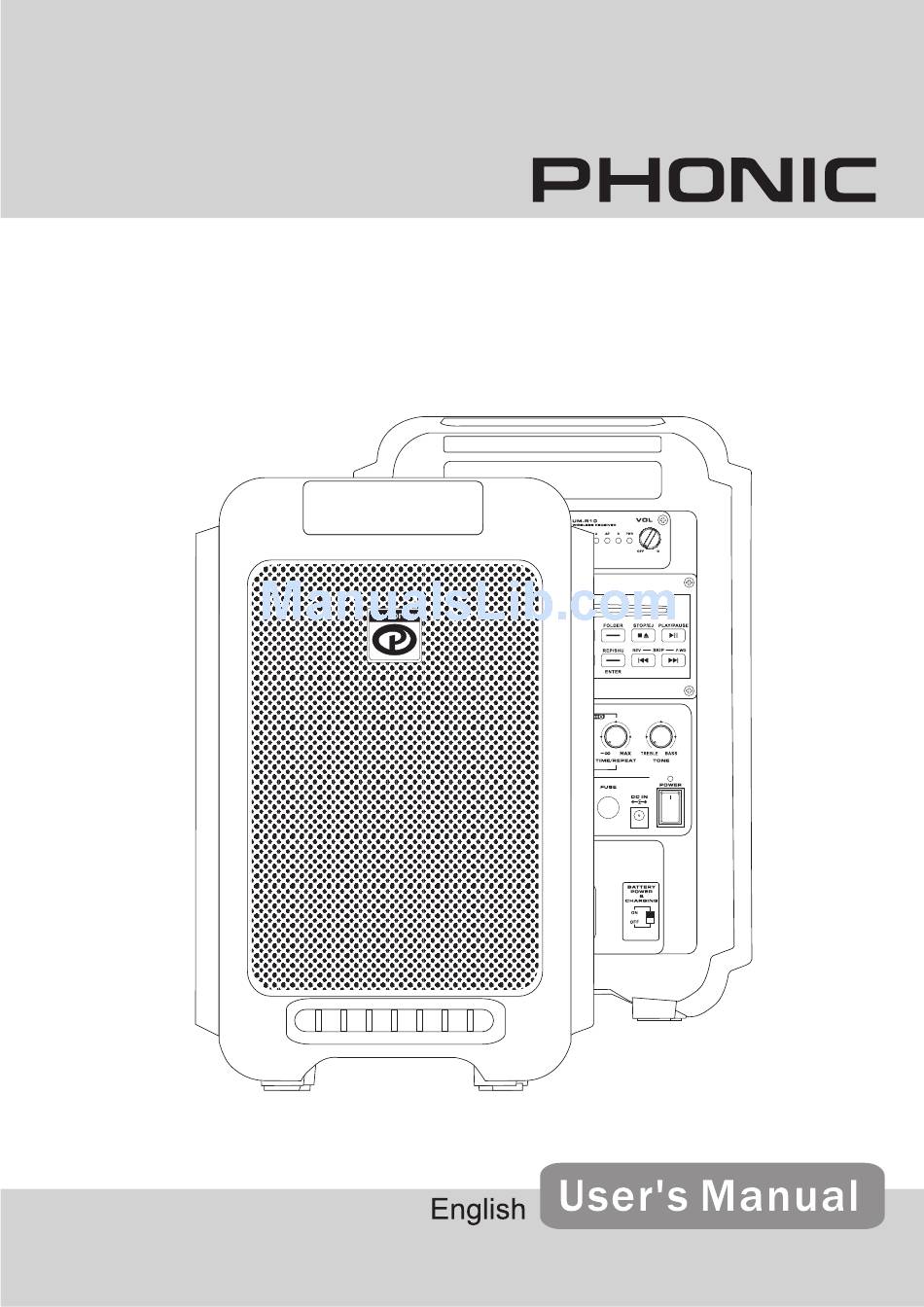

- Page 1 Sound Ambassador 35 Deluxe Wireless Portable Sound System...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable. -
Page 3: Table Of Contents
PRODUCT OVERVIEW........................6 WIRELESS MICROPHONE RECEIVER..................8 CD PLAYER............................8 MP3 RECORDER..........................9 IMPORTANT INSTRUCTIONS......................11 OTHER IMPORTANT FEATURES....................12 OPERATING HINTS........................13 APPLICATION..........................14 SPECIFICATIONS...........................15 DIMENSIONS..........................16 BLOCK DIAGRAM...........................17 Phonic preserves the right to improve or alter any information within this document without prior notice. V1.1 OCT 19th,2007... -
Page 4: Introduction
INTRODUCTION FEATURES We at Phonic would like to congratulate you on All-in-one compact mobile wireless sound system your purchase of our Sound Ambassador 35 Deluxe 6.5” full range speaker and 35 watts power wireless portable sound system. This extremely stylish... -
Page 5: Optional Accessories
AC power socket, and the DC head of the power supply into the DC power socket of the S3 tripod stand Sound Ambassador 35 Deluxe. This is, of course, Wired microphone not really vital as the Sound Ambassador Deluxe has an internal battery. -
Page 6: Product Overview
These two slots are for the addition of wireless Compact Disc player or MP3 recorder/player to microphone modules to your Sound Ambassador. the Sound Ambassador 35 Deluxe. By adding They allow users to use microphones from the CD player users are able to feed the audio various locations without a cord getting in the from CDs to the built-in mixer;... - Page 7 CD player or MP3 recorder. This feature was provided to allow users to carry the Sound Ambassador 35 Deluxe much more 8. Line Outputs easily. This 1/4” output sends the main signal of the 16.
-
Page 8: Wireless Microphone Receiver
Information on the Infrared Microphone was unavail- again to remove the CD. able at the time of this publication. For information on this unit, please visit www.phonic.com. 7. Pause/Play – Push this button to play or pause the selected track. -
Page 9: Mp3 Recorder
7. Forward key – Pushing this key will skip for- ward through the track currently playing. The track will resume as normal when the key is released. Sound Ambassador 35 Deluxe... - Page 10 M_EXT_ xx.MP3 (where “xx” is the track number you wish to store the file as) for use on an SD card. The file format must be MP3 for this to work. Sound Ambassador 35 Deluxe...
-
Page 11: Important Instructions
SD cards used within this device. Like all other digital products, users must back up their files from time to time. We do not take responsibility for any documents lost while an SD card is used within this device. Sound Ambassador 35 Deluxe... -
Page 12: Other Important Features
On the bottom, you will find a hole, ideal for rechargeable battery, which provides 12V of use with the Phonic S3 tripod stands (25mm in direct current to the unit. When fully charged, diameter). -
Page 13: Operating Hints
DC power source. The 11. When the operating life of the battery be- Sound Ambassador 35 Deluxe can last for 2 - 4 comes shorter, the battery is old and should thus hours on battery power. -
Page 14: Application
APPLICATION GUITAR EFFECT MICROPHONE SOUND AMBASSADOR 35 DELUXE GUITAR Sound Ambassador 35 Deluxe... -
Page 15: Specifications
Optional rechargeable battery or External power supply Power Requirement 15VDC, 100-240VAC, 50/60Hz Dimensions (HxWxD) 336 x 220 x 216 mm (13.2” x 8.7” x 8.5”) Weight Less than 7 kg including battery, CD player Sound Ambassador 35 Deluxe... -
Page 16: Dimensions
DIMENSIONS * All measurements are shown in mm/inches. Sound Ambassador 35 Deluxe... -
Page 17: Block Diagram
BLOCK DIAGRAM Sound Ambassador 35 Deluxe... - Page 18 6103 Johns Road #7...
