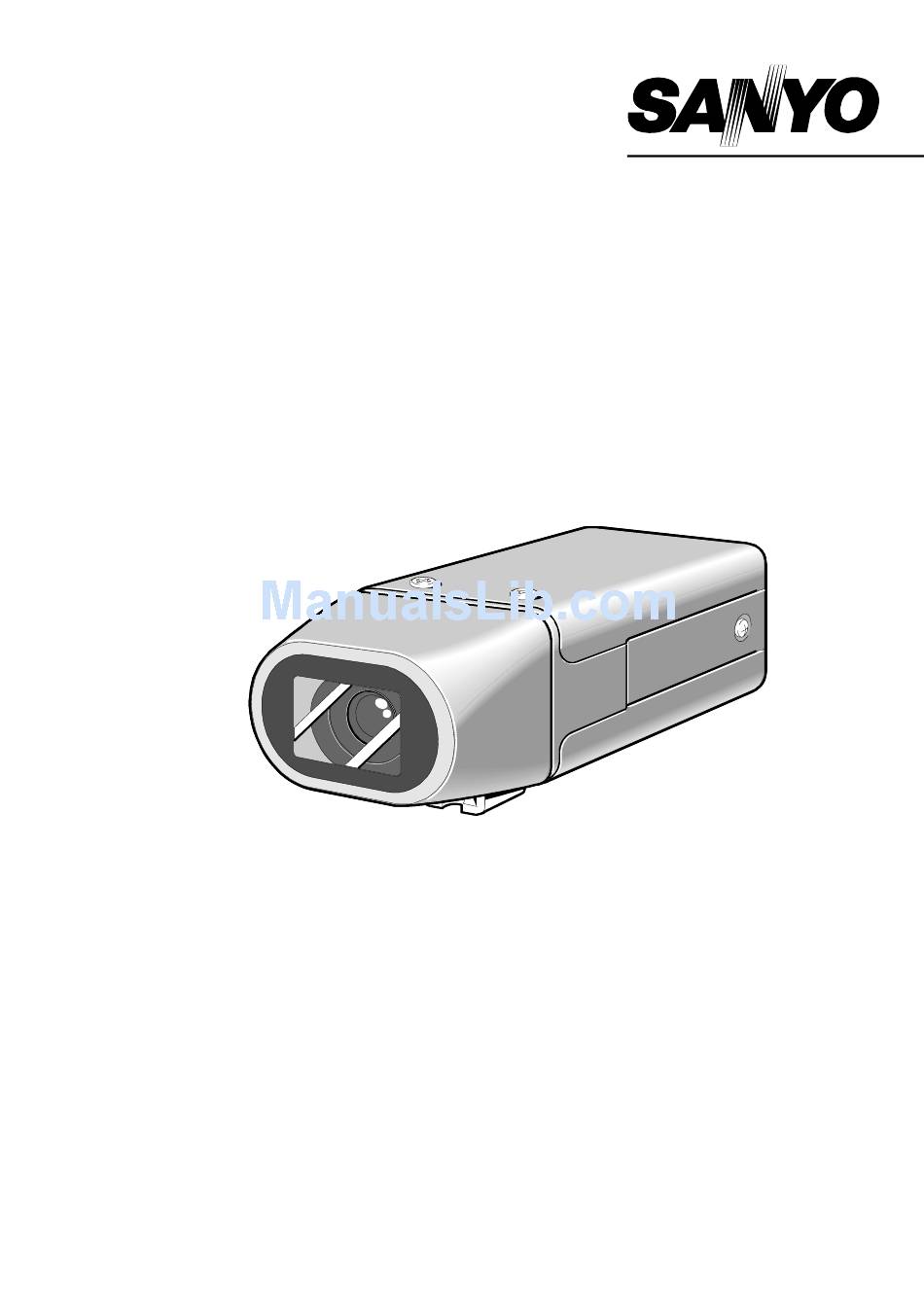

Page 1: Instruction Manual
INSTRUCTION MANUAL VCB-7312P B/W CCD Camera About this manual • Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference. -
Page 2: Table Of Contents
Depending on the conditions of use, FEATURES installation and environment, please be sure to make the appropriate settings and • Built-in interline transfer method 1/3" adjustments. If you need help with CCD, approx. 320,000 picture elements installation and/or settings, please consult your dealer. -
Page 3: Precautions
Disconnect or where it could be subject to direct the power cord immediately, and consult sunlight, as that could cause deformation, your dealer (or a Sanyo Authorized Service discoloration or other damages. Centre). Be careful when installing close to the... -
Page 4: Parts Names
PARTS NAMES Video output connector (VIDEO OUT: BNC type) Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector. 12 V DC input terminal (12 V DC IN) Connect DC connecting cord from the AC adaptor to the 12 V DC IN terminal on the camera. -
Page 5: Power Source
Camera setup section (under the cover) This unit factory settings are as indicated below. However, if due to installation conditions or environment the settings may need to be modified for best results (see "SETTINGS"). To access the controls, remove the cover fixing screw, then remove the cover. -
Page 6: Connections
CONNECTIONS Basic connection for monitoring or recording The peripheral devices (VCR, monitor, lens, etc.) and cables are sold separately. Make the video signal connection between the camera and the monitor or time lapse VCR. Turn on the power of all the devices connected to the camera. -
Page 7: Settings
SETTINGS VR401 VIDEO A. I. LENS Backlight compensation setting Set the BLC switch to the ON position, to engage the backlight compensation function. Note: You will need to set the LEVEL (VR401) volume when shooting in the conditions described below. L (counterclockwise): To decrease the contrast H (clockwise): To increase the contrast VR401... -
Page 8: Troubleshooting
TROUBLESHOOTING Before taking the camera for repairs, please check below to make sure that the camera is used correctly. If it still does not perform correctly, please consult your dealer or a Sanyo Authorized Service Centre. No picture on the monitor screen •... -
Page 9: Specifications
SPECIFICATIONS Camera: Scanning system : CCIR standard (625 TV lines, 25 frames/sec.) Interlace : PLL 2:1 interlace Image device : 1/3 inch solid state image device CCD Picture elements : 542 (H) x 584 (V) Effective picture elements : 512 (H) x 582 (V) Synchronizing system : Internal sync/External sync (Automatic switching) Resolution : 400 TV lines horizontally, 400 TV lines vertically Video output level : 1.0 Vp-p/75 ohms, composite... - Page 10 Dimensions: mm 41.5 95.5 VIDEO OUT VS IN POWER 12V DC IN À 1/4”–20 UNC Approx. 1.8 m Approx. 1.8 m : mm Features and specifications are subject to change without prior notice or obligations. English...
