Summary of Contents for Widex SCOLA TEACH44

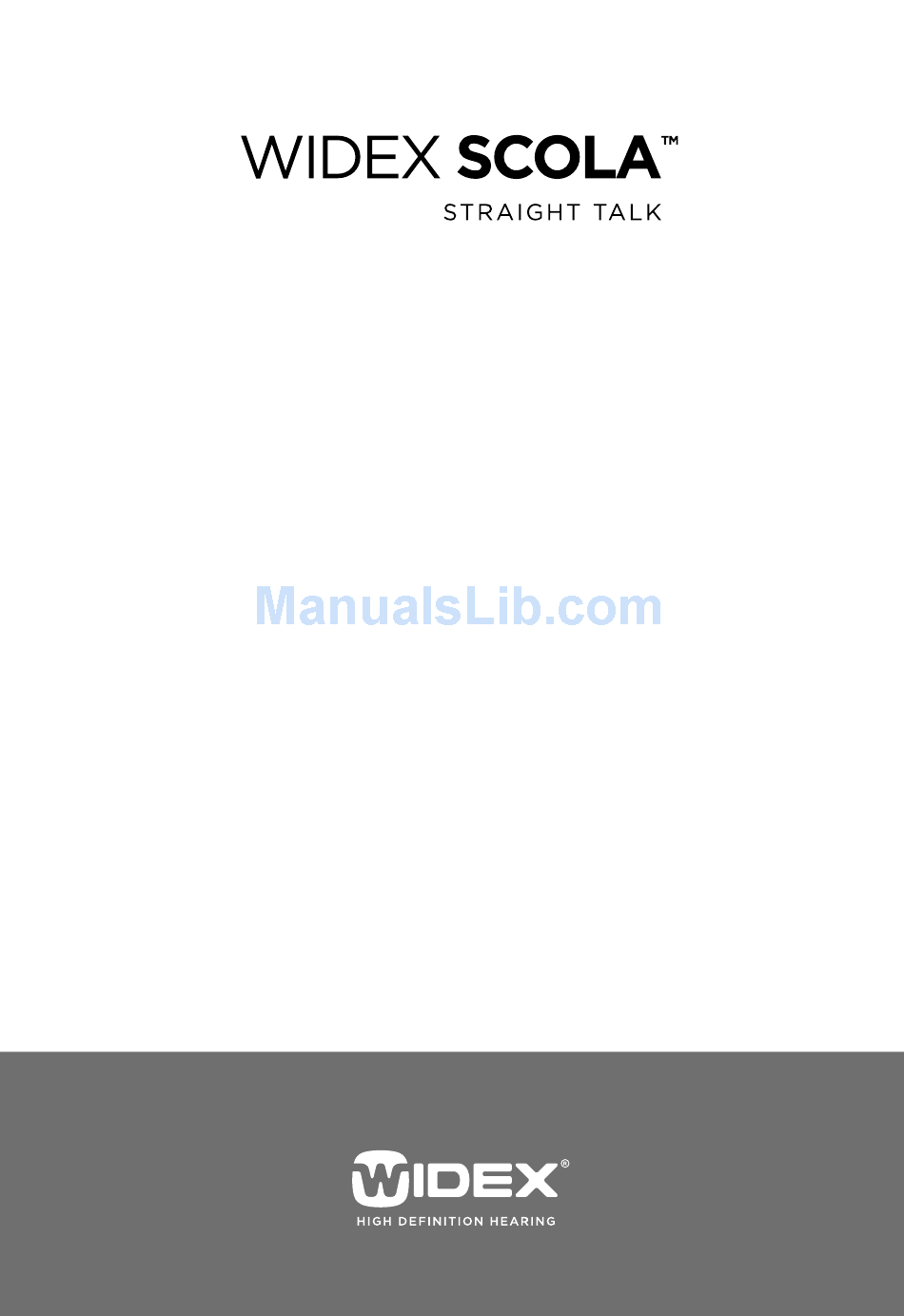

- Page 1 User instrUctions SCOLA™ FM SySteM scoLA teAcH44/ scoLA teAcH33 trAnsmitter...
-
Page 3: Table Of Contents
Contents SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 INTRODUCTION . -
Page 4: Symbols
sYMBoLs The following symbols will be used throughout the manual: WARNING Messages with this heading indicate adverse reactions, potential safety hazards or inadequate device performance . CAUTION Messages with this heading indicate/include information regarding any special care to be exercised . Not for general waste... -
Page 5: Introduction
IntRoDUCtIon SCOLA provides hearing aid users with additional op- portunities in difficult listening situations. The SCOLA FM system has been developed specifical- ly for children and educational environments. These instructions therefore primarily address parents and teachers. The symbol refers to the section ‘Terms and defini- ... -
Page 6: The Scola™ Fm System
The transmission power is very low and limited by national regulations. It has no physiological side effects. SCOLA TEACH is available in two versions: SCOLA TEACH44 with the Team Teaching function, and SCOLA TEACH33 without the Team Teaching ... - Page 7 SCOLA TEACH with standard accessories SCOLA TEACH (The version shown is the Team Teaching version) Lapel microphone (omnidirectional) including neck cord and clips Charger...
- Page 8 Rechargeable battery Audio lead Storage case User instructions...
-
Page 9: Description
DesCRIPtIon The top of SCOLA TEACH has the following functions: Light-emitting diode indicator (LED) On/off button (which also serves to turn the microphone on or off) Microphone jack (2.5 mm jack) The front of SCOLA TEACH has the following func- tions: Display with: Status bar... - Page 10 Channel information NOTE The corresponding channel number for MicroLink FM equipment is shown at the bottom of the display...
- Page 11 Multifunctional keypad (this illustration shows the Team Teaching version) Team Teaching key © C key, which serves as an undo key, amongst other things Arrow keys OK key The bottom of SCOLA TEACH has the following func- tions: Jack (3.5 mm) for connection of an ex-...
-
Page 12: Battery Cover
The back of SCOLA TEACH has the following func- tions: Belt clips for fastening the SCOLA TEACH Battery cover NOTE The approval label with serial number is located below the battery . We recommend that you make a note of the serial num- ber at the back of this booklet . -
Page 13: Preparing The Scola Teach
PRePARInG tHe sCoLA teACH Inserting the battery Remove the battery cover and insert the battery provided Be sure to insert the battery correct- ly, with the positive pole oriented as il- lustrated. Charging The battery included is not charged. Before the battery is used for the first time, it must be charged for at least 14... -
Page 14: Connecting The Microphone
During charging the battery symbol will be shown in the display and the LED will be red. Battery charging! NOTE The transmitting function is off during charging . Connecting the microphone Plug the microphone lead into the microphone jack. The microphone lead serves as an antenna . -
Page 15: Positioning
Positioning SCOLA TEACH can be placed in a pocket or clipped onto a belt. The microphone can be clipped onto clothes or hung around the neck on the neck cord. The standard micro- phone can also be replaced by one of the other micro- phones ... -
Page 16: Operating The Scola Fm System
Press and hold down the on/off key on SCOLA TEACH for one second until the LED is green. The user’s name or ”WIDEX SCOLA” will appear on the display for approx. two seconds. SCOLA TEACH is turned off by holding the on/off key down for one sec- ond. -
Page 17: Synchronising Scola Flex Or Scola Buddy
NOTE Note that interference may occur if other transmitters are us- ing the same channel as you . Synchronising SCOLA FLEX or SCOLA BUDDY If the receiving channel differs from the transmitting channel of SCOLA TEACH, the former can be synchro- nised to the latter. -
Page 18: Microphone On/Off
Microphone on/off The microphone can be turned on and off by pressing the on/off key briefly. A green light will flash in the LED and the following symbol will blink in the status bar: Keypad lock The keypad can be locked and unlocked by holding down the right and left arrow keys simultaneously. -
Page 19: Battery And Charging
The microphone should also be connected, as its lead serves as an antenna. When the microphone is turned on, it is possible to speak over the sound from the audio equipment. When the microphone is turned off, only the sound from the audio equipment will be heard. -
Page 20: Team Teaching Function
Team Teaching function The Team Teaching function Team teaching is available only in the SCOLA TT Ch: TEACH version provided with key. The Team Teaching function is activated by holding down the key. The sym- bol appears in the display status bar, and the transmitting chan- nel and Team Teaching channel (TT Ch) are displayed. - Page 21 Press and hold down the or key. Then press again to go to another TT channel. Pressing will allow you to change the transmitting channel and still maintain the TT channel. Try to find channels that are not grey. To exit with changes, press .
-
Page 22: Table With Scola Teach Key Functions
Table with SCOLA TEACH key functions Hold down (1 second) Press On/off key On/off Microphone on/off. or Enable channel change Channel change Enable TT channel change with the TT function active*) or Switch between transmitting and TT channel with the TT function active*) ... -
Page 23: Good Advice
GooD ADVICe SCOLA TEACH is primarily intended for educational environments, but can also be used in other situations where noise, poor acoustics or the like make listening difficult. To benefit fully from the SCOLA FM system, it is im- portant to: • practise using the FM system and test the different settings in familiar surroundings • inform other people that you use an FM system with... - Page 24 Listening Use of SCOLA TEACH and microphone situation positioning In kindergartens / Ask the teacher to use SCOLA TEACH and classrooms position the microphone as described. Microphone types other than omnidirectional are available as optional accessories to optimise the speech signal. For group work, or if several teachers are present, we recommend the use of the Team Teaching function.
-
Page 25: Care And Maintenance
CARe AnD MAIntenAnCe In general, the SCOLA™ FM system should be cared for in the same way as the hearing aid. It is a good idea to clean and remove dirt and debris from the FM system on a daily basis. There are also some special precau- tions which should be taken. -
Page 26: Warnings
WARnInGs WARNING • Make sure that the batteries for the hearing aid and for the SCOLA TEACH are kept out of reach of children, who might place them in their mouths. • Discard used batteries carefully. • Do not change batteries in front of children, and do not let them see where you keep your supply. -
Page 27: In Case Of Malfunction
In CAse oF MALFUnCtIon With proper use and maintenance, your SCOLA™ FM system will give you years of reliable service. The fol- lowing pages contain some brief advice to follow if you experience problems with your SCOLA FM system. Be- fore contacting the hearing care professional where you acquired your SCOLA FM system, please follow the advice below:... - Page 28 If there is noise in the hearing aid, it could be because: • You are at or beyond the limit of the operating range of SCOLA TEACH. Reduce the distance between the SCOLA TEACH and SCOLA receiver. • Noise and whistling are interfering with reception, possibly because two or more FM transmitters are transmitting on the same channel as your receiving channel.
- Page 29 If there is no sound from the audio equipment, but the sound from the SCOLA TEACH microphone signal is okay, it could be because: • The audio lead is not correctly plugged into the au- dio jack on the SCOLA TEACH or audio equipment. Check that it is correctly plugged in.
- Page 30 If the battery does not charge and the display does not indicate that the battery is charging, it could be because: • There is no power in the socket. Check that the socket functions. • The charger lead or jack is defective. Consult the hearing care professional where the SCOLA FM system was acquired.
-
Page 31: Terms And Definitions Explained
teRMs AnD DeFInItIons eXPLAIneD Antenna The receiver and transmitter are both provided with an antenna. The microphone lead of SCOLA TEACH also serves as an antenna, and should therefore always be connected, even when only the audio input function is being used. Turn off the microphone if the microphone signal caus- es disturbance. - Page 32 Battery - SCOLA TEACH One AA battery is required for SCOLA TEACH. The re- chargeable battery included is a nickel-metal-hydride (NiMH) type battery. It is environmentally friendly and does not contain heavy metals. The contact surface at the negative pole ensures that only this type of battery can be charged in SCOLA TEACH.
- Page 33 WARNING If you use other types of rechargeable batteries in SCOLA TEACH than the original, it must be charged in a separate charger . If you use a NON-rechargeable battery, then use only high qual- ity batteries, e .g . alkaline batteries . Always remove exhausted alkaline batteries from the battery compartment to limit the risk of leakage .
-
Page 34: Battery Status
IEC 60065, IEC 60950, IEC 60601-1 or equiv- alent safety standards . Widex strongly recommends that you always use a charger that is supplied by your Widex distributor to ensure safe and effi- cient use of your SCOLA TEACH . Battery status The battery power level is shown in the display. - Page 35 When the battery is almost drained, the battery sym- bol flashes in the display and the LED flashes red. Af- ter a while, the transmitter will turn off. If the receiver is connected, this can be clearly heard in the hearing aid. For optimum battery lifetime, we recommend not re- charging the battery until the battery indication is be- low two bars.
-
Page 36: Channel Synchronisation
SCOLA TEACH can transmit sound signals on most per- mitted frequencies in the frequency ranges 169 MHz– 176 MHz (H band), 180 MHz-187 MHz (J band) and 216 MHz-217 MHz (N band). NOTE • Do not use two transmitters (e.g. SCOLA TEACH) on the same channel/frequency in the same area. - Page 37 Teacher’s settings and Teacher’s synchronisation The SCOLA TEACH transmitter can wirelessly synchro- nise SCOLA FLEX with what we call the Teacher’s set- tings. These Teacher’s settings are temporary, and can only be reset by switching the hearing aid off and on. The purpose of this is to prevent small children from op- erating the mode switch and scan button on the SCOLA FLEX receiver during classes.
- Page 38 the transmitting channel, mode switch and scan but- ton settings. When a Teacher’s synchronisation is performed with- in the reply range of 10 to 30 cm, the settings of the SCOLA FLEX will be shown in the SCOLA TEACH dis- play.
- Page 39 If you have two hearing aids, they should both have a receiver. NOTE Do not use SCOLA on aircraft or in hospitals without permission . Interference Interference occurs when signals from two transmitters on the same frequency are mixed in the same receiver. When the signals are equally strong, the interference will be most noticeable.
- Page 40 Microphones for SCOLA TEACH Omnidirectional lapel microphone: Standard micro- phone included with SCOLA TEACH. The microphone is equally sensitive to sound from all directions. The following microphones are available as optional ac- cessories: Directional lapel microphone: Designed for noisy envi- ronments;...
- Page 41 Operating range The operating range of the FM system is highly depend- ent on the surroundings, including construction materi- als. The optimum operating range of 20-30 metres can be obtained in the open and with the microphone lead hanging freely. Inside buildings with steel and concrete walls and floors, the operating range may be reduced to ten metres.
- Page 42 WARNING Audio connector (3 .5 mm jack): The safety of the use of SCOLA TEACH is determined by any ex- ternal equipment that is connected to the SCOLA TEACH via the audio connector . When SCOLA TEACH is connected to ex- ternal mains-operated equipment via the audio connector, this equipment must comply with IEC60065, IEC60950, IEC 60601- 1 or equivalent safety standards .
- Page 43 Additional technical information: SCOLA TEACH has a built-in FM receiver which enables Team Teaching. The channel used for the receiver and the team microphone must be the same. This channel can be selected in the Team Teaching menu. Reception on the Team Teaching channel is only possible if the frequency distance between the SCOLA TEACH transmitting channel and the Team Teaching receiving channel is sufficiently large.
-
Page 44: Warranty
WARRAntY A warranty of two years is provided. The warranty cov- ers any defects in manufacture or materials. Defects arising from improper handling or repairs carried out by an unauthorised party are not covered by this war- ranty. -
Page 45: Regulatory Information
ReGULAtoRY InFoRMAtIon WIDEX A/S • Nymoellevej 6, DK-3540 Lynge Denmark • www.widexusa.com Hereby, Widex A/S declares that this SCOLA TEACH44 and SCOLA TEACH33 are in compliance with the es- sential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found... - Page 46 FCC ID: U28AT31 IC: 5676B-STE Federal Communications Commission Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 47 Changes or modifications to the equipment not expressly approved by Widex could void the user’s authority to operate the equipment. Industry Canada Statement / Déclaration d’industrie Canada...
- Page 48 This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 49 FM systems and hearing aids, accessories and batteries should not be disposed of with normal household waste. Please con- sult your national Widex distributor for ad- vice on how to dispose of these items.
- Page 50 settInGs Serial number: _______________________ Gain adjustment: _____________________...
- Page 52 MANUFACTURER WIDEX A/S • Nymoellevej 6, DK-3540 Lynge Denmark • www.widex.com Printed by HTO / 2011-08 ¡9 514 0197 001T¤ ¡#01v¤ 9 514 0197 001 #01...
