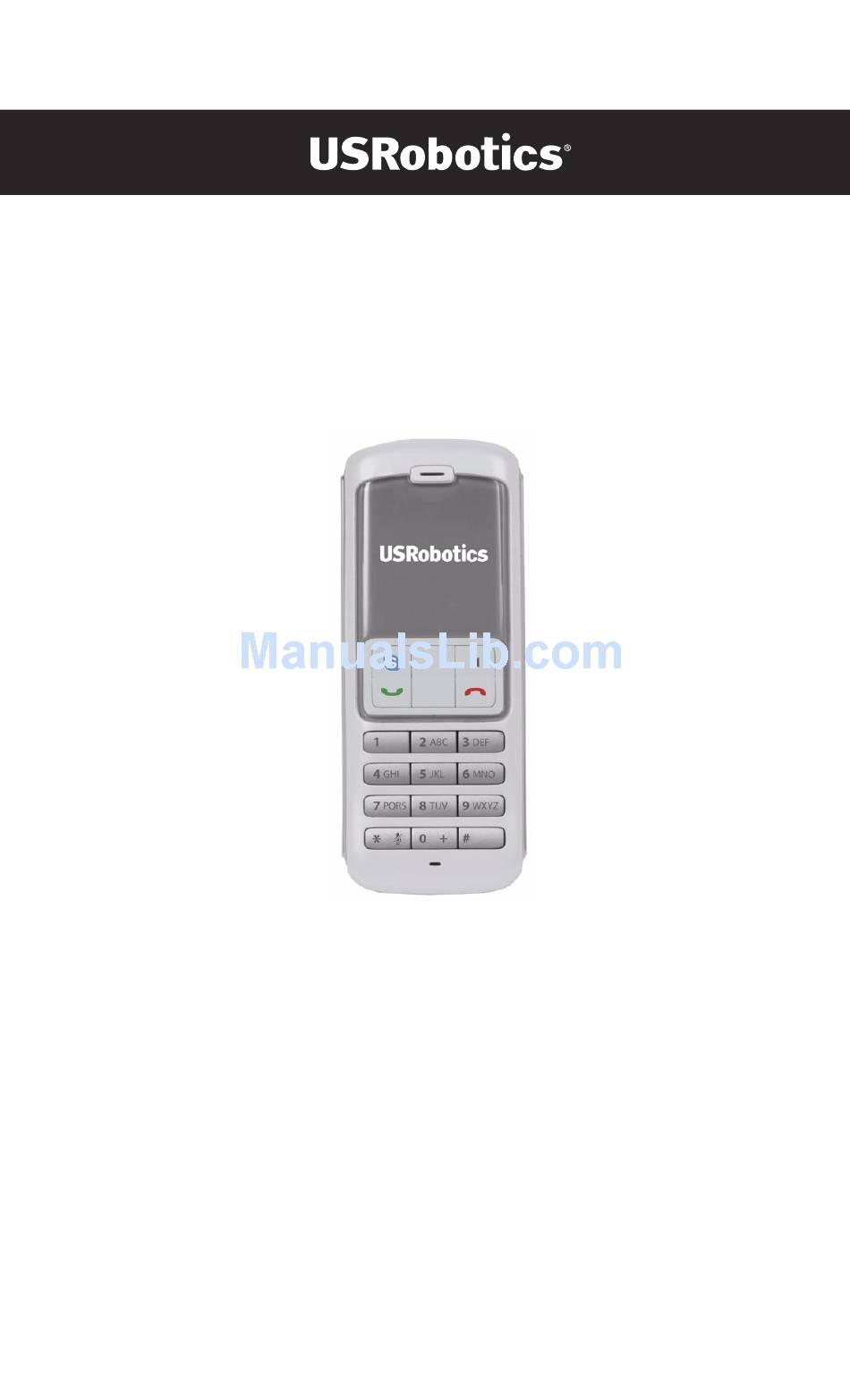

- Page 1 USB Internet Mini Phone U s er G u i d e R24.0695.00 rev 0.2 2/07...
- Page 3 USB Internet Mini Phone User Guide...
- Page 4 U.S. Robotics Corporation 935 National Parkway Schaumburg, Illinois 60173-5157 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as a transla- tion, transformation, or adaptation) without written permission from U.S.
-
Page 5: Table Of Contents
Contents Installation..................1 Operation..................8 Troubleshooting................13 Support..................18 Regulatory and Warranty ............19... -
Page 7: Installation
! USB cable ! Quick Installation Guide System Requirements To use the USRobotics USB Internet Mini Phone and Skype™ Internet telephony service, your computer system and environ- ment must meet the following minimum requirements: ! Windows® Vista, XP, or 2000... -
Page 8: Phone Features
Installation Phone Features Skype Displays Skype window on computer Navigates Skype window tabs Up/Down Adjusts voice volume during calls Scrolls through contacts and call his- tory Backspace Press to delete entered digits Press and hold to delete all digits Press to select ring tone for phone PQRS WXYZ Closes Skype window... -
Page 9: Installation Instructions
Installation Warning: Skype is not a telephony replacement service. Any VoIP service used in conjunction with the USRobotics USB Internet Mini Phone cannot be used for calls to emer- gency services or emergency telephone numbers (311, 911, 112, 999, etc.). Use a land line for calls to emergency services, such as police, fire, or ambulance. - Page 10 " Wi nd ow s 2 0 0 0: On the desktop, double click My Computer, then double click the CD drive icon. Step Two: Install Skype If Skype is already installed on your computer, go to go to “Step Three: Install the USRobotics USB Internet Mini Phone Soft- ware.”...
- Page 11 1. If prompted, select your language and accept the End User License Agreement. 2. Select Install Skype. 3. Follow the on-screen instructions to install Skype. Step Three: Install the USRobotics USB Internet Mini Phone Software 1. Select Install USRobotics USB Internet Mini Phone.
- Page 12 Installation 2. Follow the instructions to install the USRobotics USB Inter- net Mini Phone. When you see the screen below, select Allow this program to use Skype. 3. If multiple sound cards are installed on your computer, make sure that the correct sound card is selected as the Windows default device.
- Page 13 Installation B. Double click Control Panel. C. Double click Sounds and Multimedia. D. On the Audio tab, select the desired sound card as the Windows sound playback and sound recording preferred device. E. Click OK to make the change and close the window. 4.
-
Page 14: Operation
Operation Operation System Tray Icons A red phone icon in the system tray indicates that your Inter- net Mini Phone is properly installed. A grey phone icon in the system tray indicates that your Inter- net Mini Phone is not properly connected. If you see this icon, check the USB cable. - Page 15 Operation 3. When you are done, click end in Skype or press end on your Internet Mini Phone Using speed dial To assign a speed-dial number: 1. Open the Skype window and select the Contacts tab. 2. Right-click a contact and click Set Speed-Dial. 3.
-
Page 16: Receiving A Call
Operation Receiving a call To accept the call, click send in Skype or press send on the phone. To reject the call, click end in Skype or press end on the phone. Placing a call on hold If you receive a call while you are already talking on another call, you can place the first call on hold to take the second call. -
Page 17: Audio Settings
Operation Audio settings Internet Mini Phone Utility Settings Double click the phone icon in the system tray to display the Internet Mini Phone utility. ! Use the controls under USB phone to adjust call audio. The microphone sensitivity adjusts automatically and cannot be set using the slider. - Page 18 Operation ! The Setup button at the bottom of the Internet Mini Phone utility window is a shortcut to the Windows audio properties control panel. You can use this control panel to select which sound device is used as the Windows default. Typically, this is set to your computer’s sound card.
-
Page 19: Troubleshooting
The Internet Mini Phone utility must be running for the icon to appear in the system tray. Click Start and select the Internet Mini Phone from the programs list. If the USB Internet Mini Phone is not in the programs list, you must install the utility. Repeat the installation procedure. - Page 20 S o l u t i o n 1 : Ring tones that are selected in Skype do not play through the USRobotics USB Internet Mini Phone. You can select a ring tone on the phone by pressing the top right key on the keypad.
- Page 21 Troubleshooting S o l u t i o n 2 : You can play Skype ring tones through your sound card. 1. Double click the phone icon in the system tray. 2. In the Internet Mini Phone utility, click the Ringing pull- down menu and select your sound card.
- Page 22 Troubleshooting Start Skype by clicking Start and then selecting Skype. If you do not have a Skype account, follow the on-screen instructions to create a Skype user account. I cannot hear any sound through the phone or the caller cannot hear my voice S o l u t i o n 1 : Make sure the USB cable is connected to the Internet Mini Phone and your computer.
- Page 23 Troubleshooting I can no longer use my system microphone Windows Vista automatically selects the new phone as your microphone. To select your original microphone again, follow these steps: 1. Click Windows Start 2. Click Control Panel. 3. Click Hardware and Sound > Sound. 4.
-
Page 24: Support
Support If you experience any problems with your Skype software, refer to http://support.skype.com/. To obtain support for your USRobotics USB Internet Mini Phone: 1. Know your model and serial number. The model number of your phone is 9602. If you ever need to call for technical support, you will need your phone’s serial number. -
Page 25: Regulatory And Warranty
Skype is not a telephony replacement service. Any VoIP service used in conjunction with the USB Internet Mini Phone cannot be used for calls to emergency services or emergency telephone numbers (311, 911, 112, 999, etc.). Use a landline telephone for calls to emer- gency services, such as police, fire, or ambulance. -
Page 26: Declaration Of Conformity
Declaration of Conformity We, U.S. Robotics Corporation of 935 National Parkway, Schaumburg, Illinois, 60173-5157 USA, declare under our sole responsibility that the product, USRobotics USB Internet Mini Phone, Model 9602, to which this declaration relates, is in conformity with the following standards and/or other normative documents. - Page 27 Regulatory and Warranty Engolish USRobotics Corporation 90 Day Limited Warranty Re g ul a to r y a n d Wa r r a n t y 1.0 GENERAL TERMS: 1.1 This Limited Warranty is extended only to the original end-user purchaser (CUS- TOMER) and is not transferable.
- Page 28 Regulatory and Warranty 2.3 CUSTOMER must furnish U.S. ROBOTICS a dated Proof of Purchase (copy of original purchase receipt from U.S. ROBOTICS or its authorised reseller) for any warranty claims to be authorised. 3.0 OBTAINING WARRANTY SERVICE: 3.1 CUSTOMER must contact U.S. ROBOTICS Technical Support or an authorised U.S. ROBOTICS Service Centre within the applicable warranty period to obtain warranty service authorisation.
- Page 29 Regulatory and Warranty uct or part does not match the CUSTOMER supplied information for which the RMA was issued. 4.6 Once a CUSTOMER return has been unpacked, visually inspected, and tested U.S. ROBOTICS will, at its sole discretion, repair or replace, using new or reconditioned product or parts, to whatever extent it deems necessary to restore the product or part to operating condition.
- Page 30 Regulatory and Warranty 5.4 LIMITATION OF LIABILITY. TO THE FULL EXTENT ALLOWED BY LAW, U.S. ROBOTICS ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAM- AGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSI- NESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,...
