US Robotics USR9601 User Manual

Usb internet phone
Hide thumbs Also See for USR9601:
Table of Contents

Advertisement

Quick Links

Download this manual
USB Internet Phone
User Guide
R24.0579.00
rev 3 1/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR9601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for US Robotics USR9601

Summary of Contents for US Robotics USR9601

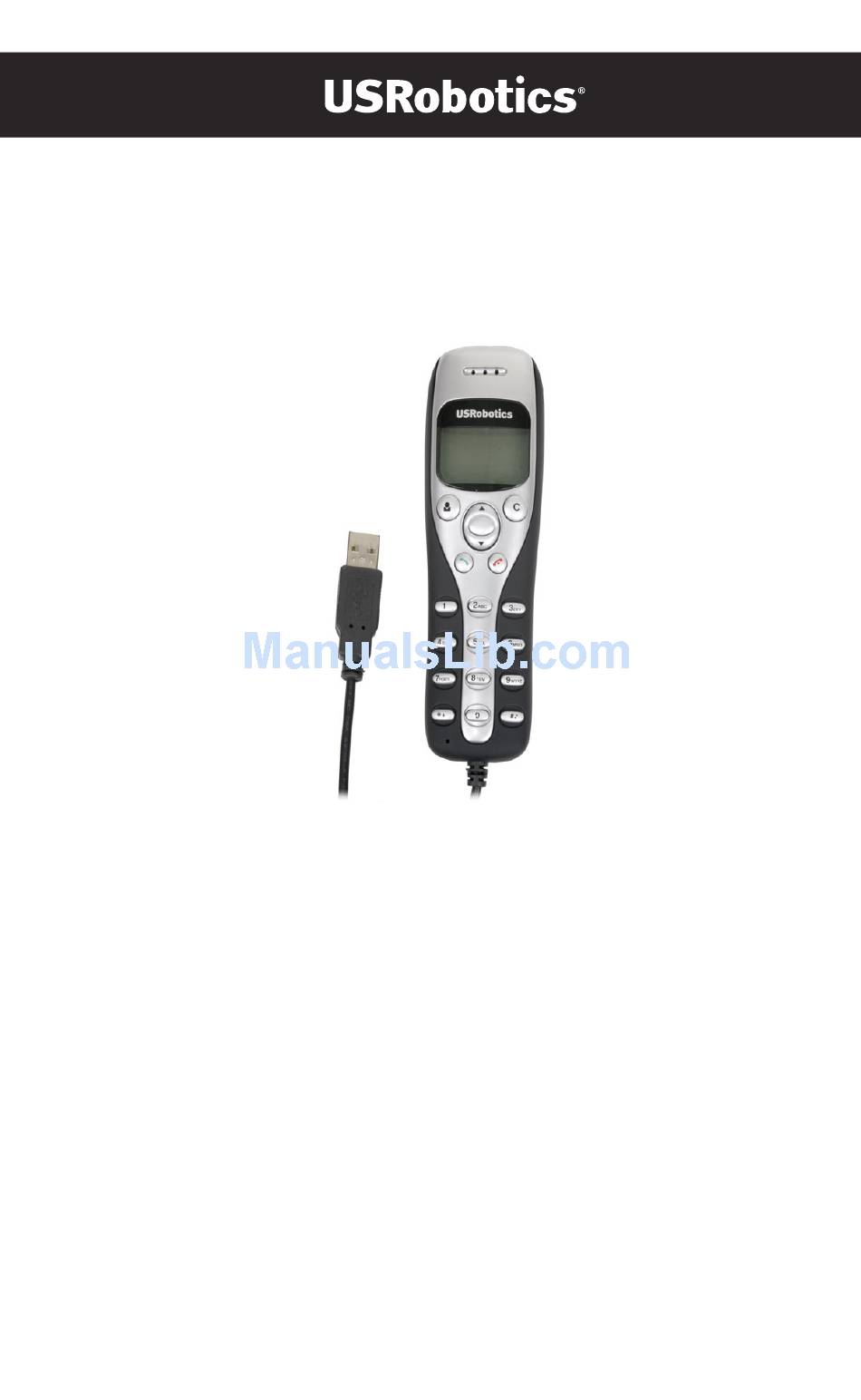

  • Page 1 USB Internet Phone User Guide R24.0579.00 rev 3 1/06...
  • Page 3 USB Internet Phone User Guide...
  • Page 4 U.S. Robotics Corporation 935 National Parkway Schaumburg, Illinois 60173-5157 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as a translation, transformation, or adaptation) without written permission from U.S. Robotics Corporation.

  • Page 5: Table Of Contents

    Contents English Installation........1 Operation........9 Troubleshooting .

  • Page 7: English

    Installation English Package Contents • USRobotics USB Internet Phone • Installation CD-ROM • User Guide Physical Features Headset jack: Allows use of a corded headset with a standard 2.5mm stereo plug. Clear: • Deletes digits when you dial a number •...

  • Page 8: System Requirements

    System Requirements To use the USRobotics USB Internet Phone and Skype™ Internet telephony service, your computer system and environment must meet the following minimum requirements: • Operating system: Windows® 2000 or XP • Processor speed: 400 MHz • USB port: USB 1.1 or USB 2.0 •...
  • Page 9 2. Connect the USB Internet Phone to your com- puter’s USB port. Wait for an indication that installation is complete. If you are prompted to reboot your computer, click Yes.
  • Page 10 3. Insert the USRobotics Installation CD-ROM. The CD didn’t start automatically? From the Start menu, select My Computer and double- click the CD drive.

  • Page 11: Install Skype

    4. Install Skype If Skype is already installed on your computer, go to step 5. A. If prompted, select your language and accept the End User License Agreement. B. Select Install Skype. C. Follow the instructions to install Skype.
  • Page 12 5. Install the USB Internet Phone A. Select Install USB Internet Phone.
  • Page 13 B. Follow the instructions to install the USB Internet Phone. Make sure that Allow this program to use Skype is selected. A green phone icon should appear in your system tray near the clock. If the phone icon remains red or grey, refer to “Troubleshooting” on page 15 for more information.
  • Page 14 6. Verify the installation by making a test call. A. From your Windows Start menu, select Programs, then select Skype and start the Skype program. B. Select Tools, Options. Then select Sound Devices. C. In the Skype program, click Make a test call to Skype answering machine and follow the on-screen instructions.

  • Page 15: Operation

    Operation Volume To adjust the volume of the phone, double-click the USB Internet Phone icon clock on your computer desktop. You can also right-click the USB Internet Phone icon and click Volume Controls. You can then adjust the volume of the phone’s speaker by moving the slider bar to the right or to the left.

  • Page 16: Select Language

    • Select or deselect the Run when Windows starts feature. If you select this feature, the USB Internet Phone utility will automatically launch when your computer is turned • Choose one of the 10 different Ring styles. You can also change the ring tone by pressing the tom right corner of the phone.
  • Page 17 Placing a call using the phone Calling from your contact list Press the contacts button on your phone. Use the arrows to highlight a contact. On-line contact: Off-line contact: Press the send button (green) to call the contact. When you are done, press the end button (red). Using speed-dial On your computer, double click the Skype button in your system tray.

  • Page 18: Receiving A Call

    SkypeOut™. First, go to www.skype.com and buy “Skype Credit.” Then just dial. To dial a landline or mobile phone, first press 00 or + on the telephone keypad. Then, enter the country code and phone number that you are calling. (Go to http://support.skype.com for information on international dialing.)

  • Page 19: Placing A Call On Hold

    Placing a call on hold If you receive a call when you are already engaged in another call, you can place the first call on hold to take the second call. Press send to take the incoming call and place the first call on hold.
  • Page 20 Icons Description Not logged on to Skype Phone connected, U.S. Robot- ics USB Phone software not running Idle state, U.S. Robotics USB Phone software and Skype software running Incoming call Outgoing call Missed call Contact on-line Contact off-line SkypeOut Phone Display 14:35 Let’s Skype In idle state...

  • Page 21: Troubleshooting

    Troubleshooting The USB Internet Phone system tray icon is red Possible Solution Reconnect the USB Internet Phone. The USB Internet Phone system tray icon is grey Possible Solution: From your Windows Start menu, select Programs, Skype, and start the Skype program. Possible Solution: In the Skype utility, select Tools then Options.
  • Page 22 Click Privacy and then Manage other programs’ access to Skype. Select U.S.ROBOTICSUSBPHONE.exe and click Change. Select Allow this program to use Skype and click OK.
  • Page 23 My USB Internet Phone shows that it is connected to my computer but the buttons on the phone don’t do anything. Possible Solution Make sure that the USB Internet Phone utility and the Skype program are both running. Follow the installation steps in this guide if the utilities have not been installed.
  • Page 24 I am not able to hear any sound through the USB Internet Phone. Possible Solution: Skype may not be set to use the USB Internet Phone. From your Windows Start menu, select Programs, then select Skype and start the Skype program. Select Tools, Options.

  • Page 25: Support

    Support If you experience any problems with your Skype software, refer to http://support.skype.com To obtain support for your USB Internet Phone: 1. Know your model and serial number. The model number of your phone is 9601. If you ever need to call for techni- cal support, you will need your phone’s serial number.
  • Page 26 3. Submit your technical support question using an on-line form, or contact the USRobotics Technical Support Department. U.S. www.usr.com/emailsupport Canada www.usr.com/emailsupport Austria www.usr.com/emailsupport/de +43 07 110 900 116 08:00-18:00, M-F Belgium (Flemish) www.usr.com/emailsupport/bn +32 07 023 3545 Belgium (French) www.usr.com/emailsupport/be +32 07 023 3546 Czech Republic www.usr.com/emailsupport/cz Denmark...

  • Page 27: Regulatory And Warranty

    Regulatory and Warranty Regulatory Information Manufacturer’s Declaration of Conformity U.S. Robotics Corporation 935 National Parkway Schaumburg, IL 60173 U.S.A. declares that this product conforms to the FCC’s specifications: Part 15, Class B Operation of this device is subject to the following conditions: 1) this device may not cause harmful electromagnetic interference, and 2) this device must accept any interference received including interference that may cause undesired operations.
  • Page 28 Digital Apparatus, ICES-003 of Industry Canada. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
  • Page 29 U.S. Robotics Corporation Two (2) Year Limited Warranty 1.0 GENERAL TERMS: 1.1 This Limited Warranty is extended only to the original end-user purchaser (CUS- TOMER) and is not transferable. 1.2 No agent, reseller, or business partner of U.S. Robotics Corporation (U.S. ROBOT- ICS) is authorised to modify the terms of this Limited Warranty on behalf of U.S.

  • Page 30: Obtaining Warranty Service

    U.S. ROBOTICS Technical Support: • Product Model Number • Product Serial Number • Dated Proof of Purchase • CUSTOMER contact name & telephone number • CUSTOMER Computer Operating System version • U.S. ROBOTICS Installation CD-ROM • U.S. ROBOTICS Installation Guide 4.0 WARRANTY REPLACEMENT: 4.1 In the event U.S.
  • Page 31 product or parts, to whatever extent it deems necessary to restore the product or part to operating condition. 4.7 U.S. ROBOTICS will make reasonable effort to ship repaired or replaced product or part to CUSTOMER, at U.S. ROBOTICS expense, not later than TWENTY ONE (21) DAYS after U.S.

  • Page 32: Governing Law

    CIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAIN- TENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF U.S. ROBOTICS OR ITS AUTHORISED RESELLER HAS BEEN ADVISED OF THE POSSI- BILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT U.S.
  • Page 34 Printed in Xxxxxx...

This manual is also suitable for:

9601
