- Page 3 Welcome aboard. You’re excited to get on the road, so we’ll keep this brief!
- Page 4 Let’s get started. Ecoped Pulse gives you the freedom to move like never before. It combines the convenience of a bicycle with the utility of a car, but it doesn’t require expensive insurance, registration or a license. And because Ecoped Pulse runs on electricity, it dramatically reduces your...
- Page 5 Become an expert! This manual is surprisingly helpful. It’s true that once you learn how to ride a bike you never forget, but Ecoped is no traditional bike. It has some neat features that help you get more from your ride, so read up and learn how to use...
- Page 7 How can we help? I want to... On page... Set up my new scooter Charge the battery Adjust the brakes Remove the battery Get some riding tips Securely park my scooter Store my scooter for the winter Learn about my warranty We’ve got you covered! Call us at 1-877-528-3772 if you have any questions...

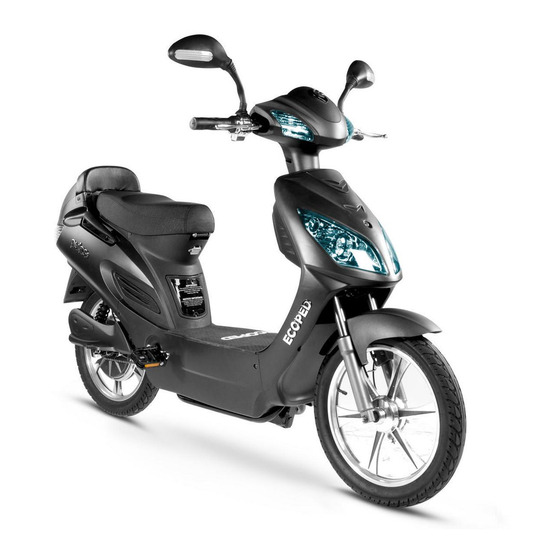

- Page 8 Your Ecoped Pulse...
- Page 10 Ecoped Pulse Controls...
- Page 12 Rider Information Panel...
- Page 13 Storage Compartments...
- Page 14 Getting Up to Speed These next steps will ensure that your new Ecoped Pulse is in great working condition. Before riding for the fi rst time, please take a few moments to go over these, and refer to the Maintenance Schedule for...
- Page 15 PARKING ECOPED PULSE You can park Ecoped Pulse almost anywhere that traditional bicycles are allowed. Pulse includes a few safety features to protect against theft. The double kickstand is best for use in high-traffi c areas or uneven surfaces. The fl ick stand is better suited for short-term parking on level ground and with little traffi c.
- Page 16 Engaging the Front Wheel Lock Turn ignition to the OFF position. Turn the front wheel to the left and maintain it in that position. Push the key into the ignition and turn counter-clockwise to the LOCK position. Using the Flick Stand Ensure that the steering lock is engaged with the front wheel turned to the left.
- Page 17 USING THE REAR WHEEL LOCK The rear-wheel lock is designed to provide additional security when Ecoped Pulse is parked in a public area. When engaged, it blocks the rear wheel from rotating and makes the scooter impossible to ride away with. We recommend using this feature when parked outside for long periods of time.
-
Page 18: Removing The Battery
BATTERY MAINTENANCE The Ecoped Pulse battery is designed to last for at least 500 recharge cycles. Long-term battery performance will vary depending on how often you ride your scooter, how often you recharge it, and the outside temperature during use. - Page 19 HOW TO EXTEND BATTERY LIFE Make the most of each charge! Travel as far as possible to use as much of the charge as you can before recharging. The battery will “learn” to charge fully instead of getting used to smaller charges. Don’t stay uncharged for too long! Lead-acid batteries require a constant fl...
- Page 20 (which means that you don’t need to remove the battery) and separate from the scooter. You should not use a diff erent charger than the one supplied with your Ecoped Pulse. As well, avoid charging the battery in areas with lots of dust.
- Page 21 Charging Separately from the Scooter Follow the battery removal procedure on page 18. Place the battery near a wall outlet and in a well-ventilated area Connect the charger to the wall outlet. Connect the charging cable to the port located below the top lip on the battery (see sticker on battery case).
- Page 22 FOLDING THE PEDALS The pedals on Ecoped Pulse fold away to prevent damage to other bikes when parked. Remember to unfold the pedals before riding your scooter. Riding without any pedals installed may be prohibited by your provincial or municipal legislation.
- Page 23 BRAKE ADJUSTMENT Ecoped Pulse (like all other bicycles) requires monthly brake adjustments. Before riding your scooter for the fi rst time, make sure to adjust the brakes as they may have loosened during transport. “Left” and “Right” orientations are determined by the position of the rider when seated on Ecoped Pulse.
- Page 24 Adjusting the Rear Brakes (Right-Side Brake Lever) Ensure that the scooter is safely parked using the double kickstand (see page 15). Using a 10mm wrench, loosen the bolt on the rear brake cable. Gently pull the brake adjuster toward the centre of the scooter (you may need to hold the brake cable to increase tension).
-
Page 25: Mounting The Scooter
Hit the Road – Riding Pulse Congratulations, you’ve made it this far! You are almost ready to get on the road with your awesome new Ecoped Pulse. Here are a few tips for safe riding and proper road procedures. Mounting the Scooter Roll the scooter forward to disengage the double kickstand, and fold it fl... - Page 26 Riding in Diff erent Conditions Ecoped Pulse is designed to work best in clear, dry weather. Proper surface grip is essential to safe riding, so use your discretion when riding on gravel or unpaved roads. Wet conditions may prevent proper grip and could become dangerous.
- Page 27 Riding uphill will require extra power from the battery and may also require that you pedal. Ecoped Pulse is designed to climb slopes of up to 16°, however this may change with road conditions, rider weight, battery charge, and cargo weight.
- Page 28 Don’t use a hose or cleaning methods that require spraying at high pressure. If you own an Ecoped Pulse with a fl at grey fi nish, don’t use any cleaning products that may have alcohol. In fact, warm water without...
- Page 29 When storing Ecoped Pulse for extended periods of time, we recommend that you fully charge the battery and remove it from the scooter. If you are storing Ecoped Pulse in a garage, ensure that the battery remains indoors and is kept at room temperature, and can be charged every 30 days.
- Page 30 Technical Specifi cations 2012 Ecoped Pulse Motor 750W Peak, 350W Running Maximum Speed 32km/h Acceleration 0-30km in 4.1 seconds* 48V 20Ah, 960Wh lead-acid rechargeable. 30A Fuse Battery Up to 500 recharge cycles.* Distance per Charge Up to 70km* Climbing Angle 9°...
- Page 31 Having said that, Ecoped Pulse is still bound by a few (or depending on where you live, more than a few) laws. In general, bikes like Ecoped Pulse fall under the same rules for traditional bicycles, including helmet requirements.
- Page 32 Warranty Terms and Conditions This warranty is limited to Ecoped Canada products sold after January 1, 2012, when distributed by Walmart Canada, unless specifi ed otherwise in the individual purchase agreement. This product is warranted to be free of defects in materials and workmanship from the original date of purchase according to the schedules defi...
- Page 33 Warranty service must be performed by an ECOPED-Authorized service dealer, using genuine ECOPED Certifi ed Replacement parts. If you feel your equipment is malfunctioning due to a defect, simply contact our customer support team at 1-877-528-3772 for technical assistance, to fi le a warranty claim, or for general information.
- Page 34 Normal wear and tear, such as but not limited to fading of painted or plated surfaces, sheet peeling and other natural deterioration. • Damage caused by a lack of maintenance as described in the Ecoped Owners Guide. • Consumable parts: Ecoped does not warrant deterioration of the following unless needed as a part for another warranted repair: tires, inner tubes, lost or broken keys, battery, light bulbs, and chain.
- Page 35 The owner’s registration, found with the user manual, must be completed and mailed. Registration is also available online at www.ecoped. com. You should keep your receipt as proof of purchase, as well as retain a record of the scooter serial number.
- Page 36 ©2012 Midland Power Inc. All Rights Reserved. The Ecoped logo is a trademark of Midland Power Inc., registered in Canada and the U.S. Use of the Ecoped logo or wordmark for commercial purposes without the prior written consent of Ecoped may constitute trademark infrindgement and a violation of copyright laws.
