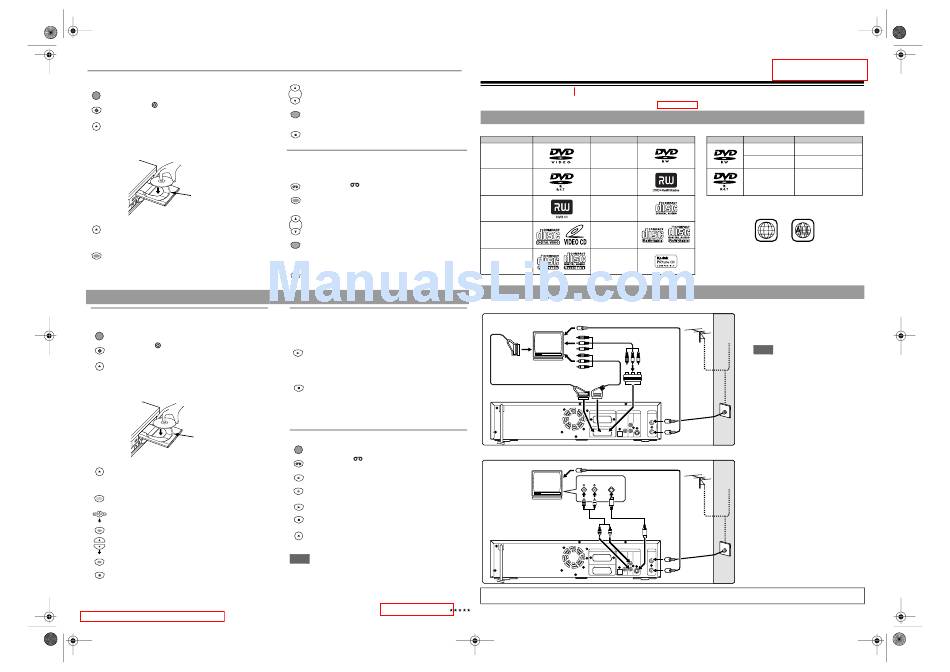

Durabrand ADB2737BD Quick Setup Manual

E9B05BD_QSG_EN.fm Page 1 Wednesday, November 29, 2006 5:05 PM
Basic recording on DVD
1
STANDBY-ON Press [STANDBY-ON] to turn on the unit.
2 Press [DVD ].
DVD
3 Press [OPEN / CLOSE / EJECT O] to open the disc
OPEN/CLOSE
/EJECT
tray.
4 Place a recordable disc on the disc tray with its
label facing up. Be sure to align the disc with the
disc tray guide.
Disc tray guide
OPEN/CLOSE 5 Press [OPEN / CLOSE / EJECT O] to close the disc
/EJECT
tray.
It may take a while to recognize a disc type after a disc is
inserted into the unit.
REC SPEED
6 Select the recording speed using [REC SPEED].
Playing back discs / video tapes
Playing back a DVD-RW / DVD-R / DVD+RW /
DVD+R disc
STANDBY-ON 1 Press [STANDBY-ON] to turn on the unit.
2 Press [DVD ].
DVD
3 Press [OPEN / CLOSE / EJECT O] to open the
OPEN/CLOSE
/EJECT
disc tray.
4 Place the disc on the disc tray with its label facing
up. Be sure to align the disc with the disc tray
guide.
Disc tray guide
5 Press [OPEN / CLOSE / EJECT O] to close the
OPEN/CLOSE
/EJECT
disc tray.
It may take a while to recognize a disc type after a disc is
inserted into the unit.
TOP MENU 6 Press [TOP MENU] to display the Title list.
You can switch between the "Original" and "Playlist" in the
VR mode using [MENU / LIST].
7
Select the desired title using
[Cursor U / D / L / P], then press [ENTER].
ENTER
Popup window will appear.
8 Select "Play" using [Cursor U / D], then press
[ENTER].
ENTER
Playback will start.
9 Press [STOP ] to stop playback.
S
STOP
To eject the disc, press [OPEN / CLOSE / EJECT O] to
open the disc tray, then remove the disc. Press
[OPEN / CLOSE / EJECT O] to close the disc tray before
turning off the unit.
Produced for ASDA Stores Ltd., LEEDS LS11 5AD
7 Select the desired channel to record using
PROG.
[PROG. U / D] or [the Number buttons].
8 Press [REC / OTR] (DVD) to start recording.
REC/OTR
To pause the recording, press [PAUSE p]. Press
[REC / OTR] (DVD) or [PAUSE p] to restart the recording.
STOP 9 Press [STOP S] to stop the recording.
This operation may take a few moments to complete.
Basic recording on video tape
1 Turn on the unit and insert a recordable tape.
Make sure that the TV input is set on the unit.
VCR
2 Press [VCR ].
3 Select the recording speed using [REC SPEED].
REC SPEED
• The desired recording speed is selected in SP (standard play)
or LP (long play) mode by pressing [REC SPEED].
4 Select the desired channel to record using
PROG. [PROG. U / D] or [the Number buttons].
5 Press [REC / OTR] (VCR) to start recording.
REC/OTR
To temporarily stop recording or to resume it, press
[PAUSE p]. After the unit has been in pause mode for 5
minutes, it will stop automatically to protect the tape and the
video head from damage.
STOP
6 Press [STOP S] when the recording is completed.
Playing back a DVD-V / CD / Video CD
1
Follow steps 1 to 5 in "Playing back a DVD-RW /
DVD-R / DVD+RW / DVD+R disc".
2 Press [PLAY ] to start playback.
PLAY P
Playback will start.
If you are playing back a DVD-Video or a Video CD, a menu
may appear.
See pages 41 - 42 on the Owner's Manual for details.
Press [STOP S] to stop playback.
STOP 3
Playing back an MP3 / JPEG
For MP3 or JPEG files, you can select the track from the File List.
See pages 38 - 41 on the Owner's Manual for details.
Playing back a video tape
STANDBY-ON
1 Press [STANDBY-ON] to turn on the unit.
2 Press [VCR ].
VCR
3 Insert a prerecorded tape, then press [PLAY P ] to
PLAY
begin playback.
PAUSE
4 During playback, press [PAUSE p].
Playback will be paused and sound will be muted.
PLAY
5 Press [PLAY P] to resume playback.
STOP
6 Press [STOP S] to stop playback.
OPEN/CLOSE 7 Press [OPEN / CLOSE / EJECT O] to eject the
/EJECT
tape.
Note
• When a tape without record tab is inserted, the unit will start playback
automatically.
• Tracking will be automatically adjusted upon playback. To adjust the
tracking manually, press [PROG. U / D].
1VMN23433 / E9B05BD
EN
Quick Setup Guide
Congratulations on your purchase of a DVD Recorder with Video Cassette Recorder. This Quick Setup Guide takes you through the first-time setup with
simple instructions so you can enjoy exceptional audio and video quality as soon as possible. Please refer to the Owner's manual for detailed instructions. If
you have read your instructions and still need assistance, call helpline at 0845-300-7775. Unless stated, all procedures described use the remote control.
Recordable and Playable discs
Playable discs
Disc Logo Disc Logo
DVD-RW
DVD-Video
(Video/VR mode)
DVD-R
DVD+RW*
(Video mode)
CD-DA
DVD+R*
(AUDIO CD)
CD-RW
VCD
(CD-DA FORMAT,
(VIDEO CD)
MP3, JPEG files)
CD-R
(CD-DA FORMAT, Kodak Picture CD
MP3, JPEG files)
* There may be a disc which cannot be used or played back.
Connecting to a TV
Using the Scart jack
To Aerial jack
TV
Audio/Video cable
(not supplied)
Scart/RCA cable
Scart adaptor
(not supplied)
(not supplied)
Scart cable (supplied)
DVD/VCR DVD ANTENNA
AUDIO S-VIDEO
AV2(DECODER) DIGITAL
AUDIO OUT OUT OUT
IN
OPTICAL COAXIAL L
AV1(TV)
R
OUT
Using the S-VIDEO OUT jack and the AUDIO OUT jacks (only for DVD)
To Aerial jack
TV
AUDIO IN S-VIDEO IN
Audio cable S-Video cable
(not supplied) (not supplied)
DVD/VCR DVD ANTENNA
AV2(DECODER) DIGITAL AUDIO S-VIDEO
AUDIO OUT OUT OUT
IN
L
OPTICAL COAXIAL
AV1(TV)
R
OUT
Note for a TV with no S-Video input jacks or Scart jack:
• This unit has no RF modulator, so this type of TV cannot be used.
ADB2737BD
Recordable discs
Disc type Disc format Functions
Playing back, Limited
Video mode
recording, Limited editing
Playing back, Recording,
VR mode
Original / Playlist editing
Playing back, Limited
Video mode
recording, Limited editing
This unit can play back DVD discs labelled with the
following region codes only:
2
Connect AV1 (TV) Scart jack of this unit
Antenna
to the Scart jack of your TV.
Cable
Use the supplied Scart cable.
Signal
Note
• If your TV does not have a Scart jack, use
or
a commercially available Scart adaptor or
Scart / RCA cable to connect.
Use only AV1(TV) or AV2(DECODER)
jack for the VCR output signals of this
RF cable
unit.
(supplied)
RF cable
(not
supplied)
If your TV has an S-Video input jack, use
Antenna
S-Video and Audio cables to connect.
Cable
Signal
1 Connect S-VIDEO OUT jack of
this unit to the S-Video input
jack of your TV. Use a
or
commercially available S-Video
RF cable
cable.
(supplied)
2 Connect the AUDIO OUT jacks of
this unit to the analogue Audio
input jacks of your TV. Use a
commercially available Audio
cable.
RF cable
(not
supplied)
EN
