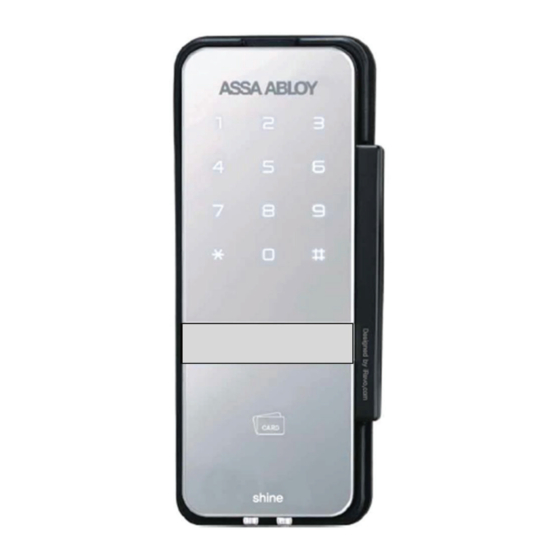

- Page 1 Manual User guide and installation instructions The global leader in door opening solutions...
- Page 2 No drilling required and the bracket is secured with strong double Choice of access sided tape. shine has two access solutions, PIN code Modern slim design or RF Card key for your convenience. Robust, low profile contemporary digital...
- Page 3 Components overview Specifications Back body Standard contents Front body • User guide Battery cover • Installation template Anti-tamper screw • 4 x access cards • Screw pack • Front body • Back body • Magnet for a • Extension • Packer for use on single door deadbolts 10mm glass thickness...
- Page 4 How to use How to use To use User PIN Code Lock door Registering a user PIN code To close door from outside User PIN Code can be set within 4 to 12 digitals. ( ) and ( # ) are not allowed. Step Icon Description...
- Page 5 How to use How to use Forced lock Auto / Manual locking mode Outside forced lock setting - PIN Code To set Auto Locking mode Auto lock setting locks a door in 5 second after the door is closed. Touch with palm Enter ( # ) button for 3 seconds Enter User PIN Code ®...
- Page 6 Security and safety features Security and safety features Volume setting feature 3-minute Lock feature If incorrect security codes or unregistered Card Keys are attempted 5 times in a row, it will lock out for about Setting the volume (the default setting: High) 3 minutes and the external LED will flash repeatedly.
- Page 7 Optional accessory Optional accessory Remote Control Module Remote Control By purchasing the separate Remote Control Module To register a Remote Control (up to a maximum of 5 remote controls) and the Remote Control the door can be released from up to 50m. Step Icon Description...
- Page 8 Emergency power Installation Emergency power Installation for double opening doors By using a 9V battery additional power can be supplied from the outside, should the batteries have lost power. Rub the installation surface Position the product, aligning Remove the release paper with a dry cloth or alcohol.
- Page 9 ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience. ASSA ABLOY is represented in all major regions, in both mature and emerging markets, with leading positions in Australia, Europe, North America and the Middle East.
