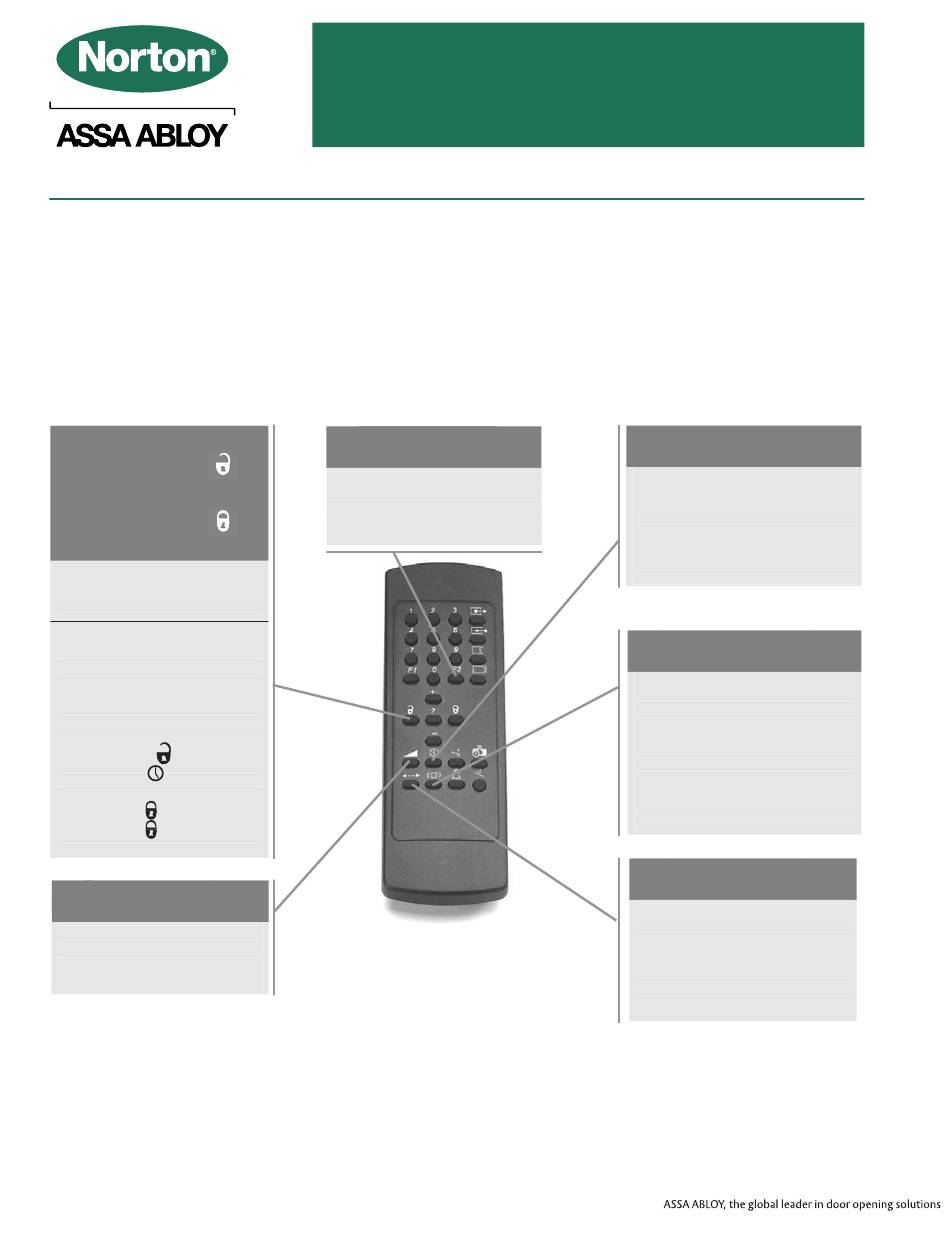

Assa Abloy SafeZone Remote Programming Manual

DOOR CONTROL MODE:
SafeZone - holds door open as long as movement is detected in the opening.
Infinite Hold Open - door held open constantly (with or without movement being detected).
Detection Off - standard door closer operation; open and close/no hold open.
Unlock
Lock
NOTE: Every adjustment, when using the
infrared remote control, must start with
the unlocking function, and end with the
locking function.
To UNLOCK the sensor:
Press the UNLOCK key once.
To LOCK the sensor:
Press the LOCK key twice.
Example: Set Safe Zone to hold open 9
seconds after movement is not detected in
the opening.
Step 1 - Press unlock ; LED flashes
Step 2 - Press time ; LED flashes quickly
Step 3 - Press 9 ; LED flashes
Step 4 - Press lock ; LED flashes quickly
Step 5 - Press lock again to save setting;
LED does not flash
Sensitivity
0 = Minimum Sensitivity
9 = Maximum Sensitivity
Default: 8
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
SafeZone Remote
Door Control Mode (F2)
1 = Safe Zone
2 = Infinite Hold Open
3 = Detection Off
Default: 1
®
Programming Guide
Hold Time
The amount of time door will be held open after
movement is not detected in the opening. Values
range from 0 to 9.
0 = 0.5 sec.
9 = 20 sec
Default: 5 = 10 sec
Immunity
Immunity helps to reduce the chance of
unwanted detections due to environmental
disturbances.
1 = Reduced
2 = Normal
3 = Increased
4 through 9: enhanced immunity (for highly
reflective environment)
Default: 2
Detection Mode
Detection mode offers 3 different levels of
detection:
1 = Bi-Directional
2 = Uni-Directional
3 = Uni-Directional with motion tracking feature
Default: 1
80-9371-0001-000 (01-14)
