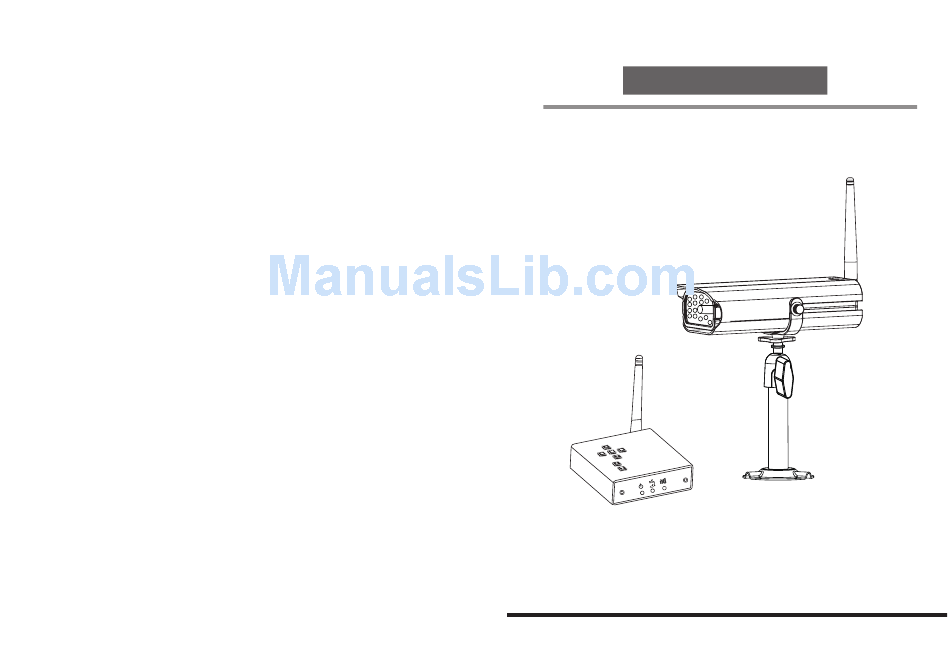

- Page 1 User ’ s Manual Model No.: C1190 Digital Wireless Surveillance Kit PLEASE READ CAREFULLY AND SAVE This manual contains important information about this product's operation. If you are installing this product for others, you must leave this manual -or a...
-
Page 2: Table Of Contents
Contents What You Get Safety Precaution and Hazard Notice / FCC Warning / Disposal Knowing Devices Parts Getting Start Connecting to TV Step1: Connecting Devices Step2: Basic Operation Step3: Advance Operation Connecting to PC About Digital Wireless Technology Trouble Shooting Product Specification What You Get (1) Digital Wireless Color Camera... -
Page 3: System Requirement
Product Specification WELCOME, RF Specification Dear user, thanks for purchasing this product. RF Frequency 2400MHz~2483.5MHz Much investment in time and effort has gone into its development, We now presenting you ZERO interference digital wireless security camera Modulation GFSK and it is our hope that it will bring you many years of trouble-free peace-in-mind service. Spread Spectrum Frequency Hopping Please read this user manual carefully before installing or using these units. -
Page 4: Knowing Devices Parts
Knowing Devices Parts Trouble Shooting Before requesting service, please make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not Camera solve the problem, please contact us. front side back side Problem... -
Page 5: Getting Start
Getting Start About Digital Wireless Technology Step1: Hardware Set Up About 2.4GHz Digital Wireless Signal This innovative digital wireless solution integrates advance Frequency Hopping Spread Spectrum (FHSS) technology. This technology greatly reduce the interference that comes from other devices using the same radio frequency (2.4GHz), e.g. WIFI, Bluetooth, Zigbee, cordless phone…etc. -
Page 6: Step1: Connecting Devices
Connect to computer via USB Connecting to TV Step1: Connecting Devices Step1: Steps to follow : Set up Camera 1.Install iSEC Guarding Software 2.Restart Windows A. Secure the Antenna to the camera 3.Connect Receiver B. Connect power cable to camera DC IN. 4.Launch iSEC Guarding 5V DC adapter ONLY. -
Page 7: Step2: Basic Operation
Reset Step2: Basic Operation Knowing Receiver Function Button A. Press B. System will restore the original factory default settings Reset Right Left Zoom Camera Select / Pair(Pair mode) Menu Down A.Pressing (Up / Down / Left / Right), In Zoom IN mode (ZOOM), pan and tilt the camera In Menu mode, move between the selections B.Pressing (Menu Mode),... - Page 8 In the View Mode Pairing Camera(s) Signal Indicator Zoom Indicator Channel Indicator This function is available for multi cameras users. It is highly recommended to pair the camera before hardware installation. Before pairing the camera, make sure camera is power ON, camera status indicator as shown: ZOOM NO SIGNAL...
- Page 9 D. Zoom Indicator shows Zoom status By pressing (Zoom) on the receiver, you can switch between two resolutions. Setting QUAD Display This function is available for multi cameras user. Before setting QUAD display, make sure all cameras are paired to assigned channels. See [Advance Operation – Pair Camera] section as a guide.
-
Page 10: Step3: Advance Operation
Step3: Advance Operation Setting Auto / Manual Scan Sequence This function is available for multi cameras user. Knowing the Menu Scan Time will be turn off every time after your press (Cam) for manual scan By Pressing (Menu), you can enter / exit Menu Mode ou can Use (Left / Right / Up / Down) to select and change the settings.
