Wiring Diagram; Installation And Removal Steps - Multilaser WAVE User Manual

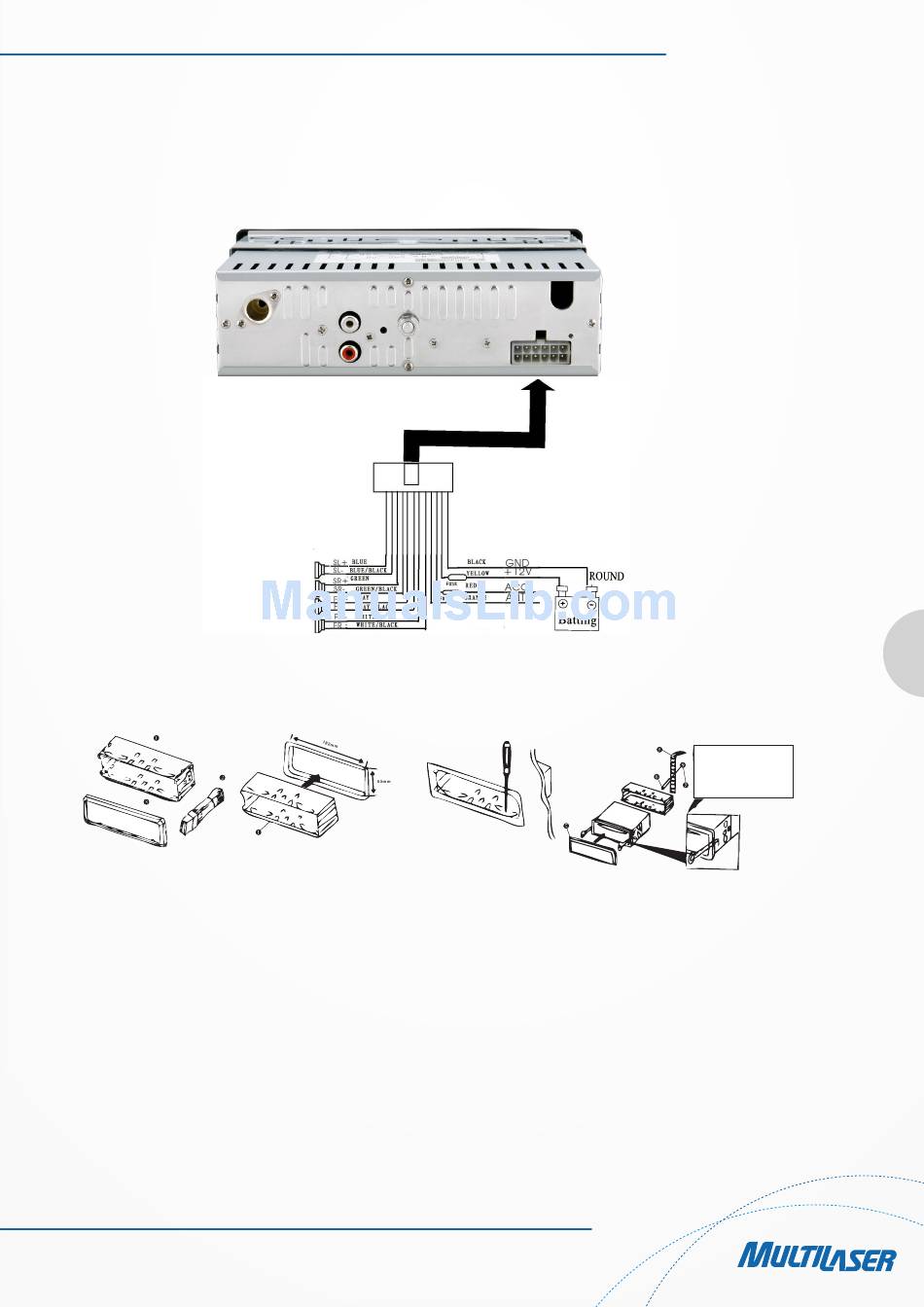

Wiring Diagram

1
Parts list
Putting in the mounting sleeve

Installation and Removal Steps

This is security installation, please refer to the illustration and de-
tailed step-by-step installation.
Installation:
Press the hook lock of the metal case, and insert the metal case
into panel board, then push the device into the metal case until
lockup.
Don't install the device in the place of impeding driving or may
hurt passenger by emergency brake.
Attention:
2 3
Bend these clown
outward for a tight fit, if
necessary.
Atenção:
a) Please make sure all of the wires are connected well before
installation. Check the device and all of the wire are fine then
you can power on the device.
b) In order to install the device properly, please use our acces-
sories. If it needs to drill or have any necessary changes during
the installation process, please contact with the nearby dealer.
Multilaser WAVE
Fasten the rear bra-
cket serows and back
side hamess, and fix the
unit well.
Inset key into the set
then pull the set out trow
dash board
11
