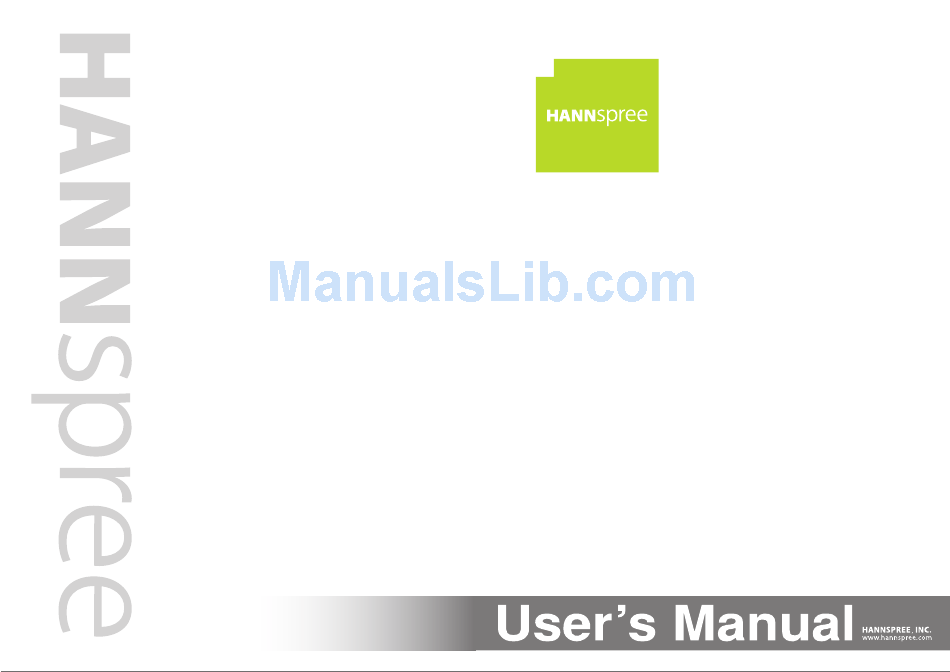

  • Page 1 48,3cm(19") Liquid Crystal Display Television Flüssigkristallbildschirm Téléviseur à Écran à Cristaux Liquides TV de Pantalla de Cristal Líquido TV LCD TV Ecrã de Cristais Líquidos ЖКД ТВ LCD-tv Telewizor ciekłokrystaliczny LCD TV LCD TV LCD TV LCD TV Folyadékkristályos TV РК-телевізор...

  • Page 2: Table Of Contents

    Table of Contents Regulatory Information ..............3 Description of Warning Symbols ............3 Safety Notices .................. 4 Preface ..................... 6 Warranty and Service ............... 6 Getting Started ................8 Package Contents ............8 Introducing the TV ............. 9 Features ..............9 Control Panel ............
  • Page 3 Table of Contents Adjusting the Volume .......... 25 Adjusting On-Screen Display (OSD) Settings ....... 26 OSD Setting Menus ..........27 Adjusting Picture Settings ........27 Adjusting Sound Settings ......... 28 Adjusting Channel Settings ........28 Adjusting DTV Settings ..........30 Adjusting PC Settings ..........

  • Page 4: Regulatory Information

    Directive 2006/95/EC on the harmonization of the laws of Member States relating to electrical equipment for use within certain voltage limits. Hannspree cannot accept responsibility for any failure to satisfy the requirements resulting from a non-recommended modification of the device.

  • Page 5: Safety Notices

    Safety Notices Installation Safety Notes Location Avoid allowing the TV to get prolonged exposure to sunlight or other strong sources of heat. Leave sufficient distance between the TV and the wall to provide enough space for the emission of heat. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
  • Page 6 48,3cm(19") Liquid Crystal Display Television Flüssigkristallbildschirm Téléviseur à Écran à Cristaux Liquides TV de Pantalla de Cristal Líquido TV LCD TV Ecrã de Cristais Líquidos ЖКД ТВ LCD-tv Telewizor ciekłokrystaliczny LCD TV LCD TV LCD TV LCD TV Folyadékkristályos TV РК-телевізор...
  • Page 7 Personal Safety 1. To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable. 2. Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the casing. 3.

  • Page 8: Preface

    The information in this manual is subject to change without notice. To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission in this manual, even if advised of the possibility of such damages in advance.
  • Page 9 Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software.

  • Page 10: Getting Started

    Getting Started Package Contents Make sure the following components are included in the box. Please contact Hannspree Customer Service immediately if anything is missing or damaged. • • User’s manual • Quick start guide • Warranty card • Power cord •...

  • Page 11: Introducing The Tv

    Introducing the TV You can watch SECAM/ PAL/ DVB-T broadcast, cable, or digital television channels, Component and easily connect a VCR, STB or DVD player to the SCART, HDTV ( AV(Composite), and HDMI input ports (location of these ports depends on model). You can also use the TV as a monitor for your PC by connecting it through the VGA port.

  • Page 12: Control Panel

    Control Panel Description Button Function Power Press to turn the TV on or off. Input source Press to select the proper input source. INPUT Press to turn the on-screen display (OSD) Menu MENU menu on / off. Press to increase the program number or Program select move upward to the previous item on the OSD menu.
  • Page 13 Description Connector Function Connect to earphones or external Earphone Output speakers with built-in amplifier. PHONE Component/ Connect to an external device, such as a AUDIO CVBS Inputs VCR, STB, or a DVD player. audio Component Connect to an external device, such as a Inputs (Video) VCR, STB, or a DVD player.

  • Page 14: Remote Control

    Description Connector Function Power Connector Connect to the included power cord. AC IN Remote Control Description Icon Function Power Press to turn the TV on or off. Press to select the input signal type selections: Input Signal TV, DTV, SCART, AV, HDMI 1, HDMI 2, HDTV, INPUT Type and PC.
  • Page 15 Description Icon Function Press up, down, left or right to scroll through Arrows the on-screen display menus. Electronic Press to display detailed programming Program information for channels (only for DTV). Guide Press to active teletext. Teletext mode TEXT Press VOL to increase audio volume.
  • Page 16 Description Icon Function With an ATV source, if teletext mode is activated and the teletext has a subtitle page, Subtitle press to display the subtitle page. SUBTITLE With a DTV source, press to display the subtitle OSD, and select the language. Press to inactivate automatic page change which only occurs when more than one teletext HOLD...
  • Page 17 Note: • For best results, use the remote control within a proper distance from the front of the TV. Do not exceed an angle of 30 degrees when pointing at TV. • The operational distance may be shortened when the signal sensor is directly exposed to strong light.

  • Page 18: Inserting The Remote Control Batteries

    Inserting the Remote Control Batteries 1 Open the battery compartment cover at the back of the remote control (A). 2 Insert the batteries paying attention to the polarity markings inside the battery compartment (B). 3 Replace the battery compartment cover (C).
  • Page 19 CAUTION • If the remote control is not used for a long period, remove the batteries and store them properly. • Handle damaged or leaking batteries carefully, and wash hands with soap if they come in contact with leaked chemical fluids. •...

  • Page 20: Setting Up Your Tv

    Setting up your TV Basic Connections 2.1.1 Power Connection 1 Connect the power cord to the AC IN input jack on the rear of the TV. 2 Insert the plug at the other end of the power cord into a power outlet. 2.1.2 Connecting an Antenna or Cable TV Connect one end of the VHF/UHF (Antenna) or CATV cable to TV/DTV jack on the...

  • Page 21: Connecting External Devices

    Connecting External Devices Connect external devices such as VCRs, STBs, DVD players, video game consoles, earphones, or a PC to the TV using the appropriate ports on the rear of the TV. 2.2.1 Connecting External Earphones Headphones PHONE Speakers (Built-in Amplifiers) Note: •...

  • Page 22: Connecting To Av Devices

    2.2.2 Connecting to AV Devices The following diagram illustrates how to connect the AV devices to your TV via HDMI (A), Component / AUDIO (B), SCART (C), VIDEO / AUDIO (D) ports. AUDIO VIDEO AUDIO HDMI 1 HDMI 2 SCART Adapter SCART (Optional)

  • Page 23: Connecting A Vcr / Stb / Dvd Player Using Component / Video

    2.2.3 Connecting a VCR / STB / DVD Player Using Component / VIDEO Connect the TV to a VCR / STB / DVD player using the component / VIDEO inputs. AUDIO Audio Cable (Optional) Video Cable (Optional) VIDEO AUDIO Video Cable (Optional) Audio Cable (Optional)

  • Page 24: Connecting A Pc Using Vga

    2.2.4 Connecting a PC using VGA Connect the TV to your PC to use it as the monitor using the VGA port as shown. 1 Connect the VGA port of the TV to the VGA output of the PC. 2 Connect the line out port of the PC to the PC LINE IN port of your TV to listen to audio from the PC.

  • Page 25: Connecting Hdmi

    2.2.6 Connecting HDMI HDMI (High Definition Multimedia Interface) assures that the best video signal is always sent from source to the TV. Refer to the following illustration to connect an HDMI device to the TV. HDMI 1 HDMI 2 DVD Player HDMI Cable (Optional) Note:...

  • Page 26: Connecting A Vcr/ Stb/ Dvd Player Using Scart

    2.2.8 Connecting a VCR/ STB/ DVD Player using SCART Use the SCART port to connect a TV, VCR, VCD, DVD player or video game console. You can choose to use a SCART cable or SCART adapter (optional) for the connection depending on the ports available on your player. SCART SCART Adapter (Optional)

  • Page 27: Using The Tv

    Using the TV 2.3.1 Turning the TV On and Off 1 Press on the control panel or remote control. The power LED indicator on the TV changes from red to green, indicating that the TV is on. 2 Press again. The power LED changes from green to red, indicating that the TV is off.

  • Page 28: Adjusting On-Screen Display (Osd) Settings

    Adjusting On-Screen Display (OSD) Settings The On-Screen Display (OSD) menu system provides a quick and simple method to adjust the TV settings. The OSD menu can be accessed conveniently through the buttons on the remote control. Before going into details of each OSD option, you may get acquainted with the placement of the OSD system:.

  • Page 29: Osd Setting Menus

    OSD Setting Menus Follow the instructions indicated on the down side of the OSD Function Menu. Press P on the control panel or arrow keys to scroll through the menus, VOL on the control panel or the arrow key to select an item, or MENU to exit the OSD menu.

  • Page 30: Adjusting Sound Settings

    Adjusting Sound Settings Press MENU to enter the OSD Main Menu screen. Sound Sound Mode Standard Press to select the Sound menu. Balance Treble Press to enter the Sound menu. Bass Press to select an item. Press adjust the scales or options Move Select Return...
  • Page 31 Press MENU to return to the Channel menu entry. Press MENU to exit the OSD menu. - The Channel menu can be used to adjust the Area, Channel, Colour System, Sound System, Auto Search, Manual Search, Fine Tune, AFC Lock, Channel Edit and Parental Lock settings.

  • Page 32: Adjusting Dtv Settings

    - To change the channel name, select the channel and press to open Channel Editor. Input the channel name you prefer using the on screen keys and select Save. Channel Editor Channel Frequency Name Skip Fav. Lock Channel Editor 223.25 - - - 223.25 - - -...
  • Page 33 - The DTV menu can be used to adjust the Channel Management, Area, Auto Search, Manual Search, Preferred Audio, Preferred Subtitle, Parental Lock, Subtitle Type, Time, CI and Parental Rating. • The Channel Management selections include Channel Organizer, Channel Sorting, Channel Grouping, and Delete All TV Channels. •...
  • Page 34 • The Subtitle Type can be set to Normal or Hearing Impaired. • The Time selection includes GMT Offset and Summer Time. - Press to adjust the GMT Offset to AUTO or other time zones. - Press to adjust Summer Time to On or Off. Time GMT Offset AUTO...

  • Page 35: Adjusting Pc Settings

    Adjusting PC Settings Press INPUT and select PC as the signal type. Pc Setup Press MENU to enter the OSD Main Auto Adjust H Position Menu screen. V Position Phase Clock Press to select the PC menu. Press to enter the PC menu. Press to select an item.

  • Page 36: Adjusting Setup Settings

    Adjusting Setup Settings Press MENU to enter the OSD Main Menu screen. Setup Press to select the Setup menu. Language English TT Language West SCART AUTO Press to enter the Setup menu. HDMI Scan Info AUTO Aspect Full Press to select an item. HDMI Audio HDMI X-Contrast...
  • Page 37 • The Aspect mode selections include Auto, Full, Normal, Panorama, Zoom, Subtitle and Wide. Please see below for details. Type 16:9 Content AUTO Full Normal Panorama Zoom Subtitle Wide Note: The options available on the OSD may vary depending on the input signal source.

  • Page 38: Troubleshooting

    Troubleshooting Situation Solution • Connect the power cord properly. • Check if the power LED is on or not. • Press on the control panel or remote control. No picture and sound. • Press Input to cycle through connected video sources. •...

  • Page 39: Support Timing

    Support Timing PC Mode Support Timing Mode Resolution Horizontal Vertical Nominal Pixel PC (VGA) DVI to HDMI (active dot) Frequency (KHz) Frequency (Hz) Clock (MHz) 640x480@60Hz 31.469 59.941 25.175 SVGA 800x600@60Hz 37.879 60.317 1024x768@60Hz 48.363 60.004 VESA 1280x720@60Hz 44.955 59.94 74.176 WXGA+ 1440x900@60Hz...

  • Page 40: Specifications

    Specifications ” Screen Size 48,3cm/19 1440x900 LCD Panel RF In Input Function SCART Component Component Audio RCA in HDMI x 2 VGA PC Line in CI support 5V Earphone Out Output Function Speaker 2.5W+2.5W SCART Out HD Ready Feature 3D Combo Filter 3D De Interlacer Noise Reduction 3:2/2:2 Pull down...

  • Page 41: Dissembling The Stand Base

    *Installing the LCD TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hannspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask...
