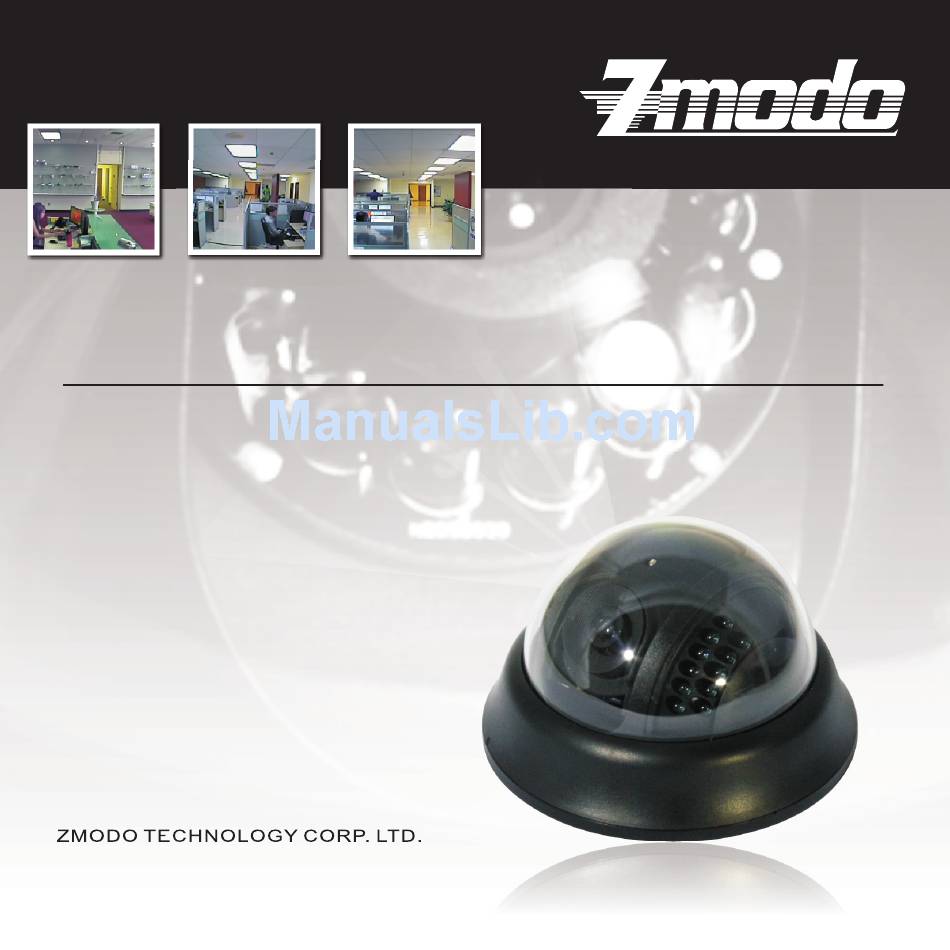

- Page 1 User’s Guide Color Dome CCTV Camera CM-P21133BK 1201-1205 ,Sangda Mansion, High Technology Park, ShenZhen, Guangdong, China Tel: 0755-3363-1636 Fax: 0755-3363-1639...
-
Page 2: Safety Precautions
Never attempt to modify CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO this product in any way. (ZMODO is not liable for NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. -
Page 3: Product Overview
Signal: NTSC Screws Package Box Iris: Auto Night Vision Min. Light: 0 Lux (IR On) 1) CM-P21133BK Color IR Security Camera IR Irradiation Distance: 50' (15m) Operation Temperature: 0F ~ 110F 1) A Card Mount: Ceiling or Wall 3) Screws... -
Page 4: Schematic Diagram
SCHEMATIC DIAGRAM Dome Cover Main Body Lens LEDs Tilt Fixing Screw Mount Bracket 1201-1205 ,Sangda Mansion, High Technology Park, ShenZhen, Guangdong, China Tel: 0755-3363-1636 Fax: 0755-3363-1639... -
Page 5: Connecting Cables
CONNECTING CABLES RCA Cable Video Balun Monitor BNC Cable To connect cables 1. Connect the BNC cable to the video connector attached on your camera 2. Connect the BNC cable to the Video Input on a monitor, DVR or Video Balun. 3. -
Page 6: How To Install
HOW TO INSTALL Before installation Please read the following instructions before installing your camera: You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. Do not allow the cable to be caught in a pinched area, otherwise the electric line cover may be damaged. - Page 7 HOW TO INSTALL step Drill three holes on the mounting location. Fix the Mount Bracket to the location with the 3 screws supplied in your package. Then attach the Main Body to the Mount Bracket by rotating it on clockwise. step Adjust the slope of the lens by using the tilt fixing screw on the...
-
Page 8: Camera Specification
CAMERA SPECIFICATION Specifications for NTSC & PAL Standard Item Details Product type CCTV Color CCD IR Dome Camera Power input DC 12V NTSC Standard color system PAL Standard color system Broadcast type (525 Lines, 60 Fields) (625 Lines, 50 Fields) Power Consumption Approx. -
Page 9: Fcc Statement
Operation of this equipment in SKU: CM-P21133BK a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own 4 6 6 5 5 0 0 0 3 2 expense.
