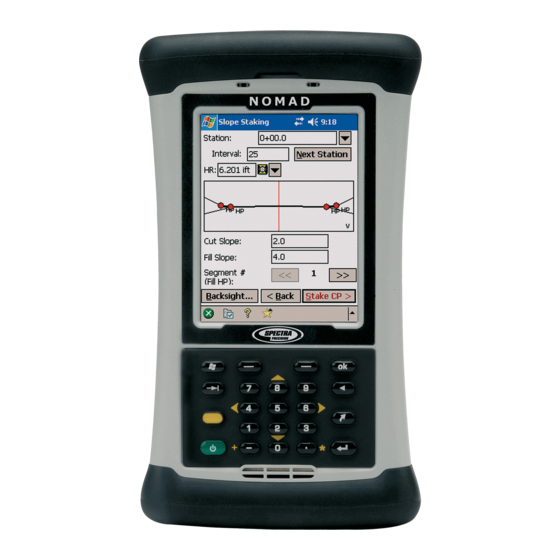

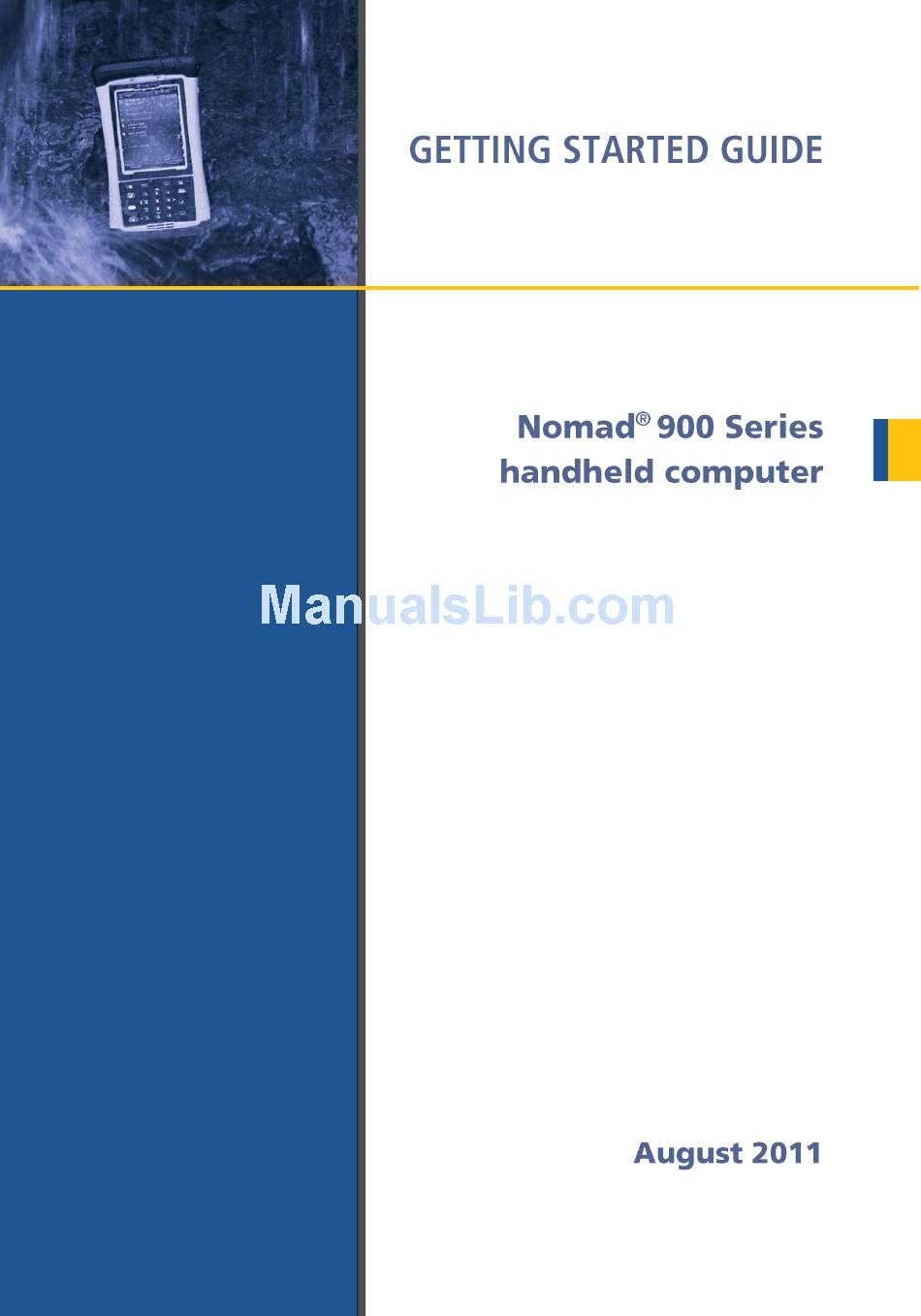

nomad 900 Series Getting Started Manual

Handheld computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 Series and is the answer not in the manual?

Questions and answers

Related Manuals for nomad 900 Series

Summary of Contents for nomad 900 Series

  • Page 2 This product is limited warranted against defects in materials and workmanship for twelve (12) months from the original date of purchase. Nomad accessories and peripherals are limited warranted against defects in materials and workmanship for ninety (90) days from the original date of purchase.

  • Page 3: Table Of Contents

    Declaration of Conformity ............56 Safe Use of your Unit ..............57 Welcome ® Congratulations on your purchase of the Nomad Handheld Computer, the most powerful and advanced handheld computer available on the market today. Its rugged design allows you to work in harsh outdoor environments.

  • Page 4: Device Hardware

    Device Hardware Front View Back View Numeric Data Keypad with hand strap Expansion Cap Expansion Cap Notification Battery Battery Stylus Door Hand Application Application Strap Soft Key* Soft Key* Start* Battery Tab* Backspace* Door Function Key* Today* Screws Power Enter* I/O Boot Number pad and Navigation keys For more information about the function key,...

  • Page 5: Top View

    WWAN Option Second USB host Option Expansion Cap (GPS Antenna) 900LD Model Extended Cap Option Sold as an Accessory WWAN Antenna Top View Top View Standard Camera & Scanner Expansion Cap Expansion Cap Camera only Scanner & Camera Scanner Camera CF type II Camera slot...

  • Page 6: Unit Setup

    Unit Setup 1. Install the battery The Lithium-Ion (Li-Ion) battery and battery cover are shipped detached from the unit. Insert the battery into the compartment so the connectors on the battery mate with the pins in the battery compartment. Press firmly.
  • Page 7 4. Apply the screen protector To keep the touchscreen clean and protected, apply the screen protector following the instructions provided in the screen protector package. Unprotected screens become scratched and scuffed over time. Screen protectors extend the life of the display by providing a protective and replaceable barrier between abrasive grit and the surface of the display.
  • Page 8 6. Language selection IMPORTANT: Carefully choose the correct language because all other languages are removed after this selection. Contact technical support if the wrong language was selected. The first time the unit is turned on or if the firmware is re-loaded, you may need to select the desired language.

  • Page 9: Align Screen

    NOTE : Only Microsoft applications and messages will be translated into languages other than English. All other error messages, notifications and other applications may appear in English. 7. Align screen When the unit first turns on, the message ―Tap the screen to set up your Windows Mobile-based device‖...
  • Page 10 CompactFlash (CF) type II slot, USB port, a camera and/or a scanner. The scanner and camera units have a clear window in the cap. Gently insert cards into the slot and release; the card should catch in the slot. Make sure the front of the card faces the display side of the unit.

  • Page 11: The Today Screen

    11. The Today Screen The Today screen provides information that you need for the day. Tap an item to view or edit details. To customize which items are shown on the Today screen, tap Start / Settings / Today / Items. Tap to view and change connection settings.
  • Page 12 Both boots have a mini-USB client that uses a standard USB cable (included with the unit). The mini-USB port can be used to connect to a personal computer (PC). USB I/O Boot: This boot has a mini-USB client, a USB host port (to connect to USB client devices) and an audio jack that is wired for a headset with a mono speaker and microphone combination.

  • Page 13: Working With The Unit And The Battery

    Working with the Unit and the Battery Battery life: The Lithium-Ion (Li-Ion) battery life is dependent upon the application and operating environment. Tips for extending the battery life: - Keypad backlight: The default is OFF. Using this backlight could reduce your battery life by up to 25%. For information on changing the backlight settings, see page 20.
  • Page 14 Warning! Be sure to only use the power supply included with your unit. Use of other adapters may void the product warranty. Changing the battery: The unit was designed to be able to change the battery quickly without resetting it. The unit saves enough power (in Replace Battery mode) that if you swap the battery within approximately one minute, it will not trigger a reset.
  • Page 15 If it aborting continues to fail, have the unit serviced. Notification LEDs At the top of the Nomad are two LEDs that provide status information. The LED states are shown in the following tables. Right LED Function...
  • Page 16 Speaker and microphone Your unit comes with an integrated speaker and a microphone. It also has an audio jack that is wired for a headset with a mono speaker and microphone combination. It is not for stereo headsets. To record, tap Start / Programs / Notes. If you do not see the Recording toolbar, tap Menu / View Recording Toolbar.
  • Page 17 Perform a Clean Boot WARNING: All application software installed by the factory and the customer, plus licenses, settings and user data will be cleared if this function is performed ! Hold down the Power key and press the right soft key display a countdown.

  • Page 18: Status Indicators

    Status indicators Following are some of the status indicators seen on your unit. Icon Description Icon Description Battery power is low Indicates that one or more networks are present. Tap to access an available network Battery power is Wireless LAN connected very low Battery Active connection, but not currently...

  • Page 19: Settings On Your Unit

    Settings on your Unit Tap Start / Settings. Tap any of the icons on the Personal, System or Connections tabs to customize the unit settings to your own preferences. Tap OK to exit the settings. Some of the more useful settings are described below.

  • Page 20: Task Manager

    Backlight for display and keypad Tap System / Backlight. Change the settings as follows: Display backlight: The default is on. Tap Battery Power, External Power and Brightness tabs to change settings. Keypad backlight: Make changes by tapping the Keypad Battery, Keypad External or Keypad Brightness tabs. Power Tap System / Power to view the approximate battery power remaining.

  • Page 21: Communication

    Communication Your unit may offer multiple methods of communication with other devices as described below. Not all the features apply to every unit, as some of the features are offered as options. If the feature described does not apply to your unit, please disregard that section. Connecting to a PC Connecting your unit to a PC allows you to copy files, synchronize information, send and receive e-mail and install applications on your...
  • Page 22 Confirm the box Synchronize all PC’s using this connection is checked and USB is selected from the dropdown list. 2. Try disabling any personal firewall software running on the PC. TCP/IP ports need to be open. 3. Reset the unit. 4.

  • Page 23: Working With Bluetooth

    Working with Bluetooth All units have embedded Bluetooth capability—a short-range wireless communication technology that exchanges information over a distance of up to 30 feet (10 meters), without requiring a physical connection. Bluetooth settings: tap Start / Settings / Connections / Bluetooth. Mode: To enable Bluetooth, select the check box Turn on Bluetooth.
  • Page 24 3. Tap the name of the other Bluetooth device and tap Next. For enhanced security, use passcodes. Enter the same passcode on the other unit. 4. If desired, change the name of the other device and tap Finish. Once a partnership has been created, the devices do not need to be configured as visible any more.

  • Page 25: Working With Wi-Fi (802.11)

    To configure many Nomads identically, use the following steps: Saving the Wi-Fi config file: 1. Configure a Nomad as desired and save the configuration under Start / Settings / Connections / Wi-Fi Settings / Tools / Store...
  • Page 26 3. Copy the saved configuration file to the TRAUTOWLAN directory. Loading the saved Wi-Fi config file: 1. First ensure the Wi-Fi Config is closed on the Nomad that you are loading the new config by tapping Options / Close. 2. Insert the external storage device into the Nomad.
  • Page 27 Additional connectivity Your unit supports several additional kinds of connections. If you do not have embedded Wi-Fi or GPS, you can purchase CF or SDIO cards to add the functionality. Installing additional software on your unit Third-party software designed for Windows Mobile is installed by running a setup program on the PC while the unit is connected over ActiveSync or Windows Mobile Device Center.

  • Page 28: Working With The Camera

    Working with the Camera Depending upon the configuration of your unit, it may have an integrated digital camera. If so, the protective cap on the top of the unit will have a clear window. Using the Camera: 1. Press the key to launch the Pictures &...

  • Page 29: Camera Settings

    - Undo: Takes the picture back a step. - Revert to Saved: Eliminates all edits to the picture. - Save As: Saves the edited file under a new file name. If you want it saved under the previous name, tap OK . Properties: Tap to see the selected picture’s properties.
  • Page 30 - Font: Set the size, font, color, location and format of the image embedded location stamp. - GPS Power: Determines when the GPS is turned on. If Always on is selected, the GPS will be on whenever the camera application is on. The recommendation is to set Auto Power off to conserve battery power.

  • Page 31: Working With The Scanner

    Working with the Scanner Depending upon the configuration of your unit, it may have an integrated laser 1D barcode scanner. Tap Start / Settings / System / System Information / CardPort to see if Barcode Scanner is listed under the Cardport Devices. Also, the cap will have a clear window with a laser warning label.

  • Page 32: Working With The Gps

    (A-GPS) will retain a memory of the satellite paths. The A-GPS satellite data is stored in memory for the satellites visible in your current position. Therefore the Nomad can lock on the satellites quickly, in less than 20 seconds in an open sky.

  • Page 33: Using Satviewer

    5 minutes. See Power key features on page 16. Using SatViewer Your Nomad may have SatViewer™ installed that is ONLY for use with units with built-in GPS. External GPS receivers, Bluetooth GPS receivers, GPS CF cards or other external GPS devices (including other SiRF II or SiRF III GPS receivers) are not supported and may not work correctly with SatViewer.
  • Page 34 After your Nomad has downloaded the current satellite information, Assisted GPS (A-GPS) will retain a memory of the satellite paths up to 72 hours. Therefore the Nomad can lock on the satellites quickly, in less than 20 seconds in an open sky.
  • Page 35  Corrections Disabled / SBAS Enabled: displays if Satellite Based Augmentation System (SBAS) is enabled or disabled. When SBAS is enabled, your Nomad GPS receiver will attempt to locate, track and use correctional data supplied from an SBAS satellite in order to improve accuracy. There are a limited number of SBAS satellites available, so they may not be readily accessible in your area.
  • Page 36 GPS. However, by using this setting, you are reducing the total number of satellites that can be tracked and used by your Nomad GPS receiver. The idea is to eliminate those satellites that may degrade the accuracy of your Nomad GPS receiver.
  • Page 37 In general, the lower the DOP value, the better confidence you have in the position reading from your Nomad GPS receiver.  VDOP: displays the Vertical Dilution of Precision, which is a measure of the calculated elevation.

  • Page 38: Gps Tab

    GPS receiver, using the Connect to GPS button. Enabling the Microsoft GPS driver If you would like to connect two or more programs to your Nomad GPS receiver at the same time (such as SatViewer and a navigation program) you will have to turn the Microsoft GPS driver on by performing the following steps: 1.
  • Page 39 Restore Defaults: When connected to your Nomad GPS receiver: Tapping the Restore Defaults tab will result in the following settings being changed:  GPS receiver output will be set to NMEA mode  Static Navigation will be turned OFF  Smooth Tracking will be turned OFF ...
  • Page 40 RMC – off NMEA message settings (set to default or otherwise) will be sent to your Nomad GPS receiver and applied the next time you connect to your Nomad GPS receiver (with output set to NMEA).  DGPS settings under the DGPS tab are set back to their defaults of Usage: Auto, Type: SBAS ON and SBAS Sat.
  • Page 41 GPS receiver and you would like to set them back to their original configuration. NMEA / SiRF Binary: is where you choose to set your Nomad GPS receiver to NMEA mode or SiRF Binary mode. When in SiRF Binary mode, DOP values are not available in the Sky page. The mode you select here will also determine the format for the information that can be viewed from the Data View page.
  • Page 42 Masks: These define limits that determine when a satellite will be used or not used.  Elevation: This is the minimum angle above the horizon that a satellite must be located before it is used. A value of zero would essentially turn off the elevation mask. A value of ninety would mask all satellites.
  • Page 43  Flow is set to None  Parity is set to None  Stop bit is set to 1 Since you are not connected to your Nomad GPS receiver, none of the changes are actually applied to your Nomad GPS receiver.
  • Page 44 SatViewer. The baud rate of your Nomad GPS receiver is 9600 by default. Please note, if you have used another application to change the baud rate of your Nomad GPS receiver to 4800, it will take longer for your Nomad GPS receiver to respond to changes made within SatViewer.
  • Page 45 SBAS Sat. PRN: configures which SBAS satellite to use. Selecting Auto instructs the GPS receiver to automatically make the selection. Return to Default Settings: If connected to your Nomad GPS receiver, the following settings are changed and applied to your Nomad GPS receiver: ...
  • Page 46 If disconnected from your Nomad GPS receiver this button has no effect on DGPS settings. Data View Tab The Data View page allows you to capture and view the GPS data being sent to SatViewer by your Nomad GPS receiver over the COM port.

  • Page 47: Working With The Wireless Wan

    NOTE: When browsing the internet using the cellular connection, you must turn off the Wi-Fi (802.11) or the Nomad will default to the Wi-Fi to browse. CAUTION: ...

  • Page 48: Customizing Your Phone

    Choose the sound you want. PIN Number: a PIN can be set to block unauthorized access to your data connection. NOTE: This device is data-only and dialing controls are not available. Under Services, voice calls to the Nomad can be forwarded to another phone.
  • Page 49 Use the Wireless Manager to turn on the phone and wait at least 30 seconds before using the phone. The Nomad may say the phone is on, but it needs to register with your service provider before it works properly.

  • Page 50: Browsing The Internet

    Tap Start / Internet Explorer, and enter the address of one of your favorite web sites. Internet Sharing The Internet service from your Nomad can be shared with a computer. Tap Start / Programs / Internet Sharing. You can connect either through USB or Bluetooth.

  • Page 51: Troubleshooting

    Troubleshooting What do I do to keep my battery from failing during a job? Consider carrying a fully charged spare battery in the field. The unit is designed so that battery replacement can be easily done. How do I delete files? Open File Explorer and browse to the file to be deleted.

  • Page 52: Caring For Your Unit

    Can I use my USB memory stick (or mouse, keyboard, cell phone or other USB device) with my unit? Connecting peripheral devices via USB requires the USB I/O Boot. Many USB devices may work. Check with the device manufacturer to see if the device is supported under Windows Mobile.

  • Page 53: Environmental Considerations

    Environmental Considerations The unit’s rugged design allows you to run your applications in harsh outdoor environments. Here are some considerations that will help you get the most out of your unit when working in very wet, hot or cold conditions. Water: This unit is designed to withstand accidental immersion.

  • Page 54: Environmental Specifications

    Environmental Specifications Operation: -22 °F to +140 °F (-30 °C to +60 °C) EMPERATURE Storage: -40 °F to +158 °F (-40 °C to +70 °C) Operation: -4 °F to +140 °F (-20 °C to +60 °C) WWAN U NITS Storage: -4 °F to +122 °F (-20 °C to +50 °C) MIL-STD-810F, Method 503.4 HOCK MIL-STD-810F, Method 507.4...

  • Page 55: Regulatory Information

    Regulatory Information U.S.A. This device complies with Part 15 of the FCC Rules. It is tested to comply with FCC standards for home or office use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 56: Declaration Of Conformity

    Manufacturer’s Address: PO Box 947, Corvallis, OR 97339 USA Declares, under our sole responsibility, that the product: Product Name: Handheld Data Collector Model Number: Nomad Product Options: conforms to the following Product Specifications: R&TTE Directive 1999/5/EC EN 61000-3-2 (2000) ETSI EN 300 328 V1.6.1 (2004) EN 61000-3-3 (2001) ETSI EN 301 489-1 V1.5.1 (2004)

  • Page 57: Safe Use Of Your Unit

    Safe Use of your Unit Repair : Do not attempt to dismantle the unit for repair. There are no user-serviceable parts inside. For service, use the contact details listed on the cover of this manual or contact your local dealer. Battery safety : Lithium-Ion batteries are classified by the U.

  • Page 58: Environmental Hazards

    Pacemakers and Other Medical Devices: The Health Industry Manufacturers Association recommends a minimum separation of six inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research.
  • Page 59 Section 508 Support: Download accessibility templates for our products. www.Trimble.com/section508 ©2011, Trimble Navigation Limited. All rights reserved. Nomad, Trimble and the Globe & Triangle logo are trademarks of Trimble Navigation Limited, registered in the United States Patent and Trademark Office and in other countries.
