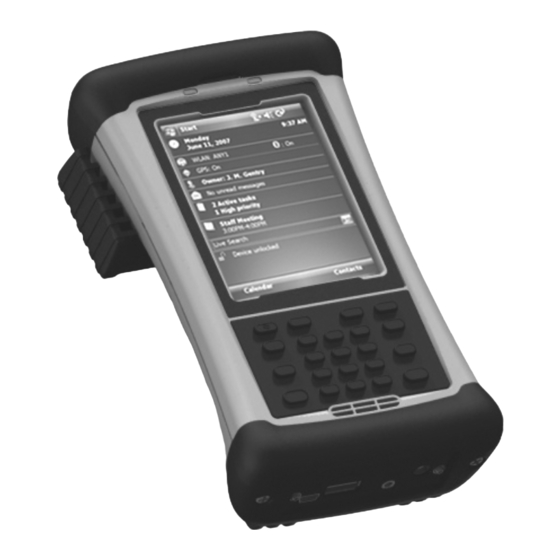

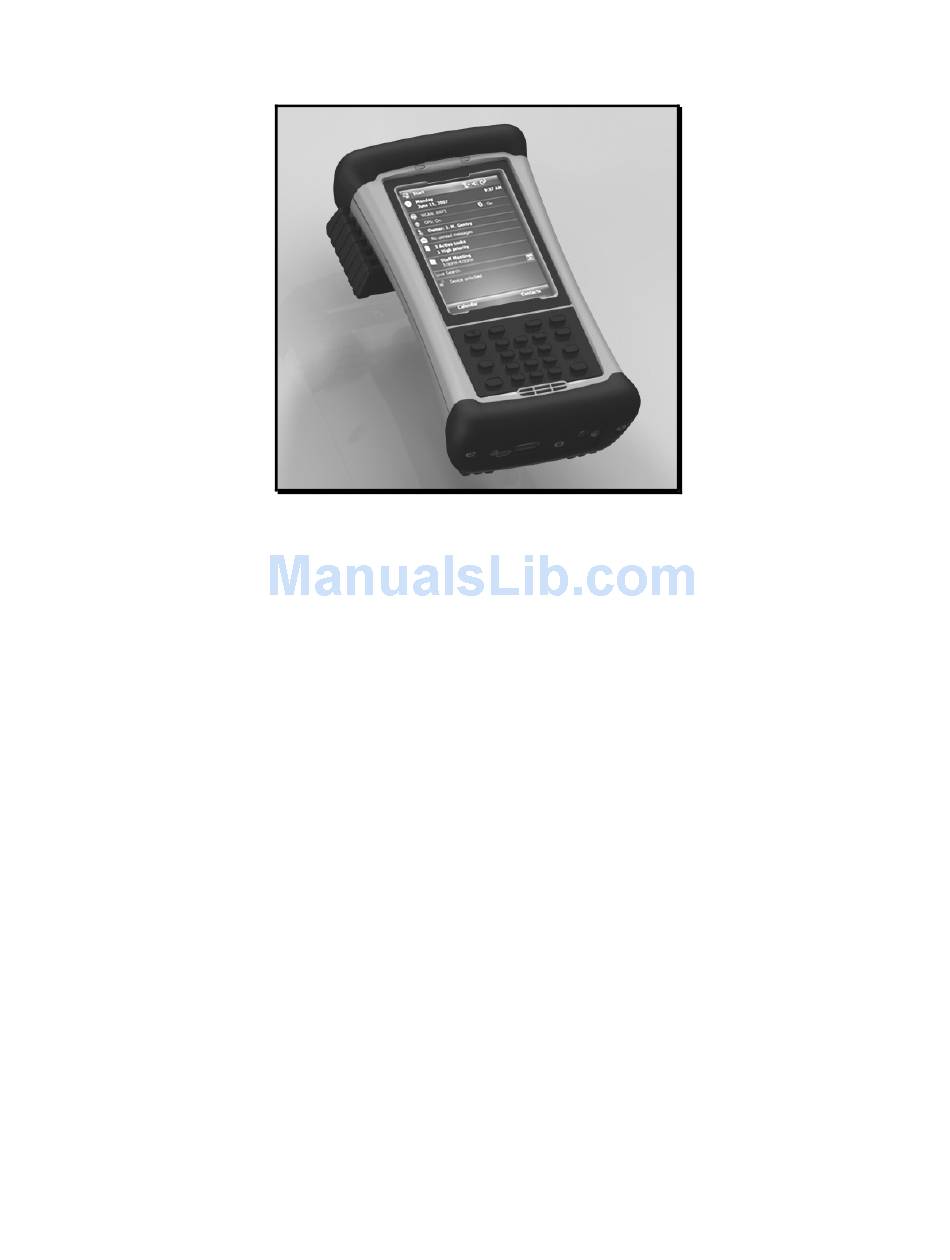

Nomad X, XC, XE
Getting Started Guide
Welcome
This manual has supplemental information to the Nomad™
Getting Started Guide. It covers the additional wireless WAN
feature that has been added to this Nomad. This feature will allow
you to communicate from field to office, send E-mail messages,
send text messages, using a data connection from your local GSM
cellular provider.
1
Advertisement
Table of Contents
Related Manuals for nomad X
Summary of Contents for nomad X
-
Page 1: Welcome
This manual has supplemental information to the Nomad™ Getting Started Guide. It covers the additional wireless WAN feature that has been added to this Nomad. This feature will allow you to communicate from field to office, send E-mail messages, send text messages, using a data connection from your local GSM... -
Page 2: Table Of Contents
................14 Other Nomad resources ..............14 CAUTION: • DO NOT use your Nomad while driving a moving vehicle. • When you are on a plane, in a medical facility or at a gas station where wireless communication devices are not allowed, go to Wireless Manager to TURN OFF all wireless communications. -
Page 3: Setting Up The Phone Features
1. Hold down the Power key for about 3 seconds to display the power menu. Tap on Replace Battery/SIM to ensure that the alarms will not wake up the Nomad. 2. Remove the hand strap. 3. Use the screwdriver on the end of your stylus or use a small #1 Philips head screwdriver to loosen the four screws in the battery door. -
Page 4: Customizing Your Phone
NOTE: This device is data-only and dialing controls are not available. Call Forwarding: Voice calls to the Nomad can be forwarded to another phone. NOTE: Carrier charges may apply for use of this service. - Page 5 SIM card. NOTE: If you purchase a SIM card separately, the phone service provider may want your Nomad IMEI number. It is located on this screen, as well as in the battery compartment. NOTE: Leave settings set to Auto Band Select unless there is a good reason to make these adjustments manually.
-
Page 6: Gprs Connection
Starting a GPRS connection Tap on the Wireless Manager on the Today screen to turn on the phone. The Nomad will automatically establish a GPRS connection when needed. If you want to start the connection manually, tap Start / Settings / Connections tab / Connections. -
Page 7: Using The Wwan Features
Using the WWAN features NOTE: The Wireless WAN (wide area network) features of this Nomad are used only for data communication and do NOT have voice capability or the ability to send MMS messages (Multimedia Messaging Service). Voicemails left on this number can be retrieved only by using another phone, depending upon the plan you purchased from your service provider. -
Page 8: Using Contacts To Send A Message
Using contacts to send a message To send a data message from contacts, tap Start / Contacts. Tap and hold on the contact and tap Send Text Message. Type in the message and tap Send. Sending a contact to another Windows Mobile based device Tap Start / Contacts. -
Page 9: Data Connection Status Indicators
Data connection status indicators Following are some of the status indicators that you may see on the navigation bar on the top of the screen. Icon Description Icon Description SIM card missing EDGE available; there are no data sessions active Faulty SIM card EDGE connected New voice mail... -
Page 10: Notification Leds
Notification LEDs At the top of the Nomad are two LEDs that provide status information. The LED states are shown in the following tables. Right LED Function On battery power Solid yellow Charging on AC adapter Solid green Fully charged on AC adapter... -
Page 11: Regulatory Information
Regulatory Information U.S.A. This device complies with Part 15 of the FCC Rules. It is tested to comply with FCC standards for home or office use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Declaration Of Conformity
Corvallis, OR 97333 USA Declares, under our sole responsibility, that the product: Product Name: Handheld Data Collector Model Number: Nomad Product Options: conforms to the following Product Specifications: R&TTE Directive 1999/5/EC EN 61000-3-2 (2000) ETSI EN 300 328 V1.6.1 (2004) EN 61000-3-3 (2001) ETSI EN 301 489-1 V1.5.1 (2004) -
Page 13: Exposure To Radio Frequency (Rf) Signals
Exposure to Radio Frequency (RF) Signals Your device contains a radio transmitter and receiver. The radiated output power is far below the international radio frequency exposure limits. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by international standards bodies: •... -
Page 14: Telecommunications & Internet Association (Tia) Safety Information
Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. Other Nomad resources This manual covers only the Wireless WAN part of your Nomad. Refer to your Nomad Getting Started Guide for additional information about using your unit. - Page 15 ©2008 Tripod Data Systems, Inc. All rights reserved. Tripod Data Systems, the TDS triangles logo and Nomad are trademarks of Tripod Data Systems Inc., a wholly-owned subsidiary of Trimble Navigation Limited. Microsoft, Windows, the Windows logo, and Windows Mobile are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
