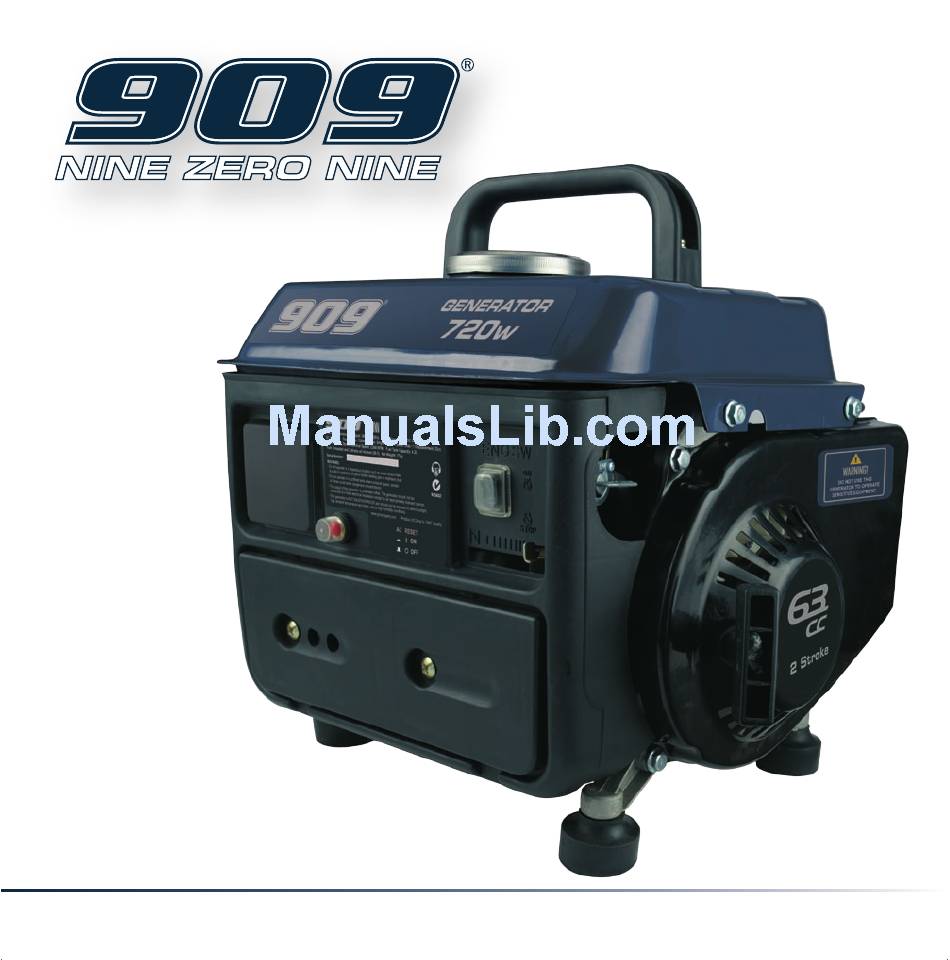

INSTRUCTION MANUAL
A750
720W
GENERATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A750 and is the answer not in the manual?

Questions and answers

Summary of Contents for 909 A750

  • Page 1 INSTRUCTION MANUAL A750 720W GENERATOR...
  • Page 2: Table Of Contents

    CONTENTS Warranty Power Tools Warranty Introduction For full details please visit us at www.909.com Environmental protection Scope of product Description of symbols Specifications General safety instructions for power tools Risk of electrocution and fire Risk of fire Risk of injury and property damage when transporting generator Risk of breathing –...
  • Page 3: Environmental Protection

    Manual before using your new 909 Power Tool. Take special care to heed the Cautions and Warnings. Specifications Your 909 power tool has many features that will make AC Output: 240Vac ~ 50Hz your job faster and easier. Safety, performance, and...
  • Page 4: General Safety Instructions For Power Tools

    General safety instructions for power tools 8. Use safety accessories. Safety glasses and earmuffs should always be worn. A face or dust mask is also To use this tool properly, you must observe the safety required if the drilling operation creates dust. regulations, the assembly instructions and the operating 9.
  • Page 5: Risk Of Electrocution And Fire

    Save these important safety instructions Risk of electrocution and fire Hazard What could happen How to prevent it Extension cord can come into contact Remove extension cord from the Improper storage of extension cord. with hot engine parts resulting in generator and store separately away damage.
  • Page 6: Risk Of Fire

    Risk of fire Hazard What could happen How to prevent it Fuel and fuel vapours can become Turn engine off and allow it to cool before Attempting to fill the fuel tank while ignited by coming in contact with hot adding fuel to the tank.
  • Page 7: Risk Of Injury And Property Damage When Transporting Generator

    Risk of injury and property damage when transporting generator Hazard What could happen How to prevent it Fuel or oil can leak or spill and could The generator is equipped with a fuel Fire, Inhalation, Damage result in fire or breathing hazard, serious tap, turn the lever of this valve to the off to Vehicle Surfaces injury or death can result.
  • Page 8: Risk Of Hot Surfaces

    Risk of unsafe operation continued Generator will not operate properly and Never operate generator while Operating generator while will cause damage to the generator and suspended or in an unlevel position. suspended could cause serious injury or death to Always operate generate on a flat, you or others.
  • Page 9: Additional Safety Rules For Generators

    Due to modern mass production techniques, it is unlikely that Never refuel whilst the engine running. your 909 Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts 7.
  • Page 10: Know Your Product

    Know your product 1. Handle 2. Fuel cap 3. Fuel tank 4. Fuel tap 5. Recoil starter 6. On/off switch 7. Choke 8. Air filter cover 9. Tap extension fuel filter 10. AC Output 240V 11. AC circuit breaker...
  • Page 11: What Can I Use This Generator For

    What can I use this generator for? Fitting the handle This generator is a small AC generator primarily designed Proceed by placing the handle on top of the tank ensuring for lighting. It is also suitable for small power tools or similar the 2 holes in the handles line up with the holes on the tank.
  • Page 12: Starting The Engine

    6. Once the engine has been operating for 10-15 seconds, Starting the engine slowly return the choke lever back to the right hand side 1. Before starting, ensure that no electrical apparatus has position. This position will switch the choke ‘off’. been connected to the generator.
  • Page 13: Ac Overload Cut Out

    WARNING. Prior to connecting any product to the generator, Periodic maintenance check the rating label of the product. The generator is rated at 650W so if the product being connected is higher than Items Remarks Every 50hrs Every 150 650W, the protective cut out on the generator may operate or every hrs or every to prevent over load damage to the generator.
  • Page 14: Spark Plugs

    Spark plugs Tap extension fuel filter 1. Remove spark plug from the A small fuel filter has been fitted to the inlet side of the fuel generator with a spark plug tap (4), inside the tank. This tap extension fuel filter (9) spanner socket.
  • Page 15: Petrol Tank Filter

    4. Loosen the lock nut locking of the hose and the tap. the tap (4) on to the tank. 8. Refill the tank with fuel and ensure there are no leaks Unscrew the tap from the tank between the tap and the tank, and with the fuel tap and withdraw the tap from the turned on, ensure there are no leaks where the fuel hose tank.
  • Page 16: Troubleshooting

    Troubleshooting Trouble Possible cause Suggested remedy 1. Low on fuel/oil content 1. Add fuel/oil mix Engine will not start or will not keep running 2. Ignition switch in “Off” position 2. Turn to “ON” position 3. Faulty spark plug 3. Replace spark plug 4.

This manual is also suitable for:

G800
