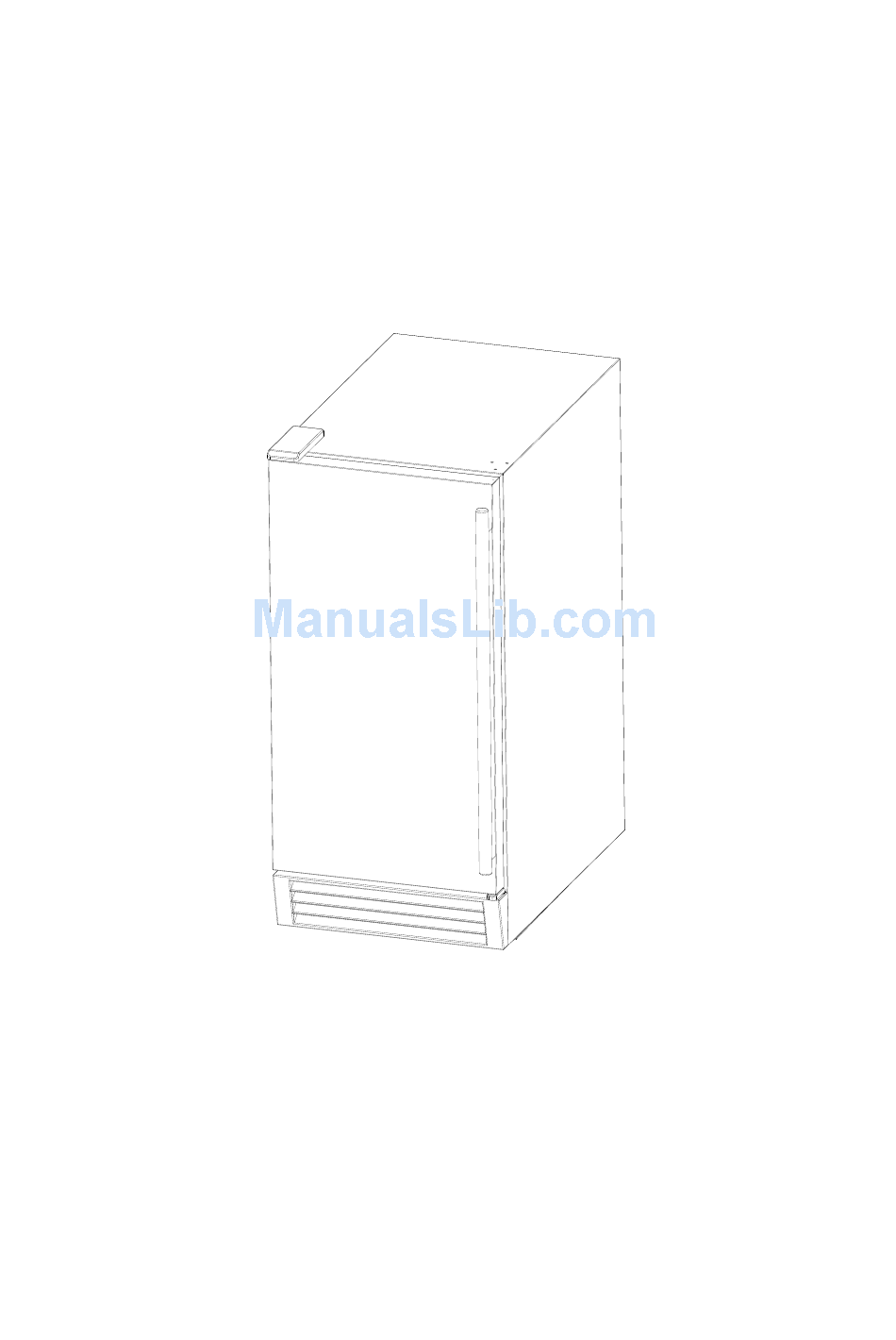

- Page 1 Automatic Ice Maker Service Manual VT‐ICEMAKER 15 ...
-
Page 2: Table Of Contents
Table of contents How the Icemaker works ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3‐10 Cooling System ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3 Water System ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐5 Wiring Connections and Controller‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐6‐8 Exploding Drawing ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐9‐10 TroubleShooting ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 11‐17 Before Maintenance‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐11 Basic Checking ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐11 TroubleshootingGuide‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 12‐17 Adjustment and Replacement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 18‐19 Replace the controller‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐18 Replace the water pump‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐18 Replace the compressor‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐19 Replace the fan motor and fan blade‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐19 Replace the hot gas valve, drier and evaporator‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐19 IMPORTANT: The service manual is based on the user manual. Before servicing, please read user manual and service manual carefully. The service operation should be implemented by qualified technician. -
Page 3: How The Icemaker Works
How the Icemaker Works Please refer to the section “Operation of user manual” from page 13 to 16 . It describes clear how the icemaker makes ice and uses the water. There are 3 systems including Cooling System, Water System and Wiring Connection and Controller. Cooling System 6 Hot gas tube NUMBER DESCRIPTION Suction tube 1 Condenser Compressor ... -
Page 4: Water System
9.2 Fan blade 39.1 Temperature sensor of the condenser 10 Discharge tube 39.2 Temperature sensor of the evaporator 19 Wiring harness 46 Evaporator (Ice Mold) 39 Controllerbox During the ice‐making stage, the hot gas solenoid valve is closed. The hot refrigerant gas is pumped out off compressor to condenser. The hot gas is cooled by fan forced air to warm liquid ... - Page 5 NUMBER DESCRIPTION NUMBER DESCRIPTION 23 Water pump 25 Water pump inlet tube 26 ...
- Page 6 Wiring Connection : ...
- Page 7 Circuit Description 1. Electrify Status For The First Time As the icemaker is properly installed. switch on the water tap, let the water trough full (reach on the level), then turn the ICE/OFF/WASH switch to the ICE position on the front panel. The icemaker will start working automatically In this status, the time is fixed about 3 minutes. This function is also helpful to protect the compressor avoiding restart within 3 minutes. At this status, the Red, Green, Yellow LEDs are light together. 2. Ice‐making Status The compressor, motor fan and pump are powered on. The hot gas solenoid valve is powered off. When this green LED is lit, the unit is working in the ice making mode controlled by a temperature probe on the evaporator. When the green LED is flashing, the unit is working in the ice making mode controlled by a fixed timer. ...
- Page 8 When green LED and yellow LED is lit, it means the unit is working in the cold preservation stage . 4. Mode button: Mainly for service. When this button is pressed, it can change from ice making mode to ice harvest mode, or from ice harvest mode to ice making mode. You can judge the mode from the status of the green and yellow LEDs. Ice Size Adjustment Guide: FS‐55IM 1. Press and hold the “Clean” button and the “Mode” button together for at least 3 seconds. The unit will enter the Ice Size Adjustment mode. The “HARVEST” LED (yellow) will be blinking continuously during the ice size adjustment. 2. While in the Ice Size Adjustment mode, press the “Clean” button or the “Mode” button for the desired ice size. Smaller ice setting: By pressing the “Clean” button, you can decrease the size of the ice cubes. The “ICE” LED (green) will flash as you lower the ice size and will finally be blinking at the setting of smallest ice size. Larger ice setting: By pressing the “Mode” button, you can increase the size of the ice cubes. The “BIN FULL” LED (red) will flash as the larger size is set and will blink when the setting of largest ice size has been reached. After 10 seconds without any operation, the unit will return to the previous mode. NOTE: During the ice size adjustment, the “BIN FULL”, “ICE” and “HARVEST” LEDS blinking all at once indicate that the unit is in the default factory setting of the ice size. FS‐50IMOD Ice size adjust: Turn the screw clockwise, and the size of individual ice cubes will be larger in the next cycle; the cycle time will be longer. Turn the screw counter clockwise, and the ice size will be smaller in the next cycle. NOTE: It is not a good idea to adjust the ice size often or for no good reason, because the controller may damaged. MAJOR FUNCTIONS 1. The operating procedure is completely automatic. 2. When the ice storage bin is full of ice cubes，the machine stops making ice and proceeds to the cold preservation stage automatically. It starts making ice again after ice cubes are removed. 3.
-
Page 9: Exploding Drawing
Exploding Drawing ... - Page 10 Item No. Description 1 Condenser 3 Hot gas valve coil（Zhongbao） 3.1 Hot gas valve body (Zhongbao) 4 Drier 8 Compressor 8.1 Starting ralay 8.2 Protector 9 Fan motor 9.2 Fan blade (φ200X28°) 14 Left foot 15 Right foot 19 Wiring harness 20 Power cord 23 Water pump 30 Louver 32 Floater valve 33 ...
-
Page 11: Troubleshooting
Troubleshooting ELECTRICAL SHOCK HAZARD Disconnect Electrical Power Before Beginning Removal of Parts Before Maintenance 1. Check out the user if the user uses a 115 VAC, 60Hz. only 15ampere electrical supply, and have properly grounded, ensure the maintainer against electrical shock. 2. Check out the leads loose? Turn off? Short circuit? If have such problems, foreclose in turn. Basic Checking The icemaker has some trouble, through the appearance phenomena judges. So the service technician must check it thoroughly, then maintain. ... - Page 12 Proble Check part Possible Cause Probable Correction m or point kinds Plug The icemaker is Plug the icemaker in. unplugged. Socket Socket is damaged Check and replace Power The icemaker power Turn the icemaker power switch switch switch turns to OFF. to ICE. Fuse The fuse is blown. Replace fuse. ...
-
Page 13: Replace The Controller
Drainage Drainage tray on top of Drain off water by unscrewing tray on top the compressor is full lower drainage nut. of the compressor Problem Check part Possible Cause Probable Correction kinds or point loose. Wiring Plug tightly, or replace. connects Be damaged. Replace the start The start relay/thermal protect of the relay/ther compressor The ... - Page 14 2.Low production oblem Check part Possible Cause Probable Correction nds or point Refrigerant Refrigerant leaks Recharge. Cooling partially The condenser may Clean the condenser. System Condenser be dirty. The ambient Check the ambient and air The ambient temperature is high or flow temperature too low The fan is dirty or Clean or repalce Fan damaged Hot gas valve ...
- Page 15 The ambient Adjust the ambient The ambient temperature is too temperature. Cubes are temperature high. too small The setting See the service manual "adjust Electronic temperature is high. the size of ice cubes" controller Refrigerant leaks Recharge. Refrigerant The setting See the service manual "adjust Electronic temperature of the size of ice cubes" controller Electronic controller is low. Cubes are Replace the sensor of Sensor Temperature sensor temperature. ...
-
Page 16: Replace The Water Pump
Problem Check part Possible Cause Probable Correction kinds or point Earth line The earth line isn't in Please use the socket meeting The body the socket. the standard. is Lines The lines are Adjust, reconnect /replace electrified creepage. lines Electric The electric Replace this electric ... - Page 17 Ice full probe The ice full probe is Repair or replace the probe n tube broken or can not turn doesn't back normal position. The room The room Make the temperature returns spray temperature is out temperature within the stated range. the stated range, the water pump stop Hot gas valve The hot gas valve is Replace the hot gas valve poor, The hot gas valve Replace the hot gas valve ...
- Page 18 Adjustment and Replacement Replace Controller, fuse and the sensor of temperature ELECTRICAL SHOCK HAZARD Disconnect Electrical Power Before Beginning Removal of Parts Remove the rear cover, front panel, Locate the Electronic controller, Pull out the sensors of temperature (one at the evaporator, another at the condenser). loosen the screws of rooting the Electronic controller, replace a new one. Reverse the above step to replace. If you need replace the fuse, open the front panel of the control box, you will find the figure. According the figure, take out the fuse, replace a new one. Reverse the above step to reassemble. If you need replace the sensors of temperature, pull out the sensor of temperature, open the panel of the controller box, pull out the other side, replace a new one. Reverse the above step to reassemble. Expert advises the cube size have been adjusted ok before leave factory, had better not adjust it.
-
Page 19: Replace The Compressor
water inlet tube of pump. Loosen the screws, replace a new one. Reverse the above step to reassemble. Replace the cooling system components Replace the condensing components, See Figure “cooling system” 1.Replace the compressor and the compressor kit (includes relay, thermal protect). If only need replace the compressor kit, remove the rear, locate the compressor, take the clip, open the cover, replace the wrong, Reverse the above step to reassemble. If need replace the compressor, remove the rear cover, and cabinet, locate the compressor. Unplug the lines and taken out the earth line, add low side access valve, open the Process/Suction, evacuate refrigerant, take out the compressor, replace a new one, joint together, then recover refrigerant, weigh in the nameplate charge. ...
