Typical Phase Response - Macro-Tech 24x6 Reference Manual

Power amplifiers
Hide thumbs Also See for Macro-Tech 24x6:
Table of Contents

Advertisement

Macro-Tech
®
24x6 & 36x12 Power Amplifiers
+45˚
0˚
–45˚
TECHRON TEF
®
100
1 K
10 K
20 K
FREQUENCY (Hz)

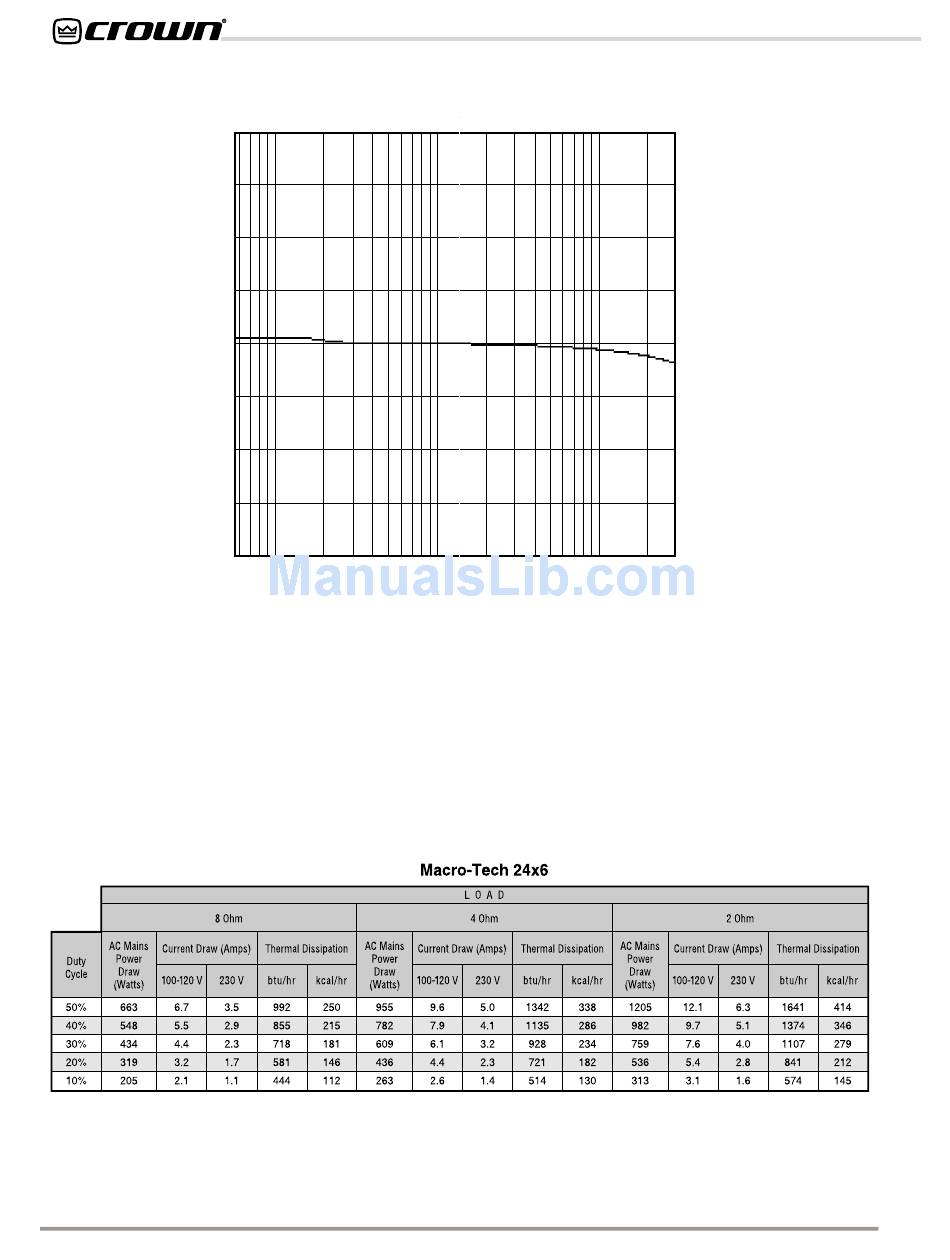

Fig. 6.4 Typical Phase Response
Fig. 7.1 Macro-Tech 24x6 Power Draw, Current Draw and
Thermal Dissipation at Various Duty Cycles
Page 28
Reference Manual
