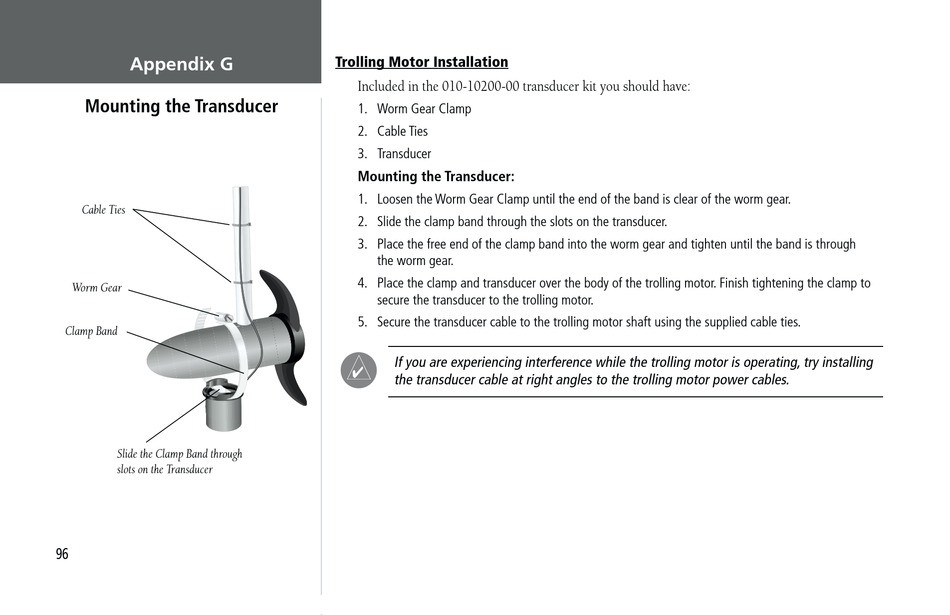

Appendix G
Mounting the Transducer
Cable Ties
Worm Gear
Clamp Band
Slide the Clamp Band through
slots on the Transducer
96
Trolling Motor Installation
Included in the 010-10200-00 transducer kit you should have:
1. Worm Gear Clamp
2. Cable Ties
3. Transducer
Mounting the Transducer:
1. Loosen the Worm Gear Clamp until the end of the band is clear of the worm gear.
2. Slide the clamp band through the slots on the transducer.
3. Place the free end of the clamp band into the worm gear and tighten until the band is through
the worm gear.
4. Place the clamp and transducer over the body of the trolling motor. Finish tightening the clamp to
secure the transducer to the trolling motor.
5. Secure the transducer cable to the trolling motor shaft using the supplied cable ties.
F
If you are experiencing interference while the trolling motor is operating, try installing
the transducer cable at right angles to the trolling motor power cables.
