Summary of Contents for Damani DCG6W

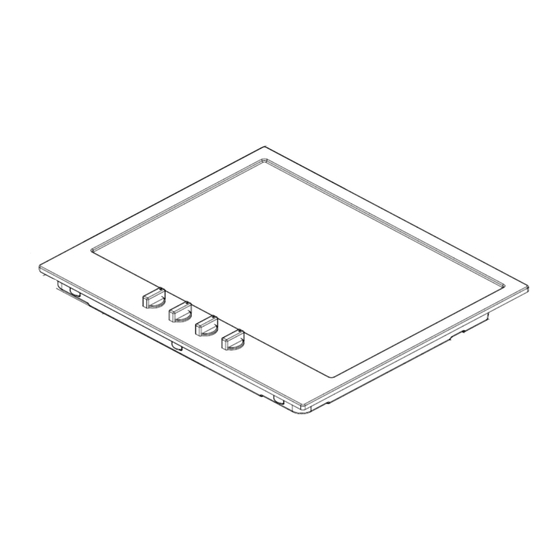

- Page 1 GAS HOBS USER AND INSTALLATION INSTRUCTIONS DCG6W DCG6S DCG6FS DCG64WS DCG64WFS DCG75WS DCG75WCS DCG95WS DCG95WCS DACG7501 DACG7502...
- Page 2 Dear Customer, Congratulations on purchasing your new product from Think Appliances. To register your parts and labour warranty (some conditions apply please refer to your warranty card for more details) please contact out Customer Care team on: 1800 444 357 Our Customer Care centre is there to ensure you get the most out of your appliance.
- Page 3 CONTENTS General Information page 4 Warning and Safety Instructions page 5 Instructions for Use pages 6–7 Instructions for Installation Pages 8–12 Technical Data Pages 12–13...
-
Page 4: General Information
GENERAL INFORMATION Please read this booklet thoroughly before you use this appliance. It is important that you understand all the control functions before commencing to cook with your appliance. Please remember the advice and warnings shown on page 5, which is headed ‘IMPORTANT –... - Page 5 IMPORTANT NOTE – WARNING and SAFETY INSTRUCTIONS This appliance complies with all current safety legislation, however we do wish to emphasise that compliance does not remove the fact that surfaces will become hot during use and retain heat after operation This appliance is not intended for use by young or infirm persons unless they have been adequately supervised by a responsible adult to ensure that they can use the appliance safely Young children should be supervised to ensure that they do not play with the appliance...
-
Page 6: Using The Hob
USER INSTRUCTIONS INSTRUCTIONS FOR USE These User Instructions should be retained for future reference and for use by a person who is perhaps unfamiliar with the appliance. The following models are covered by these instructions: DCG6W DCG64WS DCG6FS DCG75WS DCG95WS... -
Page 7: Helpful Hints
USER INSTRUCTIONS HELPFUL HINTS Abnormal Operation Any of the following are considered to be abnormal operation and may require servicing: Yellow tipping of the burner flame. Sooting up of cooking utensils. Burners not igniting properly. Burners failing to remain alight. Burners extinguished by cupboard doors. -
Page 8: Instructions For Installation
INSTALLATION INSTRUCTIONS INSTRUCTIONS FOR INSTALLATION This appliance shall be installed only by authorised personnel and in accordance with the manufacturer's installation instructions, local gas fitting regulations, municipal building codes, water supply regulations, electrical wiring regulations, AS 5601 - Gas Installations and any other statutory regulations. -
Page 9: Installation Notes
4. Insert the appliance into the aperture and fix in position via the clamps & screws, tightening the screws evenly (see fig. below). HOB APERTURE DIMENSIONS MODEL DCG6W 560 480 500 585 DCG6S 560 480 500 585 DCG6FS... -
Page 10: Ventilation Of Rooms
INSTALLATION INSTRUCTIONS VENTILATION OF ROOMS The room in which this appliance is installed must be well ventilated by natural or mechanical means, or a combination of both to ensure correct combustion and the removal of spent air. The minimum quantity of air for combustion will depend on the room volume, number of appliances and their total power rating. -
Page 11: Gas Flow Adjustment
INSTALLATION INSTRUCTIONS Fig.3 Fig.2 GAS FLOW ADJUSTMENT In order to adjust the minimum gas flow proceed as follows: Ignite the burner and turn down to the minimum setting. Remove the control knob from the gas tap. Adjust the flow either clockwise to decrease or anti-clockwise to increase the flame. Use a screwdriver inserted down the gas tap rod or via the screw head adjacent to the rod for models fitted with a Flame Supervision Device. -
Page 12: Electrical Connection
INSTALLATION INSTRUCTIONS ELECTRICAL CONNECTION Before connecting the appliance, make sure the supply voltage marked on the rating Plate corresponds with the mains supply voltage. WARNING – THIS APPLIANCE MUST BE EARTHED Ensure the appliance is plugged into a 10 amp GPO. IMPORTANT The wires in the main supply lead are coloured in accordance with the following code:- Green and Yellow... -
Page 13: Maintenance
INSTALLATION INSTRUCTIONS MAINTENANCE WARNING: SERVICING SHOULD BE CARRIED OUT ONLY BY AUTHORISED PERSONNEL During the guarantee period, in case of need all service intervention should be referred back to the Service Department. Please note that intervention or repair by any unauthorised personnel will invalidate such guarantee, Before carrying out any maintenance, disconnect the appliance from the gas and electricity supplies. - Page 14 BURNER TYPES AND POWER INPUTS: Mj/h Auxiliary Semi-rapid Rapid Total Natural Universal Natural Universal Natural Universal Natural Universal Natural Universal Model 11.9 10.8 29.9 27.0 DCG6W 11.9 10.8 29.9 27.0 DCG6S 11.9 10.8 29.9 27.0 DCG6FS 15.1 13.2 33.1 29.4 DCG64WS 15.1...
