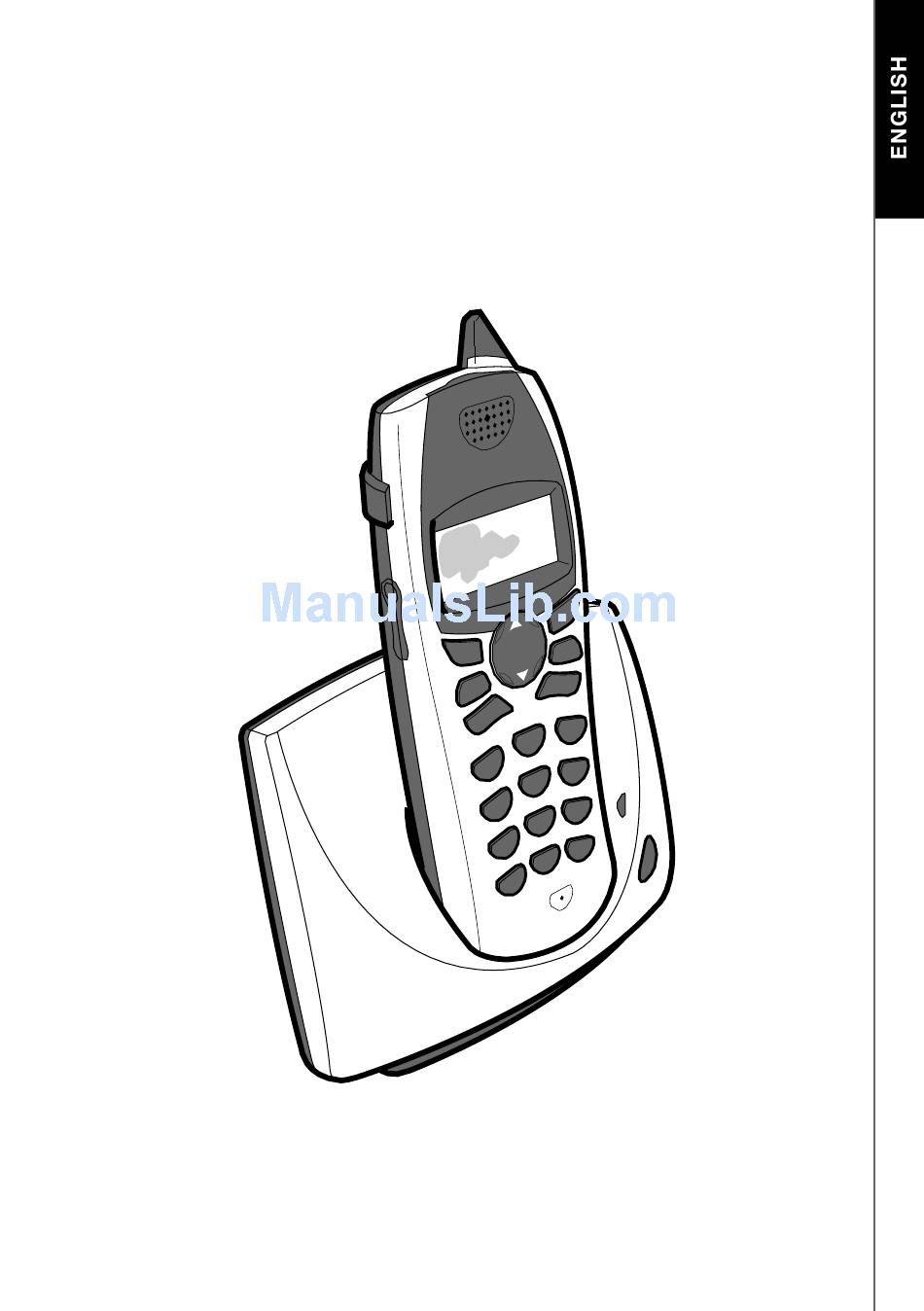

Cordless DUALphone
E NG L ISH
Q U I C K G U I D E
1
P/N 95100360,Version 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cordless Telephone and is the answer not in the manual?

Questions and answers

Summary of Contents for DUALphone Cordless Telephone

  • Page 1 Cordless DUALphone E NG L ISH Q U I C K G U I D E ■ P/N 95100360,Version 1.3...
  • Page 2 DEAR CUSTOMER We would like to thank you for purchasing our Cordless DUALphone and/or an additional Cordless DUALhandset. We hope you will enjoy it. Please read the following thoroughly and observe the operating instructions and information provided. If you are still experiencing difficulties, please call our helpline:...
  • Page 3: Table Of Contents

    IN THIS G UI DE AT A GLANCE ....................4 ■ Handset features ..................4 ■ Handset audio ................... 5 ■ Base station ....................6 Front ....................6 Upside down ..................6 UNPACKING ...................... 7 GETTING STARTED ..................8 ■ Inserting rechargeable battery pack into handset ........8 ■...
  • Page 4: At A Glance

    AT A GLANCE H AN D SE T F EATURES UP & DOWN Used to navigate DISPLAY through handset functions Displays the status of your handset Press to see list of incoming calls Used to delete digits (press and release) or cancel operation (press and hold) TELEPHONE BOOK RED PHONE...
  • Page 5: Handset Audio

    H AN D SE T AU DI O EARPIECE HEADSET CONNECTOR MICROPHONE ■ AT A G L A N C E...
  • Page 6: Base Station

    BASE STAT ION FRO NT CHARGE LIGHT PAGE BUTTON UP S IDE DOWN USB CABLE PHONE PLUG POWER CONNECTOR ■ AT A GLANCE...
  • Page 7: Unpacking

    U NPA CKI NG If anything is missing, please contact your place of purchase immediately. BOX CONTENTS: One Cordless DUALphone handset One base station with fixed USB cord One power supply for the base station Base station socket One telephone line cord...
  • Page 8: Getting Started

    Insert the battery pack as indicated. b) Slide the battery compartment cover shut. PLANNING THE LOCATION Place your Cordless DUALphone close enough to the telephone socket and main power sockets so that the cables will reach. BASE STATION ASSEMBLY Click socket and base together.
  • Page 9: Connecting Telephone Line To Wall Socket

    c) Now connect the power supply unit to the socket outlet. CONNECTING TELEPHONE LINE TO WALL SOCKET Connect the telephone cord to the national telephone plug as illustrated and connect it to the telephone wall socket. NOTE: If the telephone cable provided in the box is too short, you can use a phone extension cord.
  • Page 10: Connecting To Pc

    ■ The installation wizard will now guide you through the process. ■ The Cordless DUALphone is now fully installed and ready for use. IMPORTANT NOTE: To ensure full software installation please leave the handset in the base for 15 minutes.
  • Page 11: System Requirements

    SYSTE M REQ UIREMENTS To get the most out of your Cordless DUALphone make sure your PC meets these minimum system requirements: M I N IM UM SYS TEM REQ UIREMENTS ■ PC running Windows XP, 2000 or 2003 server ■...
  • Page 12: Guide To Basic Functions

    GUI DE T O B A S IC FUNCTIO NS HOW TO… WHAT TO DO Answer a call When telephone rings you can press to answer call. Make ordinary Enter telephone number first and press telephone call press first and then enter telephone number. Make a Skype™...
  • Page 13 NOTE: This Quick Guide covers the basic installation process as well as the most common features. For more advanced funtionality descriptions see the User Manual which can be found in the Cordless DUALphone Suite and on the CD-ROM. ■ GUIDE TO BASIC FUNCTIONS...
  • Page 14: Guide To Handset Display Icons

    GUI D E TO HA NDS ET DISPL AY ICO NS Time Date Ringer off icon (displayed when user turns the ringer off) Low battery icon (displayed when battery voltage is low) Key lock icon (displayed when key pad is locked) In service icon (displayed when handset is ‘in range’...
  • Page 15: Features List

    M AIN F EAT UR ES ■ Call free of charge worldwide via Skype ■ 2-in-1 cordless telephone – Internet telephone and standard telephone in one ■ Plug & Dial – Easy to install – easy to use AD D IT I ON AL FEATURES ■...
  • Page 16 F EAT URES L IST P H YSIC AL C H ARAC TERISTICS ■ Handset, base station ■ AC adapter (230 V) ■ Rechargeable Ni-MH battery pack ■ Display: 2 lines of 16 characters and icons ■ 9 ring tones ■...
  • Page 17: Quick Help

    QUICK HEL P PROBLEM POSSIBLE CAUSE SOLUTION Handset not The base is not connected Make sure that the power supply registering is properly connected to the base. Power must be switched There are no battery in Make sure that the rechargeable the handset battery (included) is fitted in the handset correctly.
  • Page 18 PROBLEM POSSIBLE CAUSE SOLUTION You cannot dial Telephone line may be Contact your operator external numbers damaged Telephone line may be Make sure the telephone line is busy not occupied The incoming The caller’s number has Caller has to allow their number caller’s number is been withheld to be sent...
