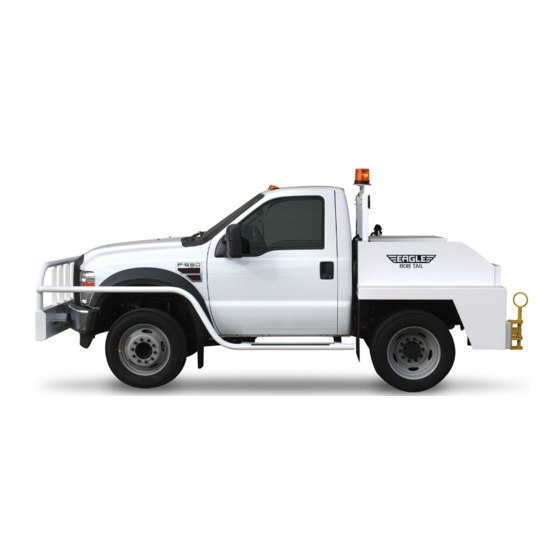

- Page 1 Eagle Tugs Parts and Service Manual V e hicle T ype : E B2 - 5 thru E B2 - 1 0 Mot o r T ype : Diesel / Gas REV03 11.18.14...
- Page 2 This page was intentionally left blank REV03 11.18.14...
-
Page 3: Introduction
Introduction From everyone at Eagle Tugs, we would like to say Thank You for purchasing an Eagle EB2 series cargo tractor. We take a lot of pride in the quality of the products that we build, as well as our continued customer service. Our goal is to build a long term relationship with our customers. - Page 4 This page was intentionally left blank REV03 11.18.14...
-
Page 5: Table Of Contents
WARRANTY ..........................6 Safety Notice ................................Warnings ................................. Vehicle ID Information ............................Ford Warranty ............................... Eagle Warranty ..............................Warranty Registration ............................SHORT/LONG BOX IDENTIFICATION ................10 SPEED GOVERNOR ........................ 11 REAR BED COMPONENTS ....................12 BUMPER AND BODY STEEL - WELDED ................13 BOLT-ON BUMPER AND RAIL ASSEMBLY .............. -
Page 6: Warranty
Warranty Important Safety Notice Appropriate service methods and proper repair procedures are essential for the safe, reliable operation of all indus- trial equipment as well as the personal safety of the individual performing the work. This Service Manual provides general directions for accomplishing service and repair work with tested and effective techniques. Following them will help assure reliability. -
Page 7: Vehicle Id Information
Ford Warranty The Eagle EB2 series truck is built on a Ford Motor Company Chassis Cab and is covered by Ford Motor Companies standard warranty. Please refer to the vehicle manual supplied with your EB2 tractor for specific warranty details. For... - Page 8 This page was intentionally left blank REV03 11.18.14...
-
Page 9: Warranty Registration
Please complete the warranty registration information found at our website www.eagletugs.com. NOTE: At the time a warranty claim is filed it may be necessary for Eagle Tugs to request a copy the maintenance records kept on your tug. For your convenience a printable Preventative Maintenance Schedule page is available in the Maintenance section of this manual. -
Page 10: Short/Long Box Identification
Eagle Tugs manufactures two versions of EB2 tractors depending on emissions requirements and exhaust packag- ing. When ordering certain components, it speeds up the process to let the Eagle rep know whether your truck is a long or short box variant. -
Page 11: Speed Governor
EB 2 - and EB 2 - The EB2-5 and EB2-8 trucks feature a third party engine governor to limit top speed to 25 mph. Contact Eagle Tugs should you experience an issue with this governor. Please provide the VIN, model number, and governor manufac- turer (currently Sturdy or Intermotive) to Eagle. -
Page 12: Rear Bed Components
Rear Bed Components Note that light rack and fuel tank cover are not service components and are expected to last the life of the vehicle. 1 or 2 5 (EB2-5 AND EB2-8 ONLY) Item Part Number Qty. Description AE-OPT-0007 STROBE LIGHT REPLACEMENT STROBE LIGHT AE-OPT-0002 ROTATING BEACON... -
Page 13: Bumper And Body Steel - Welded
Bumper and Body Steel - Welded Your EB2 tractor has been modified heavily by Eagle Tugs to meet the requirements of a cargo tow tractor. The most visible of these modifications is the addition of a large front steel bumper and wraparound side rails as well as a new rear bed. -
Page 14: Bolt-On Bumper And Rail Assembly
Bolt-On Bumper and Rail Assembly The bolt-on bumper and rail assembly only applies to units manufactured after Nov 1, 2014 and equipped with the bolt- on components shown on this page. REV03 11.18.14... - Page 15 Bolt-On Bumper and Rail Assembly Item Part Number Qty. Description EB00-52-001-KA FRONT BUMPER ASSEMBLY EB00-52-002-KA LH SIDE TUBE ASSEMBLY EB00-52-003-KA RH SIDE TUBE ASSEMBLY EB00-52-004-KA LH FRAME BRACKET ASSEMBLY EB00-52-005-KA RH FRAME BRACKET ASSEMBLY EB00-01-027-SA LH FRONT BUMPER MOUNT EB00-01-028-SA RH FRONT BUMPER MOUNT HCS, 1/2-13 UNC X 1.50, GR 8, ZN PLATED FLAT WASHER, 1/2...
-
Page 16: Hitches
Hitches Item Part Number Description AE-OPT-0033 E-HITCH 1 1/2 " PIN-COMPLETE ASSEMBLY B-TT3-0008 DET2 E-HITCH GUIDE 1 1/2" GUIDE PIN WITH RING B-TT3-0008A E-HITCH SPRING B-TT3-0008 DET5 LOCKING COLLAR B-TT3-0008B ROLL PIN AE-OPT-0028 PINTLE HOOK AE-OPT-0026 AIRLINE HITCH 3" PIN WITH CABLE(NOT SHOWN) * The above are standard hitch options. -
Page 17: Driveshafts
1,500 miles with 5 pumps of Shell Albida EP 2 grease or equivalent. Do not grease until excess grease is visible, as over-greasing of this joint can result in damage to the rubber boot. Should you require a complete replacement, please provide Eagle Tugs with the VIN and the below measurement “X” taken from the driveshaft provided with your tractor. -
Page 18: Brake Lines
Brake Lines and Cables Brake lines and parking brake cables that extend behind the back of the cab have been modified by Eagle Tugs. Re- placements may be obtained from Eagle Tugs. Please have the VIN and model number available when contacting Eagle. -
Page 19: Hourmeter
For non-Ford hourmeters, a replacement can be obtained from Eagle, P/N A-TT4-00418. Alignment Due to the unique application of your Bobtail tractor, Eagle Tugs has established a front alignment spec that is different from the factory Ford spec. Through 40 years of experience, we have found that the following alignment specs reduce tire wear and increase steering performance. -
Page 20: Pm Schedule
PM Schedule The following preventative Maintenance schedule is intended to be used as a reference. Always refer to the opera- tors manual included with your truck for full preventative maintenance details. One hour of operation is equivalent to 25 miles per the included maintenance charts. REV03 11.18.14... - Page 21 PM Schedule REV03 11.18.14...
- Page 22 Date Description Appr. 18-Nov-2013 Removed warranty statement 18-Nov-2014 Added bolt-on bumper and side rail components REV03 11.18.14...
