Macpower & Tytech D7-3500 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

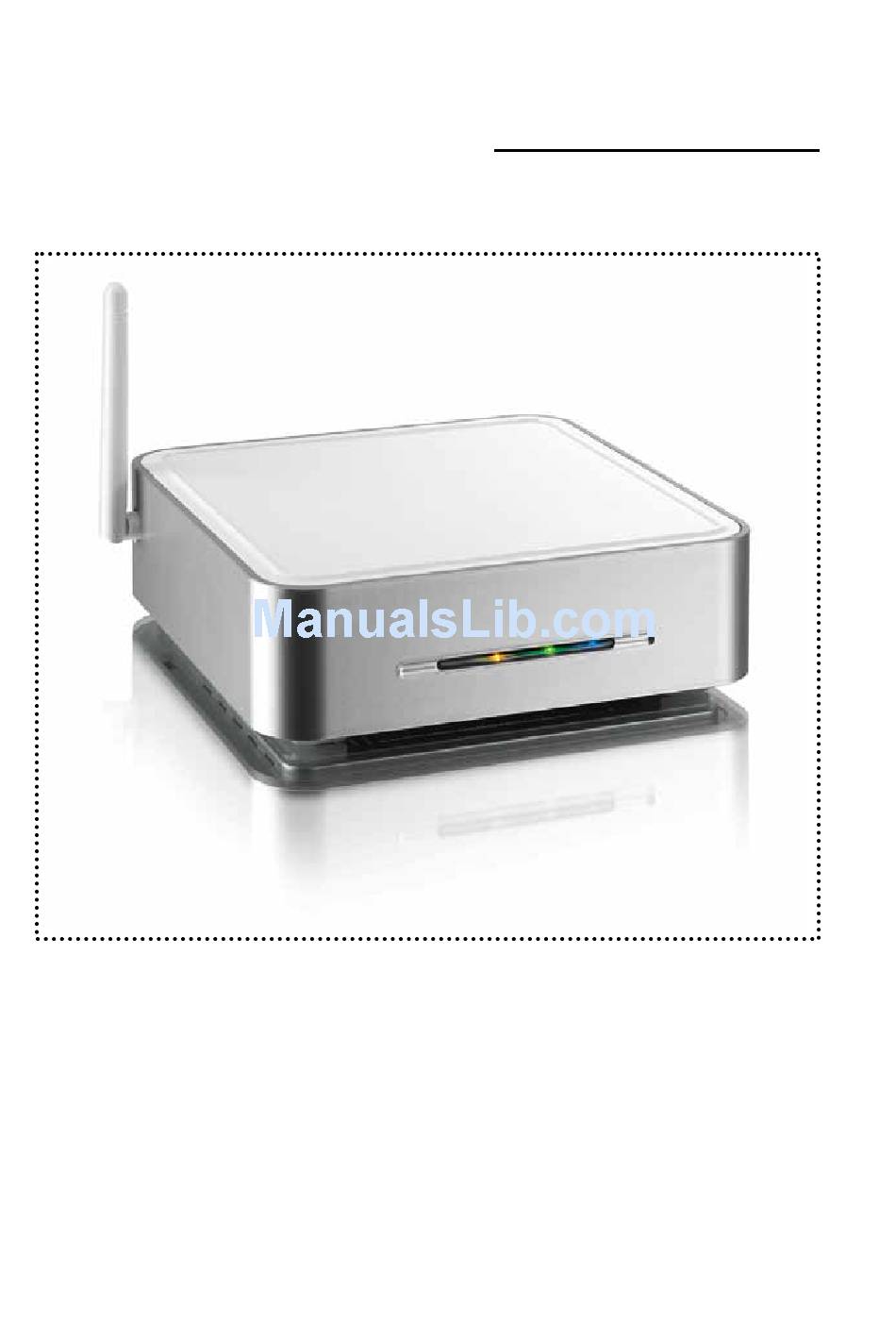

D7-3500

User Manual

& Installation Guide
October 15, 2007
v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D7-3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Macpower & Tytech D7-3500

Summary of Contents for Macpower & Tytech D7-3500

  • Page 1: User Manual

    D7-3500 User Manual & Installation Guide October 15, 2007 v1.1...

  • Page 2: Table Of Contents

    D7-3500 User Guide Table of Contents CHAPTER 2 - SYSTEM SETUP CHAPTER 1 - INTRODUCTION HDD I NSTALLATION D7-3500 NSTALLATION OF THE WIRELESS KIT TV S ACKAGE ONTENTS ETUP YSTEM EQUIREMENTS ETUP PC R EQUIREMENTS PTIONS TV R EQUIREMENTS CREENSAVER...
  • Page 3 D7-3500 User Guide CHAPTER 5 - APPENDIX CHAPTER 3 – USB CONNECTION PECIFICATIONS NTERNAL NSTALLATION ON A EMOTE ONTROL UNCTIONS ORMATTING BOUT THIS ANUAL EMOVAL ROCEDURE USB H CHAPTER 4 – NETWORK MODE DEVICES EDIA ERVER NLINE REMIUM ONTENT UNER...

  • Page 4: Chapter 1 - Introduction

    Chapter 1 - Introduction The D7-3500 The 'D7-3500' Digital Media Adapter is the perfect gateway for your living room, linking up your PC, TV, stereo, digital camera and much more. Great design coupled with playback support for all kinds of standard media formats and simple installation makes it the perfect all-in-one multimedia solution.

  • Page 5: Interface Information

    D7-3500 User Guide Interface Information Following images are for reference only and show the D7-3500 with the optional 802.11 b/g antenna. Green: Blue: USB connection Power ON/OFF Infrared Receiver Yellow: LAN connection Power USB device USB host receptacle connector connectors...

  • Page 6: Remote Control

    [SETUP] Press this key to enter the setup menu and change the settings and other configuration options for your D7-3500. [VOLUME] When browsing web pages, these keys can be used to scroll up and down, otherwise they are used to adjust the volume for music and video files.

  • Page 7: [A-B]

    D7-3500 User Guide A: N/A B: Return to Menu Playback Functions A: N/A B: Return to Home A: File Info B: Go to Setup A: Time Search Audio output B: URL input Subtitle encoding/OFF A: Repeat B: Refresh Zoom Function...

  • Page 8: Chapter 2 - System Setup

    D7-3500 User Guide Chapter 2 - System Setup HDD Installation Your unit might come with an installed hard drive. Before opening such an enclosure, please read the warranty and any other notes from your vendor carefully, as this might void your warranty.
  • Page 9 D7-3500 User Guide 5. Place the metal sheet cover over the 7. Place the assembled drive back in the drive and align it with the holes of the plastic framing, connect the cables and framing. mount it on the heat sink by fastening the screws.

  • Page 10: Installation Of The Wireless Kit

    User Guide Installation of the Wireless Kit The D7-3500 is available as a wired or wireless model. If you own the wired model and have later purchased the wireless kit, see following instructions for the installation. Before opening the enclosure, please read the warranty and any other notes from your vendor carefully, as this might void your warranty.
  • Page 11 D7-3500 User Guide 5. Turn around the bridge board, insert 7. Insert the antenna into the slot opening the PCI module in the PCI slot on a ensuring it is pointing upright and then slight angle and gently press down on...
  • Page 12 Note: Be careful not to damage any cables or components during the installation! Remark: Only use the wireless kit designed for the D7-3500. We do not support 3 party PCI cards and installation of any other components will void the warranty.

  • Page 13: Tv Setup

    User Guide TV Setup Find a suitable place for your D7-3500, within a distance of 1.2m or less of your TV screen. Connect the power supply and the power outlet. Included with your D7-3500 are a standard AV cable and a YPbPr cable.

  • Page 14: Setup Menu

    D7-3500 User Guide Setup Menu Once booted, press the SETUP key on your D7-3500 remote control to access the configuration screen and its settings. Options [Screensaver] Set a time from 1-60 minutes before the screensaver turns on. [Language] Select your preferred language for the on-screen menu, file browser encoding and subtitles.

  • Page 15: [Mac Address ]

    User Guide IP Config By default, you can leave these settings and the D7-3500 will automatically request the IP and other information over the network. If the internet connection does not work or you would like to change it, switch to manual mode.

  • Page 16: Wireless Setup

    Infrastructure (AP) but if required, you also set it to Ad-Hoc (peer-to-peer). [Security] D7-3500 supports WEP 64-bit or 128-bit encryption for additional security. Select the WEP encryption used in your home network and enter the key or set it to OFF.

  • Page 17: Time Setup

    If your D7-3500 is not connected to the internet, you can download the latest firmware and save it on a USB disk. Connect it to the USB port on your D7-3500 and browse for the update file, then manually update the firmware.
  • Page 18 Press ENTER to play a single file or press PLAY to playback all the files in that particular folder. To update content on the internal drive, the D7-3500 must to be connected to your PC via USB. 1. Turn off the power and if you need to physically move the device, disconnect the audio and video cables.
  • Page 19 4. Open “My Computer” to see your external hard drive. Formatting For the D7-3500 to be able and access the data on the internal drive, it has to be formatted using FAT32. 1. Start the device manager, select the USB drive and create a single primary partition.
  • Page 20 USB mass storage devices with digital media content to display on your TV. For the D7-3500 to recognise the external USB device it has to be mass storage class, and the file format must be FAT12, FAT16 or FAT32. As an example, you may use a USB disk, an USB card reader or a USB memory stick.

  • Page 21: Media Server

    D7-3500. Turn on the UPnP enabled NAS or Windows Media Connect as an example and then turn on the D7-3500. On boot up, it will automatically connect to the network and list any compatible devices. Once mounted, you can access it from the main screen.
  • Page 22 User Guide Online Premium Content In this mode, you can access content on the internet directly from your D7-3500, without the need to turn on any computer. To use this function, make sure your gateway and DNS server are setup properly and that you have access to the internet.

  • Page 23: Specifications

    D7-3500 User Guide Chapter 5 - Appendix For RMA and other questions, please contact your vendor or check out their online support area! Specifications 3.5” SATA-I or SATA-II HDD (1.5Gb/s or 3.0Gb/s) Internal Storage Playback Formats Video: • MPEG-1 up to 1.15Mbps CBR (MPG, MPE, MPEG, DAT, M1V) •...
  • Page 24 A: No, the data on the internal hard drive can only be accessed via USB connection. Q: What file system does the D7-3500 support? A: For the D7-3500 to be able and access the data on the internal drive, it has to be formatted using FAT32.
  • Page 25 D7-3500 User Guide Remote Control Key Functions Item Button Browser Mode Playback Mode Power Power OFF Power OFF 1 - .:/@ Go to 10% 2 - ABC Go to 20% 3 - DEF Go to 30% 4 - GHI Go to 40%...

  • Page 26: About This Manual

    © Copyright 2007 by Macpower & Tytech Technology Co., Ltd. all Rights Reserved The information contained in this manual is believed to be accurate and reliable. Macpower & Tytech Technology assumes no responsibility for any errors contained in this manual and reserves the right to make changes in the specifications and/or design of this product without prior notice.
