Page 1: User Manual

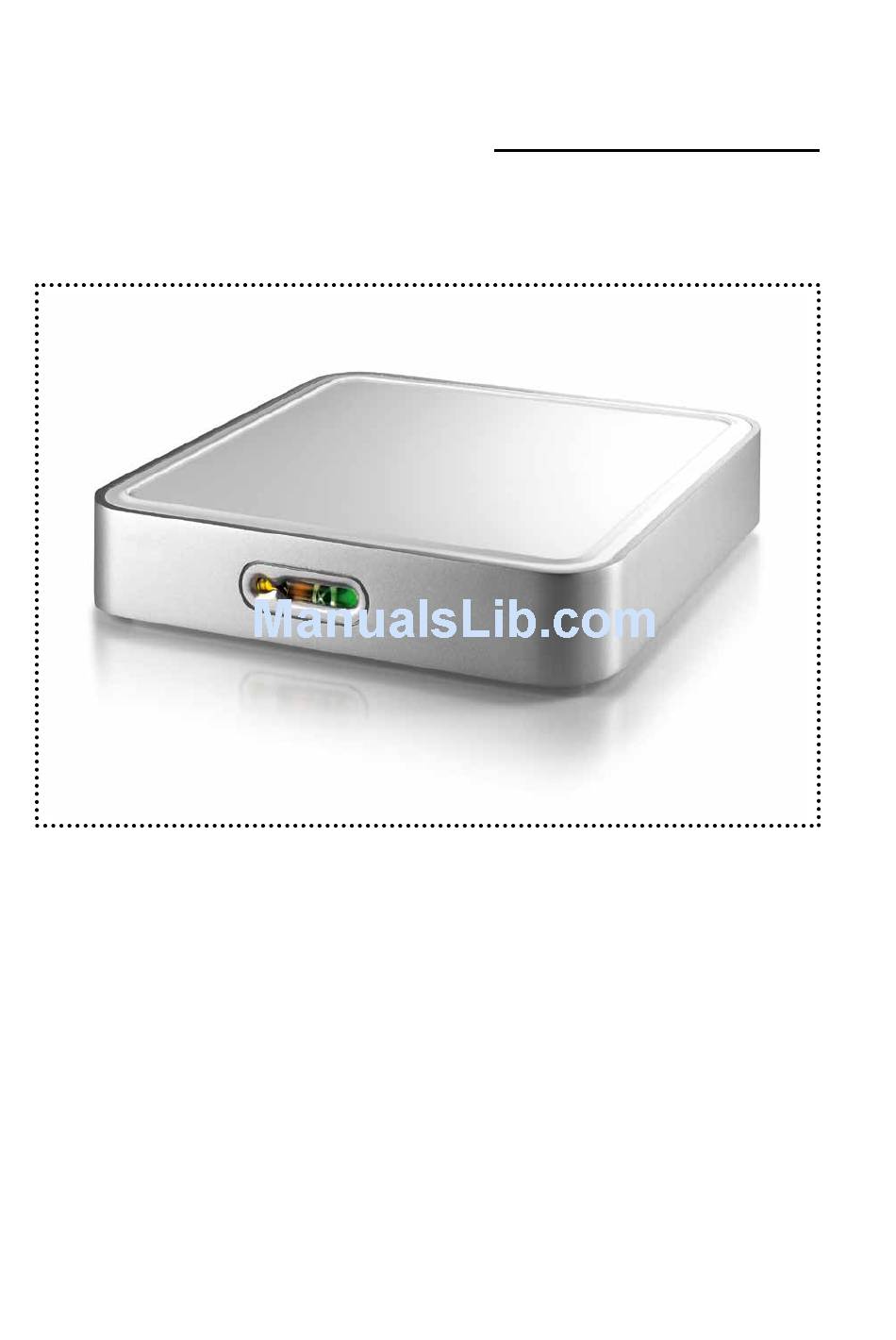

D7-DMA Digital Media Adapter User Manual & Installation Guide October 15, 2007 v1.3... -
Page 2: Table Of Contents
User Guide DNS] ECONDARY Table of Contents EFAULT ATEWAY [AOL] CHAPTER 1 - INTRODUCTION ETUP REFERRED D7-DMA VAILABLE ETWORK [SSID] ACKAGE ONTENTS YSTEM EQUIREMENTS ONNECTION PC R EQUIREMENTS ECURITY TV R EQUIREMENTS NTERFACE NFORMATION ETUP EMOTE ONTROL PDATE [TV MODE] [SETUP] CHAPTER 3 –... -
Page 3: Chapter 1 - Introduction
Product Dimensions: 16.5cm x 16.5 cm x 3.2 cm 6.50” x 6.50” x 1.26” Package Contents • D7-DMA or D7-WDMA • External Power Adapter; Input 100-240V, Output +12V/1A • Composite and Component video cable • SPDIF optical audio cable •... -
Page 4: Interface Information
User Guide Interface Information Following images are for reference only and show the D7-DMA without the optional 802.11 b/g antenna. Yellow: Green: LAN connection Power ON/OFF Infrared Receiver Power USB host Power connectors switch receptacle A/V multi interface SPDIF Ethernet... -
Page 5: Remote Control
User Guide Remote Control Power ON/OFF No Function Input for time, search, login, URL and other text. Input Selector Clear (Backspace) [CLEAR] Delete a letter or number when entering text. [SELECT] Toggle text input between upper case, lower case and numbers. No Function TV Mode Setup... -
Page 6: [Info]
User Guide A: N/A B: Return to Menu Playback Functions A: N/A B: Return to Home A: File Info B: Go to Setup A: Time Search Audio output B: URL input Subtitle encoding/OFF A: Repeat B: Refresh Zoom Function No function No function Rotate Images [A-B] Return to the menu or the main screen depending on the present mode. -
Page 7: Page 5 / Chapter 2 - System Setup
User Guide Chapter 2 - System Setup Find a suitable place for your D7, within a distance of 1.2m or less of your TV screen. Connect the power supply and the power outlet. Included with your D7 is a standard AV cable and a YPbPr cable. Connect it to the A/V connector on the D7 and plug it into your TV. -
Page 8: Setup Menu
User Guide Setup Menu Once booted, press the SETUP key on your D7 remote control to access the configuration screen and its settings. Options [Screensaver] Set a time from 1-60 minutes before the screensaver turns on. [Language] Select your preferred language for the on-screen menu, file browser encoding and subtitles. -
Page 9: Ip Config
User Guide IP Config By default, you can leave these settings and the D7 will automatically request the IP and other information over the network. If the internet connection does not work or you would like to change it, switch to manual mode. Input an IP address from your local network which is not in use yet. -
Page 10: W I F I Setup
User Guide Wireless Setup To configure and use the wireless function, the optional antenna and mini PCI card have to be installed first. Set your preferred network to wireless and save the settings. You will be prompted to reboot. After restarting the system, go back to WIFI Setup, select your wireless network and configure connection type and security key if required. -
Page 11: Time Setup
User Guide Time Setup Setup for clock time with time zone and NTP server. If the NTP server is set and an internet connection exists, the D7 can synchronise the time automatically. The default value for the NTP server should work fine, so you only have to choose your time zone, turn on daylight saving if required and save the settings. -
Page 12: Chapter 3 - Usb Host
User Guide Chapter 3 – USB Host The D7 has two USB connectors for external USB devices. You can connect up to two USB mass storage devices with digital media content to display on your TV. For D7 to recognise the external USB device it has to be mass storage class, and the file format must be FAT12, FAT16 or FAT32. -
Page 13: Chapter 4 - Network Mode
User Guide Chapter 4 – Network Mode There are 3 different kinds of network modes: • UPnP devices on local network • Media server on PC • Online premium content with direct internet access UPnP devices To access a Universal Plug and Play (UPnP) device, all you need to do is connect it to the same local network as your D7. -
Page 14: Online Premium Content
User Guide Online Premium Content In this mode, you can access content on the internet directly from your D7, without the need to turn on any computer. To use this function, make sure your gateway and DNS server are setup properly and that you have access to the internet. [VTuner] Access to online radio broadcast and web radio with advanced search features. -
Page 15: Chapter 5 - Appendix
User Guide Chapter 5 - Appendix For RMA and other questions, please contact your vendor or check out their online support area! Specifications N/A (data is accessed via USB or Ethernet) Internal Memory Playback Formats Video: • MPEG-1 up to 1.15Mbps CBR (MPG, MPE, MPEG, DAT, M1V) •... -
Page 16: Faq
User Guide Supported USB Mass Storage class devices using FAT12, FAT16 or devices FAT32, including USB hard drives, card readers and USB memory sticks. UPnP Version v1.0 Output Interfaces Video NTSC/PAL: • Composite Video • S-Video • Analogue Component Video up to 720p or 1080i •... -
Page 17: Remote Control Key Functions
User Guide Remote Control Key Functions Item Button Browser Mode Playback Mode Power Power OFF Power OFF 1 - .:/@ Go to 10% 2 - ABC Go to 20% 3 - DEF Go to 30% 4 - GHI Go to 40% 5 - JKL Go to 50% 6 - MNO... -
Page 18: About This Manual
User Guide About this Manual This manual covers both D7-DMA (wired version) and D7-WDMA (wireless version). Images and descriptions may therefore slightly vary between this manual and the actual product you have. © Copyright 2007 by Macpower & Tytech Technology Co., Ltd. all Rights Reserved The information contained in this manual is believed to be accurate and reliable.
