Summary of Contents for Svec FD815

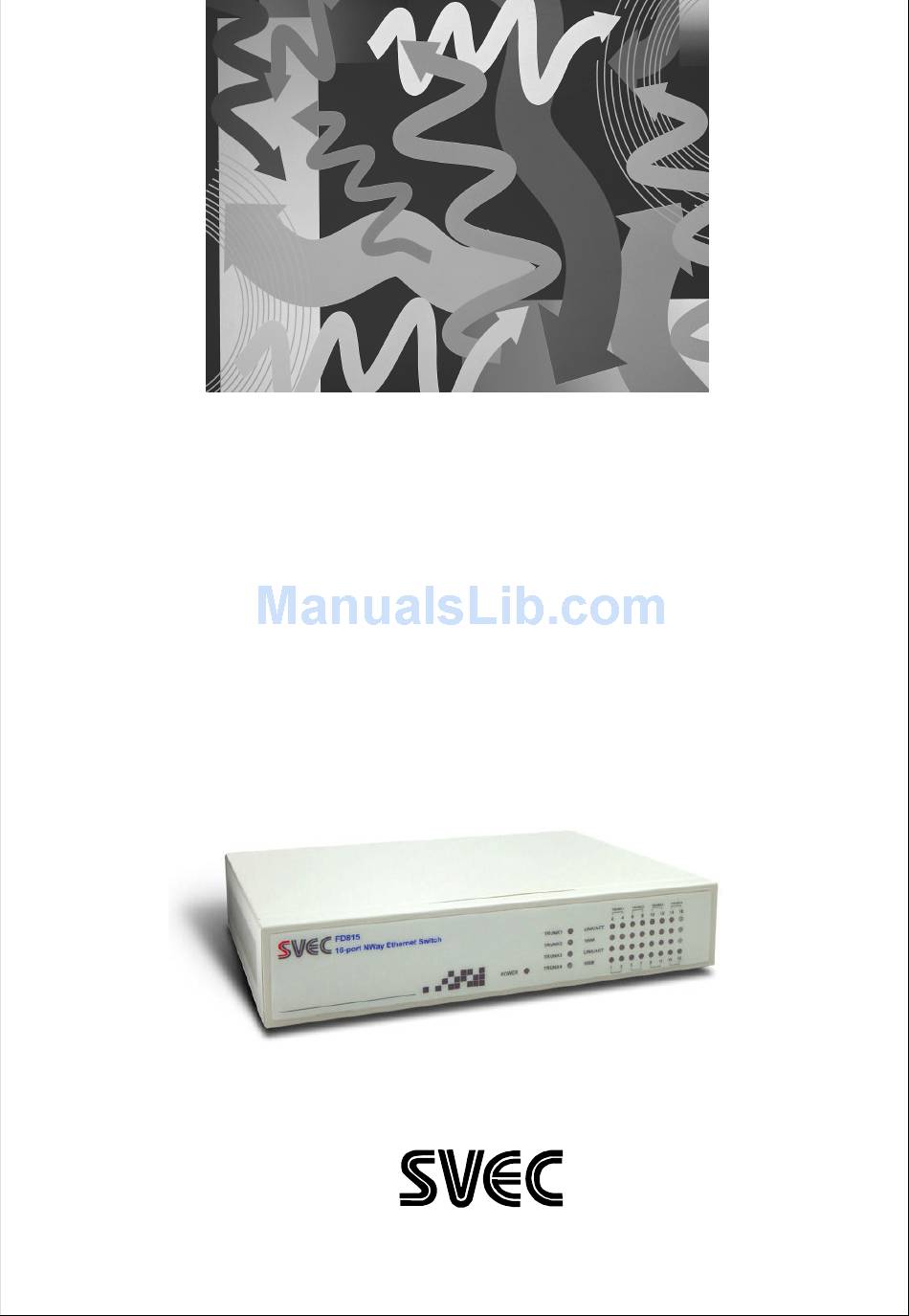

- Page 1 16-port 10/100M Nway Fast Ethernet Switch Building an Affordable Network System with SVEC FD815 User's Manual Network Solutions...
- Page 2 5. Marker Tie x 16 Description The FD815 is a powerful, high-performance, and cost effective NWay switch, with all 16 ports capable of 10 or 100Mbps auto-negotiation operation(NWay), and supports IEEE 802.3x full duplex flow control and half duplex back pressure congestion control. The Switch supports a port...
- Page 3 Emission FCC Class A, CE Rich LED Indicator System: Power, Trunk Port: Link/Activity and Speed Control DIP switch Latched during hardware reset. Control port Trunking, Port based HOME VLAN and 2-level QoS functions. ° ° Operating Temperature 0-50 C (32-122 F) Operating Humidity 10 ~90 (non-condensing) Dimension...
- Page 4 PIN 2 The VLAN topology is control by PIN2: OFF: Disable the V LAN function on each 16 port (default) ON : Enable the VLAN function on each ports PIN 3 OFF: It is dark (default) ON : enable port trunk 1 which consists of ports 1,2,3,4 PIN 4 OFF: It is dark (default) ON : enable port trunk 2 which consists of ports 5,6,7,8...
- Page 5 LEDs Definition Operation POWER Power ON(Green), Power OFF (Off) TRUNK Enable (Green), Disable (Off) 100M 100Mbps (Green), 10Mbps(Off) LINK/ACT Link is present (Green),Activity (Blinking Green) Power Connection Plug the circle en d of the power adapter firmly into the rear panel of the switch, then plug the other end into an electrical service outlet- the system is now ready.
- Page 6 Network Solutions P/N.901-10127-000 June , 2002...
