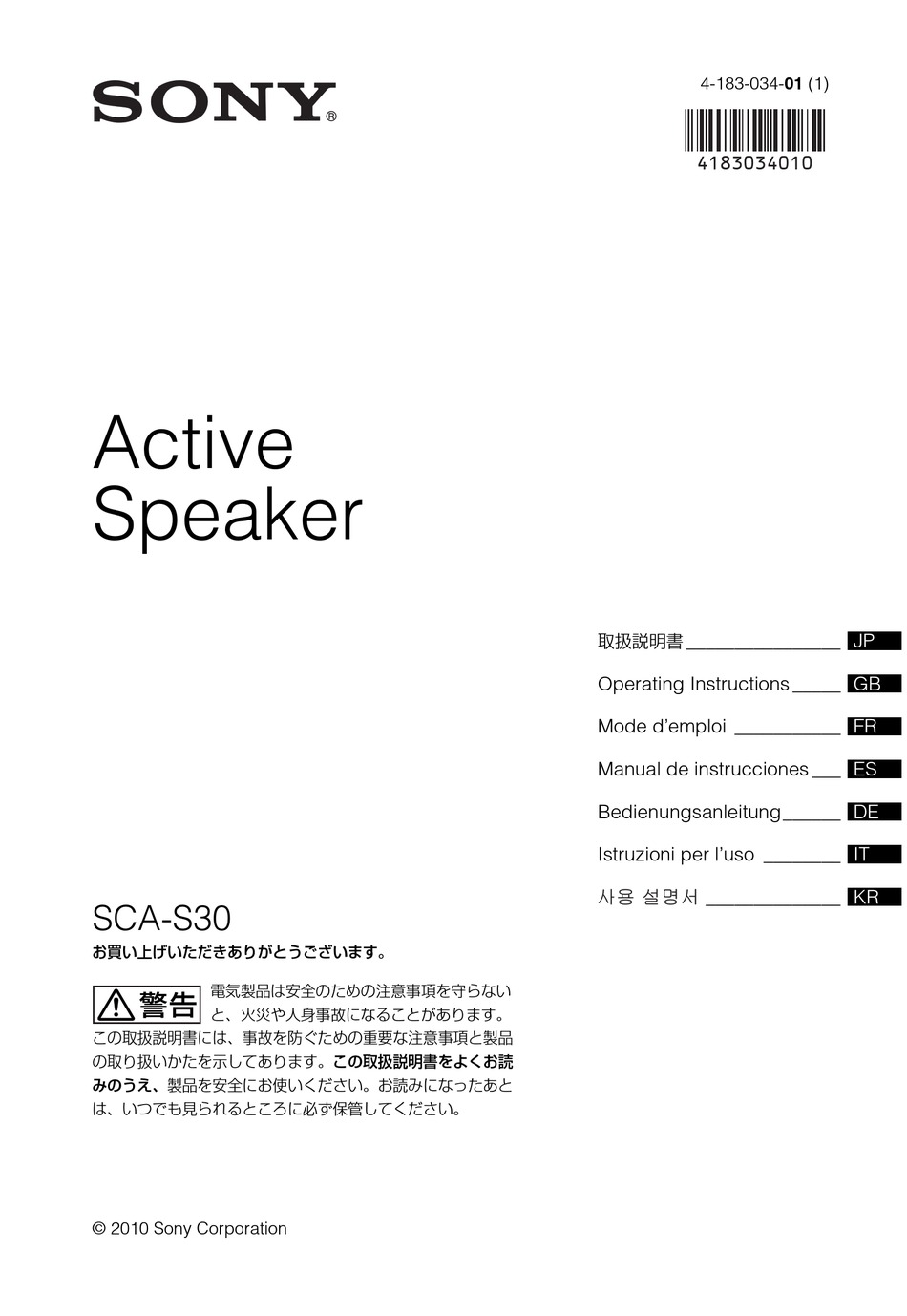

- Page 1 4-183-034-01 (1) !"#$%$!%"% Active Speaker Operating Instructions _____ Mode d’emploi ___________ Manual de instrucciones ___ Bedienungsanleitung______ Istruzioni per l’uso ________ ______________ SCA-S30 © 2010 Sony Corporation...
-
Page 2: Power Supply
Power Supply The SCA-S30 operates on AC 24 V power. The SCA-S30 automatically detects the • Unplug this apparatus during lightning power. In the USA, use a Class 2 power storms or when unused for long periods supply which is UL Listed. -
Page 3: Table Of Contents
E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio). For the customers in Europe The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. -
Page 4: Features
Features The SCA-S30 Active Speaker is intended to be used in combination with security cameras, and is designed with high performance and durability in mind. The speaker is also designed with the following features. 24V AC compatible internal amplifier speaker The SCA-S30 supports 24 V AC power, allowing power supply consolidation with Sony network cameras. -
Page 5: Package Contents
Package Contents Check that the following items are included in the package. If any of the items are missing, contact your local Sony representative. • Speaker unit (1) • Safety wire rope (1) • Safety wire rope mount screw (M4 × 16) (1) •... -
Page 6: Names And Functions Of Parts
Names and Functions of Parts Front A Front panel Sound is emitted from here. B Cover Covers the cable connections. Be sure to secure it to prevent detachment. C Frame Used for mounting the speaker onto a wall or pole. Use the screws supplied with the mount bracket (not supplied) to secure the speaker. -
Page 7: Rear
Rear A AUDIO IN connector (3-pole mini stereo / 2-pole mini plug) This is the LINE input connector. Although 3-pole mini stereo is supported, stereo inputs will be output in monaural. B Power input connector (24 V AC) Connect to a 24 V AC power supply unit. C U grounding terminal Used for grounding the unit. -
Page 8: Bottom
Bottom A POWER indicator Lights green when power is supplied. B Connection port (for conduit fittings) NPT 3/4 Connect raceways and couplings (conduit fittings) here. Names and Functions of Parts... -
Page 9: Installation
Installation WARNING • Contact a qualified technician when installing the unit on a ceiling or high location. • When installing the unit in a high location, make sure that the location can support the weight of the unit and parts for installation, and make sure the unit is secured. Failure to do so may result in injuries. -
Page 10: Pole Or Column Installation
Pole or Column Installation Use a Pole Mount Adapter Bracket to mount the unit on a pole or column. Note Pole Mount Adapter Brackets, metal banding, cable raceways, couplings, nuts, audio signal cables, and power cables are not supplied. Customers should procure them as necessary. Use metal banding to secure the Pole Mount Adapter Bracket onto the pole or column. - Page 11 Run the audio signal cable and power cables through the raceway, and attach the coupling. Coupling Cable raceway Insert the coupling through the connection port on the speaker, and secure it with the nut supplied with the coupling. Use the nuts and bolts supplied with the Pole Mount Adapter Bracket to secure the speaker to the bracket.
- Page 12 Connect the audio signal cable and power cables to the speaker. A Loosen the adjustment bolts on the left and right sides of the speaker as much as possible, and adjust the angle of the speaker as shown. Adjustment bolts (left and right) B Connect the audio signal cable to the AUDIO IN connector, the power cables to the power input connector (24 V AC), and the grounding wire to the U grounding terminal.
- Page 13 Attach that cover to the rear of the speaker. A Fit the cover onto the speaker. B Tighten the cover screws (3) to secure the cover. Make sure that the cover is fitted onto the speaker snugly, without leaving any gaps. Attach the safety wire rope.
- Page 14 B Use the supplied safety wire rope mount screw (M4 × 16) to secure the rope. Safety wire rope mount × screw (M4 Safety wire rope (supplied) Safety wire rope holes Caution Use only the supplied screw to secure the safety wire rope. Using a screw other than the one supplied may not provide sufficient support.
-
Page 15: Wall Installation
Wall Installation Note Cable raceways, couplings, nuts, audio signal cables, and power cables are not supplied. Customers should procure them as necessary. Remove the cover at the rear of the speaker. Cover Notes • The cover screws are screwed tightly to the speaker and may be difficult to remove. •... - Page 16 Insert the coupling through the connection port on the speaker, and secure it with the nut supplied with the coupling. Secure the speaker to the wall. A Secure two mount bolts to the wall. When installing the mount bolts, be sure to take into account the distance between the bolt hole centers on the speaker frame and the distance between the speaker cover and the wall.
- Page 17 B Use washers and nuts to secure the speaker. Connect the audio signal cable and power cables to the speaker. A Loosen the adjustment bolts on the left and right sides of the speaker as much as possible, and adjust the angle of the speaker as shown. Adjustment bolts (left and right) B Connect the audio signal cable to the AUDIO IN connector, the power cables to the power input connector (24 V AC), and the grounding wire to the U grounding...
- Page 18 Attach that cover to the rear of the speaker. A Fit the cover onto the speaker. B Tighten the cover screws (3) to secure the cover. Make sure that the cover is fitted onto the speaker snugly, without leaving any gaps. Attach the safety wire rope.
- Page 19 B Use the supplied safety wire rope mount screw (M4 × 16) to secure the rope. Safety wire rope mount screw × Safety wire rope (supplied) Safety wire rope holes Caution Use only the supplied screw to secure the safety wire rope. Using a screw other than the one supplied may not provide sufficient support.
-
Page 20: Connecting The Power Supply
Connecting the Power Supply Supply power to the unit as follows. • AC 24 V Connecting to the 24 V AC power supply Connect to the 24 V AC power supply via the rear power input connector. • Use a power supply that is isolated from commercially available power. The acceptable voltage range is as follows: 21.6 V to 26.4 V •... -
Page 21: Precautions
Precautions Major Specifications Locations for use/storage To prolong the life of the product, avoid use Speaker or storage in the following locations. • Locations that can become extremely hot Category Active speaker or cold. (Operating temperature: Frequency response –20 °C to +50 °C (–4 °F to +122 °F)) 100 Hz to 15,000 Hz •... -
Page 22: Supplied Accessories
Power consumption accident. 8 W (max.) (24 V AC, For details, please consult the store of 1/8 W of maximum purchase or an authorized Sony dealer. undistorted output) Dimensions 150 mm dia. (6 in.) 179 × 273 × 275 mm ×...
