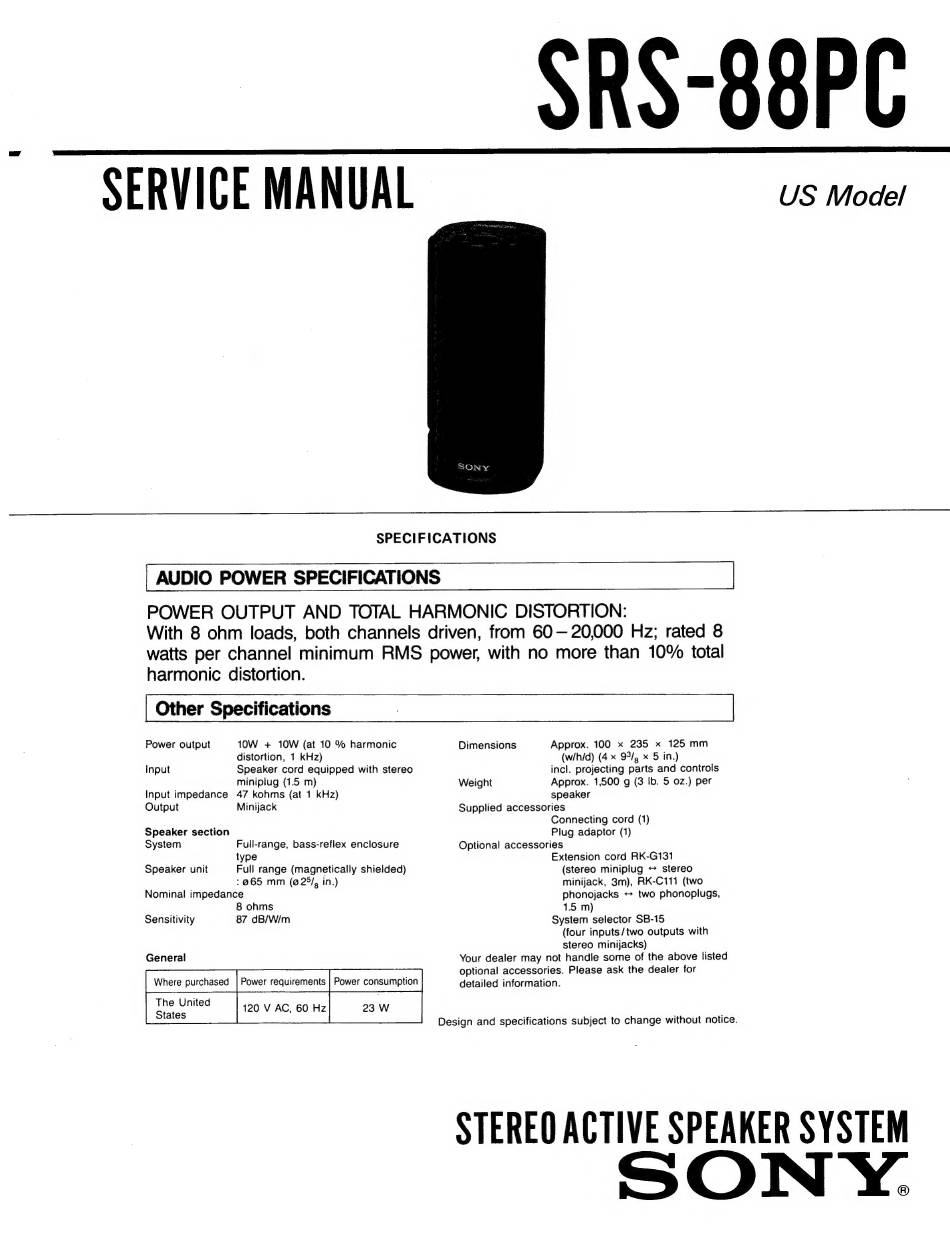

Sony SRS-88PC Service Manual

SERVICE MANUAL
SRS-88PC
US Model
SONY
SPECIFICATIONS
| AUDIO POWER SPECIFICATIONS |
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from 60— 20,000 Hz; rated 8
watts per channel minimum RMS power, with no more than 10% total
harmonic distortion.
| Other Specifications :
10W + 10W (at 10 % harmonic
distortion, 1 kHz)
Input Speaker cord equipped with stereo
miniplug (1.5 m)
Input impedance 47 kohms (at 1 kHz)
Output Minijack
Power output
Speaker section
System Full-range, bass-reflex enclosure
type
Full range (magnetically shielded)
:@65 mm (8 2°5/, in.)
Nominal impedance
8 ohms
87 dB/W/m
Speaker unit
Sensitivity
General
The United
ia
Dimensions Approx. 100 x 235 x 125 mm
(wihid) (4 x 99/, x 5 in.)
incl. projecting parts and controls
Weight Approx. 1,500 g (3 Ib. 5 02.) per
speaker
Supplied accessories
Connecting cord (1)
Plug adaptor (1)
Optional accessories
Extension cord RK-G131
(stereo miniplug « stereo
minijack, 3m), RK-C111 (two
phonojacks «+ two phonoplugs,
1.5 m)
System selector SB-15
(four inputs/two outputs with
stereo minijacks)
Your dealer may not handie some of the above listed
optional accessories. Please ask the dealer for
detailed information.
Design and specifications subject to change without notice.
STEREO ACTIVE SPEAKER SYSTEM
SONY.
