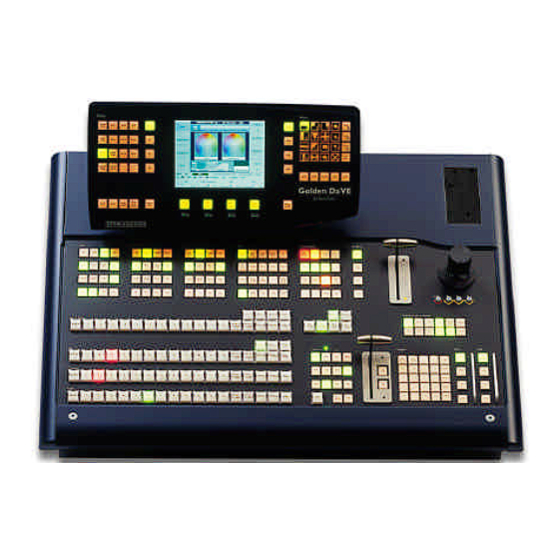

Snell & Wilcox SD1012 Installation Manual
  1. Manuals
  2. Brands
  3. Snell & Wilcox Manuals
  4. Switch
  5. SD1012
  6. Installation manual

Snell & Wilcox SD1012 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION
MANUAL
SD1012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD1012 Snell & Wilcox and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snell & Wilcox SD1012 Snell & Wilcox

Summary of Contents for Snell & Wilcox SD1012 Snell & Wilcox

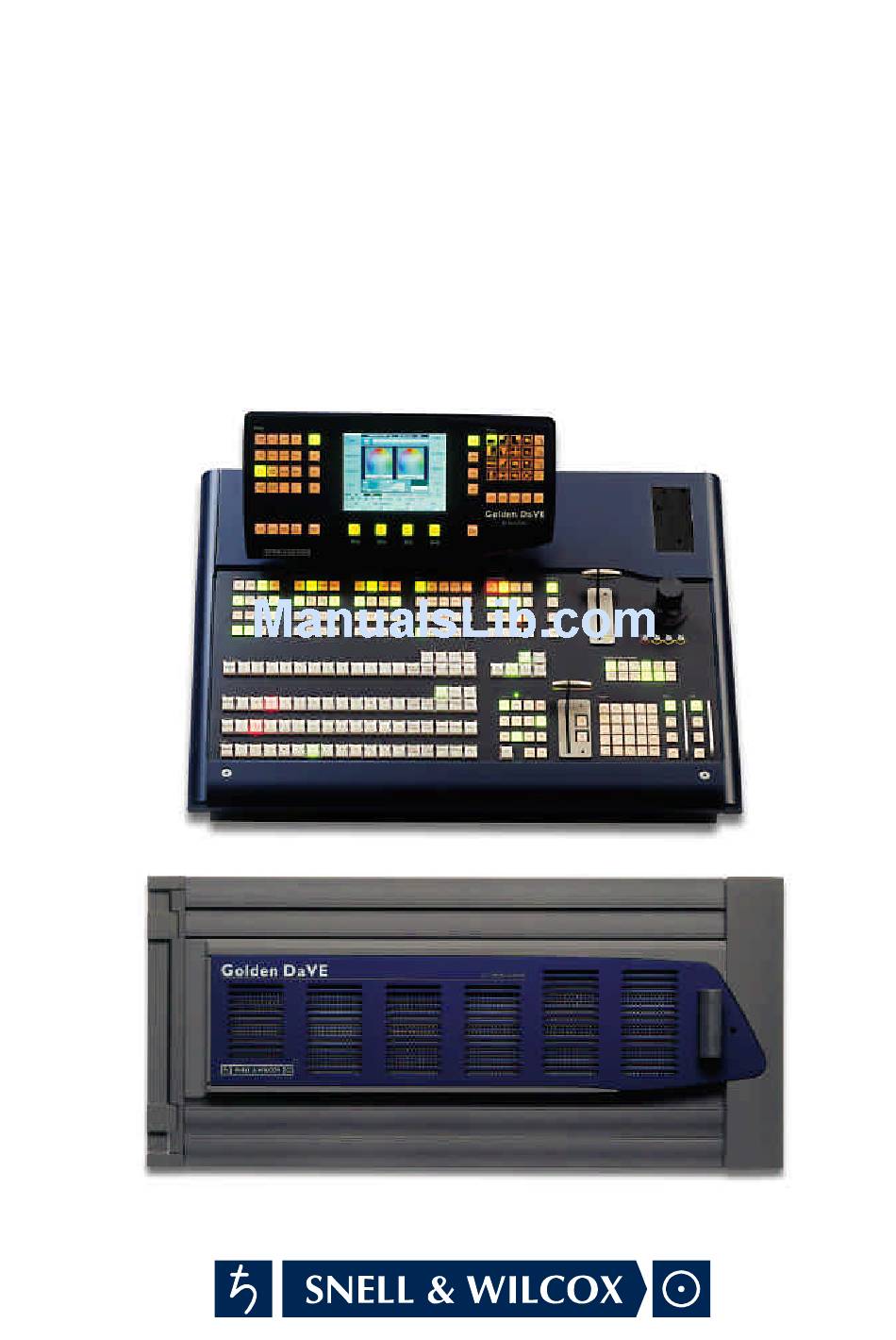

  • Page 1 INSTALLATION MANUAL SD1012...
  • Page 2 SD1012 Installation Manual - Issue 6, Rev 1, April 2002 © 1998-2002 Snell & Wilcox Post Production Division The Business and Technology Centre Shire Hill SAFFRON WALDEN Essex, CB11 3AQ U.K. Tel: + 44 (0) 1799 523817 Fax: + 44 (0) 1799 528081 Support Tel: + 44 (0) 1799 508100 &...

  • Page 3: Safety Warnings

    SAFETY Explanation of Safety Symbols This symbol refers the user to important information contained in the accompanying literature. Refer to users manual. This symbol indicates that hazardous voltages are present inside. No user serviceable parts inside. This unit should only be serviced by trained personnel. Safety Warnings Servicing instructions, where given, are for use by qualified personnel only.
  • Page 4 Power cable supplied for the USA The equipment is shipped with a power cord with a standard IEC molded free socket on one end and a standard 3-pin plug on the other. If you are required to remove the molded mains supply plug, dispose of the plug immediately in a safe manner.
  • Page 5 Battery Warnings Lithium Battery There is a Lithium battery on the VME card which is mounted “piggy-back” on the Mainframe CPU card. If this battery is incorrectly replaced there is a danger of explosion! Ensure that the same make and model of battery is used if replacement is required (a manufacturer recommended equivalent may be used if the original type is not available).
  • Page 6 Safety Standards This equipment complies with the following standards: BS EN60950 (2000) Safety of information Technology Equipment Including Electrical Business Equipment. EMC Standards This unit conforms to the following standards: BS EN 55103-1 : 1997 Electromagnetic Compatibility, Product family standard for audio, video, audio-visual and entertainment lighting control apparatus for professional use.

  • Page 7: Table Of Contents

    CONTENTS SECTION A - INSTALLATION ..................... ELECTRICAL SUPPLY CONNECTION ..................ON DELIVERY OF THE SYSTEM ....................LOCATION AND ENVIRONMENT ....................Environmental Considerations ................... Location ..........................Control Panel Installation ....................Power Supplies ........................Fusing ..........................SYSTEM INTERCONNECTION ....................Introduction ........................Control Panel ........................Power ..........................
  • Page 8 LIST OF FIGURES Electrical Supply Connection ................Wiring of IEC mains inlet connectors ..............Switcher Mainframe ....................System Timing & Delays Diagram ............... 11 Remote Aux Control Connection ................31 LIST OF TABLES GVG 4000 Crosspoints ..................15 GVG 4000 bus assignments ................. 16 Sony DVS bus assignments ..................

  • Page 9: Section A - Installation

    SECTION A INSTALLATION S&W Production & Post Production SD1012 Installation Manual - Issue 6, Rev 1 Page 1...

  • Page 10: Electrical Supply Connection

    ELECTRICAL SUPPLY CONNECTION Page SD1012 Installation Manual - Issue 6, Rev 1 S&W Production & Post Production...

  • Page 11: On Delivery Of The System

    INTRODUCTION These installation instructions provide a guide to the installation of the SD1012 Switcher. ON DELIVERY OF THE SYSTEM The equipment is supplied in dedicated packaging provided by the manufacturer and should not be accepted if delivered in inferior or unauthorised materials. Carefully unpack the system components and check them against the packing list.

  • Page 12: Location And Environment

    LOCATION AND ENVIRONMENT Environmental Considerations The ambient temperature for all the supplied equipment should not exceed the limits of 5 and 35 degrees C. at a relative humidity of 10 to 90% (non-condensing). Installing the equipment in a clean environment with moderate temperature and humidity will promote a long and trouble-free equipment life.

  • Page 13: Power Supplies

    LOCATION AND ENVIRONMENT - continued Power Supply All three major parts of the system - Switcher Mainframe, Router Mainframe, and Control Panel - have the option to be fitted with dual power supplies. In each case the unit will work happily with a single power-supply connected if required.

  • Page 14: System Interconnection

    SYSTEM INTERCONNECTION Introduction Your system has been set up and tested before shipment. Installation normally consists of siting and interconnecting the system components, connecting video and key inputs and outputs and setting up. Control Panel • Remove and keep the supplied nuts and washers from the two bolts on the top of the Control Panel.
  • Page 15 SYSTEM INTERCONNECTION - continued Deliberately Blank S&W Production & Post Production SD1012 Installation Manual - Issue 6, Rev 1 Page 7...
  • Page 16 SYSTEM INTERCONNECTION - continued SD1000 Switcher Mainframe, Rear & Connector Panel Page SD1012 Installation Manual - Issue 6, Rev 1 S&W Production & Post Production...

  • Page 17: Inputs

    SYSTEM INTERCONNECTION - continued Inputs Connect up to 12 SDI inputs to the 12 Serial Inputs of the Switcher Mainframe. Sources can be either video or key. If the system has the 24 input option fitted, all input connectors can be used. Connecting to an Alternate Mainframe Connect the 10 BASE T socket on the rear panel of the primary mainframe (adjacent to the Panel 10 BASE TX connector) to the Panel 10 BASE TX socket on the alternate mainframe.

  • Page 18: Referencing - System Delays

    SYSTEM INTERCONNECTION - continued Referencing - System Delays The delay through the Golden DaVE system is illustrated in the timing diagram on the next page. With no option (OPT) card the minimum delay which is possible is 185 pixels (about 14µs), but as the diagram shows, with a DVE card fitted a delay of over 2 frames is easily achievable! Because all inputs have frame synchronisers, a source cannot be set outside the source window;...
  • Page 19 SYSTEM INTERCONNECTION - continued Genlock Reference Golden DaVE Output: 1 Frame DVE fitted, normal DVE delay, all paths Path through DVE Golden DaVE Output: No DVE fitted Min DVE delay mode, non-DVE path Source window – 1 frame wide Sync Output Genlock H and V Phase Fully adjustable +/- 1 field Sync H and V Phase...

  • Page 20: Timings For Vtr Pre-Read

    SWITCHER TIMING FOR VTR PRE-READ Introduction Pre-read is a facility of some VTRs which allows video information to be read from the tape, be processed by some external equipment and then written back to the tape in the same place as it was read from. This process allows tape to tape editing to be carried out using only two VTRs instead of the normal three.
  • Page 21 SYSTEM TIMINGS - continued BLACK BURST D/As SYNC IN SYNC IN SOURCE 1 VIDEO GOLDEN DAVE VIDEO SOURCE 2 SYNC IN SYNC IN SWITCHER OUTPUT TO VTR PRE-READ VIDEO VTR VIDEO OUTPUT Studio Black Burst Synchronisation. Set the “Genlock V or H Phase” in the “Configure - System Genlock” (SD1512, SD1524 and SD2524) or “Configure - System Timing”...

  • Page 22: Control Ports And Protocols

    CONTROL PORTS AND PROTOCOLS Ports The Switcher Mainframe has Ethernet, Serial and Tally & GPI I/O ports. The Ethernet ports are used for connection between the mainframe and the control panel, to connect to an alternate mainframe and for FTP connection to provide the transfer of Stills. Serial Ports 1 to 4 are RS422 ports and can be assigned a communications protocol in order to communicate with number of external devices.

  • Page 23: Gvg 4000

    CONTROL PORTS AND PROTOCOLS - continued GVG 4000 This protocol allows an editor capable of controlling a GVG 3000 or 4000 switcher to drive the P/P bus of the Switcher. Learn and Recall of DMEMs (E-MEMS) to and from the hard disk in the switcher is supported.

  • Page 24: Sony Dvs

    CONTROL PORTS AND PROTOCOLS - continued There are three variants of the GVG-3000/4000 Protocol. They are identical except for the way that Aux and Preview busses are assigned. The bus name in brackets in the protocol setting is the switcher bus that is driven by the incoming AUX 1 bus controls. In detail the bus assignments are as follows: Protocol Setting Incoming bus (in Bold) from editor will drive:...

  • Page 25: Sony Dvs Crosspoints

    CONTROL PORTS AND PROTOCOLS - continued Sony DVS crosspoint allocation is shown in the table below. When a source can be accessed via two or more different values, the value returned on a status request is marked with an asterisk S&W Source Selected Sony Name Black...

  • Page 26: Using A Sony Bve-9100 Editor

    CONTROL PORTS AND PROTOCOLS - continued Using a Sony BVE-9100 editor There is a fairly common problem when using the BVE-9100 editor and S & W switchers whereby the switcher appears to be acting slightly too late on commands coming from the editor (or, that the editor is sending commands slightly too late for the switcher).
  • Page 27 CONTROL PORTS AND PROTOCOLS - continued To adjust this setting on the BVE-9100 step-by-step: 1. Press Shift-Setup. 2. Press F3 IDC. 3. Cursor down to the SW/MON entry in the IDC list 4. Press F8 ENTRY. 5. Press F3 SERIAL IF SW'ER 6.

  • Page 28: Vtr

    CONTROL PORTS AND PROTOCOLS - continued Using the Sony VTR (P2) protocol, the Switcher emulates, specifically, a Sony BVH-2000. The timeline is treated as length of videotape in a virtual VTR controlled by the protocol. There are two variants of this protocol: VTR-Ballistics and VTR-No B’stics. The difference is that on reception of a Preroll (0x20, 0x30) or Cue-Up-With-Data (0x24, 0x31) command, the “Ballistics”...

  • Page 29: S & W Tally

    CONTROL PORTS AND PROTOCOLS - continued S & W Tally This protocol transmits detailed tally information every field for use by external intelligent tally systems. The protocol used is specific to Snell & Wilcox, and details are available on request. S &...

  • Page 30: General Purpose Inputs & Outputs

    CONTROL PORTS AND PROTOCOLS - continued GENERAL PURPOSE INPUTS & OUTPUTS Overview Standard System The switcher mainframe has eight general purpose inputs and 32 outputs. The action of each of these inputs and outputs may be allocated by the user from a range of functions. The allocation is performed in the GPI and GPO menus.

  • Page 31: The Outputs

    CONTROL PORTS AND PROTOCOLS - continued The Outputs There are thirty-two general purpose outputs, located on the three Tally connectors (25 way D-type) on the rear of the switcher mainframe. Each output may be independently programmed to “indicate” any one of a wide range of occurrences or combinations of occurrences.

  • Page 32: Programming The Inputs

    CONTROL PORTS AND PROTOCOLS - continued Programming The Inputs The GPI functions are programmed in the GPI menu found under the Configure - User menu. The left screen shows the eight GPIs with their allocated function and which edge or level of the control signal will trigger the function.

  • Page 33: Programming The Outputs

    CONTROL PORTS AND PROTOCOLS - continued Programming The Outputs The GPO functions are programmed in the GPO menu which is accessed from the GPI menu by F1R. The rotary controls are used to set the parameters. Conditions The leftmost control (GPO) selects the GPO, the next one (GPO Class) selects the “occurrence group”...

  • Page 34: Multiple Conditions

    CONTROL PORTS AND PROTOCOLS - continued Multiple Conditions The GPO active state may be conditional on more than one occurrence. The rightside buttons F1R to F4R set-up the conditions and the way they combine to produce an active output. F2R Add Condition Pressing this button adds another condition to the original single condition.

  • Page 35: List Of Gpo Occurences

    CONTROL PORTS AND PROTOCOLS - continued List of GPO occurrences The following is a complete list of the system occurrences which may be assigned to a GPO. Video Tally Source inputs 1 to 12. Bus Tally Program Bus, Preset Bus, DSK Fill Bus, DSK Key Bus, Key 1 Fill Bus, Key 1 Key Bus, Key 2 Fill Bus, Key 2 Key Bus.

  • Page 36: Other Installation Procedures

    OTHER INSTALLATION PROCEDURES Setting the Real-Time Clock It is recommended that you set the Real-Time Clock at installation time. To do this, press the CONFIG MENU button, then press F2L User and then F4L More until F3L is Set Clock, press this button.

  • Page 37: Remote Allocation Of Aux Sources

    OTHER INSTALLATION PROCEDURES - continued Remote Allocation of Aux Sources The four auxiliary outputs may have their sources allocated from one or more remote panels rather than from the switcher control panel. Snell & Wilcox do not manufacture a panel for this function but the Quartz Electronics CP3201 - S7 Remote Panel can be used as described below.
  • Page 38 OTHER INSTALLATION PROCEDURES - continued 3. More than one panel connected to one switcher port. Note This method can only be used if the switcher is running system software V2.3 R2 or later. Up to four Quartz panels can be connected to one switcher serial port to give independent control of four Aux O/Ps whilst only using one switcher port.
  • Page 39 OTHER INSTALLATION PROCEDURES - continued Interconnection & Set-up The Diode Buffers connect directly to the Computer Port of the Quartz panels. A standard RS-422 cable connects the Diode Buffers to the extender cable. If less than four Quartz panels are used the Master Diode Buffer must still be used and in the connector at the end of the extender.

  • Page 40: Connector Pinouts

    CONNECTOR PINOUTS Table 1: Mainframe RS-422 Connector Pinout 9-way female D-type FUNCTION Frame Ground Transmit A (Tx-) Receive B (Rx+) Receive Common [No connection] Transmit Common Transmit B (Tx+) Receive A (Rx-) Frame Ground The four RS-422 ports are software-configurable to be that for either a controlling device or, more commonly, a controlled device.

  • Page 41: Tally & Gpi

    CONNECTOR PINOUTS - continued Switcher GPIs / GPOs 25 Way D-type connectors - switcher mainframe rear panel Tally 1-12 Tally 13-24 Tally 25-32 & GPI 1-8 Signal Signal Signal GPO 1a GPO 13a GPO 25a GPO 2a GPO 14a GPO 26a GPO 3a GPO 15a GPO 27a...

  • Page 42: Control Panel To Lcd

    CABLE WIRINGS Control Panel to LCD Touch Screen 15-way Cable Control Panel LCD Touch Screen 15-way sub-D-type Cable Colour 15-way sub-D-type Male Male LCD_LCDS0– Pin 1 Blue Pin 6 LCD_LCDS0– Pair 1 LCD_LVDS1– Pin 2 Black Pin 7 LCD_LVDS1– LCD_LVDS2– Pin 3 Pin 8 LCD_LVDS2–...
  • Page 43 CABLE WIRINGS - continued Control Panel to LCD Touch Screen 44-way Cable Control Panel LCD Touch Screen 44-way sub-D-type Cable Colour 44-way sub-D-type Male Male Pin 1 White-Blue Pin 1 CPUD9 Pin 2 Blue-Black Pin 2 CPU9 CPUD6 Pin 3 Orange-Blue Pin 3 CPU6...
  • Page 44 DELIBERATELY BLANK Page SD1012 Installation Manual - Issue 6, Rev 1 S&W Production & Post Production...

  • Page 45: Section B - Specifications

    SECTION B SPECIFICATIONS S&W Production & Post Production SD1012 Installation Manual - Issue 6, Rev 1 Page 37...
  • Page 46 TELEVISION STANDARDS Television Dual Standard 525 line / 625 line, on-line switchable Standards Picture 4:3 or 16:9, on-line switchable Format INTERNAL PROCESSING 4.2.2.4 Data Rate Luma & Key 13.5 MHz Pb & Pr 6.75 MHz 10 bits with Dynamic Rounding™ where appropriate. Resolution (Dynamic Rounding™...
  • Page 47 INPUT FORMATS & LEVELS 270 Mbits/second serial digital interface as per Video/Key Input Format CCIR REC-656/SMPTE 125, 259 (D1) 300mV sync with optional 300mV pk-pk burst ±6dB Analogue Reference High Impedance (loop-through) Input Impedance: 75 ohms (except reference input). OUTPUTS 2-off SDI each on 1 x BNC, on-line switchable Program Outputs between 8 &...
  • Page 48 OUTPUT FORMATS & LEVELS 270 Mbits/second serial digital interface as per CCIR Video Output Format REC-656/SMPTE 125, 259 (D1) Analogue Preview 700mV black-white with 300mV sync. Y/R/G/B Analogue Preview Pb / 700mV pk-pk for 100% bars. Analogue Reference 300mV sync. Output Impedance: 75 ohms Page...
  • Page 49 CONTROL INTERFACES - SD1000 Mainframe Control Panel 10 base T-X on 1 x RJ45 connector. 10 base T on 1 x RJ45 connector. Network #1 10 base 2 on 1 x BNC. Network #2 (optional) 10/100 base T on 1 x RJ45 connector. 4-off freely-assignable freely-configurable RS-422 Interfaces to external each on 1 x 9-way female D-type.
  • Page 50 CONTROL INTERFACES - Control Panel Main Chassis Mainframe 10 base T on 1 x RJ45 connector. 1 x 25-way female D-type. Built-in Display 1 x 9-way female D-type. PC compatible on 1 x 6-pin mini-DIN (PS/2-style) External Keyboard socket. RS-232 (DTE) on 1 x 9-way male D-type. External Pointing Device (Driver software not currently implemented.) External Display...
  • Page 51 PHYSICAL - SD1000 Switcher Mainframe Size Height 5U (rack units) ~222 mm. Width 19 inches nominal ~ 485 mm including brackets. Depth 22 inches nominal ~ 560 mm including mating connectors PHYSICAL - CP1012 Control Panel Size Overall 705mm x 507mm (not including display overhang) 645mm x 485mm Suggested Cutout 650mm x 490mm...
  • Page 52 POWER SUPPLY SD1000 Switcher Single (option of two) fully-independent hot-swappable Mainframe PSU modules, with separate mains power feeds via 2 Dual PSU x IEC socket. Option Two fully-independent PSU modules, with separate Control Panel mains power feeds via 2 x IEC socket. except CP1008 POWER REQUIREMENTS Voltage (nominal)
