ENFORCER MVE-PN11-01Q Manual

Ir over hdmi kit
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
 Add IR remote pass-through to installations where an HDMI source is in a
different room than the HDMI display using existing HDMI cables.
 Discreet, convenient design—adapters install between the devices and the
HDMI cables.
 IR Transmitter and receiver are built with a 4.5ft (1.45m) cord for added
convenience while installing.
 Compatible with other ENFORCER products (sold separately):
4x1 HDMI Switch (MVS-AH41-01NQ), 1x4 HDMI Splitter (MVD-AH14-01NQ),
and 4x4 HDMI Matrix (MVM-AH44-014Q)
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.

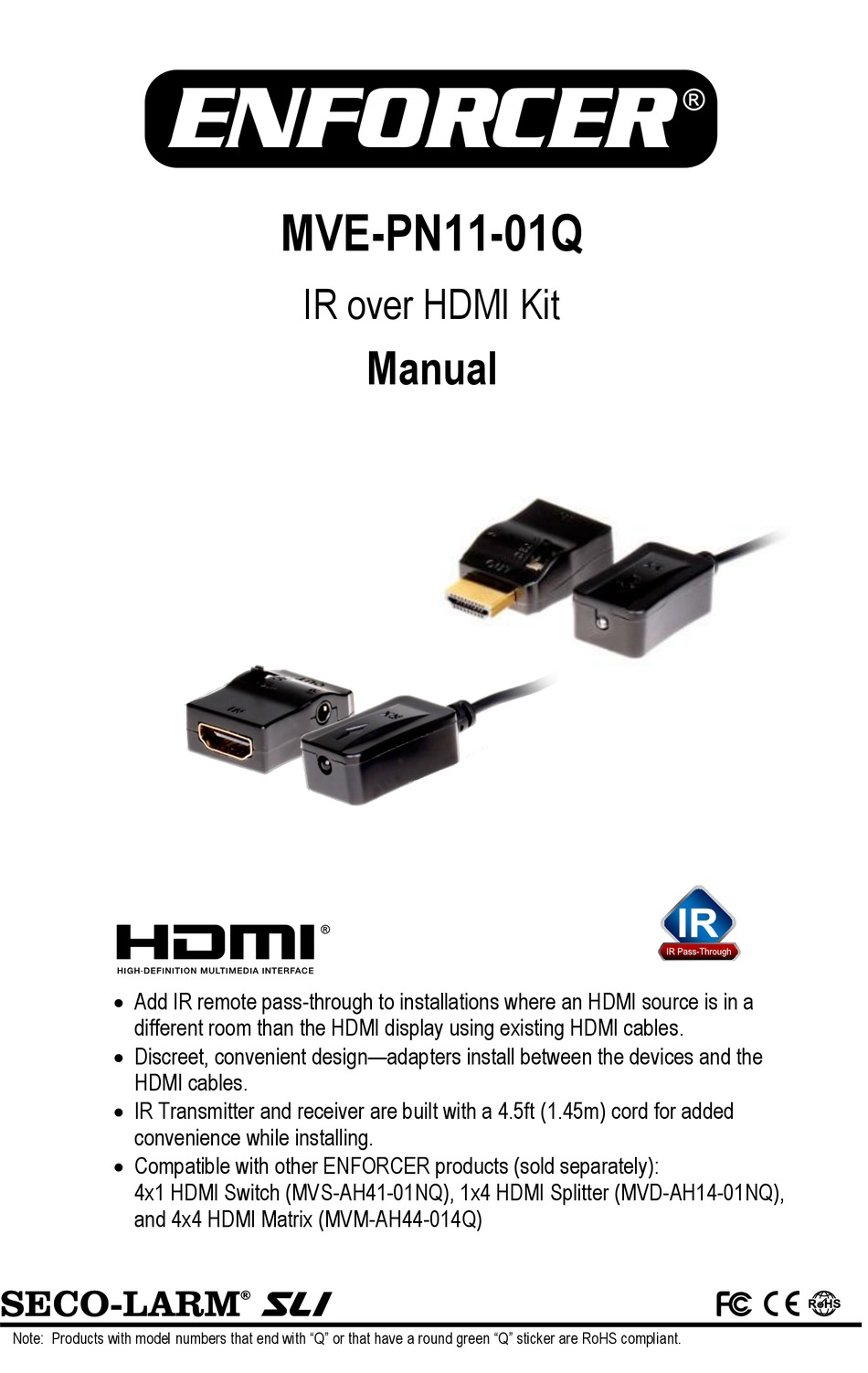

MVE-PN11-01Q
IR over HDMI Kit
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVE-PN11-01Q and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER MVE-PN11-01Q

Summary of Contents for ENFORCER MVE-PN11-01Q

  • Page 1 HDMI cables.  IR Transmitter and receiver are built with a 4.5ft (1.45m) cord for added convenience while installing.  Compatible with other ENFORCER products (sold separately): 4x1 HDMI Switch (MVS-AH41-01NQ), 1x4 HDMI Splitter (MVD-AH14-01NQ), and 4x4 HDMI Matrix (MVM-AH44-014Q)

  • Page 2: Specifications

    ENFORCER IR over HDMI Introduction: The ENFORCER IR over HDMI Kit is the ideal solution for installations where a DVR, Blu-Ray player, or other HDMI source is in a different room or location than the HDMI display. The adapter’s discreet and convenient design installs between the device and the HDMI cable. The IR transmitter and receiver are each built with a 4.5ft (1.45m) cable for an easy and clean installation.
  • Page 3 ® ENFORCER IR over HDMI Installation: Note: If using the IR over HDMI Kit with the 4x1 HDMI Switch (MVS-AH41-01NQ), 1x4 HDMI Splitter (MVD-AH14-01NQ), or 4x4 HDMI Matrix (MVM-AH44-014Q), please consult that product’s manual before installing. HDMI Source 1. Connect one of the HDMI adapters directly to the HDMI output of the HDMI source.

  • Page 4: Troubleshooting

    ® ENFORCER IR over HDMI Also Available from SECO-LARM: Extenders Wireless Extender for HDMI 4x4 HDMI Matrix for HDMI MVE-AT11-01NQ MVE-AT11-W1NQ MVE-WH010Q MVM-AH44-014Q 4x1 HDMI Switch 1x4 HDMI Splitter High-Speed HDMI Cables MVS-AH41-01NQ MVD-AH14-01NQ Troubleshooting:  Check all connections.  Make sure the IR switch is flipped to “IR”.
