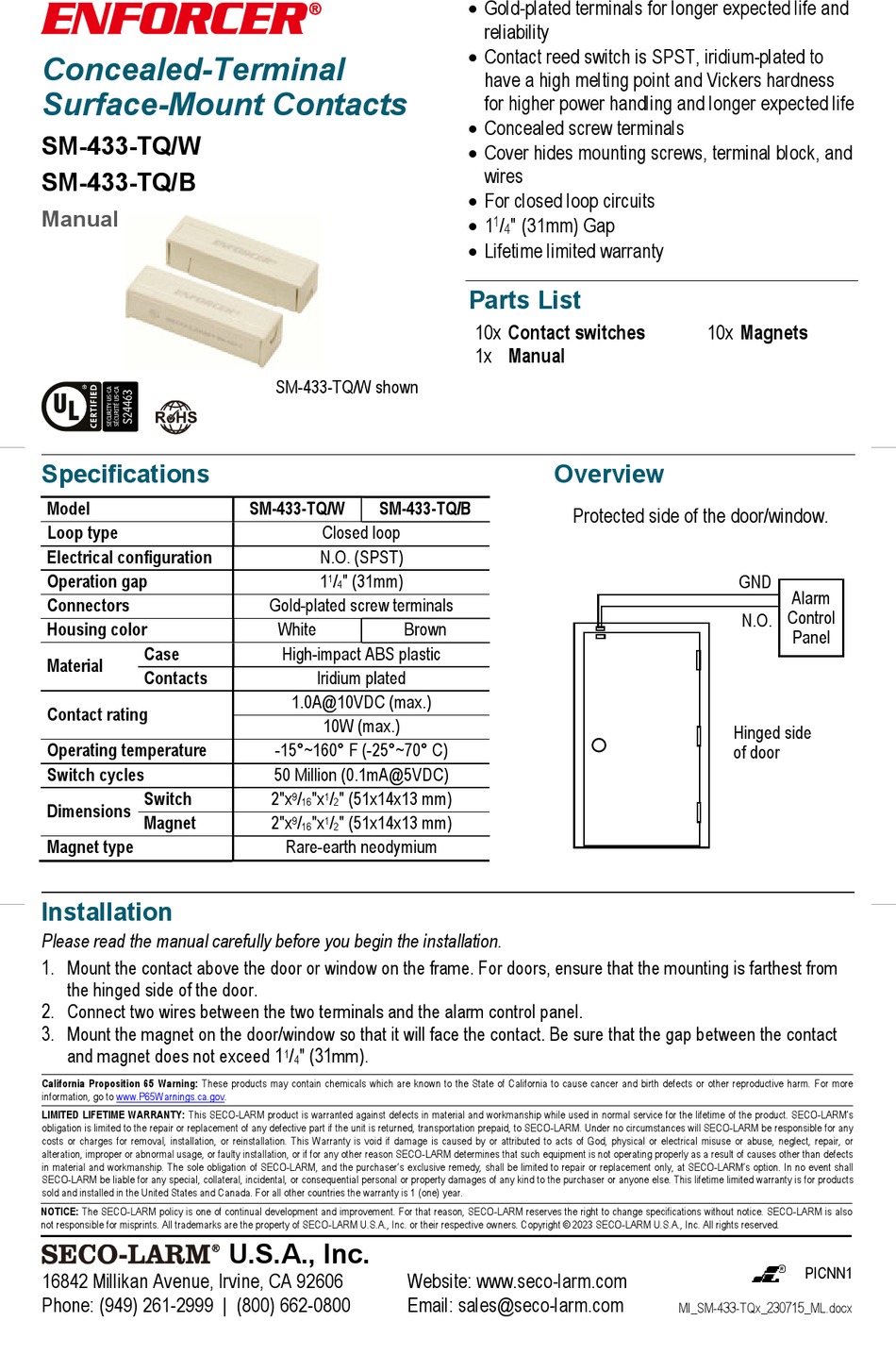

ENFORCER SM-433-TQ/W Manual

Concealed-Terminal
Surface-Mount Contacts
SM-433-TQ/W
SM-433-TQ/B
Manual

Specifications

Model
Loop type
Electrical configuration
Operation gap
Connectors
Housing color
Case
Material
Contacts
Contact rating
Operating temperature
Switch cycles
Switch
Dimensions
Magnet
Magnet type

Installation

Please read the manual carefully before you begin the installation.
1. Mount the contact above the door or window on the frame. For doors, ensure that the mounting is farthest from
the hinged side of the door.
2. Connect two wires between the two terminals and the alarm control panel.
3. Mount the magnet on the door/window so that it will face the contact. Be sure that the gap between the contact
and magnet does not exceed 1
California Proposition 65 Warning: These products may contain chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
LIMITED LIFETIME WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for the lifetime of the product. SECO-LARM's
obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. Under no circumstances will SECO-LARM be responsible for any
costs or charges for removal, installation, or reinstallation. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or
alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects
in material and workmanship. The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to repair or replacement only, at SECO-LARM's option. In no event shall
SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else. This lifetime limited warranty is for products
sold and installed in the United States and Canada. For all other countries the warranty is 1 (one) year.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also
not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2023 SECO-LARM U.S.A., Inc. All rights reserved.
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800
SM-433-TQ/W shown
SM-433-TQ/W SM-433-TQ/B
Closed loop
N.O. (SPST)
1 / " (31mm)
1
4
Gold-plated screw terminals
White
High-impact ABS plastic
Iridium plated
1.0A@10VDC (max.)
10W (max.)
-15°~160° F (-25°~70° C)
50 Million (0.1mA@5VDC)
2"x / "x / " (51x14x13 mm)
9 1
16 2
2"x / "x / " (51x14x13 mm)
9 1
16 2
Rare-earth neodymium
/ " (31mm).
1
4
U.S.A., Inc.
 Gold-plated terminals for longer expected life and
reliability
 Contact reed switch is SPST, iridium-plated to
have a high melting point and Vickers hardness
for higher power handling and longer expected life
 Concealed screw terminals
 Cover hides mounting screws, terminal block, and
wires
 For closed loop circuits
 1 / " (31mm) Gap
1
4
 Lifetime limited warranty

Parts List

10x Contact switches
1x Manual

Overview

Protected side of the door/window.
Brown
