EchoLife HG520b Home Gateway
Thank you for purchasing EchoLife HG520b Home Gateway (hereinafter referred to as
the HG520b).
With the HG520b, you can access the Internet through the ADSL connection.
1

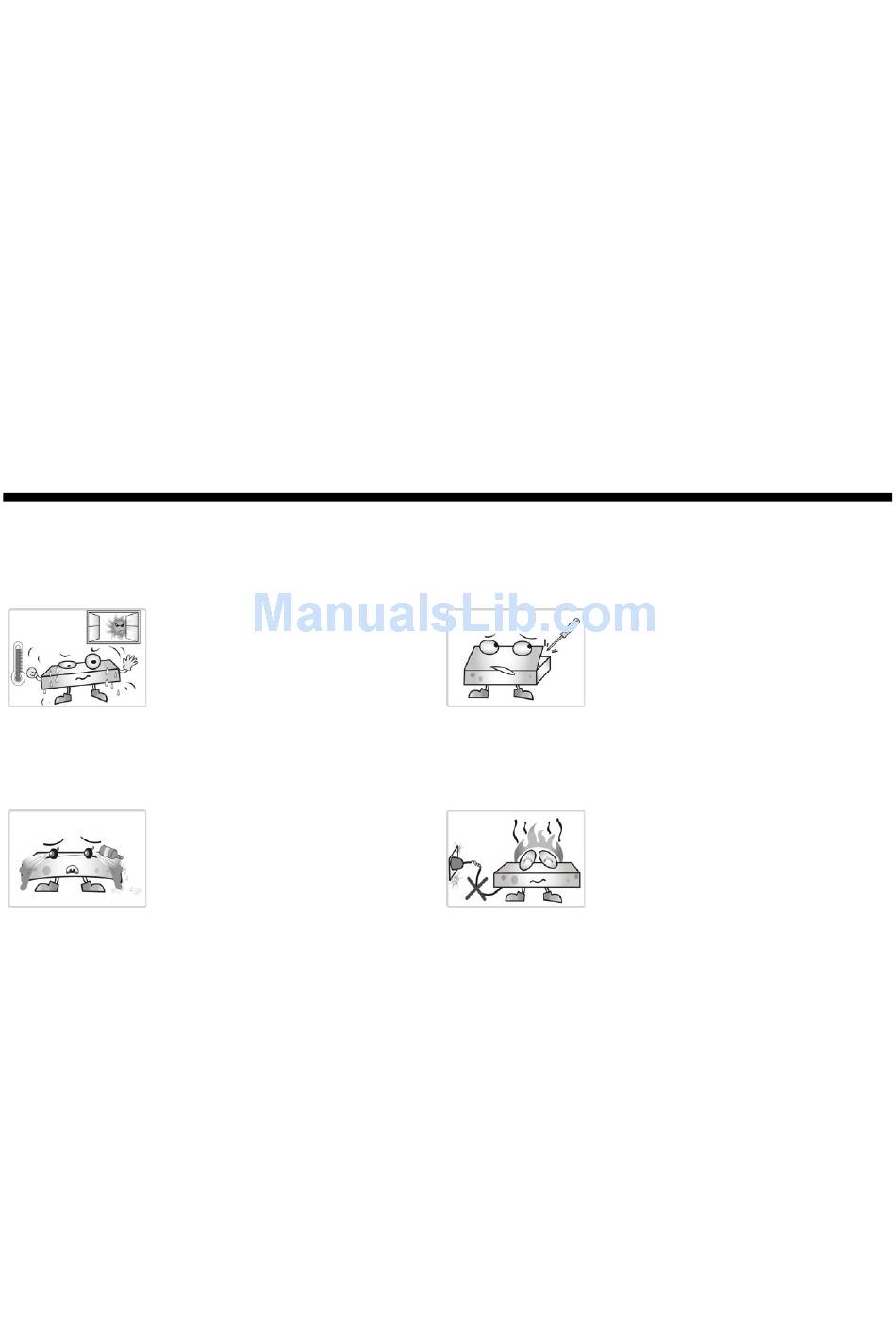

Safety Precautions

Pay attention to the following when installing and using the HG520b.

Quick Start

Place the device at a
well-ventilated place.
Do not expose the
device to direct
sunlight.
During storage,
transportation and
operation of the device,
keep the device dry.
1
Never attempt to
dismantle the device by
yourself. In case of any
fault, contact the
specified maintenance
center for repair.
Keep the power plug
clean and dry. Using a
dirty or wet power plug
may lead to electric
shock or other perils.
Do not use an old or a
　
damaged power cable.
