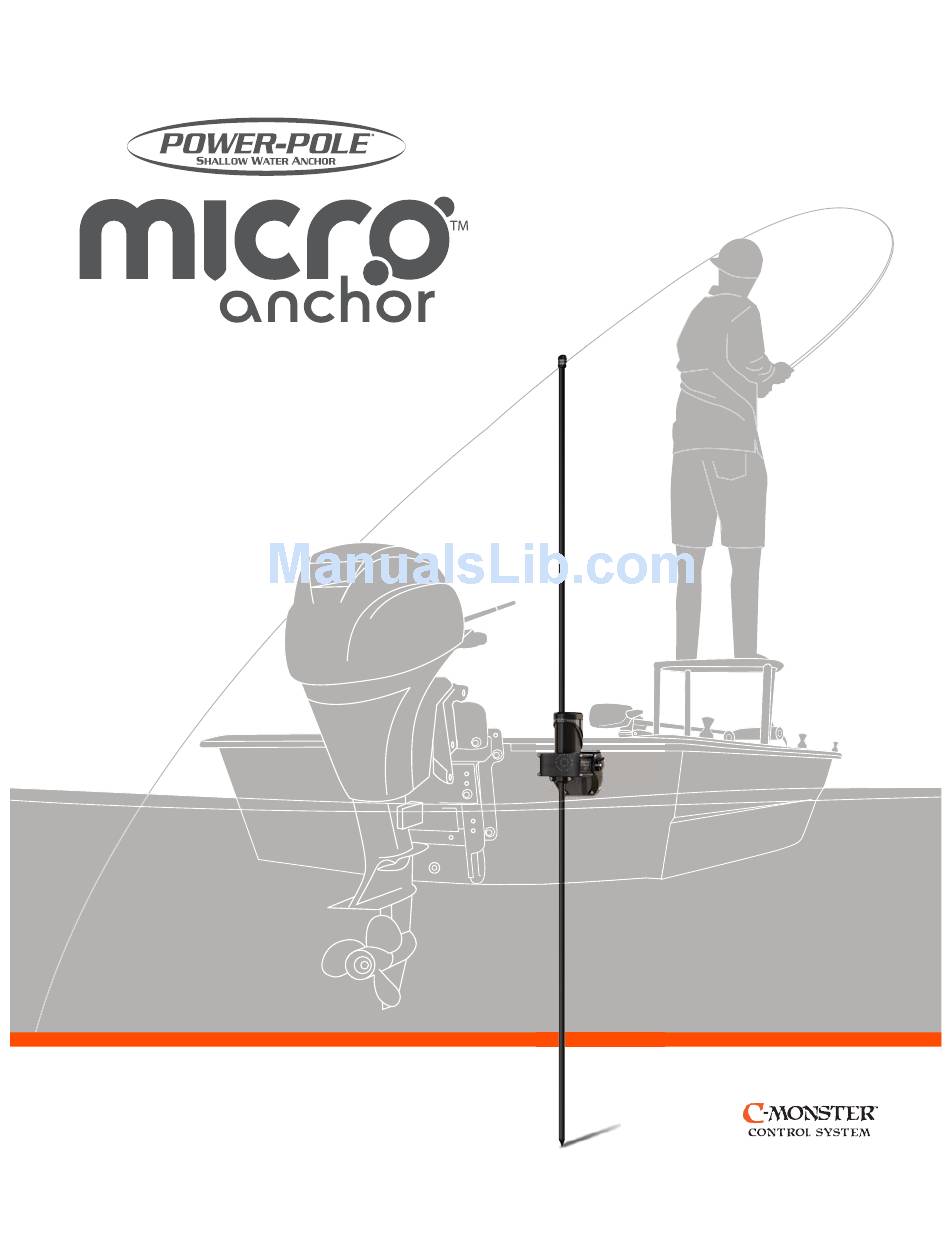

- Page 1 Installation Manual Powered by Powered by...
-
Page 2: Included Hardware
Included Hardware: Installation Tools: • ½” Wrench or ½” Socket with ratchet A. Qty. (4) 5/16” x 3.5” all thread transom • Electric or battery operated drill mount bolts • 5/16” & 1/8” drill bit B. Qty. (4) 5/16” fender washers •... -
Page 3: Mounting Options
Mounting Options Important: In all options it is recommended that the bottom of the MICRO Driver Unit be mounted above the water line of the boat. DECK MOUNT Place bracket within 4” of edge of mounting surface Mark and drill holes with 5/16” drill bit and install hardware as shown 4”... -
Page 4: Additional Mounting Options
Additional Mounting Options Available with purchase of accessories. ADAPTER PLATE To determine correct adapter plate go to power-pole.com Additional hardware may be required. TRANSOM CLAMP To order go to power-pole.com or an authorized dealer. - Page 5 KAYAK MOUNT NOTE: If unable to mount using the adjustable bracket provided or the available Transom Clamp, contact JL Marine System’s Inc. or your kayak dealer for mounting options. Attaching / Removing Driver Unit Install the MICRO Driver Unit into its mount as shown. Next, push the release clamp bolt through and thread the adjustable nut (K) on tight by turning clockwise and...
- Page 6 Installing Quick Release Cord (for kayaks) Lock the quick release clamp into a 90 degree position as illustrated for quick release pull cord. Important: The quick release clamp handle must be oriented as shown and the quick release pull cord pulled towards the bow of vessel to function properly.
- Page 7 Connecting the Driver Unit to Power Source Using a 12 volt DC battery 1. Plug the male plug connector into the MICRO Driver Unit and route wires through the boat to power source. Male plug connection dust cover NOTICE: Keep male plug connection cover on when not plugged into MICRO Driver Unit MICRO Driver Unit...
- Page 8 Programming the MICRO Driver Unit The MICRO Driver comes programed as a single unit. For Program Button proper performance do not program a single unit as port or Programming LED starboard. If you have a single unit proceed to the Owners Guide for calibration instructions prior to using the unit.
- Page 9 FCC Part 15.19 Warning Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
- Page 10 Power-Pole shallow water anchor. Need help? Contact our Technical Support Team at 813.689.9932 option 2 WIFT. ILENT. ECURE. 9010 Palm River Road, Tampa, FL 33619 phone 813.689.9932 fax 813.689.8883 www.power-pole.com ©2014 all rights reserved. Power-Pole Shallow Water Anchor. Patent Pending.
