Extron electronics VLP 202 Setting Up

This guide provides instructions for an experienced installer to set up, install, and
connect the Extron VLP 202 VoiceLift Compact Pendant Microphone or VLH 102 VoiceLift
Handheld Microphone, the VLC 202 Charging Station and the VLR 102 Receiver in a system
with a PVS 405D PoleVault Digital Switcher.

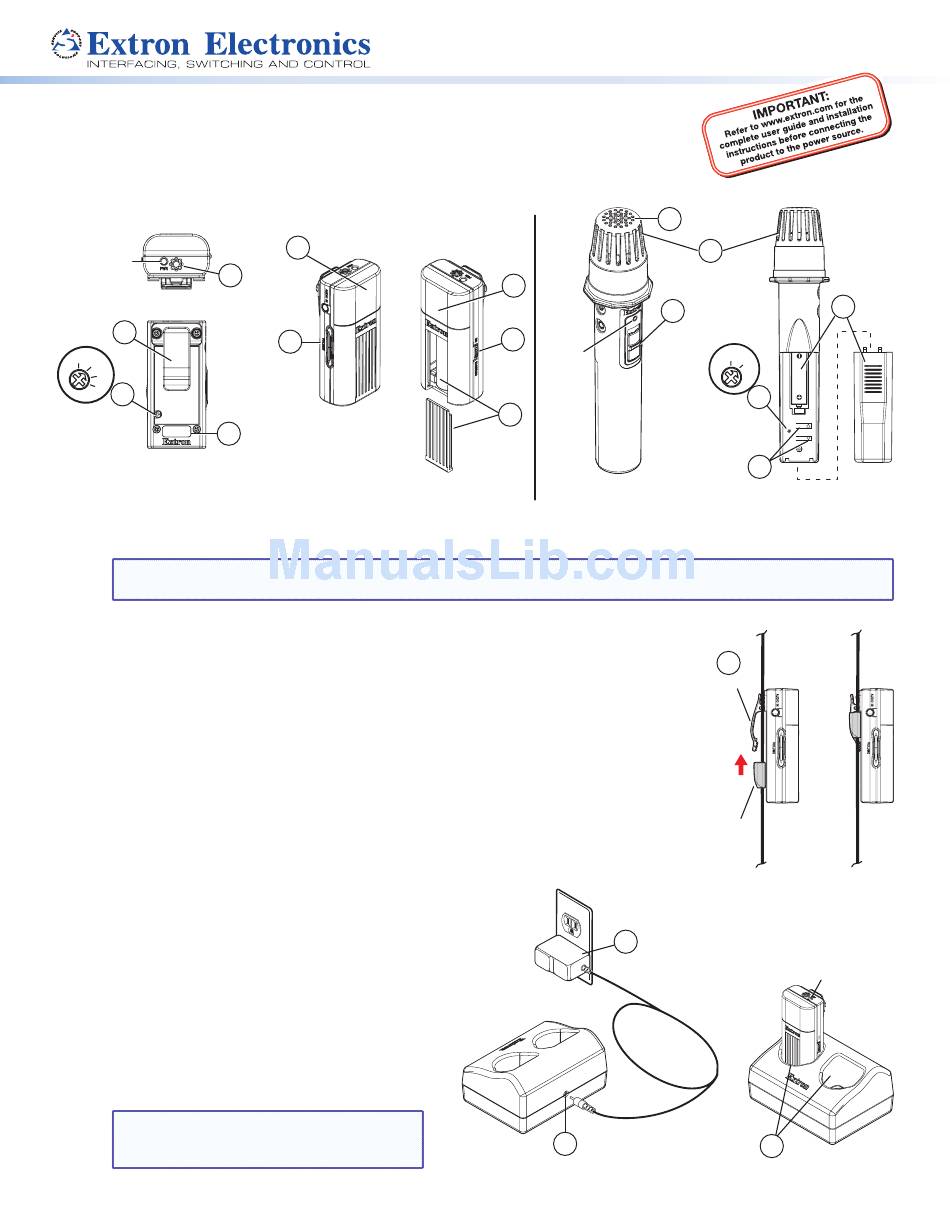

Setting Up the VLP 202 and VLH 102 Microphones
Power
Indicator
6
LED
Top
4
A B
C
D
1
2
Rear
VLP 202 Pendant Microphone
Set the channel using the rotary switch. A and C = 2.3 MHz; B and D = 2.8 MHz. For the VLH 102, remove the battery cover
1.
to access this switch.
NOTE:
Each microphone must be on a different frequency. On the pendant microphone, set the channel to C or D to
disable the volume buttons (the handheld microphone has only channels A and B).
For pendant microphones only, apply the appropriate sticker (provided) to identify the
2.
microphone.
Remove the battery cover and insert a AA battery. If necessary, replace the battery cover and
3.
charge the rechargeable battery (see "Installing the VLC 202 Charging Station," below).
For pendant microphones only, attach the lanyard lock to the lanyard, then press the top of the
4.
microphone clip to raise it. Slide the lanyard lock under the clip and release the clip (see the
illustration at right). Place the lanyard around your neck and slide the lanyard through the lock
until the microphone is positioned approximately 4 inches (10.2 cm) below your chin.
Turn the microphone on by sliding the power switch up.
5.
Speak in a normal tone of voice. Do not block the microphone port or grille opening.
6.
Adjust the volume if necessary.
7.
Ensure that a direct line of sight exists from the microphone to the receiver (required for proper
8.
operation). Do not block the microphone IR transmitter window.
Installing the VLC 202 Charging
Station
To install the VLC 202 Charging Station:
Plug the wall charger (5 V, 1 A) into a wall outlet.
1.
Connect the wall charger cable to the charging station
2.
power jack.
Place the microphone in one of the slots in the
3.
charger. The charge is complete when the microphone
LED turns green (this can take up to 5 hours).
NOTE:
The microphone can be left to charge
for extended periods. It should be turned
off while charging.
8
7
6
8
5
5
Power
Indicator
LED
3
VLH 102 Handheld Microphone
1
2
8
3
A B
1
A B
VOLUME
7
4
Clip
Lock
Pwr LED
3
1
