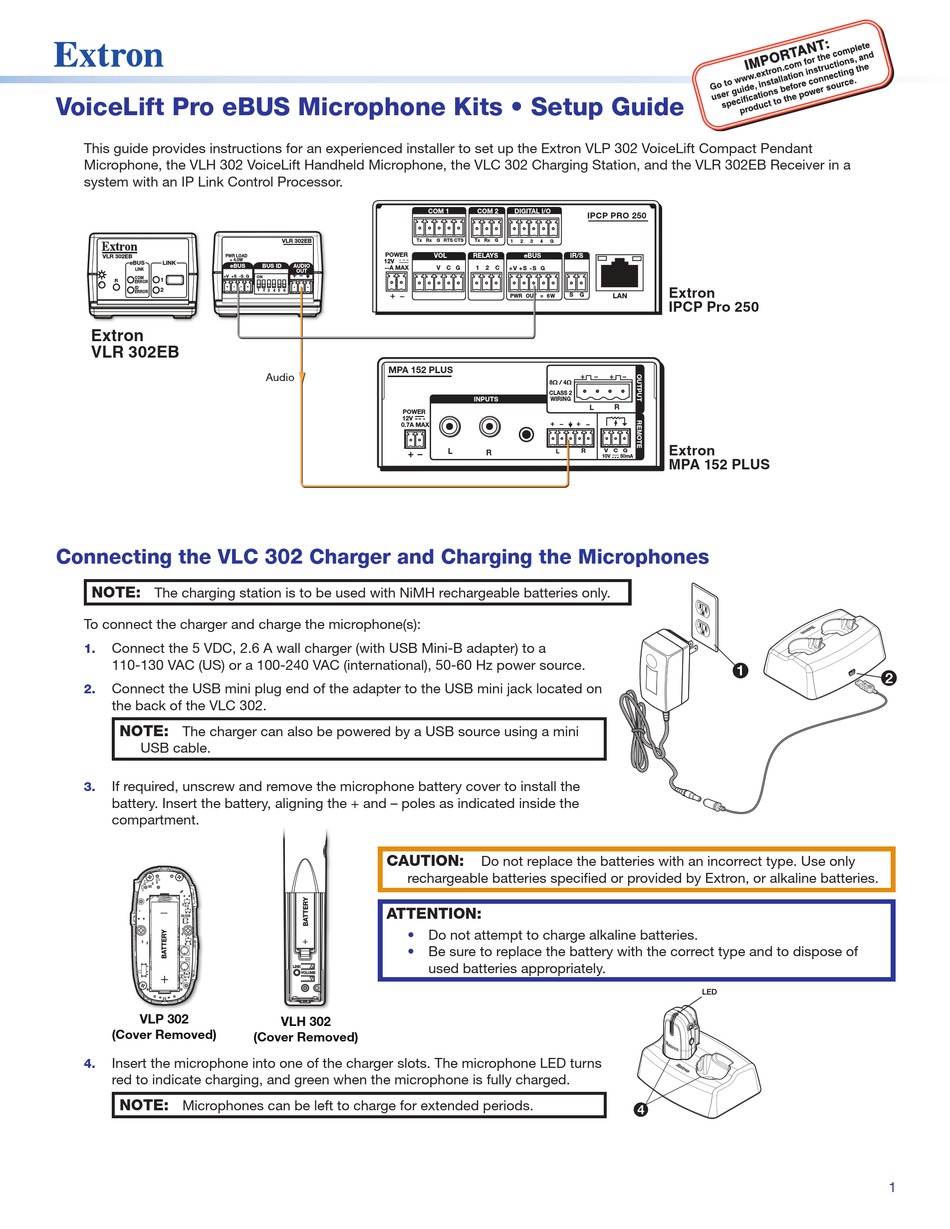

VoiceLift Pro eBUS Microphone Kits • Setup Guide
This guide provides instructions for an experienced installer to set up the Extron VLP 302 VoiceLift Compact Pendant
Microphone, the VLH 302 VoiceLift Handheld Microphone, the VLC 302 Charging Station, and the VLR 302EB Receiver in a
system with an IP Link Control Processor.
VLR 302EB PWR LOAD
= 4.0W
eBUS LINK
eBUS
LINK
+V +S -S G
COM
1
R ERROR
ID
2
ERROR
Extron
VLR 302EB
Connecting the VLC 302 Charger and Charging the Microphones
NOTE:
The charging station is to be used with NiMH rechargeable batteries only.
To connect the charger and charge the microphone(s):
Connect the 5 VDC, 2.6 A wall charger (with USB Mini-B adapter) to a
1.
110-130 VAC (US) or a 100-240 VAC (international), 50-60 Hz power source.
Connect the USB mini plug end of the adapter to the USB mini jack located on
2.
the back of the VLC 302.
NOTE:
The charger can also be powered by a USB source using a mini
USB cable.
If required, unscrew and remove the microphone battery cover to install the
3.
battery. Insert the battery, aligning the + and – poles as indicated inside the
compartment.
_
+
VLP 302
(Cover Removed)
Insert the microphone into one of the charger slots. The microphone LED turns
4.
red to indicate charging, and green when the microphone is fully charged.
NOTE:
Microphones can be left to charge for extended periods.
COM 1
VLR 302EB Tx Rx
POWER
12V
BUS ID AUDIO
--A MAX
OUT
ON
1 2 3 4 5 6
MPA 152 PLUS
Audio
POWER
12V
0.7A MAX
CAUTION:
rechargeable batteries specified or provided by Extron, or alkaline batteries.
ATTENTION:
• Do not attempt to charge alkaline batteries.
+
• Be sure to replace the battery with the correct type and to dispose of
used batteries appropriately.
VLH 302
(Cover Removed)
COM 2 DIGITAL I/O
IPCP PRO 250
G RTS CTS Tx Rx G 1 2 3 4 G
RELAYS eBUS IR/S
VOL
V C G 1 2 C
+V +S -S G
S G LAN
PWR OUT = 6W
8 / 4
CLASS 2
INPUTS WIRING
L
L
L R V C G
R
10V
Do not replace the batteries with an incorrect type. Use only
Extron
IPCP Pro 250
R
Extron
50mA
MPA 152 PLUS
1 1
1 1
LED
LED
4 4
4 4
2 2
2 2
1
