ELECTRONIC
E
DEVICES
D
LIMITED
ENIGMA HOUSE, ENIGMA BUSINESS PARK, MALVERN, WORCESTERSHIRE WR14 1GD ENGLAND.
TELEPHONE : +44 (0) 1684 891500
ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a
ADDRESSABLE ALARM SYSTEM
ED816A SYSTEM
INSTRUCTION MANUAL
E

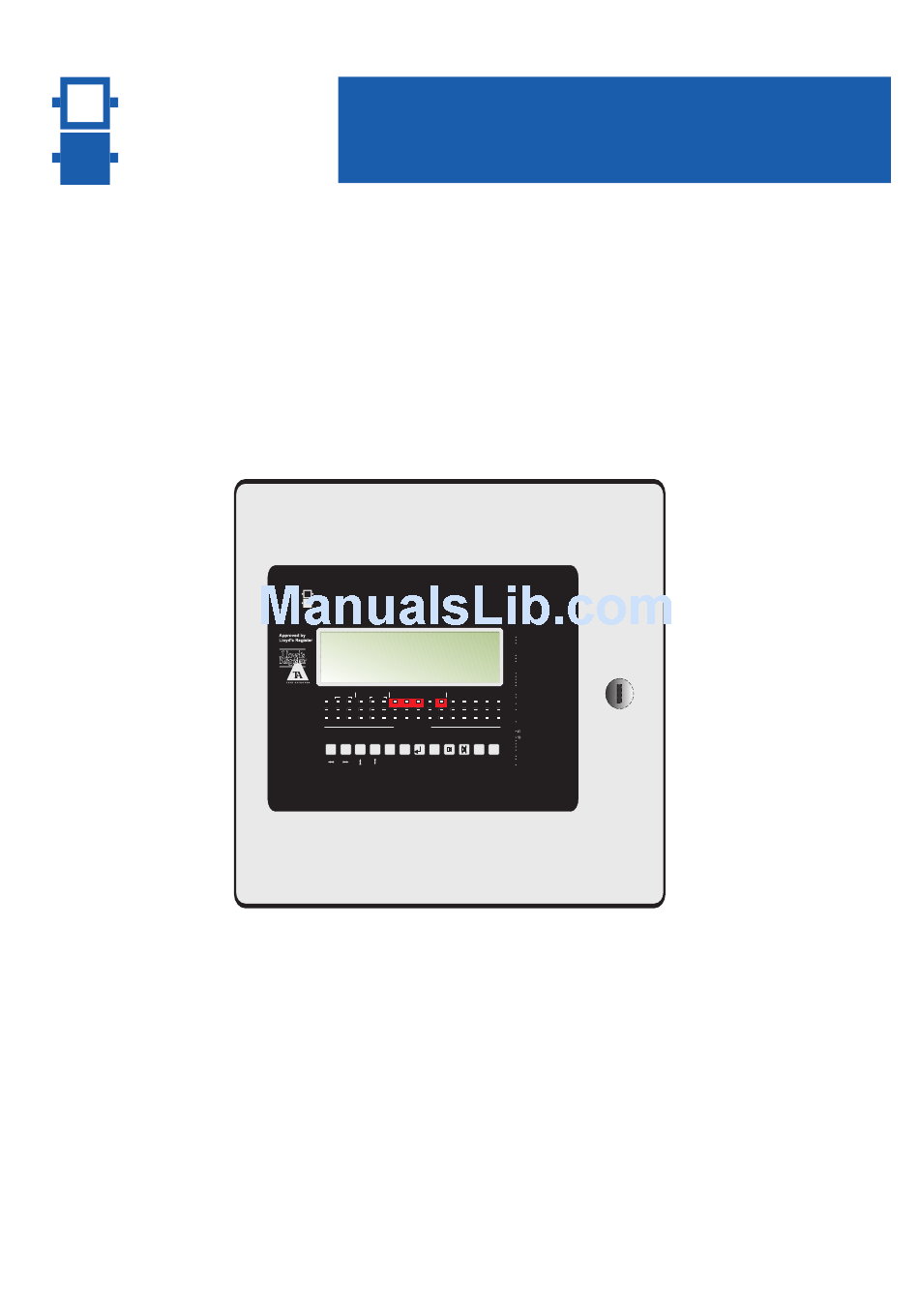

FIRE / GAS DETECTOR TYPE ED816A
D
14:29 27/11/06
ED816 ALARM SYSTEM
NO OF DETECTORS IN ALARM:
1 IN 1 ZONES
DETECTOR 1/ 1:
14:27
27/11/06 ENGINE ROOM
HEAT DETECTOR
LOOP 2
ID 035
ZONE 2
PRE ALARMS 0
FAULTS 0
POWER IN
POWER OUT
FIRE / GAS ALARM
DC
BATT
AC MAIN AUX
DC
CHR
FLT
ALM
PRE
DEL
FLT
1
2
3
4
5
6
7
8
9
10
17
18
19
20
21
22
23
24
25
26
ZONES 1 - 32
_
+
ENT MENU EVAC MUTE RESET LAMP
MANUFACTURED BY ELECTRONIC DEVICES LTD., MALVERN, ENGLAND.
FACSIMILE: +44 (0) 1684 891600
TYPE ED 816A
POWER - IN LAMPS
AC - AC SUPPLY INPUT HEALTHY
DC MAIN - MAIN DC INPUT HEALTHY
DC AUX - OPTIONAL AUXILIARY DC INPUT
HEALTHY
POWER - OUT LAMPS
DC - DC OUTPUT SUPPLY HEALTHY
BATT CHR - BATTERY CHARGING
BATT FLT - BATTERY FAULT / BATTERY
REQUIRES EXTERNAL CHARGING
FIRE / GAS LAMPS
ALM
-
FIRE ALARM, GAS ALARM
PRE - PRE-ALARM LEVEL
ISOL ZONES 0
DEL - DELAYED ALARM OPERATED
FLT - PANEL / LOOP / DEVICE FAULT
EVAC - EVACUATE
PANEL / DEVICE STATUS LAMPS
PANEL / DEVICE STATUS
MUTE - SOUNDERS HAVE BEEN SILENCED
ISOL - ISOLATED, ONE OR MORE ZONES
HAVE BEEN INHIBITED
DEL - ONE OR MORE DEVICE OUTPUTS
EVAC
MUTE ISOL DEL TEST
COMMS
HAVE BEEN DELAYED
TEST - WHILST IN TEST MODE THE
11
12
13
14
15
16
ZONE UNDER TEST WILL NOT INITIATE
ALARMS. REMAINING ZONES WILL
CONTINUE TO FUNCTION NORMALLY
27
28
29
30
31
32
COMMS - COMMUNICATION FAULT
KEYS
- USE TO SCROLL THROUGH CURRENT
EVENTS AND NAVIGATE MENU
- USE TO NAVIGATE MENU
+/-
- INCREMENT / DECREMENT
ENT - ENTER / CONFIRM
MENU - MAIN MENU / PREVIOUS MENU
EVAC - EVACUATE OPERATES ALL OUTPUT
DEVICES
MUTE - SILENCE SOUNDERS
RESET - RESET SYSTEM TO NORMAL
CONDITION FOLLOWING ALARM / FAULT
LAMP TEST - PRESS TO TEST ALL LAMPS
TEST
EMAIL: sales@electronicdevice.demon.co.uk
Advertisement
Table of Contents
Related Manuals for Electronic Devices Limited ED816A
Summary of Contents for Electronic Devices Limited ED816A
- Page 1 MANUFACTURED BY ELECTRONIC DEVICES LTD., MALVERN, ENGLAND. ENIGMA HOUSE, ENIGMA BUSINESS PARK, MALVERN, WORCESTERSHIRE WR14 1GD ENGLAND. TELEPHONE : +44 (0) 1684 891500 FACSIMILE: +44 (0) 1684 891600 EMAIL: sales@electronicdevice.demon.co.uk ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a...
-
Page 2: Table Of Contents
Hardware Fire Detection XP95(A) North American models Input Output modules / units Loop powered Sounders and Beacons Discovery Detectors Gas Detection Group Addressed Sounders / Beacons Master / Slave Sounders / Beacons ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 4: Section 1 Component Overview
Both models are available with front panels, as used in the ED700A 8 Loop Control Panel, or without front panels for use in the ED816A. For the full failsafe features to be available on the ED816A the ED722 / ED726 front panel lamps and switches are relocated on the ED816A I/O motherboard. -
Page 5: Ed816A Display Module
LAMP TEST - PRESS TO TEST ALL LAMPS TEST MANUFACTURED BY ELECTRONIC DEVICES LTD., MALVERN, ENGLAND. The ED816A Display module provides all system information during normal operation. Detailed information about each device connected to the system, system voltages, Isolated zones, delay times and function are all available. -
Page 6: Ed816A Input / Output Module
1 x Battery Input with automatic charging and disconnection before battery damage can occur. 1 x Main DC Monitored Input, normally used with the internal Power Supply, 24V dc +/- 25%.. 1 x Main AC Monitored Input. 1 x Internal Buzzer (comms failure). ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 7: Section 2 System Design Guidelines
Core diameter Typical resistance (FP200 / FireTuf) 1.0mm 18.1 Ohms/Km/Core 1.5mm 12.1 Ohms/Km/Core 2.5mm 7.4 Ohms/Km/Core 4.0mm 4.6 Ohms/Km/Core ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 8: Loop Cable Capacitance
All power supply cables must be screened and ferrite rings used and cables should not be routed near EMC generating equipment, radio transmitters, paging systems etc., See page 9. ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 9: Section 3 Control Unit Installation
Each loop card has an ID, set via the dip switches mounted on each loop card. No two loop card should have the same ID. FireConfig.exe must be used for initial system setup. ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... - Page 11 3. Never use looped wire for connection into and out from the same terminal, always break wire. Any single wire coming loose from a terminal should open circuit the end of line resistor to enable a fault to be indicated. -11- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a...
- Page 12 Wiring between Z, Y (repeater) and A, B (control panel).Thus the repeater can only receive information, no information can be transmitted to the control panel including setup information etc.. Electronic Devices Limited do not recommend this method because the EVAC button on the repeater will not function. However a solution is to have a call point located next to the repeater set to “no zone”.
-
Page 13: Section 4 Initial System Setup
If using a laptop which does not have a suitable serial port you will also need a USB to Serial port converter. Check the loop fitted boxes for all loops fitted. (For the ED816A only loop 1 and 2 are applicable.) Click “Configure” for loop 1. -
Page 14: Section 5 Cause And Effect Matrix
(e.g. Pre-alarm), group addressing and / or master - slave sounders / beacons should be used so that only minimal cause and effect entries are required. -14- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 15: Adding Cause And Effect Entries
Loop Devices can be chosen in the “Effect” drop down box. When operating a loop output device only one non-latching cause can be assigned to it. Select Output type in the “effect” dialogue box, which can be Aux Relay, Sounder, Loop Device or Delayed Output. -15- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 16: Auxiliary Relay
Cause and Effect Matrix - continued Aux Relay There are 3 Auxiliary relays located on the ED816A Input / Output module, each with 2 sets of voltage free contacts. (Note the ED816A has 1 set of voltage free contacts per aux relay.) Sounders There are 3 monitored sounders on the ED816A Input / Output module. -
Page 17: Delayed Outputs
Additionally pressing the “EVAC” button or any call point not assigned a zone will operate the evacuate command and all loop powered sounders, beacons, sounders circuits and Immediate Alarm, Pre-Alarm and Delayed output relays will operate. -17- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 18: Section 6 Device Types And Configuration
All Discovery detectors have 5 modes of operation to choose from, changing sensitivity, time to respond and for the multi-sensor whether it reacts to heat or smoke only or both. -18- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 19: Gas Detection
“Slave” on the appropriate dip switch. 4. Group addressing can only operate on the same loop. 5. Please see Apollo data sheets for more information. -19- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 20: Section 7 Operating Instructions - Quick Guide
“AAAAAA”. As this is the default password just pressing enter is sufficient. Once the password has been entered press the “EVAC” button once more. -20- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 21: Section 8 Operating Instructions
In order to meet these requirements the control unit door should not be locked. The ED700A and ED816A systems use the following method of access control: Access level 1 No password required, allowing access by the general public, or persons having a general responsibility for safety supervision, who might be expected to investigate and initially respond to an alarm or fault warning. -
Page 22: Main Menu
ZONES ISOLATED: 01 DEISOLATE ZONE # 01 Using the +/- keys enter the zone number to be isolated. Use the down arrow key to scroll to “OK” and press return. -22- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 23: System Setup
Therefore it is vital separate tests are conducted testing every aspect of the cause and effect matrix ensuring all devices operate and with correct tones etc.. -23- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 24: Group Addressed Sounders / Beacons
Display AND the ISOL lamp on the Loop cards are not illuminated. Turning the system off and then back on again will ensure no gas sensors are left isolated. -24- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 25: Delayed Alarms
LIVE VOLTAGES USER 1 MAIN SUPPLY: 27.5V SOUNDER 1: 1.4V AUX SUPPLY: SOUNDER 2: 1.4V BATT SUPPLY: 26.9V SOUNDER 3: 1.4V CONV ZONE 1: 18.1V CONV ZONE 2: 18.3V -25- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 26: Live Values - Head Values
“incorrect device code fault” message will be displayed. HEAD NUMBER Displays the address of the device currently being displayed. Use the +/- arrow keys to change. CONFIGURED Indicates whether the current address is used. -26- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... -
Page 27: View Faults
Displays all current isolated zones, in two rows. Zone 32, top left and zone 1, bottom right. “D” indicates the zone is disabled (isolated) and “-” indicates the normal non-isolated condition. -27- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a... - Page 28 If during an alarm a sounder circuit fault is reported it should be assumed some or all audible and visual alarms are not working and other methods of drawing attention to the dangers should be employed. -28- ED816A Addressable Fire and gas detection Installation manual 8-9-08 Rev-a...
-
Page 29: Section 9 Fault Messages
However if the loop cards are still operational the system will still continue to operate in a limited manner. In the event of a communications fault the push buttons “EVACUATE”, “MUTE” and “RESET”, located on the ED816A I/O board, become operational (in normal operation they act only as lamp test buttons). - Page 30 ED816A I/O (see page 29) and ED816A Display will reset the system. If the detector in alarm cannot be removed ensure it is clear of smoke, heat etc. and then the ED816A should be turned off for a few seconds and then turned on.
