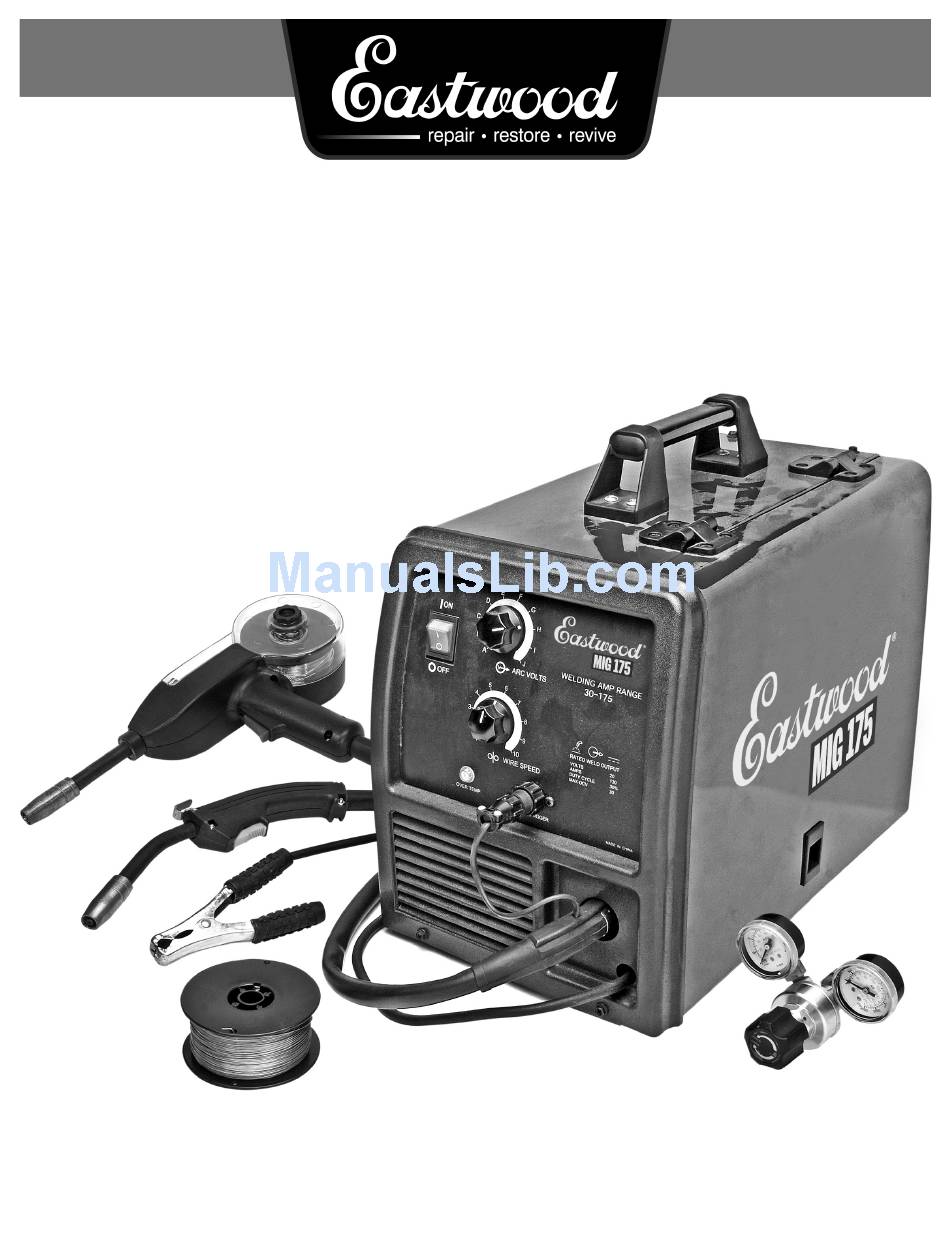

- Page 1 Eastwood Mig175 with Spool Gun Assembly and Operating Instructions Part #12012 Carefully read this operation manual prior to using, installing and maintaining your welder to prevent damage such as fi re and electric shock from occurring. Please keep this manual for your future reference!
-
Page 2: Specifications
SPECIFICATIONS Rated Electrical Input ....210-240 VAC; 50-60Hz; 22AMP Max Voltage at No Load ... 20 V DC Rated Duty Cycle ....... 130A@30% duty cycle Wire Feed Rate ......4.9 Ft/min – 39.3 Ft/min Wire Sizes ........0.025”(0.6mm) – 0.030”(0.8mm) mig wire 0.030”(0.8mm) –... -
Page 3: Safety Information
Always attach the ground clamp to the piece to be welded and as close to the weld area as possible. This will give the least resistance and best weld. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com... - Page 4 UNPACKING When unpacking, check to make sure all the parts listed below are included. • Mig 175 Unit • Spool Gun • Torch Gun Cable Assembly • Ground Cable Assembly •...
-
Page 5: Components And Controls
9. Shielding gas inlet fi tting. 10. Wire feed tension roller. 11. Wire spool mount spindle. 12. Wing screw to fasten the welding torch cable. 13. Positive (+) and negative (-) output terminals. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com... -
Page 6: Wire Feeder Installation
WIRE FEEDER INSTALLATION The wire feed drive roller attached to MIG175 has two wire grooves, one for 0.023” (0.6 mm) welding wire and another for 0.030 (0.8 mm) welding wire or 0.035” (0.9 mm) fl ux-cored wire. The factory de- fault is the 0.023”... -
Page 7: How To Thread Welding Wire Through The Wire Feeder
9. You do not want too much tension on the tension roller as it will tend to deform the wire. Just enough to feed the wire without slipping 10. Once wire the wire has emerged from the tip of the gun, turn the machine OFF and replace the tip and nozzle. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com... -
Page 8: Shielding Gas Installation
SHIELDING GAS INSTALLATION A compressed gas cylinder containing 75% Argon and 25% CO2 should be used when using the MIG (GMAW - GAS Metal Arc Welding) on steel. Use pure argon when welding aluminum. The fl ow regulator and supply hose is included with your welder. Compressed gas can be obtained from your local welding suppler. -
Page 9: Welding Process
10. Set voltage setting to H/I and wire speed to 8/9 for materials over 1/8” NOTE: these are initial start settings you will have to fi ne tune to meet materials thicknesses and weld- ing techniques. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com... -
Page 10: Overload Protection To Wire Feeder
OVERLOAD PROTECTION FOR POWER SUPPLY TO WELDING Your MIG175 is equipped with a temperature controller as well as an overload breaker. These two protection devices will protect the welding machine whenever the output exceeds the maximum out- put. If the output is exceeded, the unit will not supply voltage and the wire feeder will shut down (the fan will continue to run to cool the unit). - Page 11 NOTES Visit Eastwood.com to see our welding videos! To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com...
- Page 12 NOTES If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 1-866-759-2131 email: techelp@eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 1-800-345-1178 Outside US: 610-718-8335 fax: 610-323-6268 www.eastwood.com...
