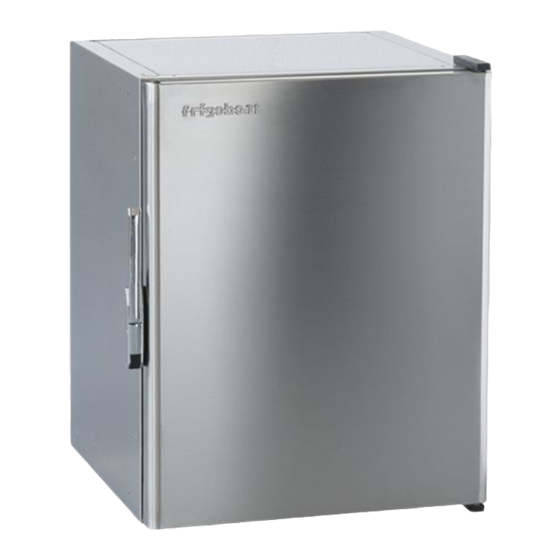

SAINLESS STEEL
Fridges & Freezers Boxes
Series
MARINE REFRIGERATION
STAINLESS STEEL
FRIDGES & FREEZERS BOXES
MS SERIES
INSTALLATION, DIRECTIONS & MAINTENANCE MANUAL
S.p.A.
09/06/06
COMPANY
Via Cantore, 6 - 20034 Giussano (MI) ITALY
WITH QUALITY SYSTEM
Tel. +39 0362.35321 - fax +39 0362.852995
CERTIFIED BY DNV
E-mail:
info@veco.net
ISO 9001/2000
www.frigoboat.it
Advertisement
Table of Contents
Related Manuals for Frigoboat MS SERIES
Summary of Contents for Frigoboat MS SERIES
-
Page 1: Stainless Steel
SAINLESS STEEL Fridges & Freezers Boxes Series MARINE REFRIGERATION STAINLESS STEEL FRIDGES & FREEZERS BOXES MS SERIES INSTALLATION, DIRECTIONS & MAINTENANCE MANUAL S.p.A. 09/06/06 COMPANY Via Cantore, 6 - 20034 Giussano (MI) ITALY WITH QUALITY SYSTEM Tel. +39 0362.35321 - fax +39 0362.852995... -
Page 2: Table Of Contents
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS INDEX Page 1 INTRODUCTION 1.1 Safety COMPONENTS TABLE Components description (with hidden evaporator) Components description (with evaporator compartment) Components description (accessories for one-unit fridges/freezers) Components description (accessories for multiple units) INSTALLATION Doors/hinges Doors/handles Measures... -
Page 3: Safety
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 1. INTRODUCTION 1.1 Safety Before installing the fridge it is necessary to read with great attention these instructions. When the fridge is operating, it is better to avoid touching the freezer compartment internal surfaces, above all with wet hands: the skin could adhere to the frozen surfaces. - Page 4 STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 2. COMPONENTS TABLE 2.1 Components description (with hidden evaporator) FRIDGE FREEZER A = RAPID HOOK-UPS B = THERMOSTAT C = LIGHT D = RECHAUFFAGE PORTE (FILO CALOR) E = CONDENSATION OUTLET G = VOLTAGE WARNING LIGHT Page...
-
Page 5: Components Description (With Evaporator Compartment)
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 2. COMPONENTS TABLE 2.2 Components description (with evaporator compartment) FRIDGE A = RAPIP HOOK-UPS B = THERMOSTAT C = LIGHT G =VOLTAGE WARNING LIGHT Page... - Page 6 STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 2. COMPONENTS TABLE 2.3 Components table (accessories for one-unit fridges/freezers) n° Description SHELVES GRILLS SPACERS REMOVABLE EDGE RISERS BOTTLES RACK SHELVES THERMOSTAT HOLDERS RISERS DRAWERS EXTERNAL DIGITAL THERMOSTATS INDEXING RACK HANDLE HOOK-UP WITH SUPPORT SHELVES SUPPORTS HANDLE HOOK-UP WITH SUPPORT DOOR BOTTLES RACK...
-
Page 7: Components Description (Accessories For Multiple Units)
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 2. COMPONENTS TABLE 2.3 Components description (accessories for multiple units) Special glazed door, particularly suitable for wine coolers. n° Description SHELVES GRILLS SPACERS REMOVABLE EDGE RISERS BOTTLES RACK SHELVES THERMOSTAT HOLDERS RISERS DRAWERS EXTERNAL DIGITAL THERMOSTATS INDEXING RACK... - Page 8 STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.1 Doors/hinges IF IT IS NECESSARY FOR INSTALLATION EXIGENCIES TO CHANGE THE OPENING, READ WITH GREAT ATTENTION THE FOLLOWING INSTRUCTIONS. HINGE AND HANDLE REVERSAL Release the hinge plastic cover. Unscrew the hinge screws on the cabinet top.
-
Page 9: Doors/Handles
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.2 Doors/handles HANDLE HOOK-UP AND SETTING Fridges/freezers have got sui- table holes for the handle and the hook-up. If you change the opening mode, it is necessary HOOK-UP to dismount the hook-up from SUPPORT its support and fasten it upsi- de-down, so that the handle is... -
Page 10: Measures
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.3 Measures Bulk measures have been calculated counting in also eventual bulges due to the following objects: feet: 25 mm handle hook-up: 5 mm hinge: 10 mm screws bulges: 3 mm To locate the fridge/freezer, consider the following bulk measures for the different models. -
Page 11: Measures
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.3 Measures To locate the fridge/freezer, you must consider not only the bulk measures on page 9 (and in the table 3.5 on pages 11- 12) but also the holes for the electrical connection wires and for the eventual condensation outlet. -
Page 12: Condensation Outlet
Fridges & Freezers Boxes STAINLESS STEEL SERIE MS Series 3. INSTALLATION 3.4 Condensation outlet All fridges/freezers of the Stainless Steel series have got the condensation outlet on the back side. (as in the picture on the left) Comprehensive view and position of the condensation outlet hole To the condensation outlet you must fasten a curve rub- ber holder (Cod. -
Page 13: Multiple Measures
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.5 Multiple measures Column disposition of the stainless steel boxes in the different compatible and advisable models with intermadiate supports for control display in the centre and at the top (line 1) or only in the centre (line 2). Page... - Page 14 STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION Horizontal disposition of the stainless steel boxes in the different compatible and advisable models with the intermediate supports for the control display on the boxes. Page...
-
Page 15: Connection To The System / Compatibility
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.6 Connection to the system / compatibility Refrigerating systems specifications AIR REFRIGERATING SYSTEM WATER REFRIGERATING SYSTEM WITH OUT-HULL EXCHANGER WITH SEA WATER PUMP The connection to the compressor unit is easier thanks to the rapid couplings which must not be solde- red. -
Page 16: Fridge/Freezer - Compressor Connection
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.7 Fridge/freezer - compressor connection CONNECTIONS FOR CABINETS OF MS SERIES WITH EVAPORATOR COMPARTMENT AND CONDENSATION TRAY FRIDGE A = RAPID HOOK-UPS B = THERMOSTAT C = LIGHT D = RECHAUFFAGE PORTE... -
Page 17: Fridge/Freezer - Compressor Connection
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.7 Fridge/freezer - compressor connection CONNECTIONS FOR FRIDGES AND FREEZERS WITH HIDDEN EVAPORATOR FRIDGE FREEZER with hidden evaporator with hidden evaporator BOX 1 BOX 1 A = RAPID HOOK-UPS B = THERMOSTAT C = LIGHT D = RECHAUFFAGE PORTE... -
Page 18: Fastening
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.8 Fastening The Stainless Steel boxes must be fastened to the structure, even if they have a precise position. In fact, if the box hasn’t been fastened, it could occasionally moves according to the hull movements and even if it doesn’t cause immediately any damages, then it could ruin the connection pipes (break of the connec-... -
Page 19: Fastening With Frame Kit
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.9 Fastening with frame kit How to fasten the box with the picture 1 frame kit On the box walls there are some holes to fasten stainless steel profiles (picture 4), that fit perfectly the cabinet in the chosen seat (picture 4). -
Page 20: Optional External Thermostat
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.11 Optional external thermostat It is possible to install digital thermostats for fridges and freezers. You can insert these thermostats in the risers (as you can see in the picture) if it is a one-unit or in the risers/spacers if it is a multiple unit, composed by fridge and freezer (see “Components table”... -
Page 21: Door With Panel
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 3. INSTALLATION 3.12 Door with panel It is possible to panel both the fridge and the freezer door. The kit includes one single profile to be bent. To fasten them, follow these instructions: - take down the door (instructions on page 7 - 3.1);... - Page 22 STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 4. GOOD FUNCTIONING CHECK 4.1 Check To execute the check, after having made all the connections, both the electrical connec- tions and the connections to the pipes, switch on the fridge/freezer and set the thermo- stat to half way between maximum and minimum: within a minute the compressor will start automatically.
-
Page 23: Switching Off (No Use)
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 5. USE INSTRUCTIONS 5.1 Switching on To switch on the fridge/freezer, check that that the power is available and turn the thermostat to ON to start the compressor. After few minutes the fridge/free- zer will cool down. -
Page 24: Shelves Regulation
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 5. USE INSTRUCTIONS 5.5 Shelves regulation To regulate the shelves in the box there are four indexing racks (two for each sides), to which must be fastened the shelves supports (1). It is necessary to fasten the four sup- ports at the same level, so that the shelf is perfectly hori- zontal. -
Page 25: Outlet Check
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 6. PERIODICAL MAINTENANCE 6.1 Defrosting We suggest to defrost the freezer or the deep-frozen foods compartment when the ice is more than 4-5 mm thick. Before defrosting it, it is necessary to empty the deep-frozen foods compartment. -
Page 26: Handle Check
STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 6. PERIODICAL MAINTENANCE 6.5 Handle check If it is difficult, using the fridge/freezer, to open or close it, we suggest to check the handle and the hook-up alignment, the handle is hooked to, to avoid any damages (see 3.2 on page 7). - Page 27 STAINLESS STEEL Fridges & Freezers Boxes Series SERIE MS 7. FOODS PRESERVATION AND PLACING 7.1 Preservation times table WHAT TO DO - Open the fridge only if necessary. - Wrap up cheeses and other odorous foods with the silver paper or put them in food containers. - Defrost the refrigerating compartment before the ice gets 10 mm thick.
-
Page 28: Troubleshooting
0 o r s w i t c h i n g o ff the fridge switch. Use this switch to make run the compressor for 15 minutes every 1 - 3 hours to keep the box at the normal temperature (+2 / -6 ). The unit must be checked by a Frigoboat Authorized Service.
