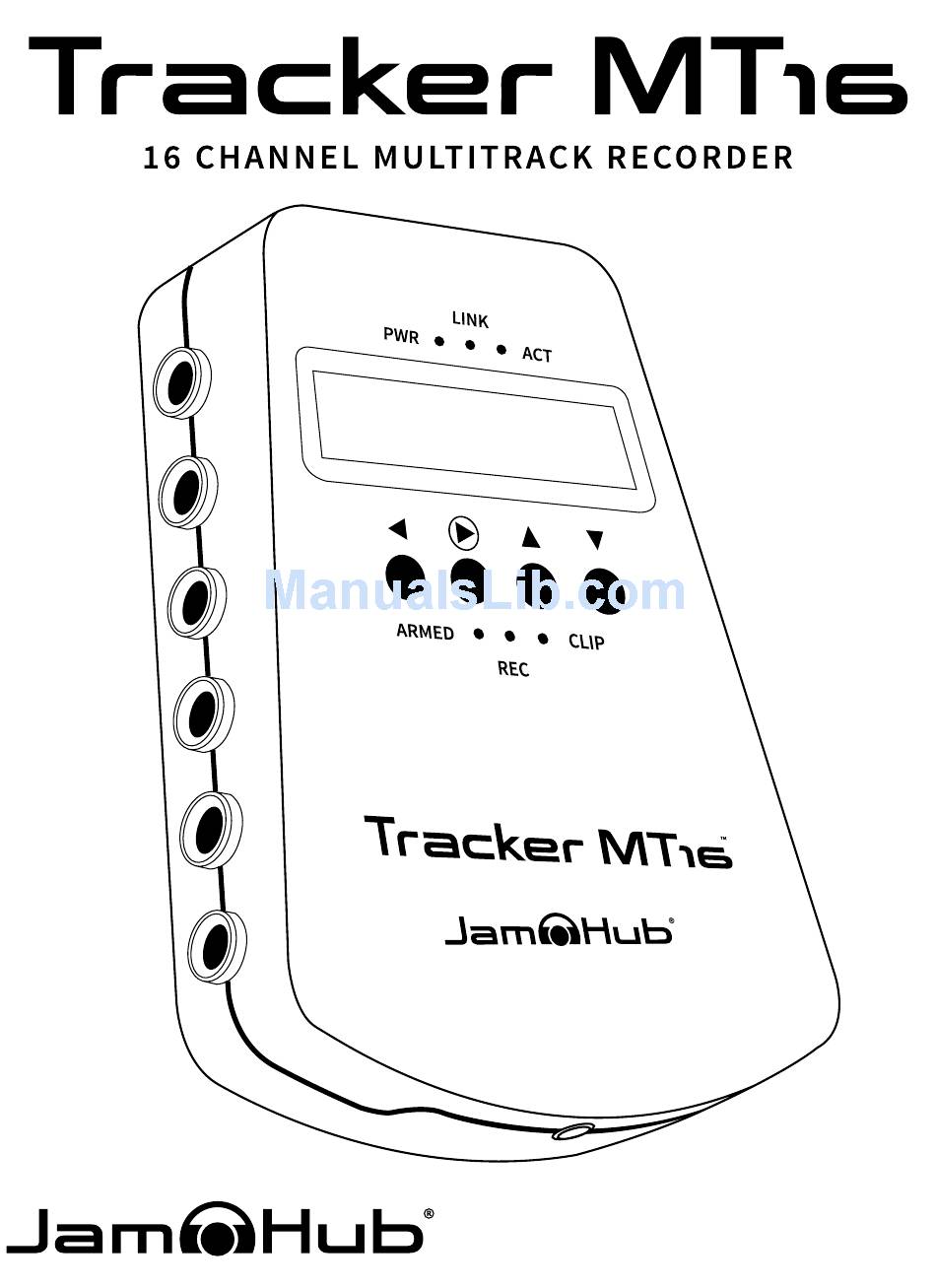

- Page 1 © 2015 JamHub Corp. All Rights Reserved. 1 Research Dr Westborough MA | www.JamHub.com...
-
Page 2: Table Of Contents
SAVE THE MUSIC How Your Tracker MT16 Saves Files Insert Your SD Card Formatting Your SD Card USB Recording © 2015 JamHub Corp. All rights reserved. Product features, specifications, system requirements, and availability are subject to change without notice. Patents Pending. - Page 3 How to Listen to a Recording CONNECTING TO THE WEB How to Set Up Your Wireless Network - WiFi Ethernet 10/100 Megabits Per Second (Mbps) Status STORAGE To Reformat Your SD Card To Update Your Tracker MT16 To Restore Factory Defaults Troubleshooting Warranty...
-
Page 4: Tracker Mt16 Welcome Statement
INTRODUCTION This guide is intended to get you up and recording with your new JamHub Tracker MT16. To get the most out of your experience, please read the full manual thoroughly. Download the most up-to-date version of this manual at www.JamHub.com/support/ tracker. -
Page 5: Fcc Warning
» Consult the dealer or an experienced radio/TV technician for help. Declaration of Conformity JamHub hereby declares that this Tracker MT16™ Multitrack Recorder is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 6: What's In The Box
V DC adapter JamHub Connect Cable Port – to plug your Tracker MT16 directly into your JamHub studio © 2015 JamHub Corp. All rights reserved. Product features, specifications, system requirements, and availability are subject to change without notice. Patents Pending. -
Page 7: Lights
Note: Any single channel will set the clip light off letting you know that a channel is clipping (distorting the sound) before it gets to the Tracker MT16 inputs. Lower the level at the source until the clip light no longer flashes. Buttons 15. -
Page 8: Tracker Mt16 Connections
Plug your Tracker MT16 into the wall using the provided 5V DC Adapter. When your Tracker MT16 is powered on, the PWR light will turn blue and the LCD will display, Initializing, please wait… Your Tracker MT16 is a fully functioning LINUX computer, so it will take a moment to boot up. -
Page 9: Why A Half Insert
Why a Half Insert? Insert Jack signals have 3 components: a Send, a Return, and a Ground. If you fully insert a mono cable, the lack of a Return will cause the signal to ground out. By using the Half Insert technique, you will ensure that only the Send continues through the mixer and you will not shut off the channel strip. -
Page 10: Connecting Your Tracker Mt16 To A Jamhub Studio
Your Tracker MT16 comes with a JamHub Connect cable to connect to any JamHub studio. Simply plug the JamHub Connect cable into the JamHub Connect port on the back of your Tracker MT16, and plug the other side into any of the SoleMix™ remote ports on the back of your JamHub studio. -
Page 11: Save The Music
SAVE THE MUSIC Where Your Tracker MT16 Saves Files The Tracker MT16 can save files onto SD cards, USB sticks, and USB drives. SD cards must be SDHC, as at this time SDHX cards are unsupported, and must be 64GB or smaller. -
Page 12: Recording
Channels are now armed and ready for recording Select Your Channel Mapping Option To ensure that you have the easiest possible file managment, your Tracker MT16 allows you to tell it which devices you are interfacing with while recording. »... -
Page 13: Record Modes - Split Or Combined
Your tracks may be saved as individual .WAV or .MP3 file using SPLIT mode, or all 16-channels can be saved as a COMBINED file which will appear as one saved .BND file. Recording in COMBINED mode reduces the amount of time your Tracker MT16 will need to encode, and is highly recommended. -
Page 14: Audio Formats - Wav Or Mp3
’ indicates the current setting While your Tracker MT16 is armed for recording, the CLIP light will be active, flashing red when incoming signal is too hot and needs to be turned down. Check your sound and levels with your recorder armed. -
Page 15: Monitoring
SD card. Note: Your Tracker MT16 will monitor the space left on your SD card and take the precaution of properly ending your recording when levels drop below a certain threshold to allow for proper encoding. -
Page 16: Reviewing Your Recordings
REVIEWING YOUR RECORDINGS How to Listen to a Recording In your Tracker MT16’s top level menu, you will find PLAY. By entering the PLAY menu you will be able to scroll through any recordings you have made in SPLIT mode and listen to them using the headphone out on your Tracker MT16. -
Page 17: Ethernet 10/100 Megabits Per Second (Mbps)
Ethernet 10/100 Megabits Per Second (Mbps) The Tracker MT16 has a built in high speed Ethernet port to connect to wired network(s) up to 100Mbps which will allow you to easily download software upgrades. To connect your Tracker MT16 via Ethernet: Menu Top »... -
Page 18: Storage
To Reformat Your SD Card In the event that you need to format, or reformat, an SD card in order to make it compatible with your Tracker MT16, you will find the options you need in the Settings menu. »... -
Page 19: Warranty
(a) as a result of accident, misuse, abuse, negligence, or other external cause, (b) by the use of parts not manufactured or sold by JamHub, or (c) by modification or service by anyone other than (i) JamHub, or (ii) a JamHub authorized service provider. - Page 20 Tracker MT16™ — User Guide © 2015 JamHub Corp. All rights reserved. Product features, specifications, system requirements, and availability are subject to change without notice. Patents Pending.
