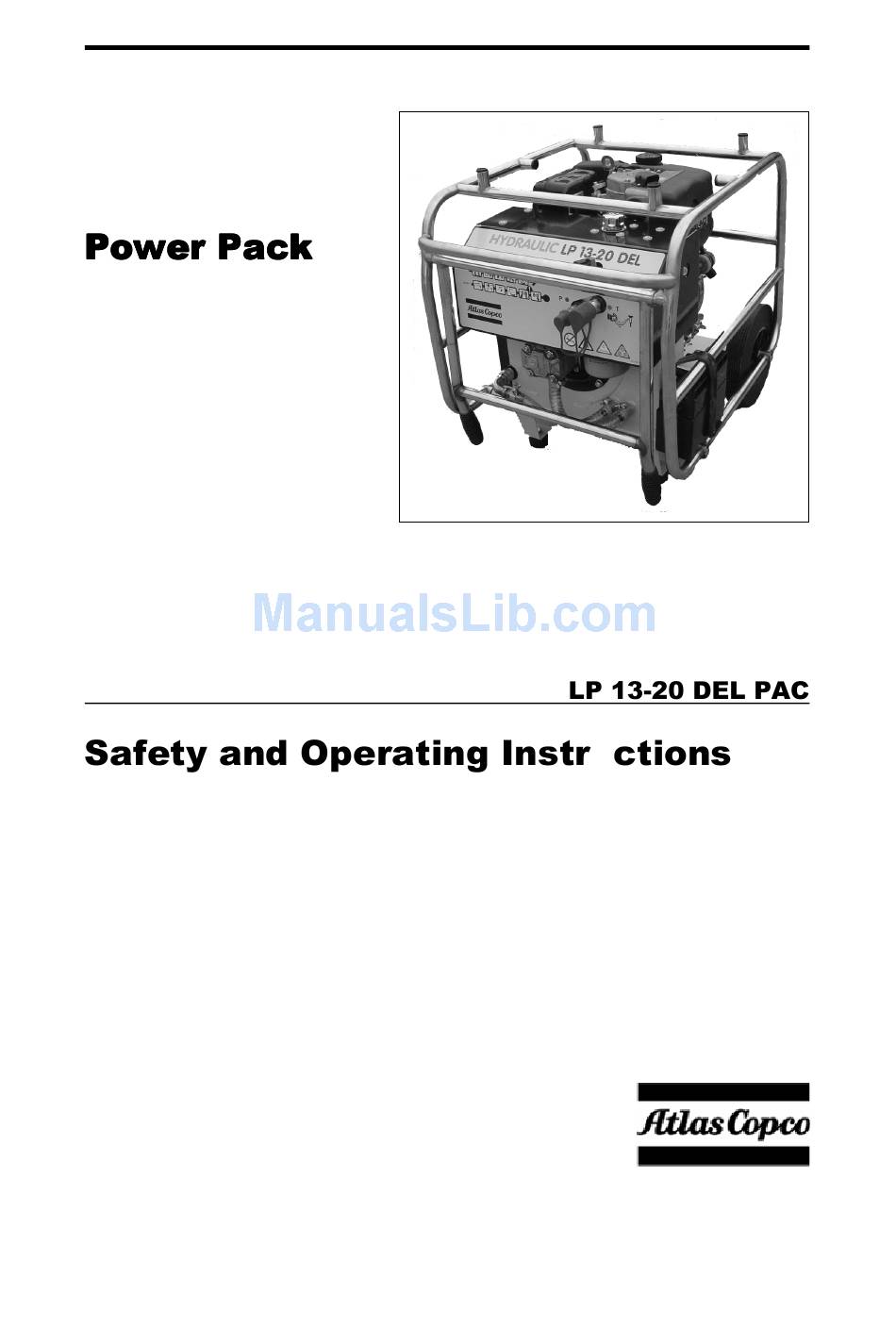

- Page 1 LP 13-20 DEL PAC ATLAS COPCO CONSTRUCTION TOOLS AB 2007-03 NACKA • SWEDEN No. 3392 5146 01 www.atlascopco.com...
- Page 2 1 English !" !" INTRODUCTION ........................2 SAFETY INSTRUCTIONS ......................2 Introduction to safety ....................... 2 Safety symbols used ......................2 General safety rules......................3 Protective equipment......................3 MARKINGS ..........................4 Identification ........................4 CE ............................4 Safety signs on the Power Pack ..................4 GENERAL INFORMATION.......................
-
Page 3: Safety Instructions
• Only use Atlas Copco genuine parts To reduce the risk of serious injury to yourself or others, read these safety instructions before using the Power Pack. Post these safety instructions at work locations, provide copies to em- ployees, and make sure that everyone reads the safety instructions before using the Power Pack. - Page 4 3 English • The Power Pack and accessories must only be used for their purpose • Learn how the Power Pack is switched off in the event of an emergency • Only qualified and trained persons may operate or maintain the Power Pack •...
- Page 5 The Atlas Copco LP 13-20 DEL PAC does not comply with the regulations in the Directive 2000/14/EC with regard to noise. The Atlas Copco LP 13-20 DEL PAC has therefore no CE marking. The Atlas Copco LP 13-20 DEL PAC is therefore not approved for use on the EU market.
- Page 6 5 English Filler cap, fuel Hydraulic pump Filler cap, hydraulic oil Recoil start Sight glass, hydraulic oil level Pressure relief valve Filter condition gauge Foldable handles Hydraulic oil filter By-pass valve Engine oil, dipstick Air filter Starting switch Drain plug Ignition switch OFF and ON Battery Stop lever...
- Page 7 English 6 # " !* ! "#$ " The following checks should be made each time you return to the Power Pack after leaving it for a period of time. All these checks concern the serviceability of the Power Pack. Some concern your safety.
- Page 8 7 English WARNING Set the hydraulic by-pass valve (A) in the OFF position Never use any cold-starting aids Set the engine speed lever (C) in the such as ether, gasoline, paint thin- START position ner or other volatile liquid or gas. Turn the starting key (D) clockwise to the START position Let the engine warm up without load...
- Page 9 English 8 CAUTION When stopping the engine, reduce the load slowly. Do not stop the engine suddenly since it may cause the temperature to rise abnormally. a) Attach the return line b) Attach the feed line c) Rotate the collar on the female coupling to secure the coupling The by-pass valve (F) shall be in the OFF position when starting and in the ON...
- Page 10 Rectify any sure relief valve we recommend using the defects found during regular maintenance Atlas Copco test equipment or similar test before clearing the Power Pack for use. equipment. Part number 3371 8011 54...
- Page 11 English 10 IMPORTANT Every 3 months When the filter gauge needle re- Do the daily jobs mains in the red sector (while the Check tightness of nuts, bolts, engine is running idle and the oil is screws and hose fittings service warm), the filter must be Clean the air cleaner element (see replaced.
- Page 12 11 English "# $3 " !* WARNING Maintenance must be done only by suitably qualified and competent persons. Problem Cause Solution Engine turns over but does No fuel Top up tank not start Fuel line blocked Clear line Fuel filter is taped Change the fuel filter Engine malfunction Refer to engine manual...
- Page 13 English 12 Problem Cause Solution Frothy or creamy coloured Air or water in oil Check for loose connections hydraulic oil on line to pump Make sure that the filler cap on the tank is not loose Check that oil level is at the top of the sight glass Tool runs hot Poor siting of Power Pack...
- Page 14 Association (E.H.T.M.A.) has catego- shown in the spare parts list. rised hydraulic power packs and tools in terms of flow rate and working pressure. Our LP 13-20 DEL PAC is categorised by the E.H.T.M.A. as below: Flow rate, l.p.m. (gal,US) 20 (5) Nominal pressure, bar (psi) 120 (1800) Max.
