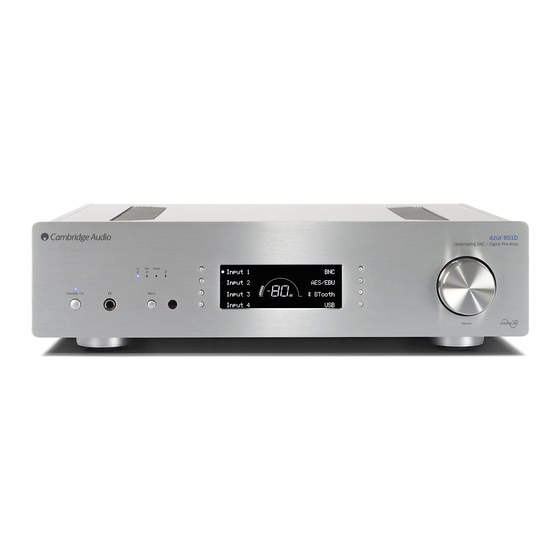

Cambridge Audio azur 851D Quick Start Manual

Cambridge Audio azur 851D Quick Start Manual

Upsampling dac/digital pre-amp
Hide thumbs Also See for azur 851D:
Table of Contents

Advertisement

Quick Links

See also: User Manual

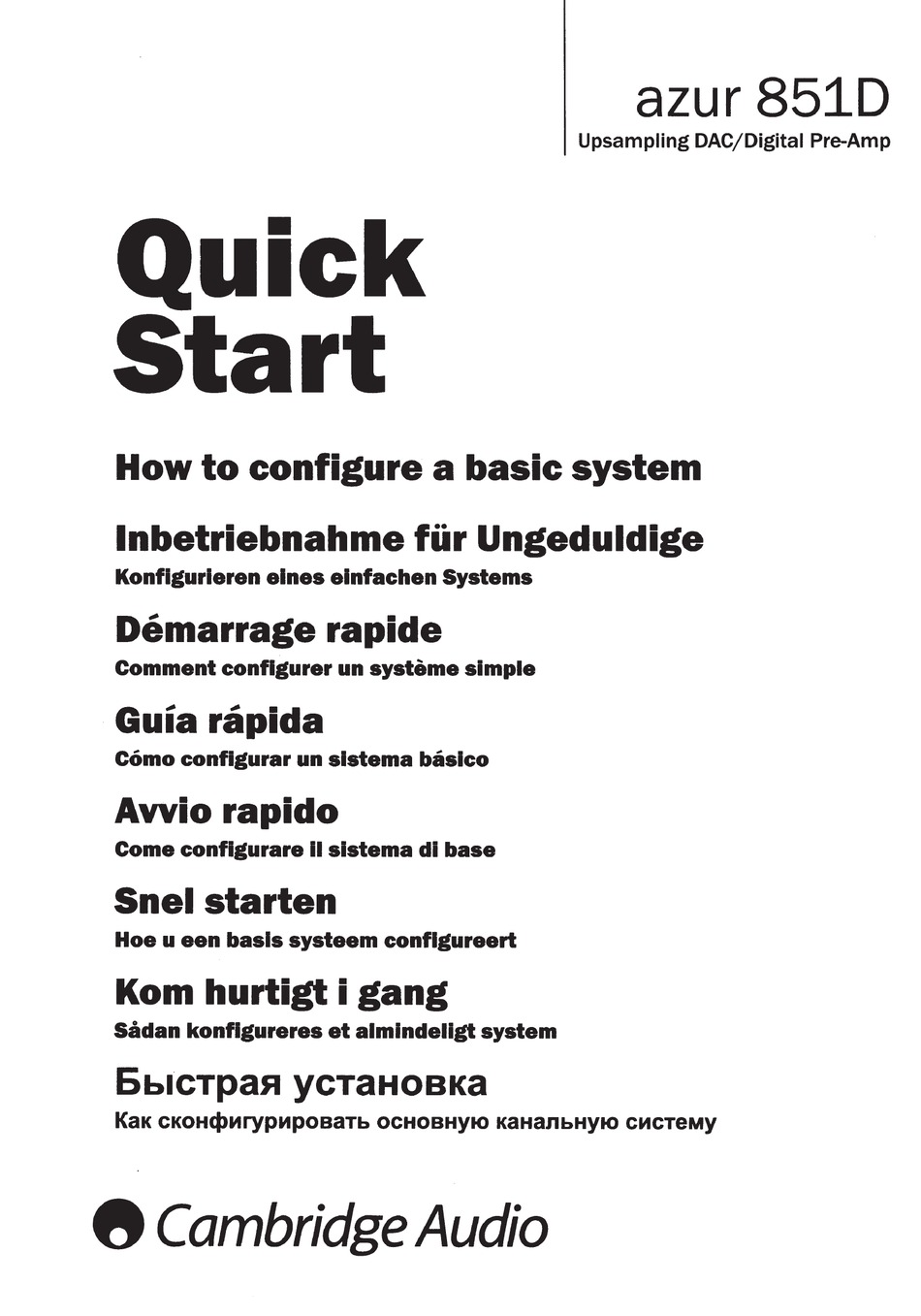

Quick
Start
azur
8510
Upsampling DAC/Digital Pre-Amp
How to configure a basic system
lnbetriebnahme fiir Ungeduldige
Konflgurleren elnes elnfachen Systems
Dimarrage rapide
Comment conflgurer un systeme simple
Guia raipida
Como conflgurar un sistema baslco
Avvio rapido
Come conflgurare II sistema di base
Snel starten
Hoe u een basis systeem conflgureert
Kom hurtigt i gang
Sadan konflgureres et almlndeligt system
5biCTpa.R ycTaHOBKa
KaK
CKOH~MrypMpOB3Tb
OCHOBHYIO KaHanbHYIO CMCTeMy
8
Cambridge Audio

Advertisement

Table of Contents
loading

Related Manuals for Cambridge Audio azur 851D

Summary of Contents for Cambridge Audio azur 851D

  • Page 5 Upsampling DAC/Digital Pre-Amp User's manual azur 851D Your music + our passion...

  • Page 6: Table Of Contents

    Please ensure there is ample ventilation. We recommend that you do however, Cambridge Audio's policy is one of continuous not place the unit in an enclosed space; if you wish to place the unit on a shelf, use the top shelf to allow maximum ventilation.
  • Page 7 Environmentally-friendly design of Energy-related Products (2009/125/ The unit should be operated only from the type of power source indicated manual. For continued compliance only Cambridge Audio accessories should be used with this product and servicing must be referred to on the marking label. If you are not sure of the type of power-supply to your home, consult your product dealer or local power company.

  • Page 8: Limited Warranty

    Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in...

  • Page 9: Rear Panel Connections

    RS232C Note: audio performance. install use. A full command set is available on the Cambridge Audio website at www.cambridge-audio.com. This port can also be used by Always turn the Volume to minimum, switch to another Cambridge Audio service personnel for software updates.

  • Page 10: Rear Panel Connections Cont

    The 851D features balanced outputs on two XLR sockets. Balanced A conventional RCA phono stereo output for connection to the line-level outputs provide slightly better audio performance and can reject cable- borne noise and interference when used with equipment with balanced cable intended for analogue audio signals.

  • Page 11: Remote Control

    851D Remote control The 851D is supplied with a Cambridge Audio upsampling DAC/digital pre-amp and Cambridge Insert the supplied AAA batteries to activate. The functions relevant to the 851D are as follows: Press the relevant button to play or pause a track.

  • Page 12: Source Connections

    Source connections When designing our products we include features that allow you to connect your system in various ways. The inclusion of these features Note: Unbalanced connection can also be used, if preferred. requirements. Input 1 of the 851D, which is in turn connected to the 851A via the Unbalanced ouput.
  • Page 13 Control Bus is the recommended method when using the 851D and The diagrams below shows the 851D in Pre-Amp mode, connected to other Cambridge Audio equipment with Control Bus In/Out. section of the manual. Note: When connecting to an 851W, Unbalanced connection can also be Trigger Out can be useful if the 851D is desired to control other used, if preferred.

  • Page 14: Operating Instructions

    Operating instructions The 851D has a custom-made display on the front of the unit that shows However in some Windows/Mac operating system variants the operating the current status and allows you to access the system settings menu. Here you can adjust the listening settings to your personal preference. audio.
  • Page 15 azur 851D The 851D can optionally be used as a digital pre-amp and connected directly to a suitable power-amp. systems. It may be desirable to disable the front panel IR by setting Front To ensure that the Pre-Amp mode is selected, press the Menu button then select the Pre-Amp item.

  • Page 16: Bluetooth

    Bluetooth Filters The 851D is supplied with a BT100 Bluetooth adaptor. This allows the 851D to receive wireless Bluetooth audio from suitable phones/tablets and laptops. tablet or laptop with the BT100. Note: 2. Put the BT100 in pairing mode by pressing and holding the Bluetooth button on the remote control for 4-5 seconds, or by double pressing source.
  • Page 17 azur 851D Impulse response Frequency response -100 -120 -140 Note: -160 -180 material: -200 Linear Phase Minimum Phase Roll-off at -0.1dB -0.1dB -2dB 20kHz offers even lower ripple in the pass and stop bands. Unlike the Linear Roll-off at -10dB -10dB -82dB 22kHz...

  • Page 18: Troubleshooting

    “Mute on” command will be generated. If the button is kept held down information on getting the most out of your 851D, please visit the for a further 12 seconds, a “Mute off” command is generated. Cambridge Audio website: www.cambridge-audio.com For all servicing, in or out of warranty, please contact your dealer.
  • Page 19 azur 851D All measurements are for 24-bit signals via the digital inputs so as not 115 x 430 x 360 mm to be source material limited unless stated. Dual Analog Devices AD1955 24-bit DACs 8W approx Analog Devices Black Fin <0.5W Weight performing 2nd Generation ATF2...
  • Page 20 Cambridge Audio is a brand of Audio Partnership Plc Registered in England No. 2953313 www.cambridge-audio.com © 2013 Cambridge Audio Ltd...
