disperator 8075-E Service Instruction

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

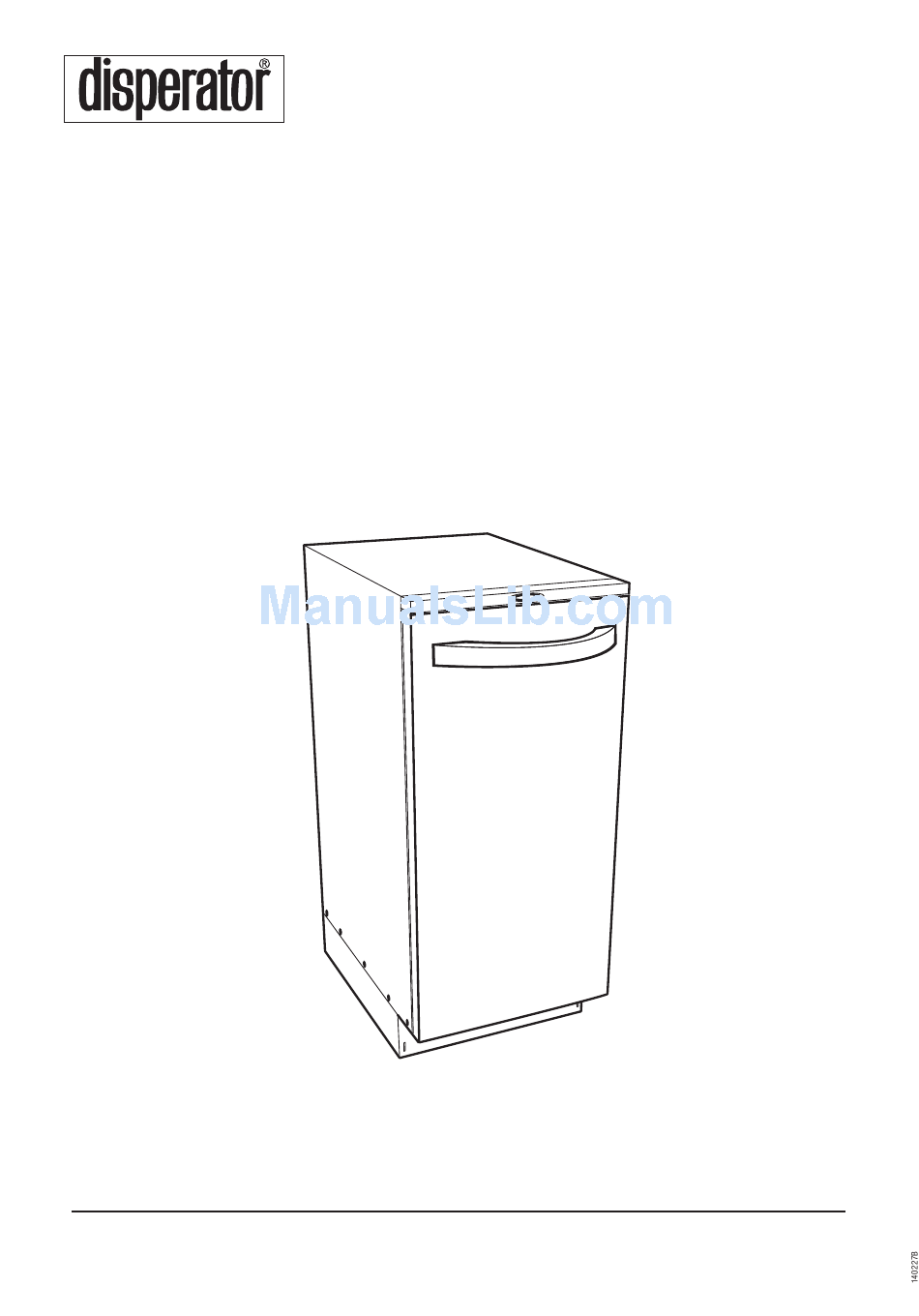

service instruction
for
trash Compactor Model 8075-e
Motor 220-240V, 50/60Hz
Disperator aB Mälarvägen 9, se-141 71 segeltorp, sWeDeN
Ref: Serv-8075/Eng/140301
tel: +46 8 724 01 60, Fax: +46 8 724 60 70
e-mail: info@disperator.se, Web page: www.disperator.se
